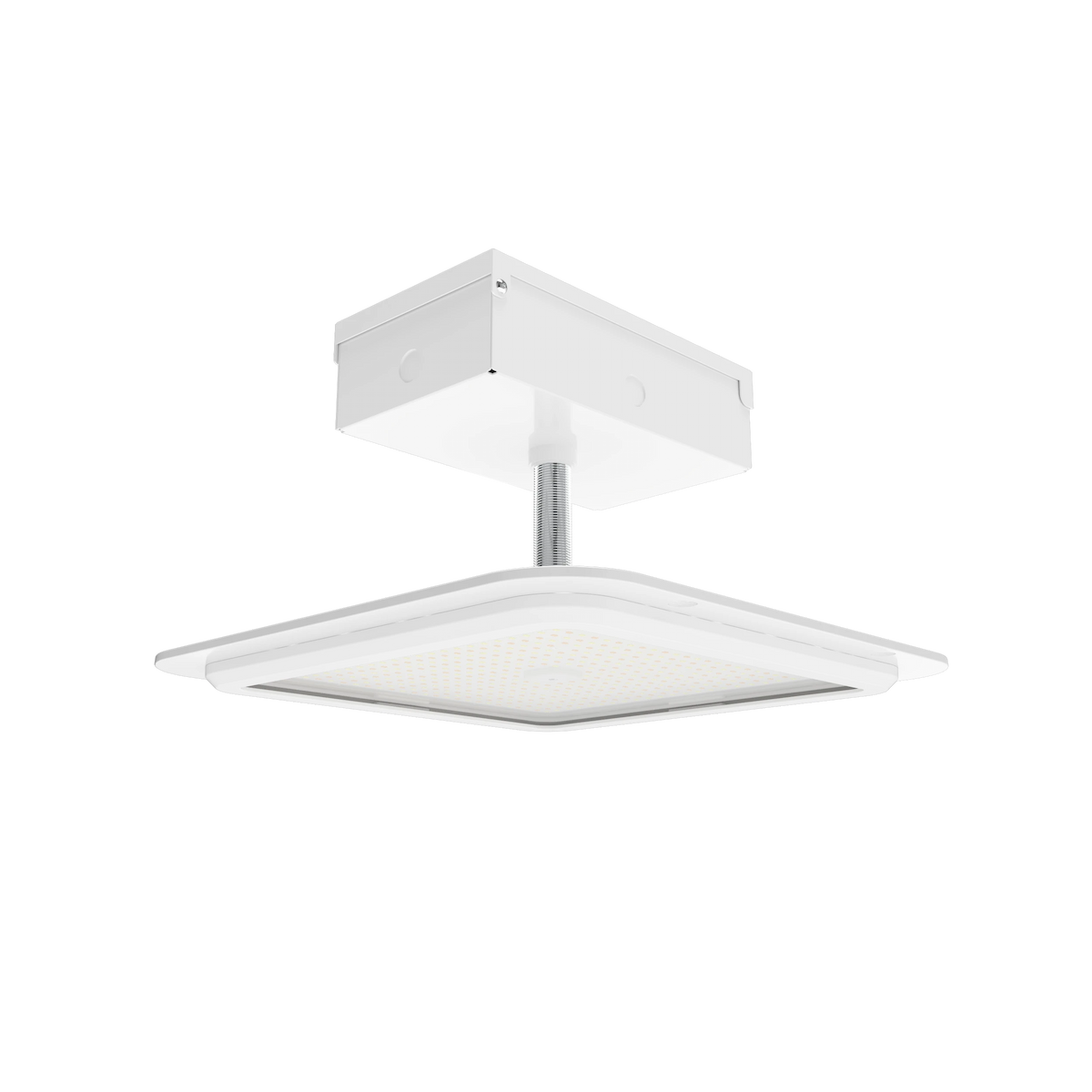

150W Selectable RAB MASI16 LED Canopy Light
150W Selectable RAB MASI16 LED Canopy Light
150W Selectable RAB MASI16 LED Canopy Light
150W Selectable RAB MASI16 LED Canopy Light
Engineered for fuel pump canopies and high-output commercial sites, this premium LED canopy light delivers up to 23,635 lumens with field-selectable wattage, semi-recessed mounting, and a 100,000-hour lifespan.
- Up to 23,635 lumens at up to 168 lm/W
- Field-selectable wattage and color temperature
- Rugged die-cast aluminum and tempered glass construction
Need More? Text/call (858) 650-9400
Engineered for fuel pump canopies and high-output commercial sites, this premium LED canopy light delivers up to 23,635 lumens with field-selectable wattage, semi-recessed mounting, and a 100,000-hour lifespan.
- Up to 23,635 lumens at up to 168 lm/W
- Field-selectable wattage and color temperature
- Rugged die-cast aluminum and tempered glass construction
Choose options
Details
The RAB MASI16 is a premium field-adjustable LED canopy light engineered for high fuel pump canopies and other applications that require high output and long-term reliability.
- Delivers up to 23,442 lumens at standard voltage with efficacy up to 168 lm/W.
- Wattage (100/120/150W) and CCT (3000K/4000K/5000K) are both field-selectable — one product covers canopies of different heights.
- Die-cast aluminum housing with IP65 seal to withstand the elements.
- 100,000-hour LED lifespan for long service life.
- Need high voltage (480V)? Call 215-355-7200.
Backed by RAB's 5-year no-compromise warranty and available through ELEDLights with competitive pricing on every order.
Specs
| Wattage(s) | 100/120/150W (150W default) |
| Replaces Wattage(s) | 450W |
| Light Output |
MASI16: 15,468-23,442 lumens MASI16/480: 16,284-23,635 lumens MASI16 @4000K: 100W: 16,462 lumens 150W: 19,389 lumens 150W: 23,442 lumens MASI16/480 @4000K: 100W: 17,520 lumens 120W: 19,723 lumens 150W: 23,635 lumens |
| Luminous Efficacy (lm/W) |
MASI16: 142-168lm/W MASI16/480 (call for availability): 147-170lm/W |
| Average Lamp Life | L70: 100,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K (4000K default) |
| CRI (Color Accuracy) | 81–83 |
| Dimming | 0-10V dimming |
| Dimming Range | 0-10V continuous |
| Lens Cover | Tempered glass lens |

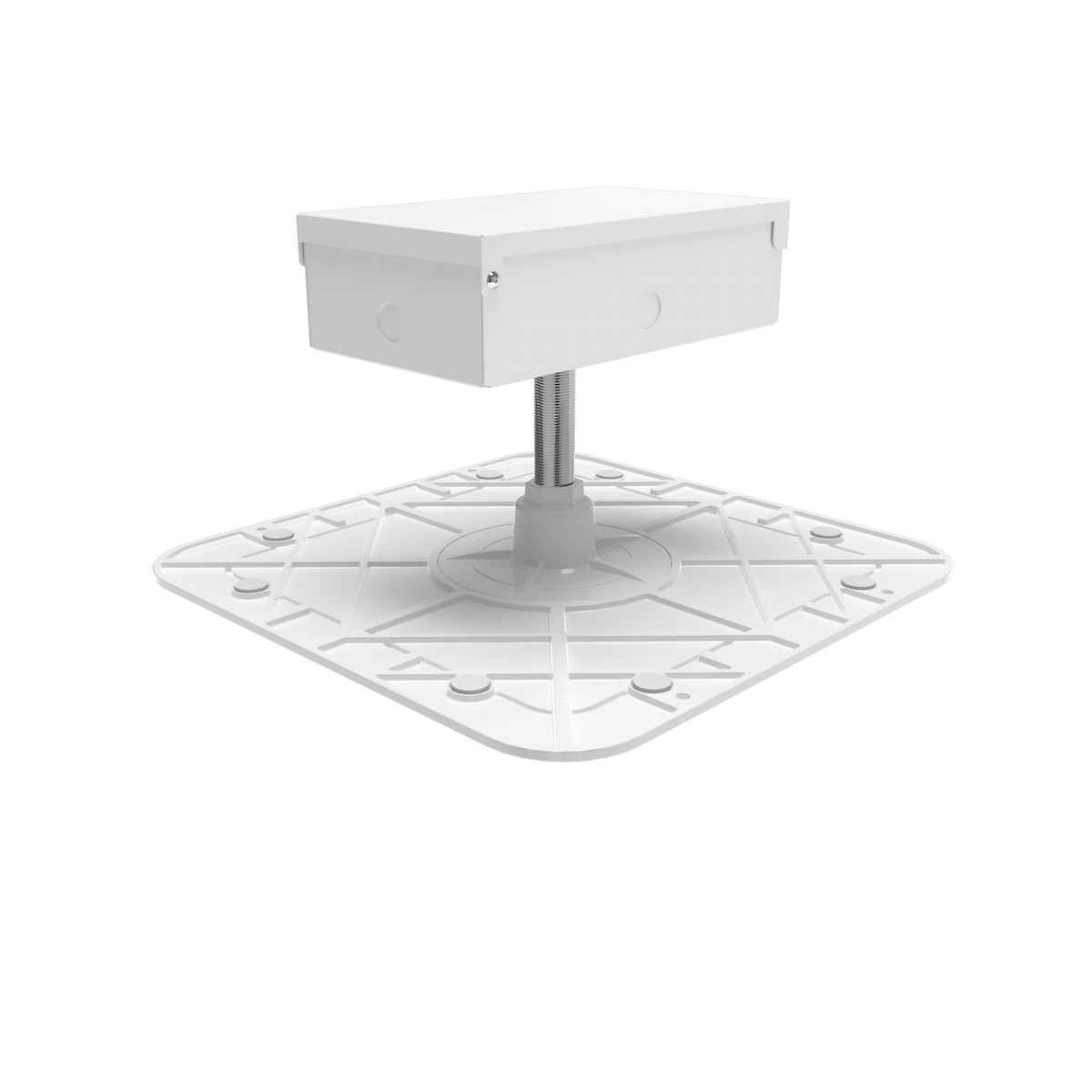

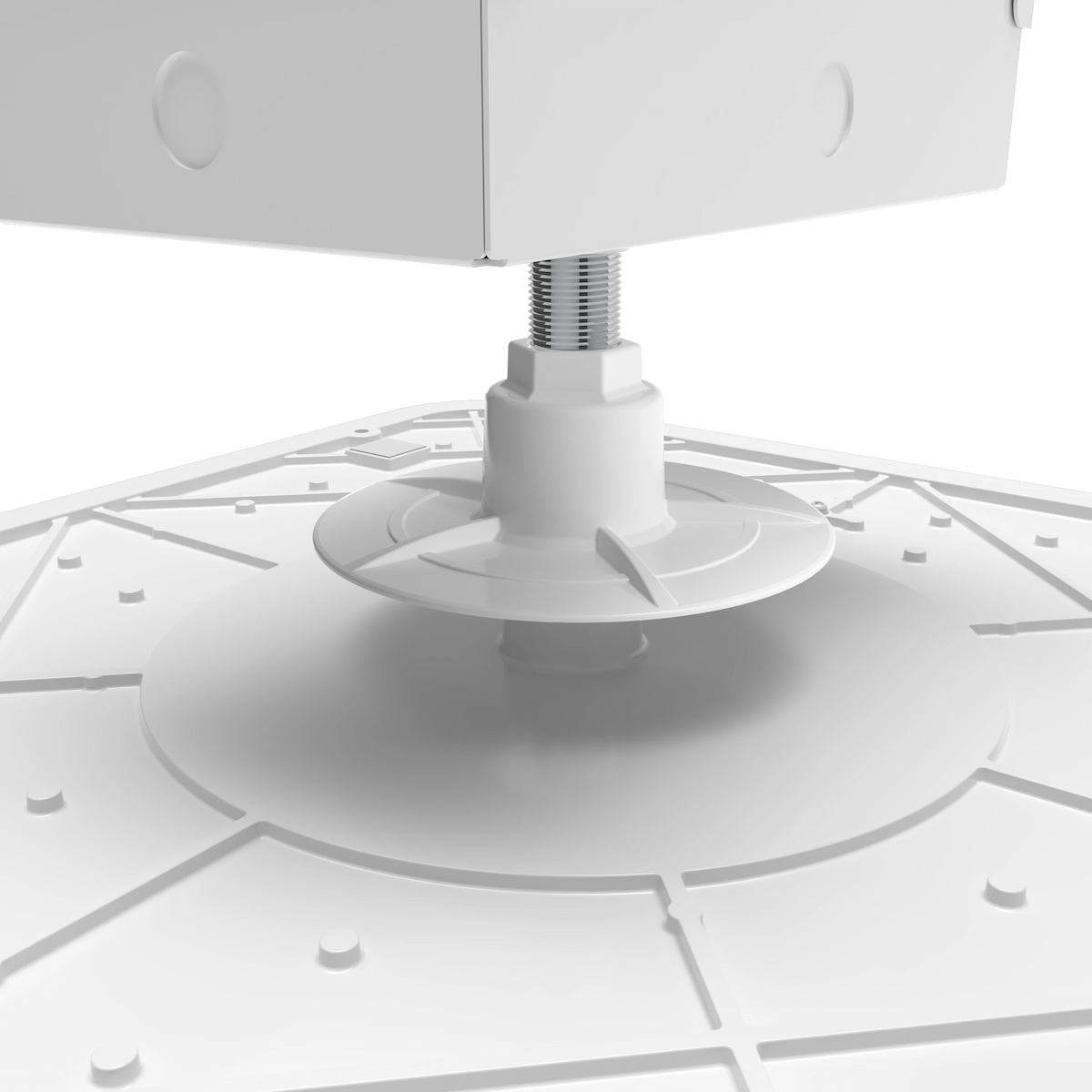

| Installation | Surface Mount (Semi-Recessed) |
| Enclosure Rating | IP65 (fixture only, driver excluded) |
| Input Voltage | 120-277VAC |
| Driver Type | Constant Current (CC) |
| Power Factor | 99.9% at 120VAC, 95.8% at 277VAC, 94.8% at 480VAC |
| THD (Total Harmonic Distortion) | 4.4% at 120VAC; 7.1% at 277VAC; 5.6% at 480VAC |
| Surge Protection | L-N: 6kV; L/N-PE: 6kV |
| Temperature Rating | -40°C to +40°C (-40°F to +104°F) |
| Housing Material | Die-cast aluminum housing; high-temperature silicone gasketing; powder coat finish |
| Housing Color | White |

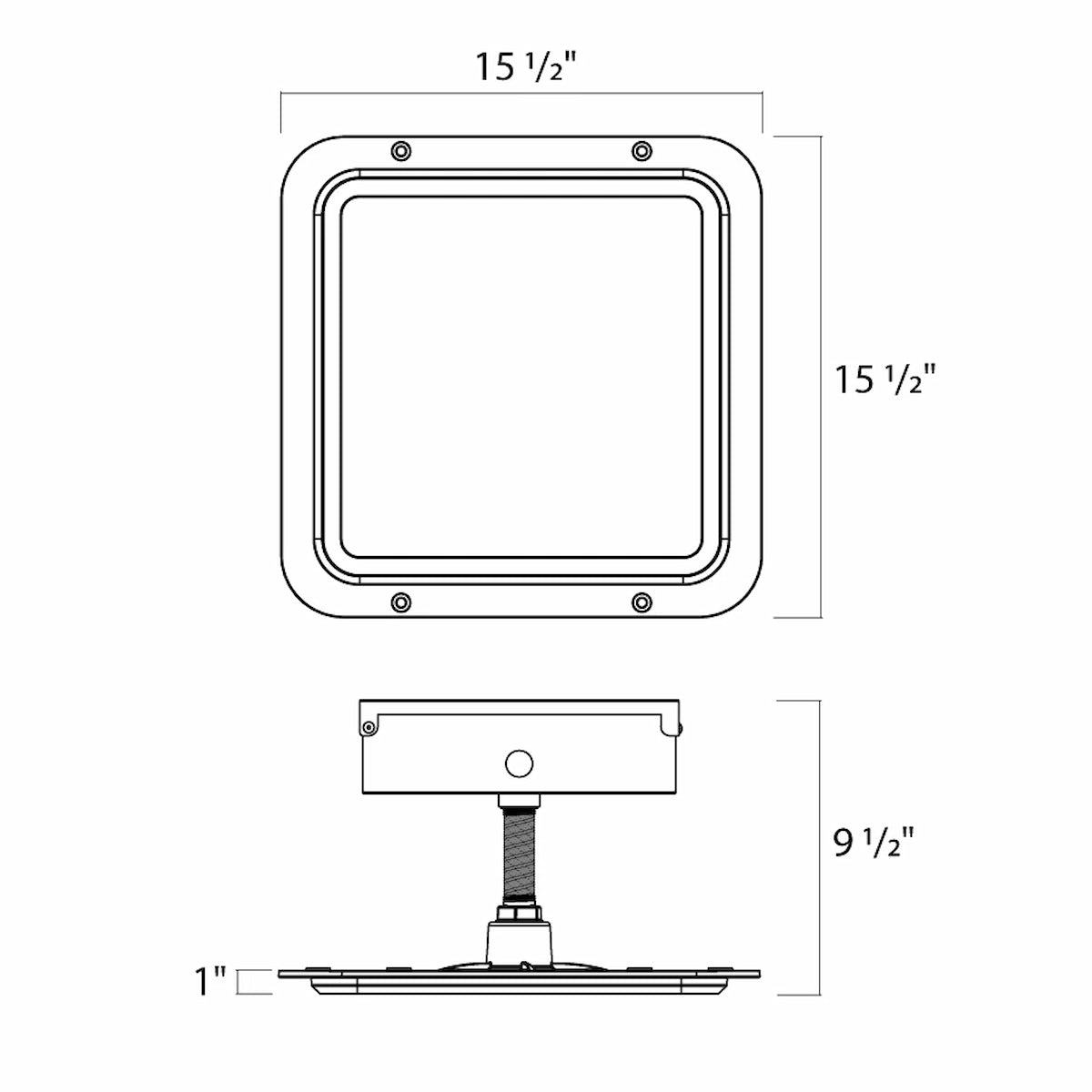

| Dimensions | 15.5" x 15.5" x 9.5" |
| Weight | 16.0 lbs |
| Shipping Weight | 18 lbs |
| Certification | DLC, UL Wet Location |
| DLC ID(s) |
MASI16: S-17M4YD MASI116/480: S-6X9LQ5 |
| Warranty | 5 Years |
Data Sheet
IES FileCompare Key Features
Compare
150W Selectable RAB MASI16 LED Canopy Light
|
200W Selectable RAB MASI20 LED Canopy Light
|
|
|---|---|---|
| Wattage | 100/120/150W (150W default) | 150W/180W/200W (200W default) |
| Equivalent to | 450W | 600W |
| Light Output | MASI16: 15,468-23,442 lumens MASI16/480: 16,284-23,635 lumens MASI16 @4000K: 100W: 16,462 lumens 150W: 19,389 lumens 150W: 23,442 lumens MASI16/480 @4000K: 100W: 17,520 lumens 120W: 19,723 lumens 150W: 23,635 lumens |
MASI20: 23,260-31,640 lumens MASI20/480: 23,341-32,522 lumens MASI20 @4000K: 150W: 24,821 lumens 180W: 28,995 lumens 200W: 31,640 lumens MASI20/480 @4000K: 150W: 24,850 lumens 180W: 29,336 lumens 200W: 32,522 lumens |
| Color Temperature (CCT) | 3000K/4000K/5000K (4000K default) | 3000K/4000K/5000K (4000K default) |
| Warranty | 5 Years | 5 Years |
|
$459.95
|
$499.95
View Details
|
