100W Selectable RAB KAI LED Cobra Head Area & Street Light
100W Selectable RAB KAI LED Cobra Head Area & Street Light
100W Selectable RAB KAI LED Cobra Head Area & Street Light
100W Selectable RAB KAI LED Cobra Head Area & Street Light
Built to own the road, the RAB KAI is a field-selectable street and area light for local roads, parking lots, and commercial corridors typically at mounting heights of 20'–30'. It mounts to most existing and new poles without adapters, with a housing tested for coastal and extreme conditions.
- Selectable wattage (60/80/100W) and color temp (3000/4000/5000K) to match your site
- Quick install on most existing and new poles (1"–2 3/8") without adapters
- Weather and impact certified (IP66, IK08, 3,000-hr salt spray, 3G vibration)
Built to own the road, the RAB KAI is a field-selectable street and area light for local roads, parking lots, and commercial corridors typically at mounting heights of 20'–30'. It mounts to most existing and new poles without adapters, with a housing tested for coastal and extreme conditions.
- Selectable wattage (60/80/100W) and color temp (3000/4000/5000K) to match your site
- Quick install on most existing and new poles (1"–2 3/8") without adapters
- Weather and impact certified (IP66, IK08, 3,000-hr salt spray, 3G vibration)
Choose options
Specs
| Wattage(s) | 60W/80W/100W Selectable (100W default) |
| Replaces Wattage(s) | 320W HID |
| Light Output |
At 3000K: 9,228 lm / 11,876 lm / 13,875 lm At 4000K: 9,994 lm / 12,927 lm / 15,179 lm At 5000K: 9,856 lm / 12,722 lm / 14,938 lm |
| Luminous Efficacy (lm/W) |
At 3000K: 151.3 lm/W / 145.4 lm/W / 140.2 lm/W At 4000K: 169.1 lm/W / 164.5 lm/W / 160.3 lm/W At 5000K: 162.4 lm/W / 156.5 lm/W / 151.7 lm/W |
| Average Lamp Life | L70: 100,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K Selectable (4000K default) |
| CRI (Color Accuracy) | 83–84 |
| Dimming | Yes |
| Dimming Range | 10–100% (0-10V) |
| Light Distribution Pattern |
Type III
Learn More
×
Light Distribution OptionsType III Beam  Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles. Type IV Beam  Provides forward directed light with minimal backlighting - great for perimeter installations. Type V Beam  Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations. |
| Lens Cover | Clear polycarbonate lens |
| Installation | Pole Mount |
| EPA (Effective Projected Area) | 0.37 |
| Enclosure Rating | IP66, IK08, 3G Vibration, 3000-hr salt spray test |
| Light Type | LED |
| Input Voltage | 120–277V, 50/60 Hz |
| Driver Type | Constant Current, Class 1, 0-10V dimming |
| Power Factor | 99.6% @ 120V / 95.6% @ 277V |
| THD (Total Harmonic Distortion) | 7.0% @ 120V / 10.8% @ 277V |
| Surge Protection | 10kV |
| Temperature Rating | -40°C to 40°C (-40°F to 104°F) |
| Housing Material | Die-cast aluminum housing and mounting arm |
| Housing Color | Bronze / Roadway Gray (variant-dependent) |
| Dimensions | 19 1/8" L × 8 5/8" W × 3 1/4" H |
| Weight | 6.5 lbs |
| Shipping Weight | 8.0 lbs |
| Certification | DLC, UL Listed |
| DLC ID(s) | S-TGZXZ1 |
| Warranty | 10-year limited (covers light output, driver performance, and paint finish) |
Data Sheet
IES FileDetails
The RAB KAI replaces aging 320W HID and HPS street and area lights on local roads, parking lots, and commercial corridors — field-configurable at the pole and built to perform in the harshest conditions with minimal maintenance for years to come.
- One SKU, Three Power Levels: Field-select 60W, 80W, or 100W at the pole — no need to stock multiple fixtures for different zones or projects.
- Three Selectable Color Temperatures: Dial in 3000K, 4000K, or 5000K on-site to meet project specs or match existing installation requirements.

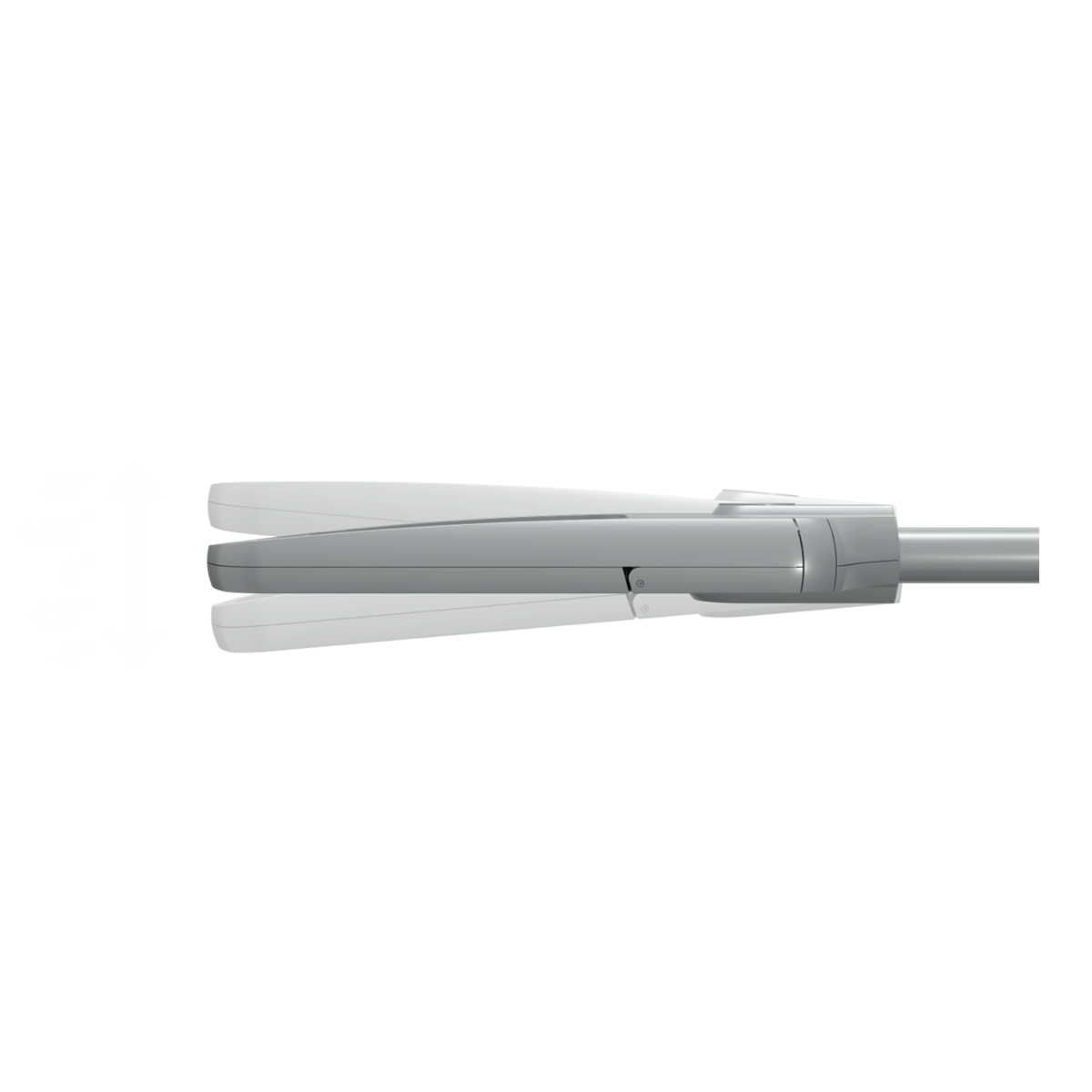

- Fits Virtually Any Pole with No Additional Cost: Five tilt positions (-5° to +5°) and arm compatibility from 1" to 2 3/8" mean installation is straightforward on most existing and new pole configurations — no adapters or custom hardware needed.
- Built for Tough Environments: IP66 waterproofing, IK08 impact resistance, 3G vibration rating, and 3,000-hour salt spray certification make this fixture a reliable choice for coastal, northern, and high-traffic installations.
- Significant Energy Savings: Delivers up to 15,179 lumens at 160 lm/W — approximately 69% more efficient than the 320W HID fixtures it replaces.
- DLC Standard Listed: Qualifies for utility rebates that can significantly reduce net project cost — use the rebate finder at eledlights.com to check your local incentives.
- 10-Year Warranty: RAB's industry-leading coverage includes light output, driver performance, and paint finish — purchased through ELEDLights as an authorized RAB dealer.
