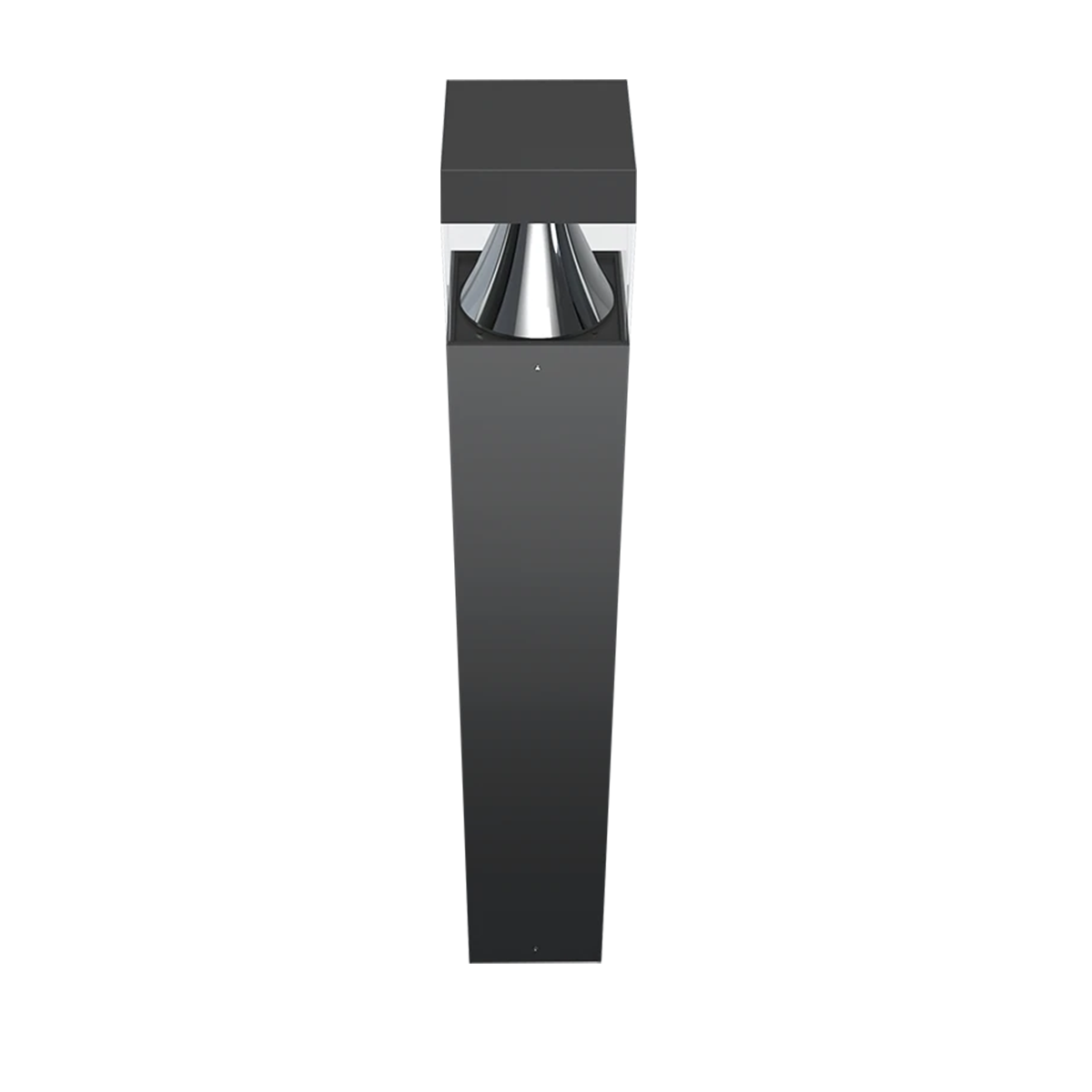

This square LED bollard with flat top delivers field-adjustable wattage and color temperature in a modern geometric design built for demanding outdoor environments—great for walkways, campuses, and commercial properties.
- Selectable wattage and CCT
- Automatic dusk-to-dawn operation
- Durable and water-tight aluminum housing
Need More? Let's Talk Text (858) 650-9400 or Request Quote
This square LED bollard with flat top delivers field-adjustable wattage and color temperature in a modern geometric design built for demanding outdoor environments—great for walkways, campuses, and commercial properties.
- Selectable wattage and CCT
- Automatic dusk-to-dawn operation
- Durable and water-tight aluminum housing
Choose options
Details
Durable Bollard with LED Light for Walkways, Landscapes, and Security Lighting
- Customizable on-site lighting – Selectable wattages and color temperatures let installers tailor light levels and visual appearance to each project, reducing inventory needs and ensuring optimal results.
- Durable, commercial-grade build – A rugged die-cast aluminum housing, impact-resistant lens, and wet-location rating provide long-lasting reliability in demanding outdoor environments.
- Energy-efficient with integrated controls – High-efficiency LED performance, 0–10V dimming capability, DLC-listed energy savings, and a built-in photocell help lower operating costs and simplify systemwide lighting control.

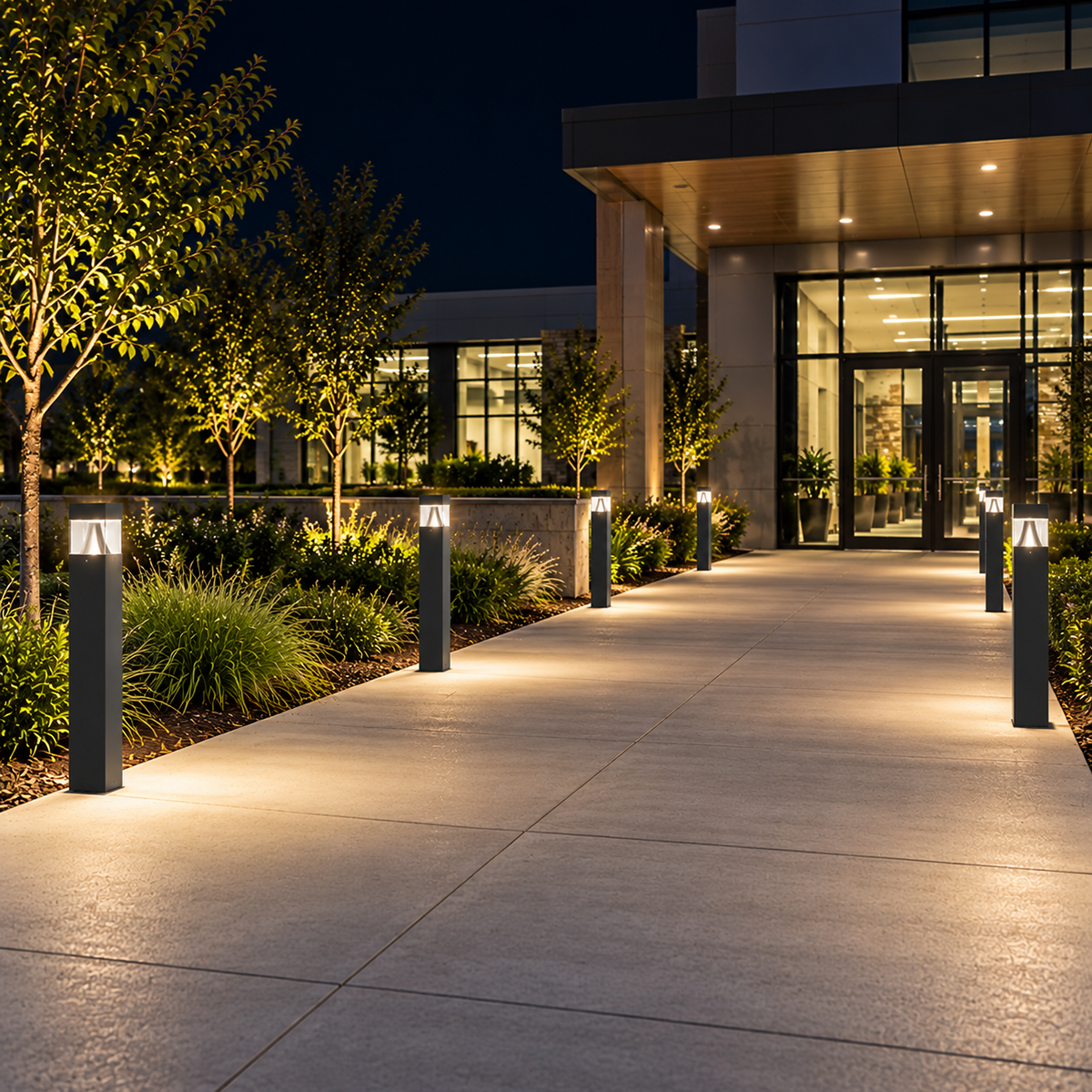

Use cases: Lighting for pedestrian walkways, campuses, and business parks • Landscape and architectural accent lighting for offices, retail centers, and hospitality properties • Perimeter, pathway, and security lighting for commercial facilities and managed properties
Specs
| Wattage(s) | 14W/19W/24W |
| Replaces Wattage(s) | 45W/60W/75W |
| Light Output | 1,725-3,120 lumens |
| Luminous Efficacy (lm/W) | 130-141.3 lm/W |
| Average Lamp Life | 50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Color Temperature(s) | 3000K/4000K/5000K |
| CRI (Color Accuracy) | 72-75 CRI |
| Dimming | Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| Installation | 4 (three) anchors included for use with new concrete. For all other applications use anchors suitable for the mounting surface. Internal base doesn't have leveling screws. |
| Enclosure Rating | IP65 |
| LED Type | Long-life, high-efficiency, surface-mount LEDs |
| Input Voltage | 120-277VAC |
| Power Factor | 99.3% at 120V, 95.5% at 277V |
| THD (Total Harmonic Distortion) | 4.89% at 120V, 9.32% at 277V |
| Surge Protection | 4 kV |
| Temperature Rating | -40°F (-40°C) to 113°F (45°C) |
| Housing Material | Die-cast aluminum with polycarbonate lens and an aluminum reflector |
| Housing Color | Bronze |
| Certification | Ul Listed, DLC Premium |
| DLC ID(s) | S-L2IZOA |
| Warranty | RAB 5-Year Limited Warranty |
| Additional Specifications | Integrated photocell included with on/off switch |
