Designed for walkways, plazas, and landscaped areas, this 14–24W round LED bollard with domed top delivers over 3,400 lumens with field-adjustable wattage and CCT for easy on-site configuration.
- Selectable wattage and CCT
- Automatic dusk-to-dawn operation
- Durable and water-tight aluminum housing
Bulk Pricing: Text (858) 650-9400 or Request Quote
Designed for walkways, plazas, and landscaped areas, this 14–24W round LED bollard with domed top delivers over 3,400 lumens with field-adjustable wattage and CCT for easy on-site configuration.
- Selectable wattage and CCT
- Automatic dusk-to-dawn operation
- Durable and water-tight aluminum housing
Choose options
Details
LED Bollard Provides Flexible Pathway & Landscape Lighting

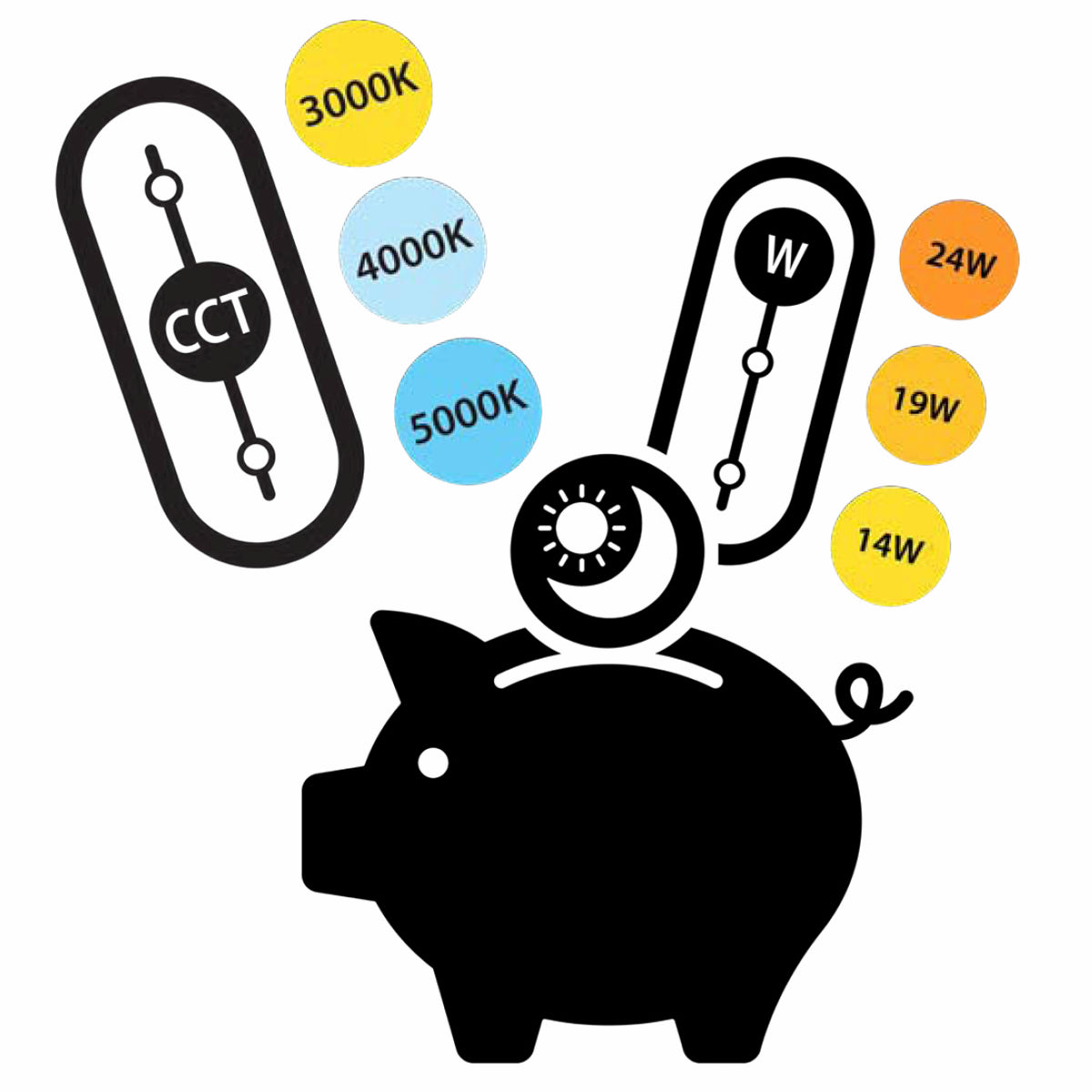

- Field-adjustable performance – Choose between multiple wattage levels and color temperatures on the job to match site-specific lighting needs, reducing guesswork and SKU counts
- Durable outdoor construction – Rugged die-cast aluminum housing, polycarbonate lens, and wet-location rating deliver long service life and dependable performance in commercial environments.
- Energy-efficient with built-in control – High-efficacy LEDs, DLC Premium listing for utility rebate eligibility, integrated photocell, and 0-10V dimming support help cut operating costs while giving you precise control.

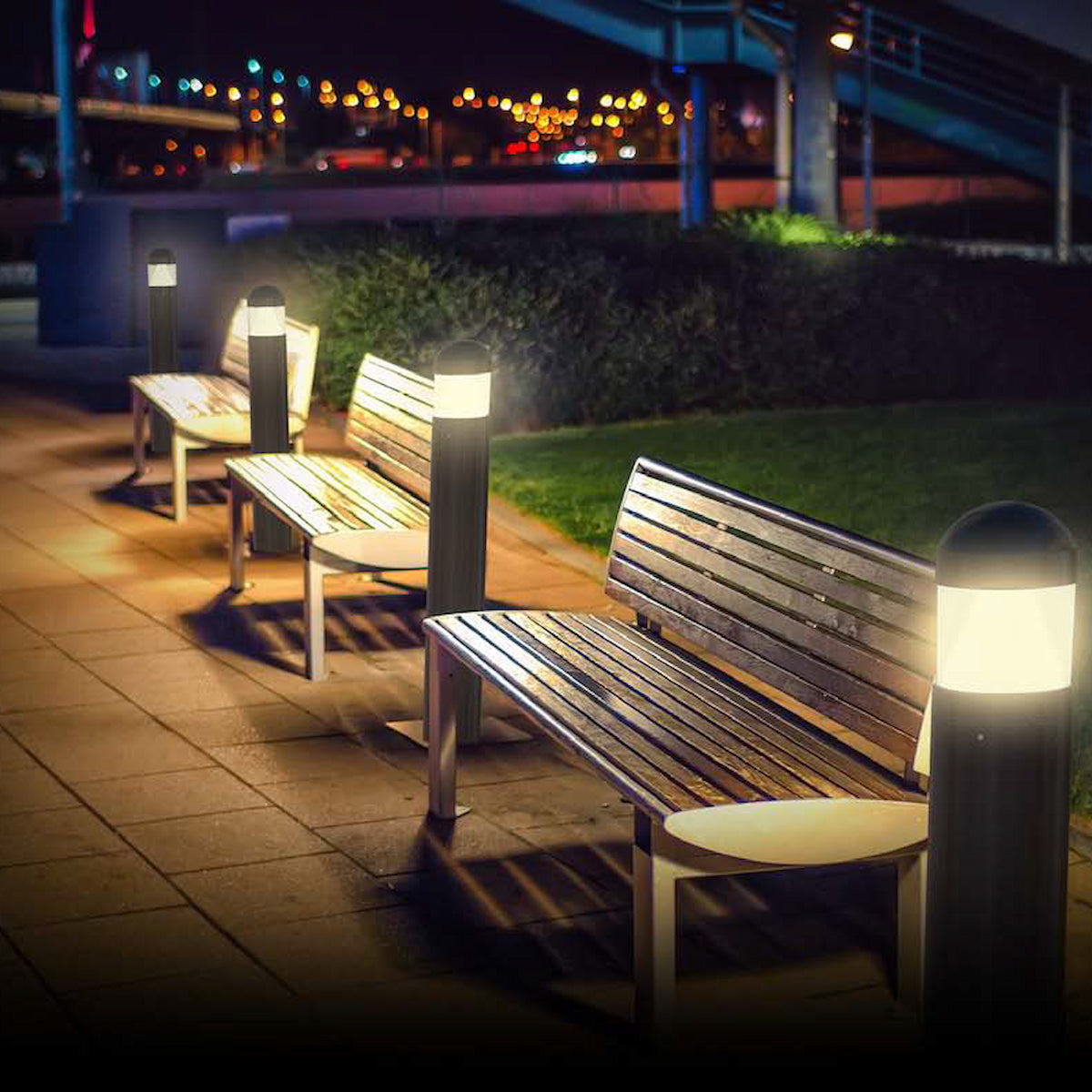

Use cases: Illuminating walkways, parking lot perimeters, plazas, and campus paths for safer, more inviting outdoor spaces • Enhancing landscaped areas with consistent, tailored light output that complements architectural elements • Upgrading property or facility lighting with an easy-to-install, low-maintenance LED solution
Specs
| Wattage(s) | 14W/19W/24W |
| Replaces Wattage(s) | 45W/60W/75W |
| Light Output | 1,959-3,409 lumens |
| Luminous Efficacy (lm/W) | 143.9-156.1 lm/W |
| Average Lamp Life | 50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Color Temperature(s) | 3000K/4000K/5000K |
| CRI (Color Accuracy) | 72-75 CRI |
| Dimming | Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| Installation | 3 (three) anchors included for use with new concrete. For all other applications use anchors suitable for the mounting surface. Internal base doesn't have leveling screws. |
| Enclosure Rating | IP65 |
| LED Type | Long-life, high-efficiency, surface-mount LEDs |
| Input Voltage | 120-277VAC |
| Power Factor | 99.3% at 120V, 95.5% at 277V |
| THD (Total Harmonic Distortion) | 4.89% at 120V, 9.32% at 277V |
| Surge Protection | 4 kV |
| Temperature Rating | -40°F (-40°C) to 113°F (45°C) |
| Housing Material | Die-cast aluminum with polycarbonate lens and an aluminum reflector |
| Housing Color | Bronze |
| Certification | Ul Listed, DLC Premium |
| DLC ID(s) | S-VXGT3F |
| Warranty | RAB 5-Year Limited Warranty |
| Additional Specifications | Integrated photocell included with on/off switch |
