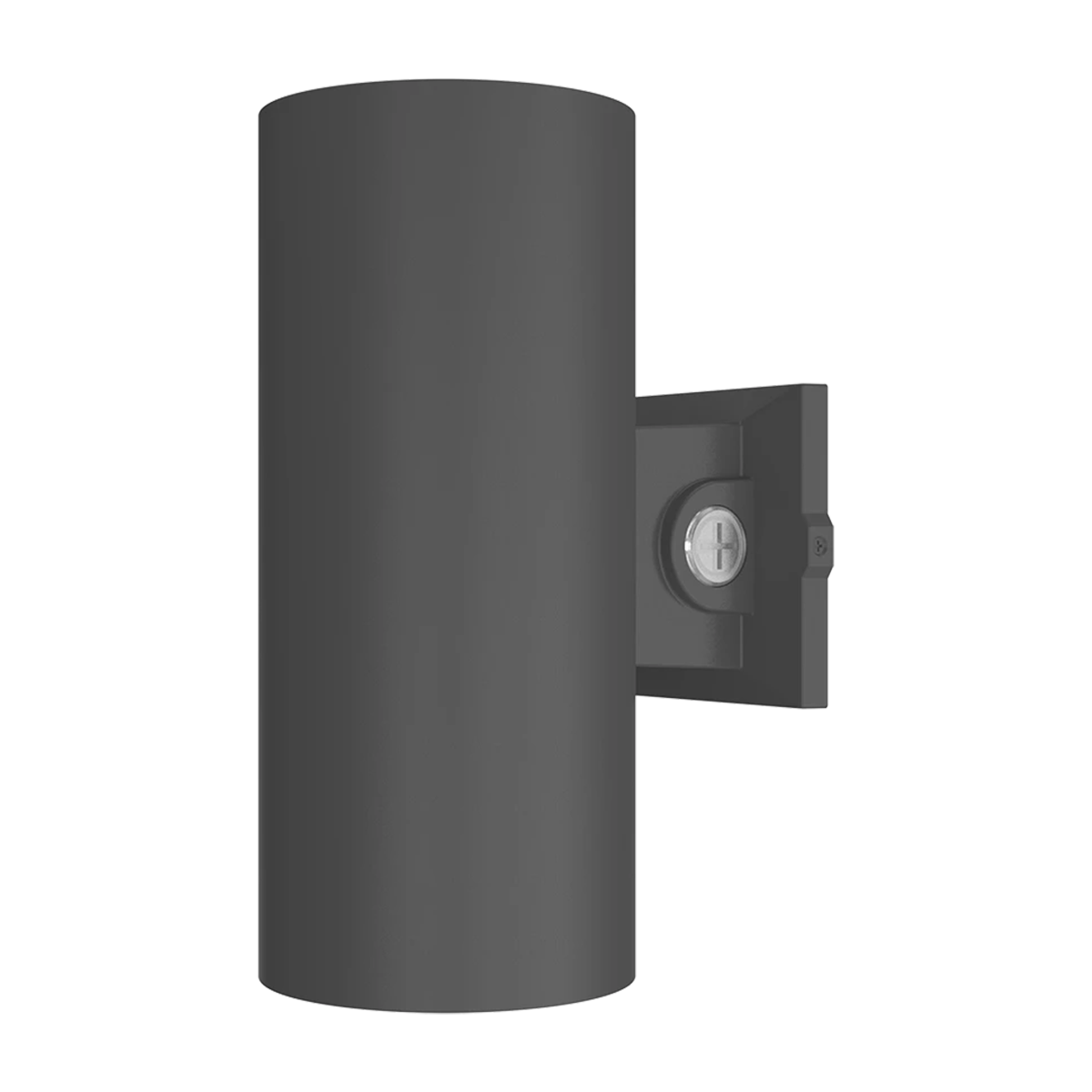

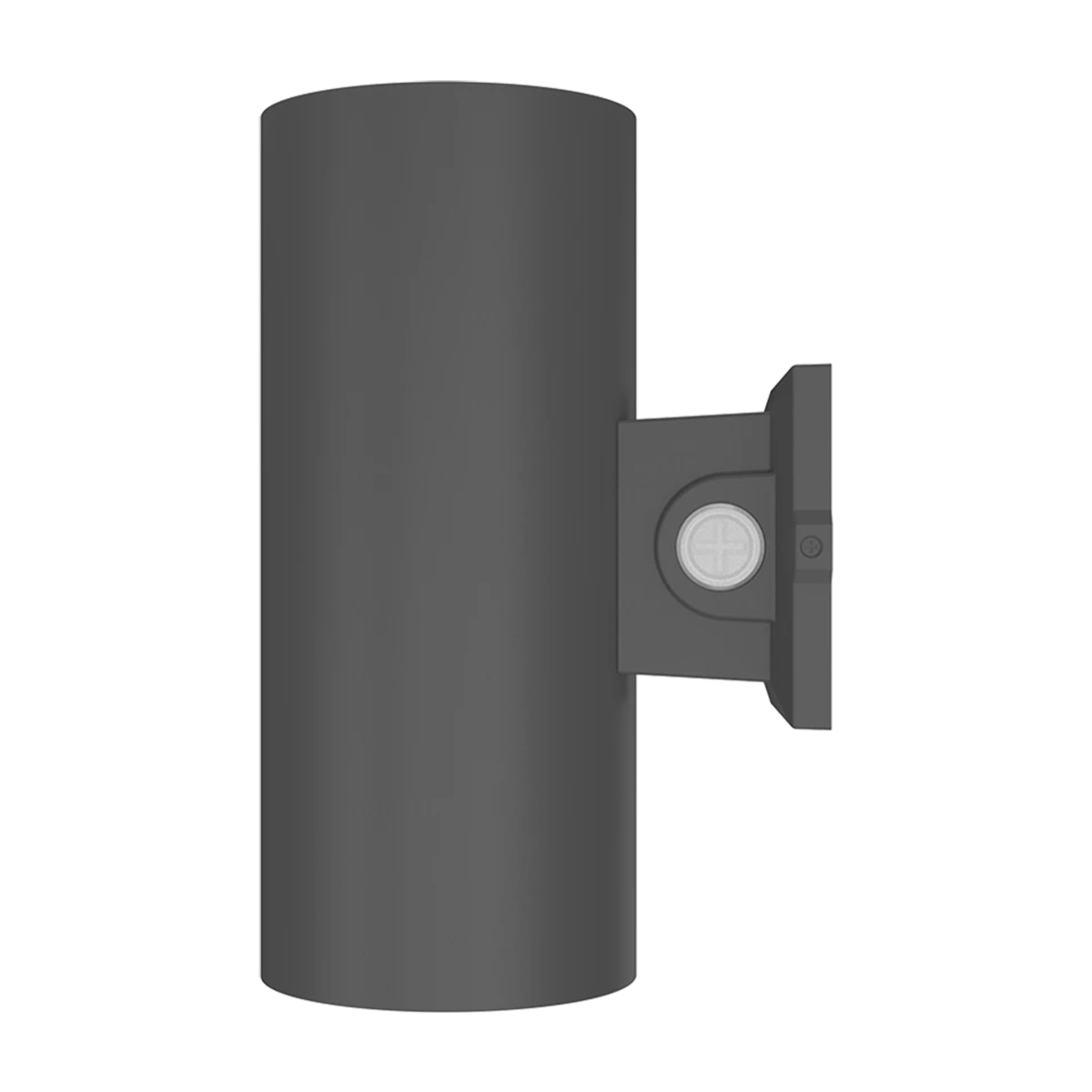

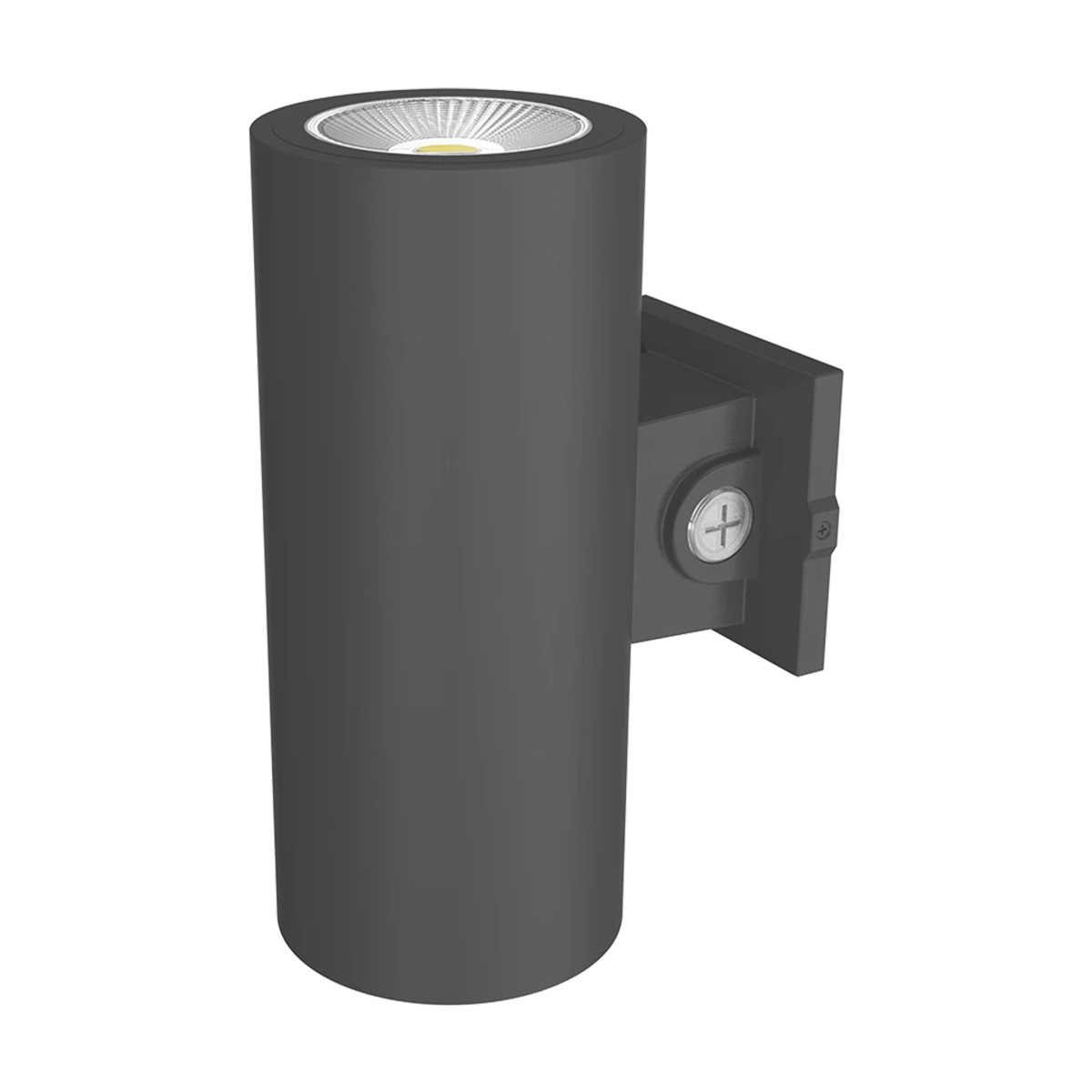

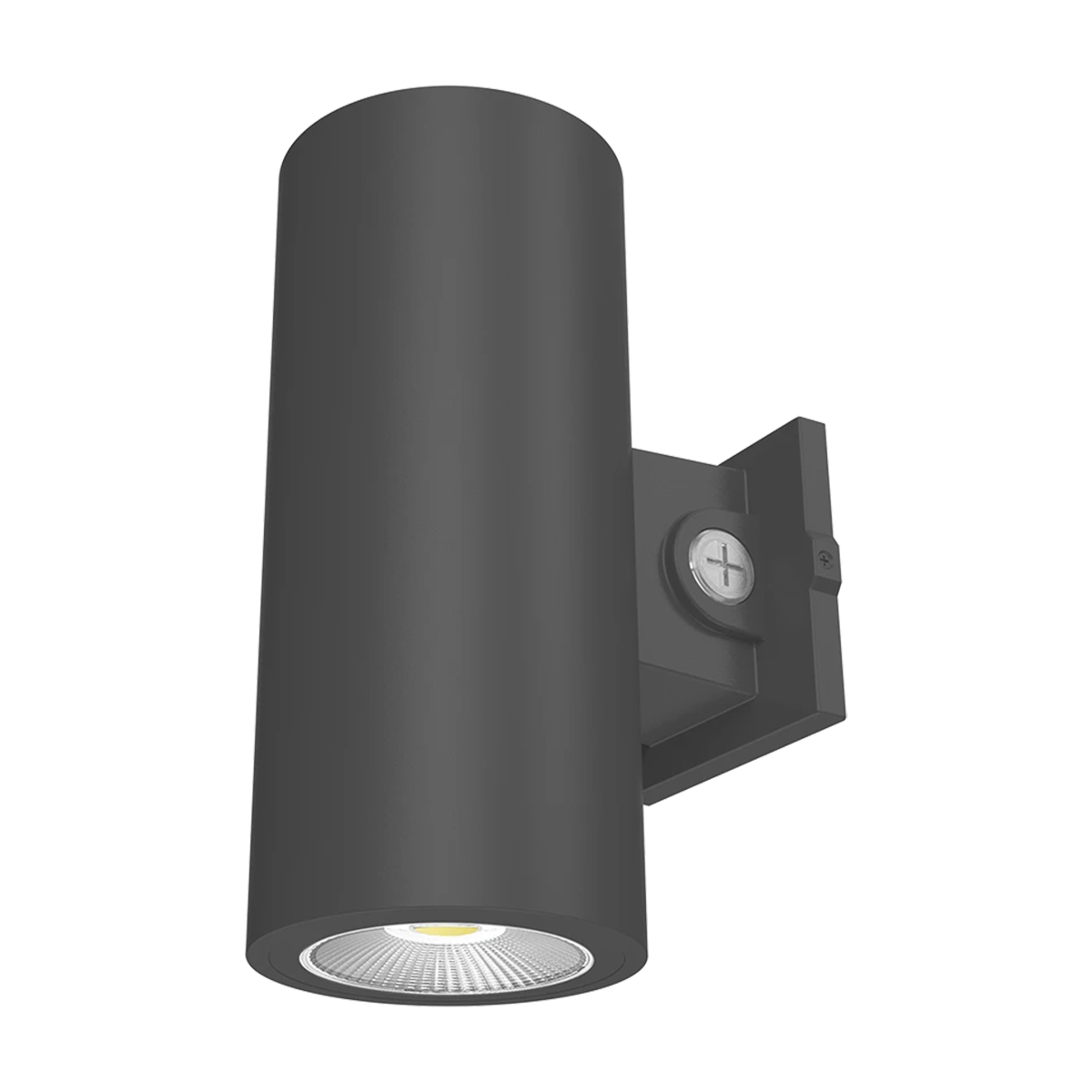

36W Selectable RAB CD34 6" Wall Sconce Cylinder Light - Bronze







36W Selectable RAB CD34 6" Wall Sconce Cylinder Light - Bronze







36W Selectable RAB CD34 6" Wall Sconce Cylinder Light - Bronze
36W Selectable RAB CD34 6" Wall Sconce Cylinder Light - Bronze

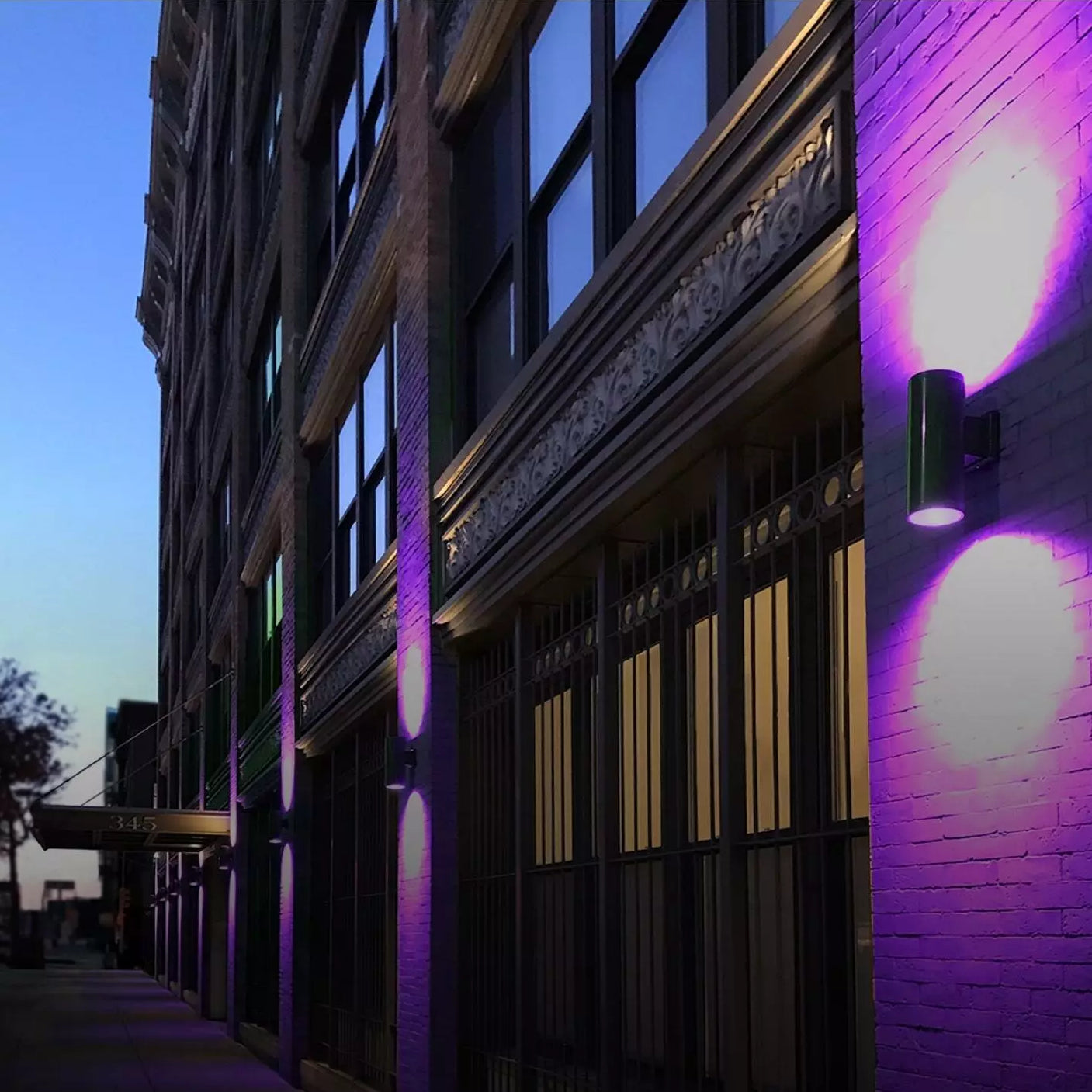

Engineered for large building facades, expansive entries, and architectural accent lighting, this bronze 22–36W 6" cylinder sconce delivers up to 3,300 lumens with selectable wattage, CCT, and beam angle.
- Interior or exterior applications
- Up, down, or up/down lighting options
- Great for wall accents & feature lighting
Need More? Text/call (858) 650-9400
Engineered for large building facades, expansive entries, and architectural accent lighting, this bronze 22–36W 6" cylinder sconce delivers up to 3,300 lumens with selectable wattage, CCT, and beam angle.
- Interior or exterior applications
- Up, down, or up/down lighting options
- Great for wall accents & feature lighting
Choose options
Details
Bronze Elegance With Professional Performance for Interior and Exterior Installations
- High-capacity 36/28/22W LED system generates up to 3300 lumens—delivers 65% more illumination than 4" cylinders for large-scale commercial buildings, expansive facades, and applications requiring maximum wall-mounted light output

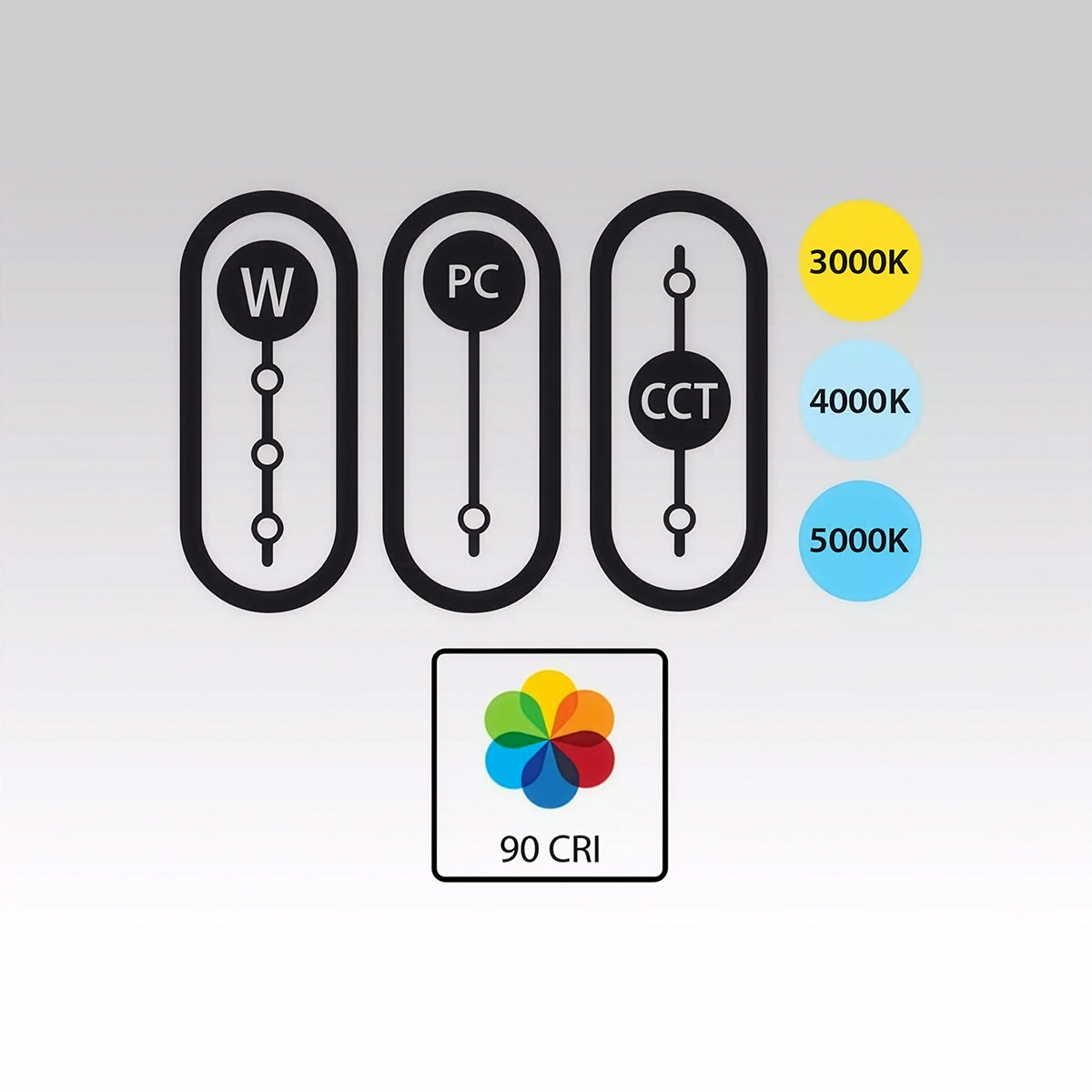

- On-site color temperature adjustment (3000K/4000K/5000K) prevents specification errors—change CCT in the field to harmonize with existing installations, match interior lighting, or accommodate last-minute design changes without costly fixture returns
- Field-swappable optics offer application-optimized beam patterns: 25° narrow for uplighting columns and architectural details, 40° medium for standard facade lighting, or 60° wide (factory standard) for broad security illumination and comprehensive wall coverage
- Selectable light distribution (up, down, or up/down) controlled by internal dip switch enables uplight for building emphasis, downlight for safety and wayfinding, or simultaneous bidirectional output for sophisticated texture-revealing architectural grazing—adapt to any lighting design vision
- Exceptional 90 CRI output reveals true colors of brick, stone, wood, metal panels, plantings, and signage—essential for upscale retail, luxury hospitality, and historic buildings where authentic material appearance and color accuracy drive aesthetic appeal and property value
- Factory-integrated photocell with manual override capability provides fully automated dusk-to-dawn control—eliminates the need for external photocells, reduces installation costs, and guarantees lights operate only during darkness for optimal energy efficiency
- IP65 weatherproof construction withstands harsh outdoor environments including driving rain, heavy snow, coastal conditions, and airborne dust while remaining appropriate for indoor parking garages, interior corridors, and covered walkways—versatile specification for mixed applications

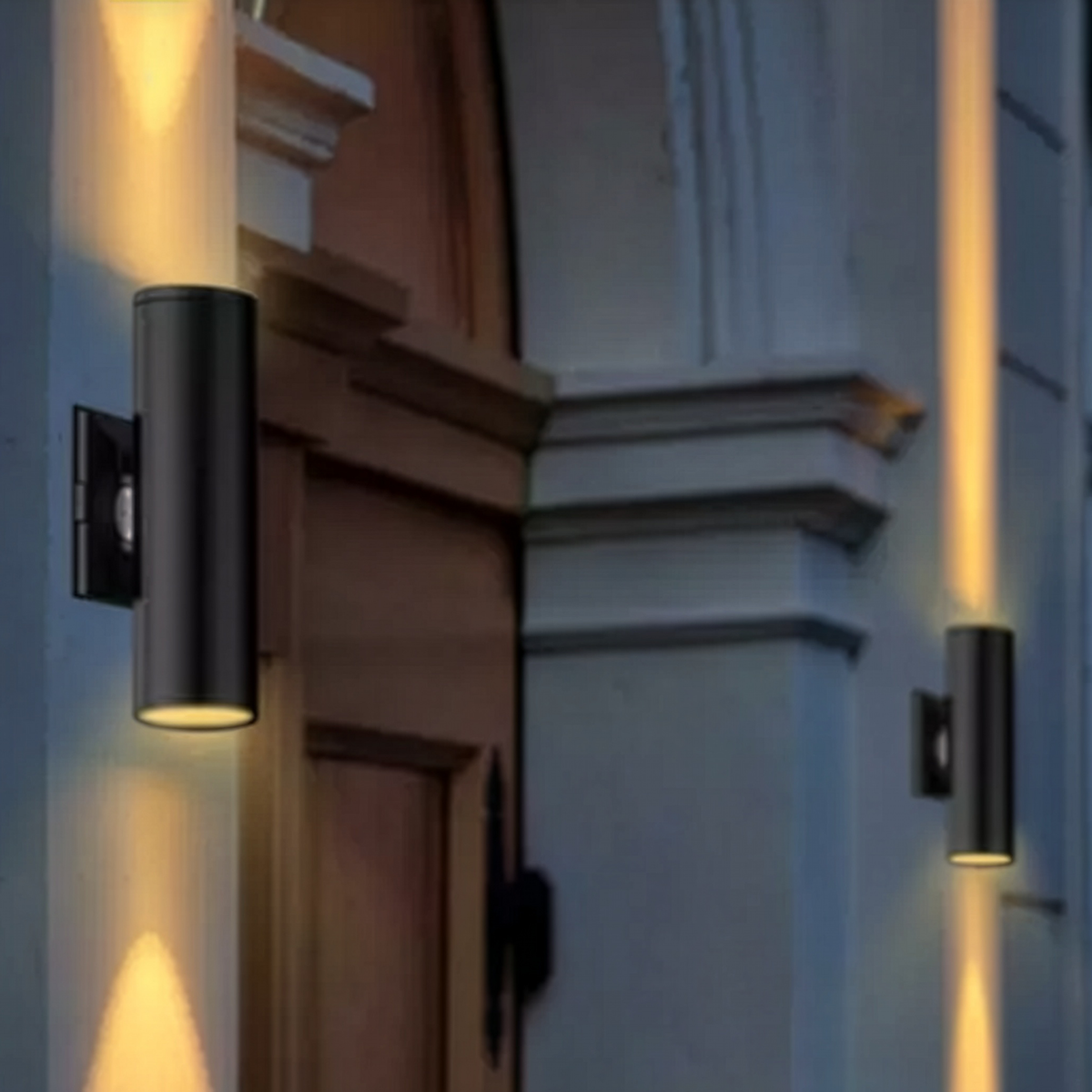

Ideal for historic preservation projects, traditional commercial architecture, upscale hospitality properties, senior living facilities, and luxury residential communities where bronze finish complements brick, stone, and classic design elements. The rich bronze aesthetic adds warmth and sophistication to traditional architecture while delivering modern LED efficiency and intelligent control. Contractors appreciate extensive field-adjustability that eliminates returns and change orders, while property managers benefit from automated photocell operation, dimming-enabled energy savings, and 50,000-hour maintenance-free performance that reduces service calls and operating expenses.
Specs
| Wattage(s) | 22/28/36W |
| Replaces Wattage(s) | 105/140/175W |
| Light Output | 2,100/2,750/3,300 lumens |
| Luminous Efficacy (lm/W) | 95 lm/W |
| Average Lamp Life | 50,000-Hour LED lifespan based on IES LM-70 results |
| Color Temperature(s) | 3000/4000/5000K |
| CRI (Color Accuracy) | 90 |
| Dimming | Dimmable down to 5% on compatible 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. |
| Beam Angle | 60° installed. Field swappable reflectors sold separately for 25° or 40° beam angle. |
| Light Distribution Pattern |
Selectable dip switch for up, down, or up/down light
Learn More
×
Light Distribution OptionsType III Beam ![]() Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles. Type IV Beam ![]() Provides forward directed light with minimal backlighting - great for perimeter installations. Type V Beam ![]() Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations. |
| Lens Cover | Clear. Field swappable frosted lens available. |
| Enclosure Rating | IP65 - Suitable for use indoors and outdoors in dry, damp, or wet environments. |
| Input Voltage | 120-277VAC |
| Power Factor | ≥0.9 |
| THD (Total Harmonic Distortion) | ≤20% |
| Temperature Rating | -40°F to 120°F (-40°C to 45°C) |
| Housing Material | Aluminum extrusion housing with die-cast cover |
| Certification | UL Listed |
| Warranty | RAB 5-year, limited warranty |
| Additional Specifications | Integrated photocell included with on/off switch. |
