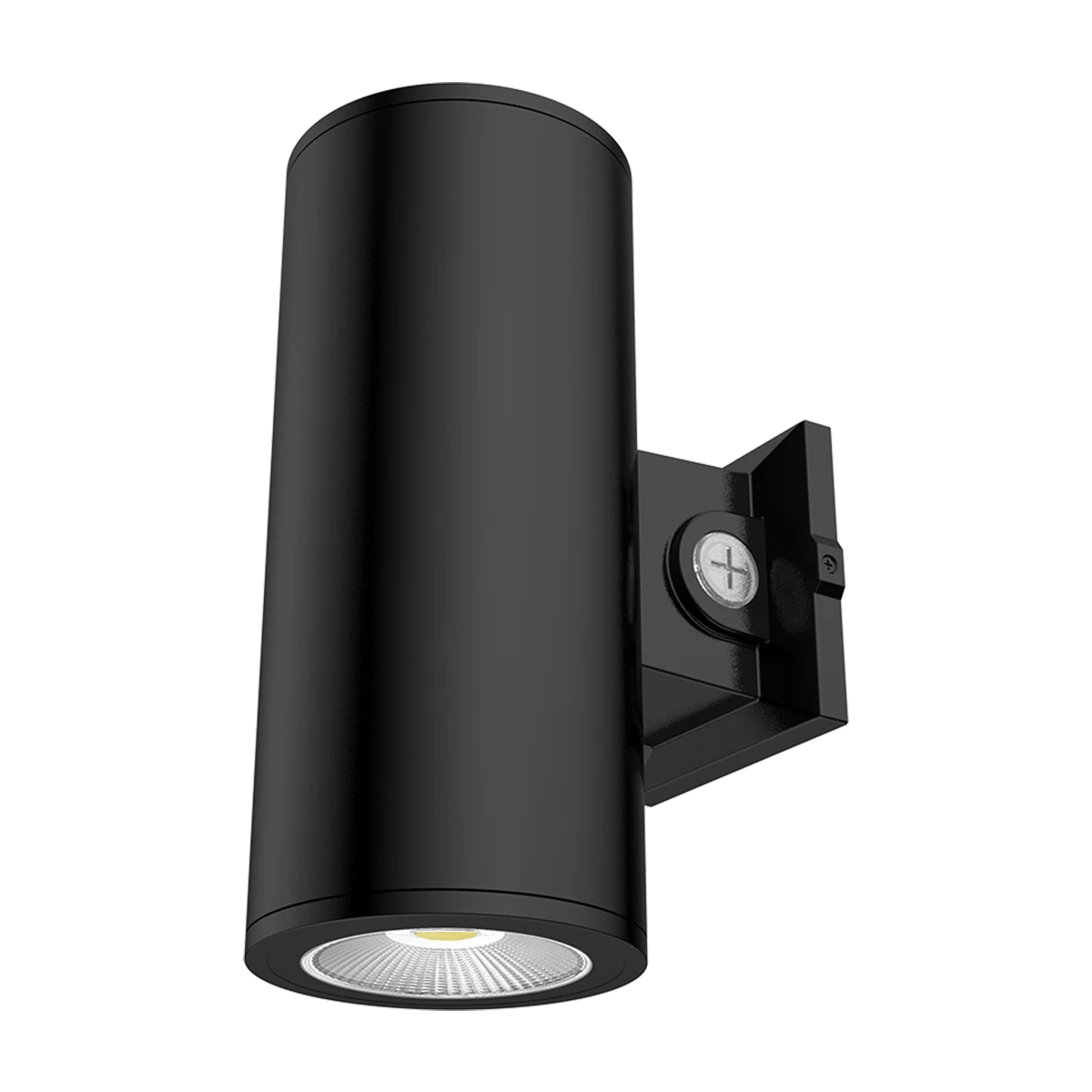

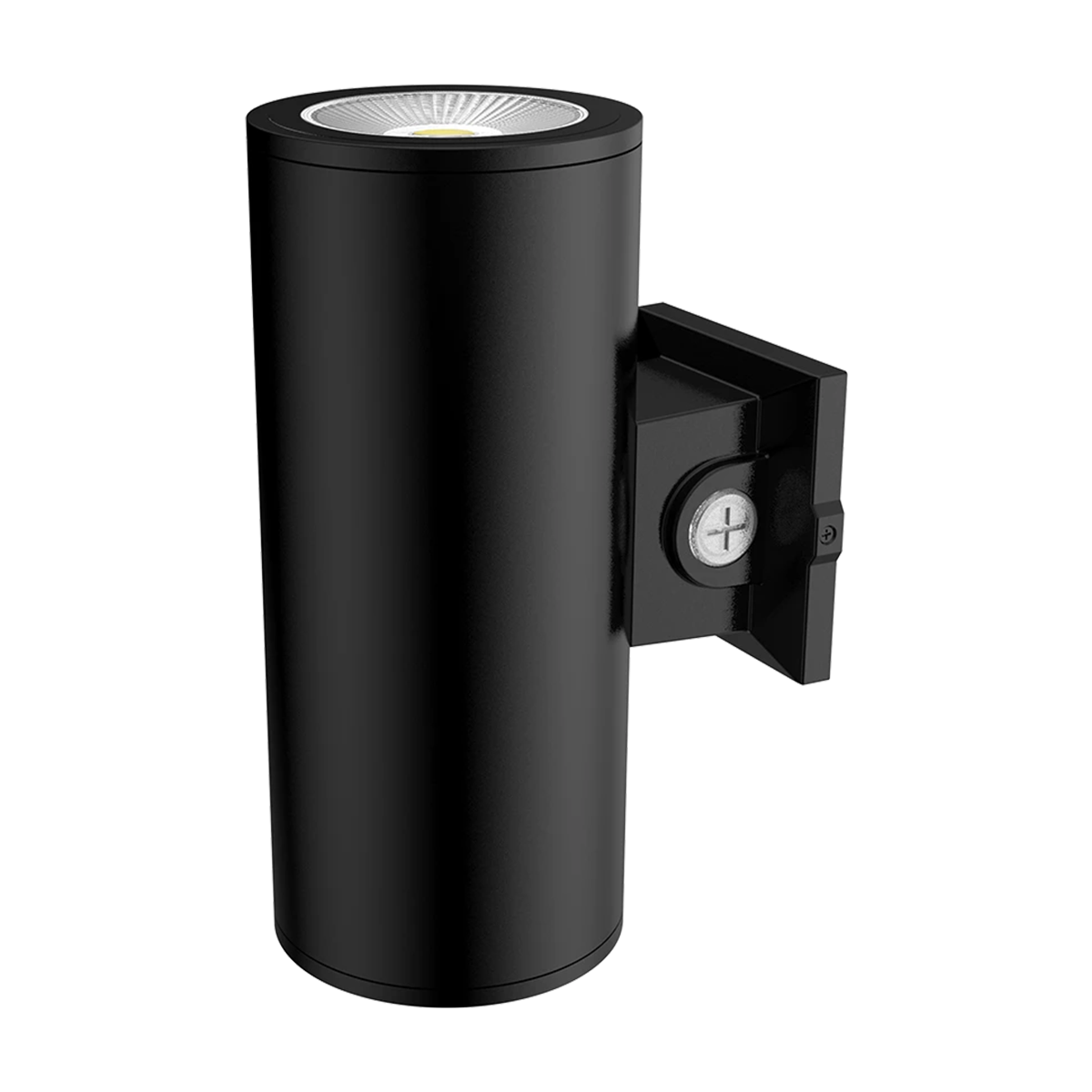

The RAB CD34 is a high-output architectural wall sconce suited for large-scale facades, expansive building entries, and commercial properties where a 4" cylinder would fall short. It combines 90 CRI accuracy with broad field-selectability to handle upscale applications with minimal risk of returns or change orders.

Why Choose This Fixture

Most architectural cylinder sconces ship with fixed optics and a single CCT — what you order is what you get, and a specification change means a return. The CD34 lets you set wattage, color temperature, and up/down distribution on-site via DIP switch. Add in tool-free optics swapping, an integrated photocell with manual override, and a 90-CRI output that reveals the true colors of signage and facades, and you get a versatile fixture purpose-built to handle upscale commercial and institutional applications with minimal risk for change orders or returns.

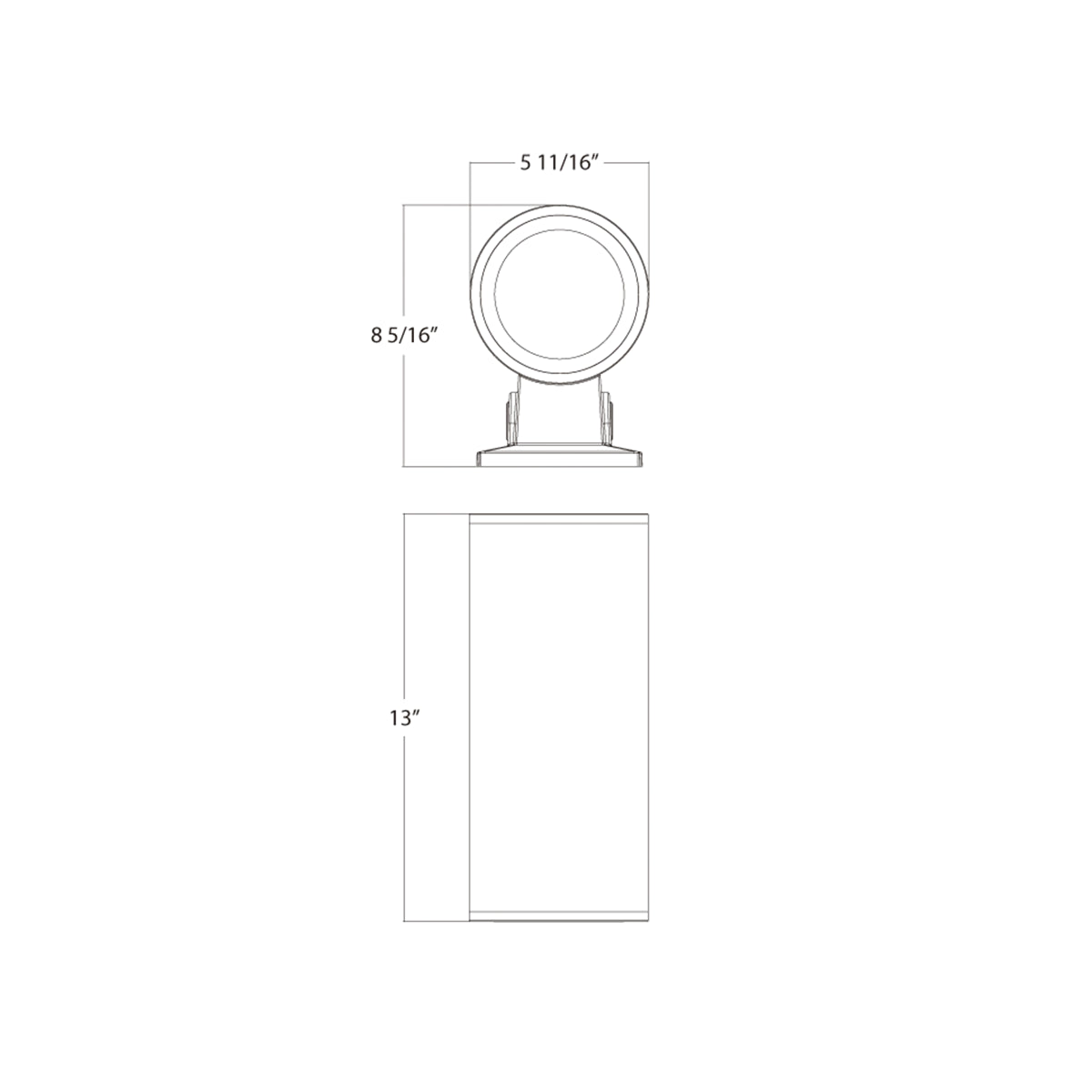

• High-Output 6" Form Factor: Delivers up to 3,300 lumens (22/28/36W selectable) — 65% more output than 4" cylinder models, suited for large commercial facades, expansive building entries, and applications demanding maximum wall-mounted light levels.

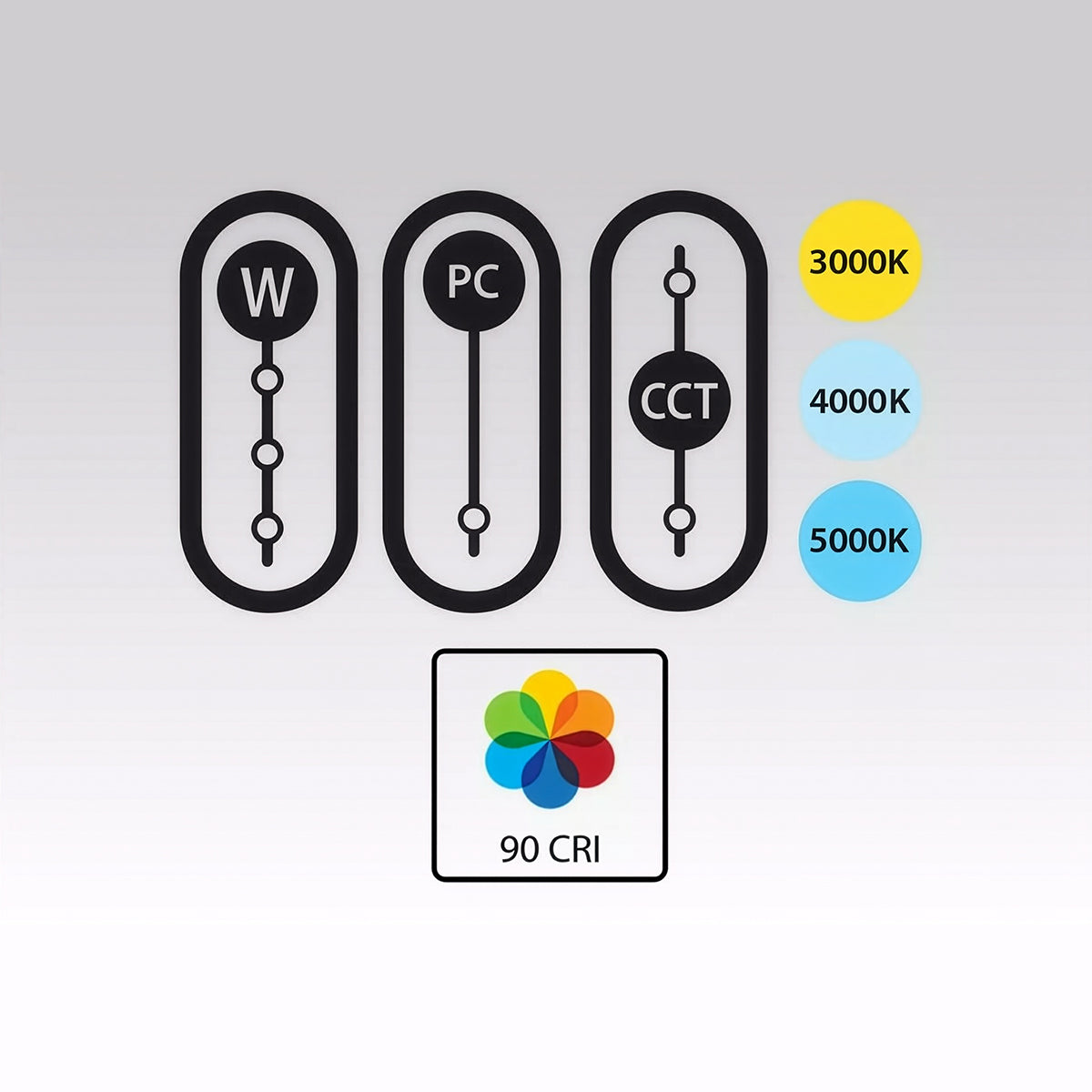

• Field-Selectable Wattage and Color Temperature: Adjust wattage (22/28/36W) and CCT (3000/4000/5000K) on-site via DIP switch — no rewiring, no returns, no reorders if site conditions or design requirements change.
• Field-Swappable Beam Angle Reflectors: The 60° wide flood ships as standard; swap in a 25° narrow spot for uplighting columns and architectural details, or a 40° medium for standard facade lighting. (Reflectors sold separately.)
• Selectable Up/Down Distribution: Set to up-only, down-only, or full up/down via internal DIP switch — adapts the same fixture to accent, security, or architectural grazing applications without additional hardware.
• 90 CRI Output: Reveals true colors of brick, stone, wood, metal panels, and plantings — essential for upscale retail, luxury hospitality, and historic buildings where material appearance drives aesthetic and property value.
• Integrated Photocell with Manual Override: Automates dusk-to-dawn operation without a separate sensor or controller — manual override allows bypass when needed.
• IP65 Rated: Suitable for outdoor and indoor use in dry, damp, or wet environments — facades, covered walkways, parking garages, and interior corridors.
• 5-Year RAB Warranty: Manufacturer coverage on light output, driver, and finish — purchased through ELEDLights as an authorized RAB dealer.

Easy-Swap Optics — Adjust Up & Down Beams Independently

Ideal Applications

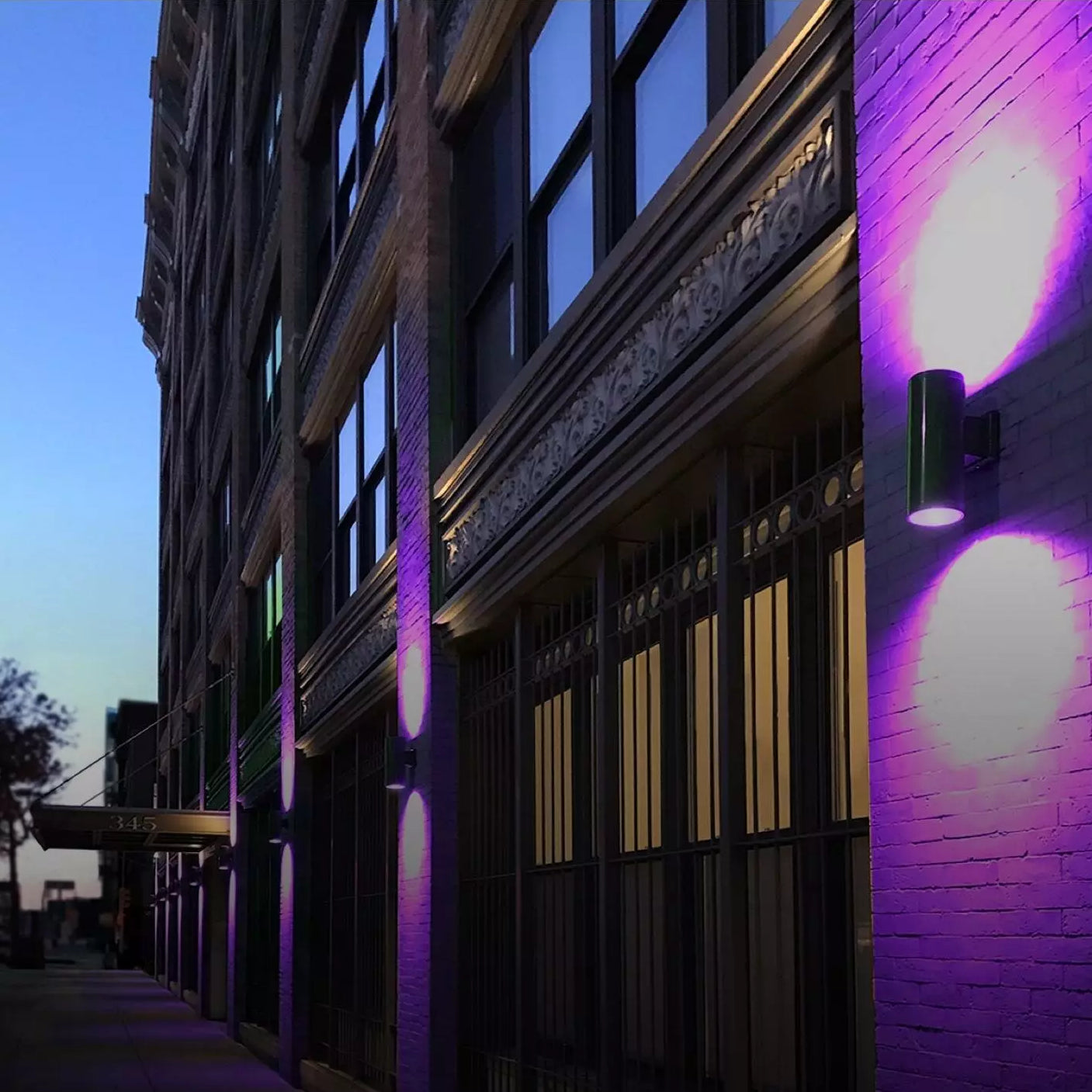

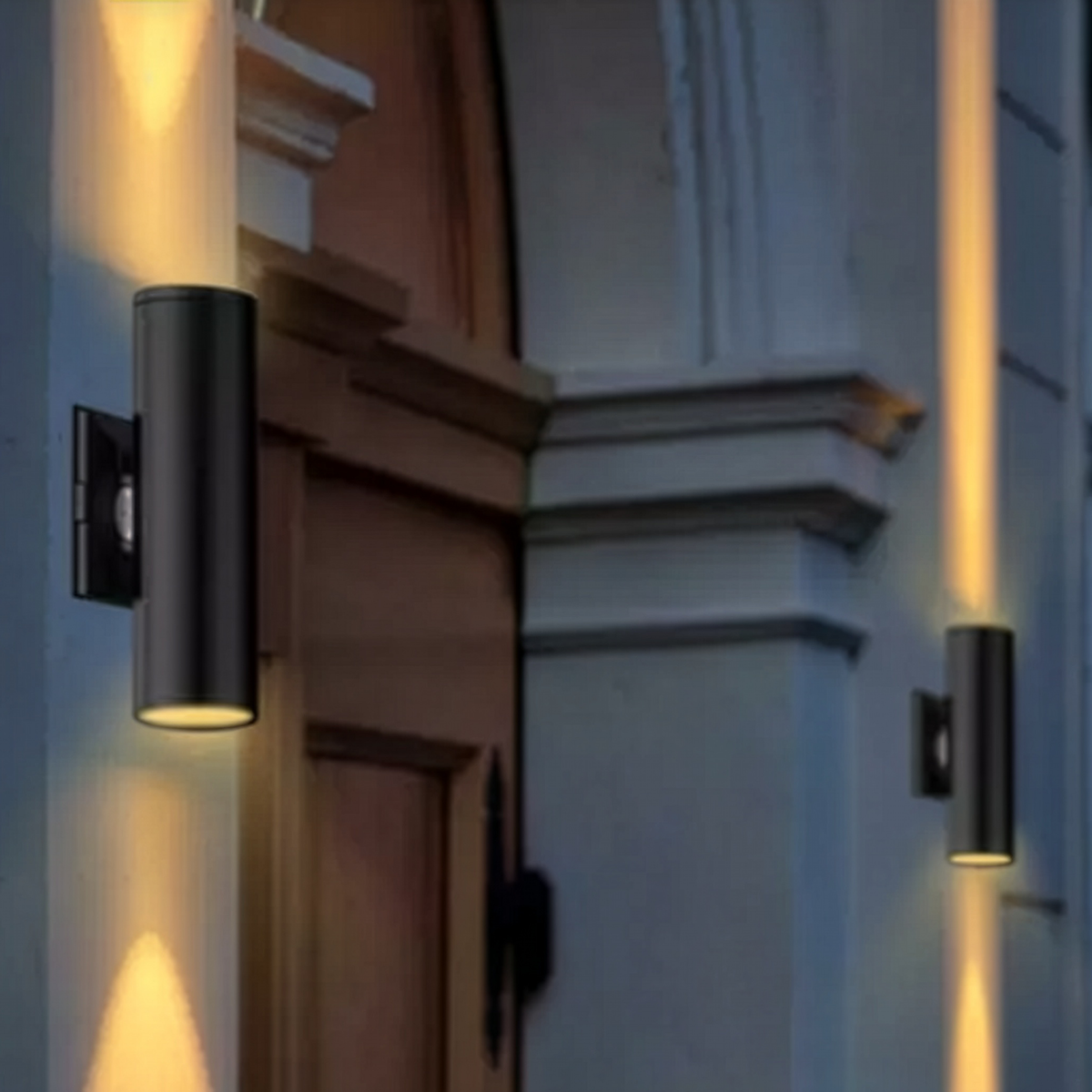

1. Building Facades & Entries: Full up/down distribution with 60° wide flood, delivering broad wall wash coverage across large commercial facades, multi-story building entries, and hotel canopies where smaller fixtures can't produce adequate output.
2. Architectural Accent & Uplighting: Up-only with 25° narrow spot, revealing the texture and detail of tall columns, large stone cladding, and monumental architectural features without spill onto adjacent surfaces.
3. Retail Storefronts: Down-only with 40° medium beam, creating focused illumination for signage, display windows, and pedestrian-level wayfinding on upscale retail streets.
4. Historic & Luxury Properties: Full up/down with 3000K warm CCT selected on-site, complementing traditional materials with warm, flattering light and accurate color rendering.
5. Covered Walkways & Parking Garages: Down-only with 60° wide flood, providing broad, even coverage for safety and wayfinding in large covered areas where both indoor and outdoor ratings are required.
