SKU: CD34-6SPW
Sale price$154.00
Regular price$0.00

Call for Lead Time

Free Shipping Over $350

Bulk Pricing: Text (858) 650-9400 or Request Quote

Details

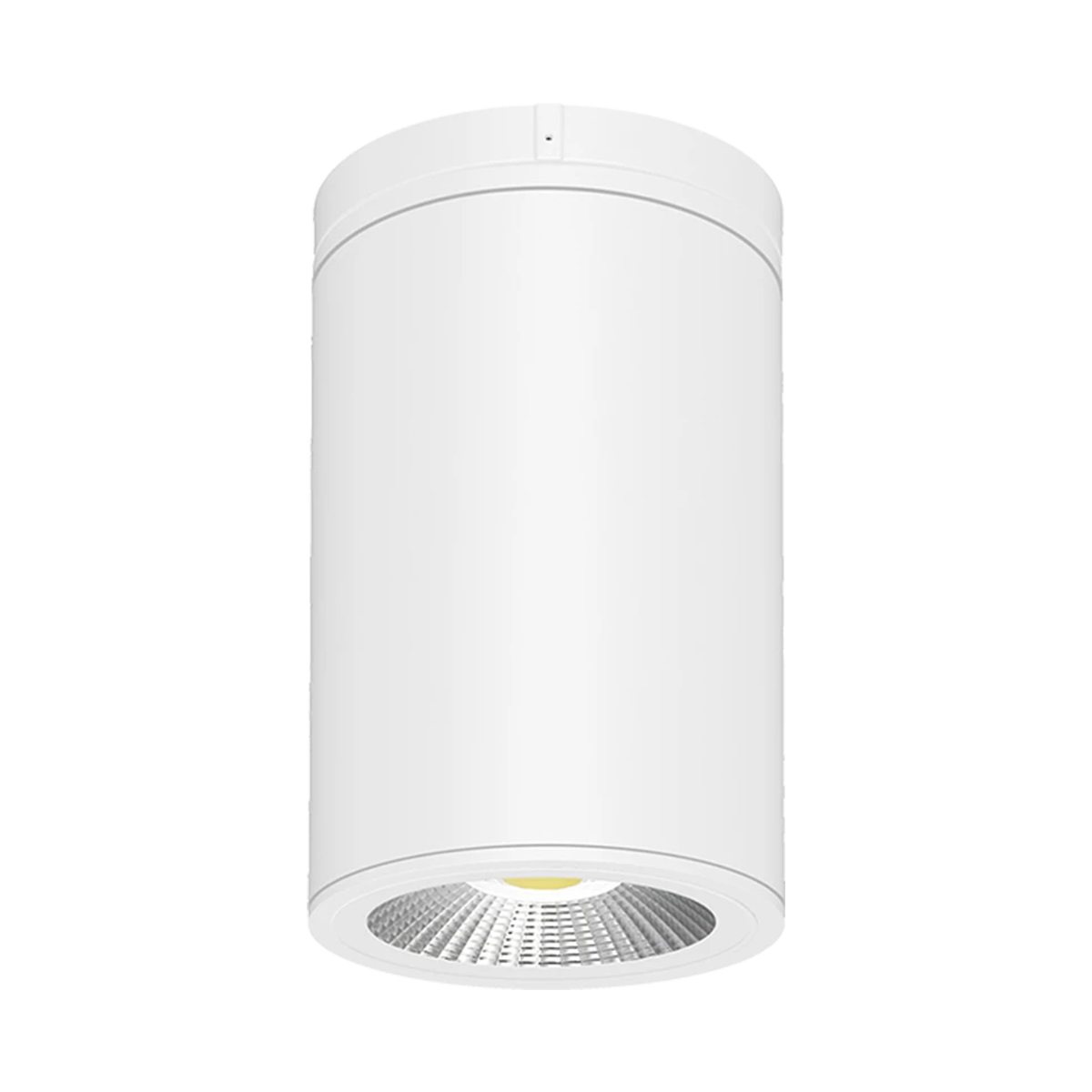

Commercial-Grade Downlighting in Clean Contemporary White

  1. High-output 30/24/18W system produces up to 2700 lumens, providing 42% greater illumination than 4" cylinders for demanding commercial applications with elevated ceiling heights and large floor areas

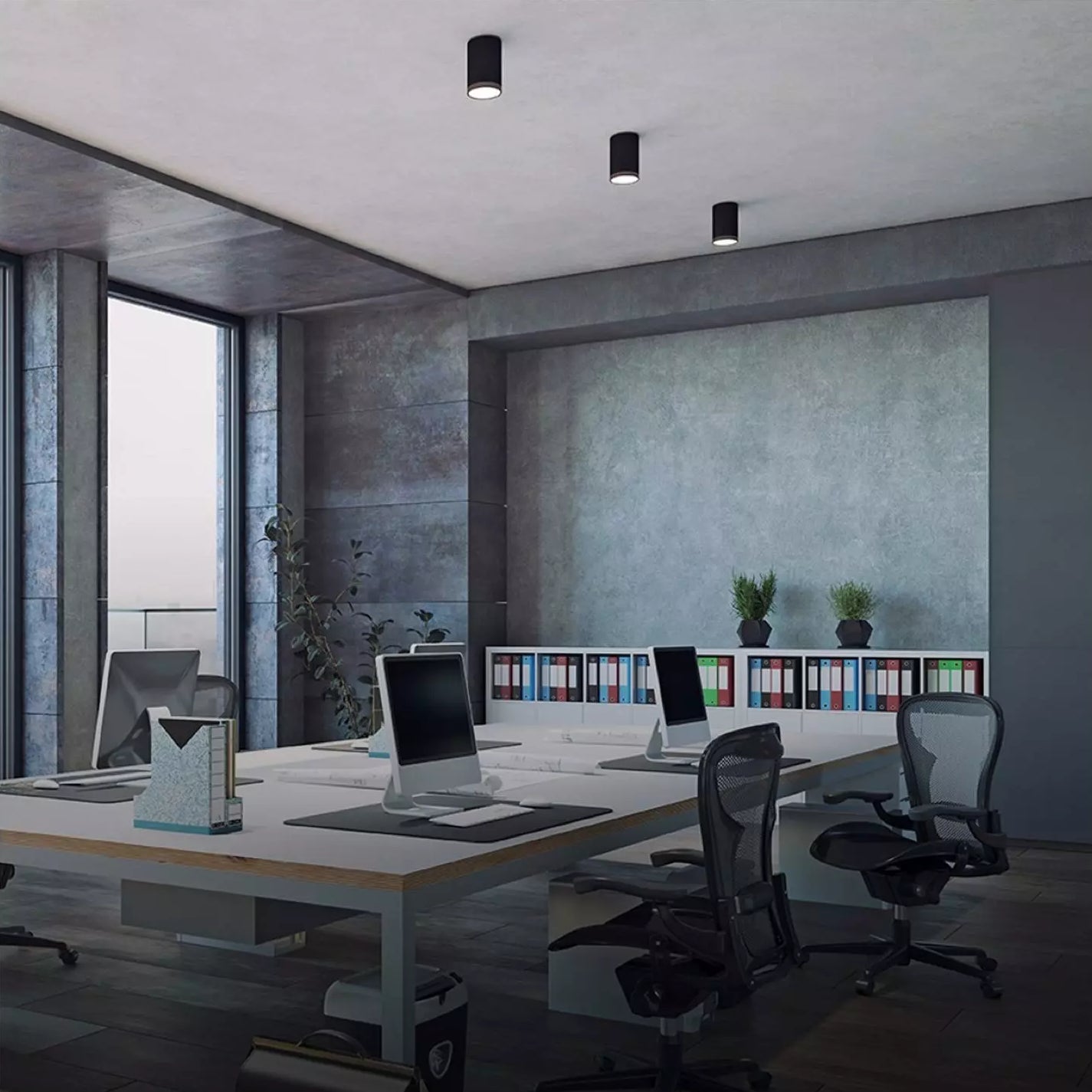

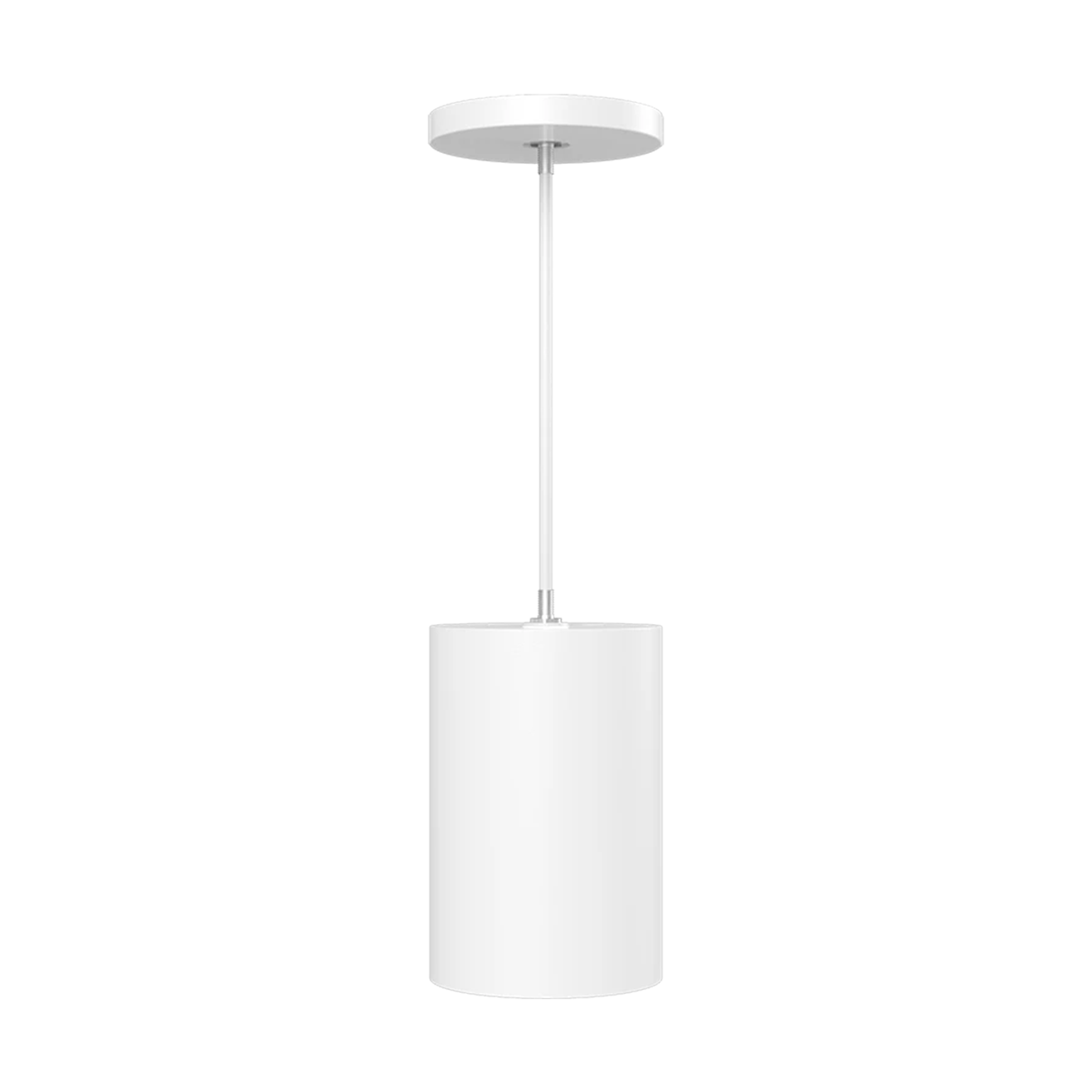

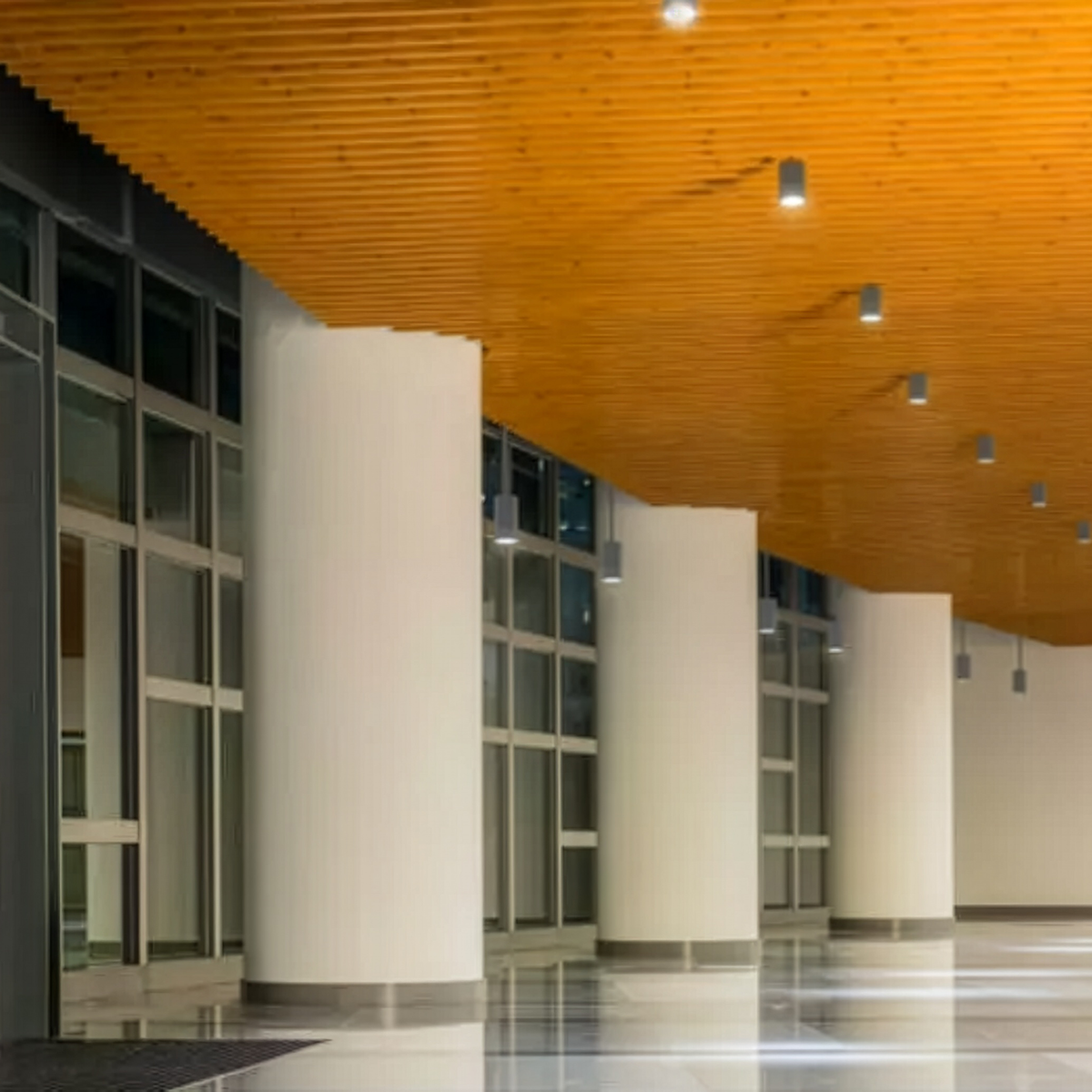

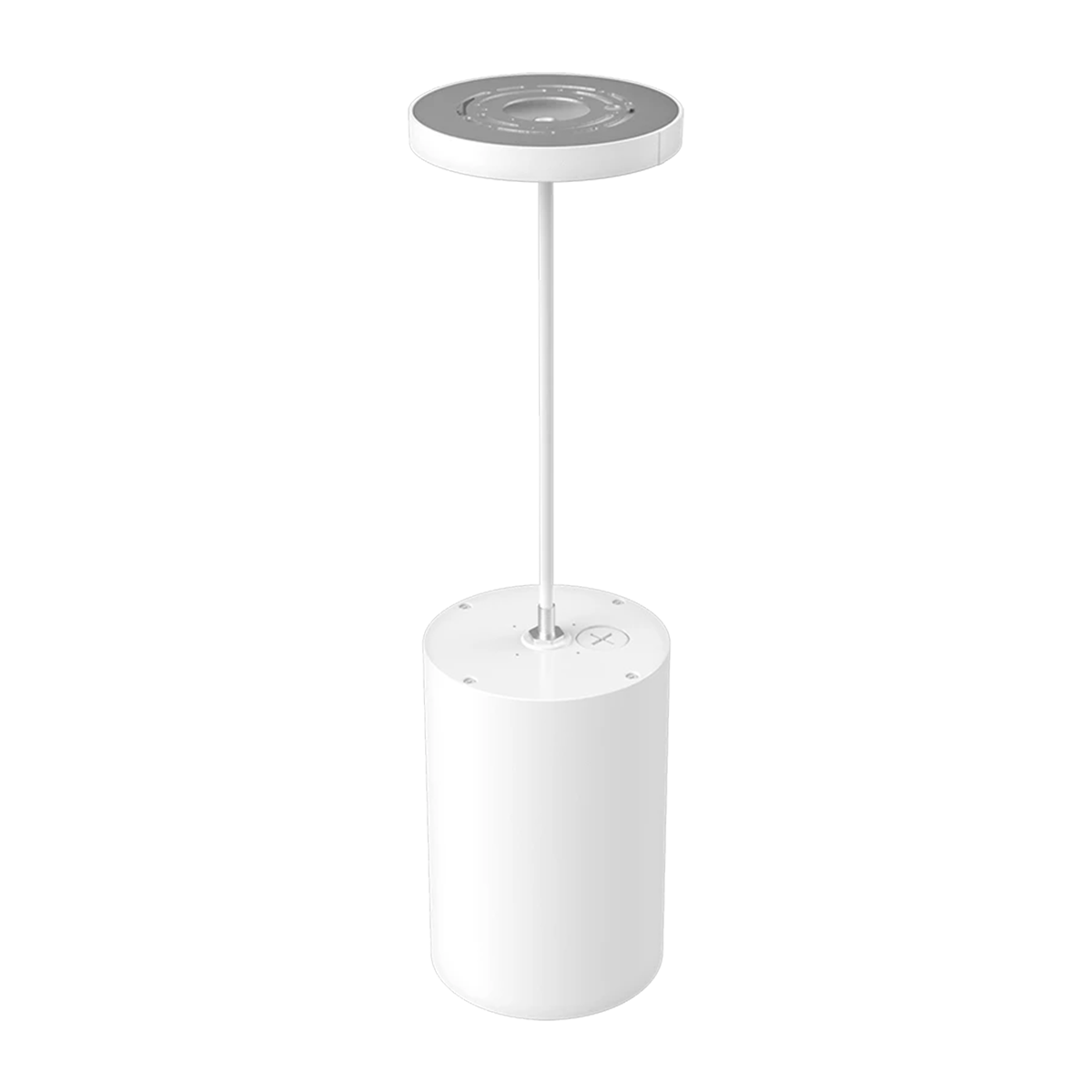

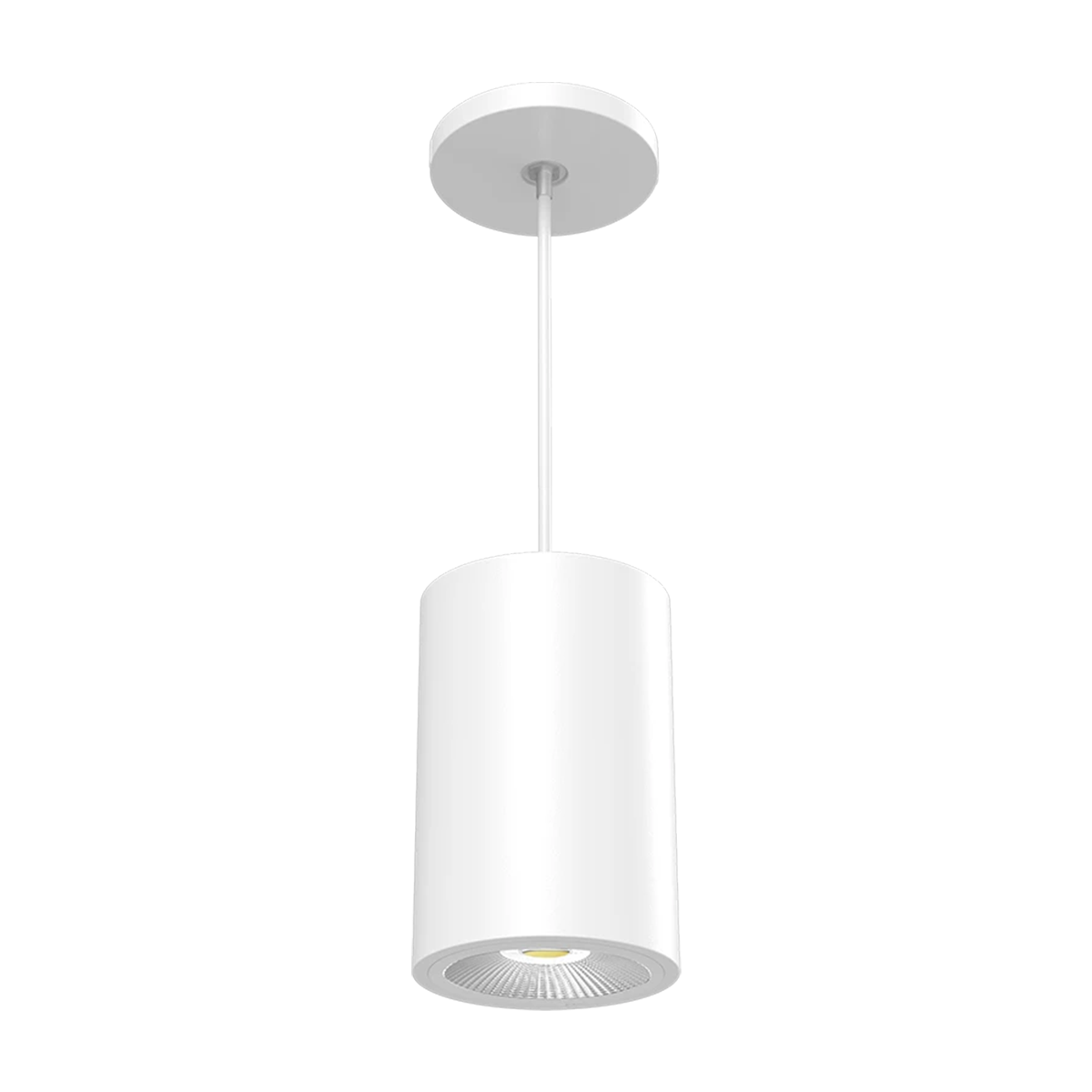

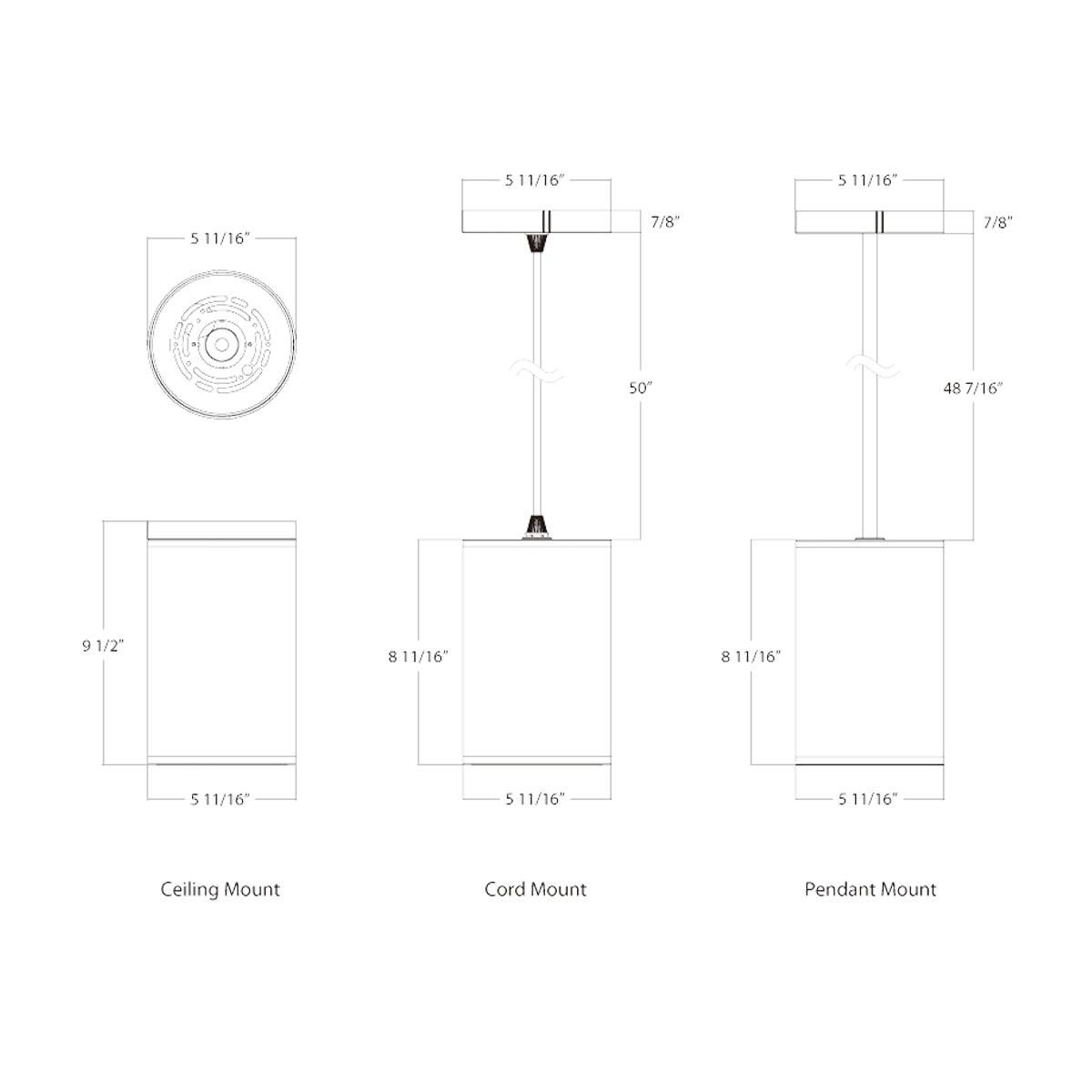

  2. Dual installation methods (direct surface mount or suspended pendant) offer complete architectural flexibility—adapt to ceiling types and mounting heights without ordering separate fixture models

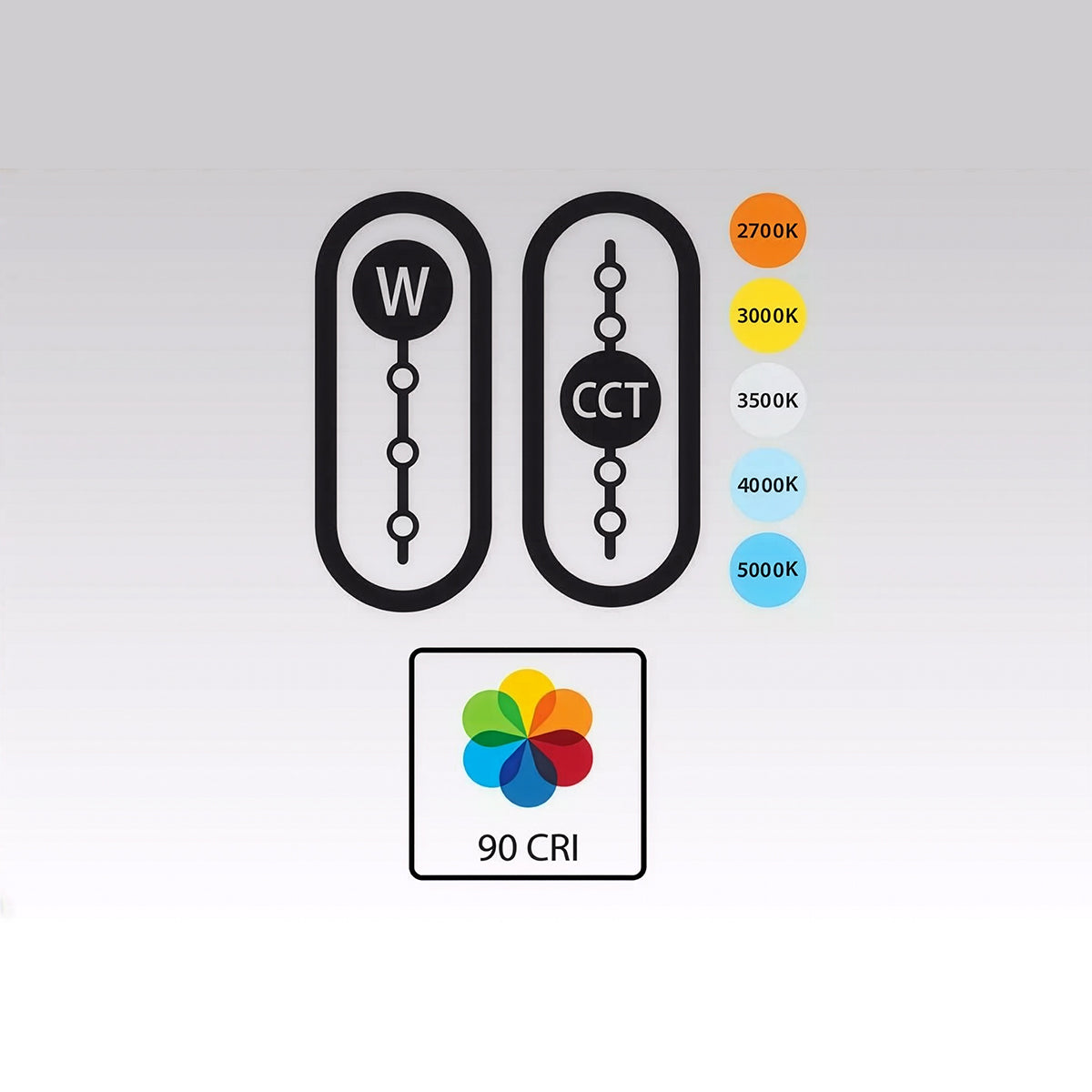

  3. Comprehensive CCT selection (2700K-5000K) spans warm residential ambiance to cool commercial brightness—field-adjustable on-site to coordinate with interior finishes and design intent without returns
  4. Interchangeable optical system with 60° medium beam included for illuminates broad areas and circulation spaces. Swap for 25° narrow spot to concentrate light on merchandise and displays or 40° medium for balanced coverage and intensity
  5. Superior 90 CRI light output ensures authentic color reproduction for retail merchandise, hospitality interiors, and corporate environments—makes materials and finishes appear natural rather than washed out or color-shifted
  6. IP65 environmental rating withstands moisture, dust, and temperature extremes indoors or outdoors—appropriate for interior atriums, exterior covered entries, parking structures, and all-weather canopy applications
  7. Commercial-grade construction with 50,000-hour maintenance-free operation eliminates relamping costs in difficult-access locations—ideal for facilities managers seeking to minimize service calls and reduce labor expenses

Ideal for modern retail centers, contemporary office buildings, medical facilities, educational institutions, and upscale residential towers where clean white aesthetics and substantial light output are required. The crisp white finish integrates seamlessly with contemporary architecture and T-bar ceiling systems while contractors appreciate field-adjustable features that prevent costly specification errors. Facility managers benefit from automated dimming control and extended maintenance cycles that lower total cost of ownership.

Specs

Wattage(s) 18/24/30W
Replaces Wattage(s) 105/140/175W
Light Output 1,620/2,160/2,700 lumens
Luminous Efficacy (lm/W) 90 lm/W
Average Lamp Life 50,000-Hour LED lifespan based on IES LM-70 results
Color Temperature(s) 2700/3000/3500/4000/5000K
CRI (Color Accuracy) 90
Dimming Dimmable down to 5% on compatible 0-10V dimming systems. Requires separate 0-10V DC dimming circuit.
Beam Angle 60° installed. Field swappable reflectors sold separately for 25° or 40° beam angle.
Lens Cover Clear. Field swappable frosted lens available.
Enclosure Rating IP65 - Suitable for use indoors and outdoors in dry, damp, or wet environments.
Input Voltage 120-277VAC
Power Factor ≥0.9
THD (Total Harmonic Distortion) ≤20%
Temperature Rating -40°F to 120°F (-40°C to 45°C)
Housing Material Aluminum extrusion housing with die-cast cover
Certification UL Listed
Warranty RAB 5-year, limited warranty
Additional Specifications Integrated photocell included with on/off switch.
