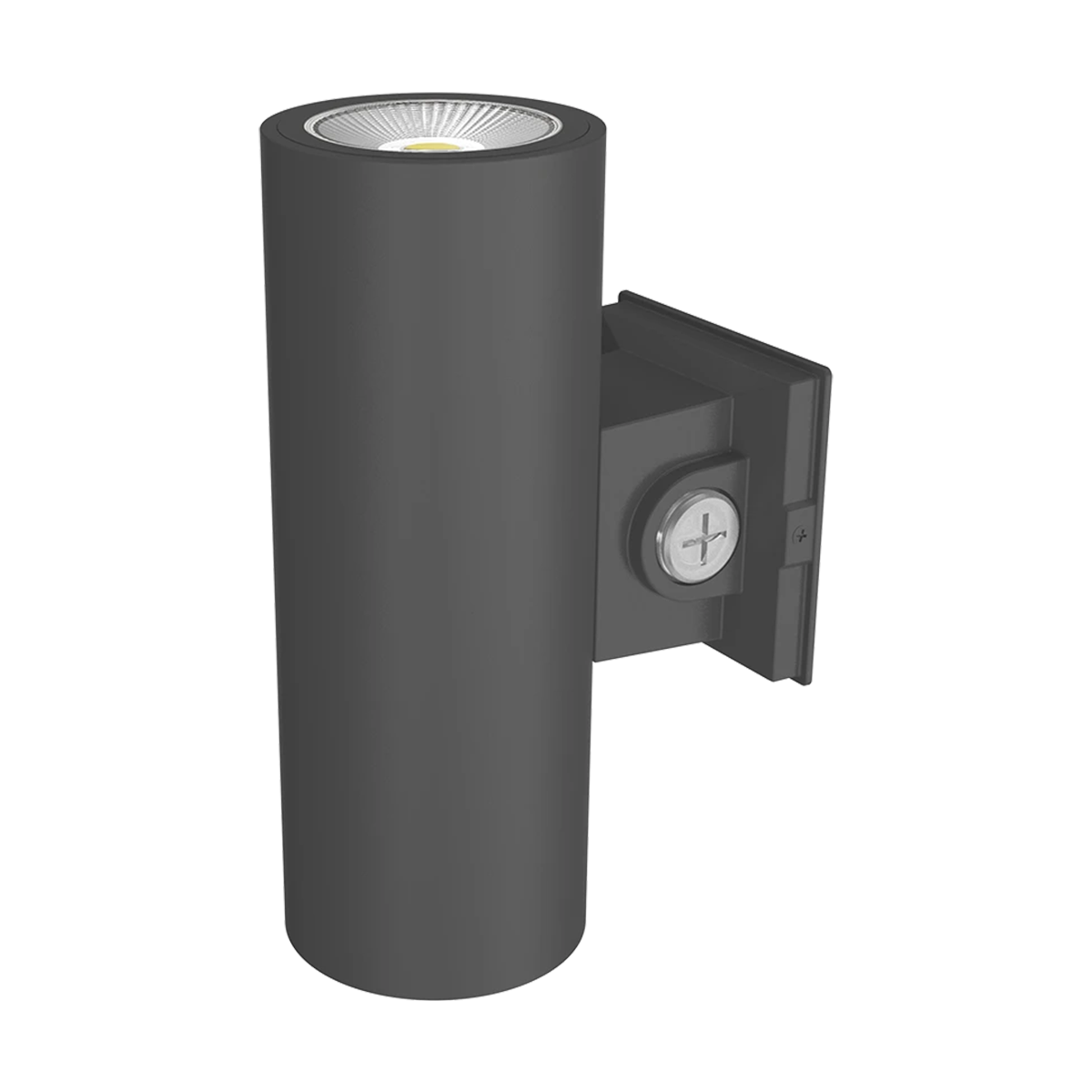

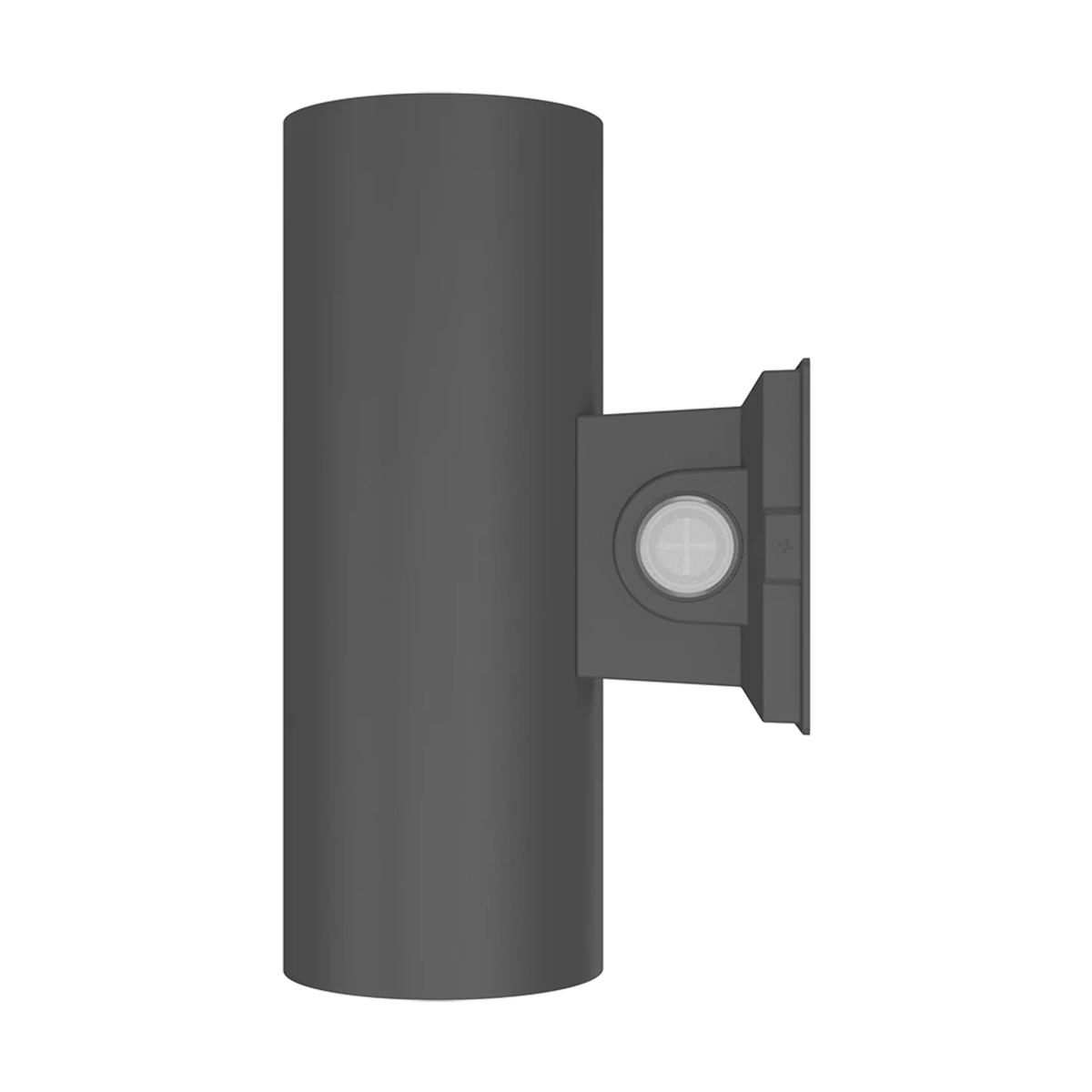

20W Selectable RAB CD34 4" Wall Sconce Cylinder Light - Bronze







20W Selectable RAB CD34 4" Wall Sconce Cylinder Light - Bronze







20W Selectable RAB CD34 4" Wall Sconce Cylinder Light - Bronze
20W Selectable RAB CD34 4" Wall Sconce Cylinder Light - Bronze
This bronze 12–20W 4" cylinder sconce delivers 1,200–2,000 lumens with selectable wattage, CCT, and beam angle— great for building entrances, walkways, and architectural accent lighting.
- Interior or exterior applications
- Up, down, or up/down lighting options
- Great for wall accents & feature lighting
Bulk Pricing: Text (858) 650-9400 or Request Quote
This bronze 12–20W 4" cylinder sconce delivers 1,200–2,000 lumens with selectable wattage, CCT, and beam angle— great for building entrances, walkways, and architectural accent lighting.
- Interior or exterior applications
- Up, down, or up/down lighting options
- Great for wall accents & feature lighting
Choose options
Details
Sophisticated Appearance Meets Commercial-Grade Performance

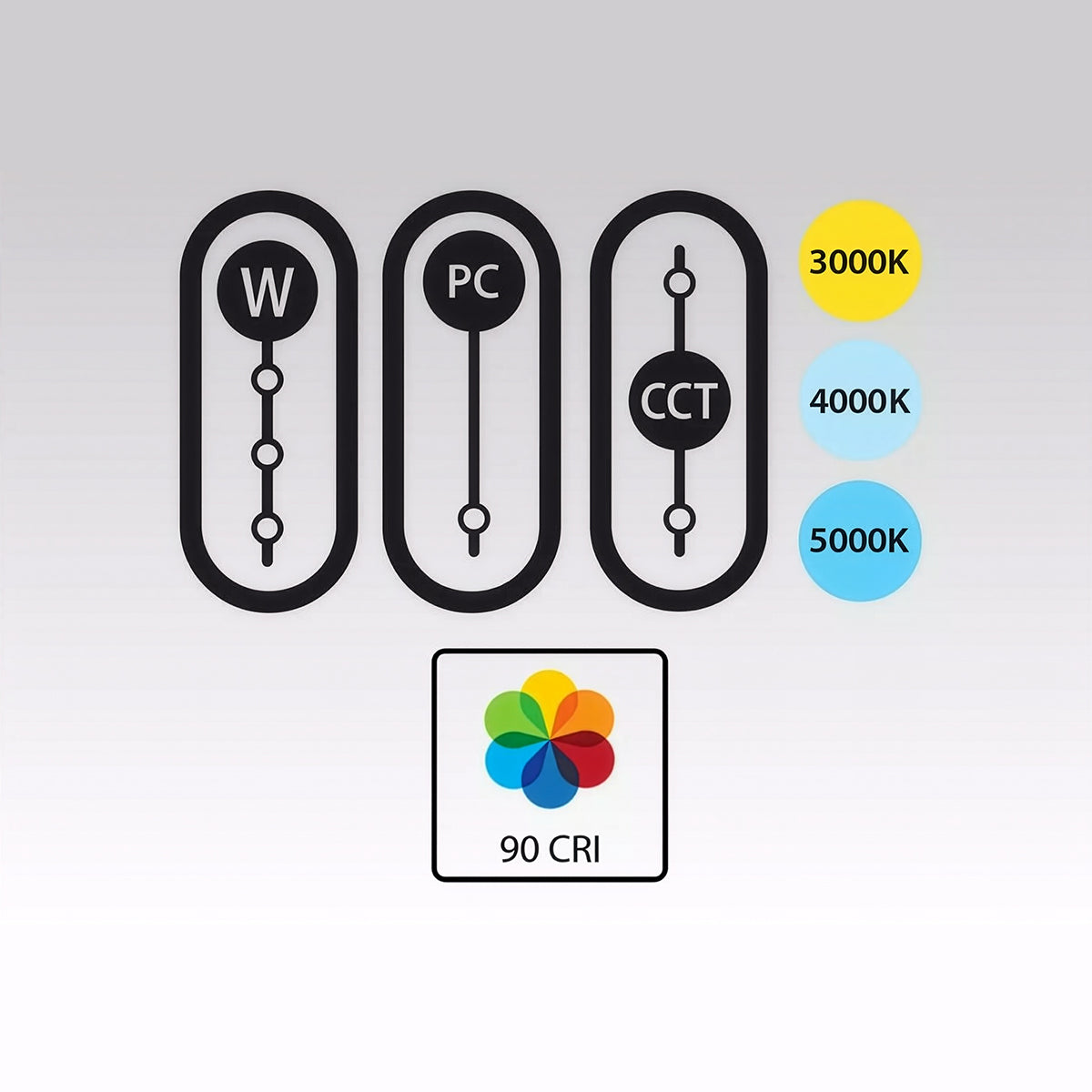

- Field-selectable CCT eliminates costly specification errors: change color temperature in the field to harmonize with existing lighting, accommodate design revisions, or satisfy changing client requirements without returns or reorders
- Field-swappable optics offer application-specific beam patterns: 25° narrow for dramatic uplighting of columns and architectural details, 40° medium (standard) for entries and signage illumination, or 60° wide for broad security lighting and wall washing coverage

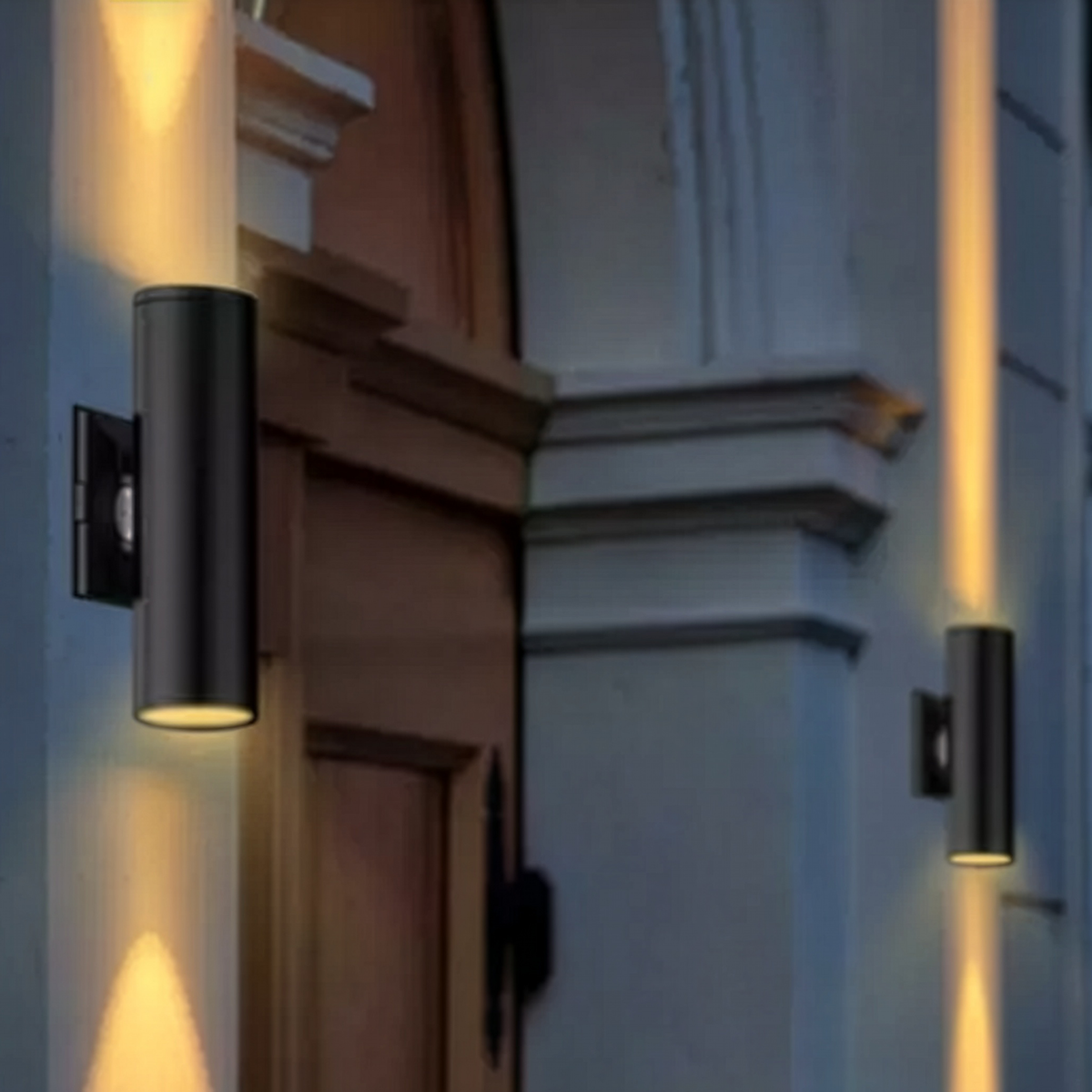

- Configurable light distribution (up, down, or bidirectional) enables uplight for architectural emphasis, downlight for safety and wayfinding, or both simultaneously for sophisticated wall grazing
- Premium 90 CRI light output renders authentic colors of masonry, stone, wood, metal panels, and plantings—essential for upscale retail, hospitality, and residential applications where material beauty and color accuracy drive aesthetic appeal
- Factory-integrated photocell provides automated dusk-to-dawn control, eliminating the need for external controls, reducing installation costs, and ensuring lights operate only during low light hours for maximum energy efficiency
- IP65 weatherproof rating withstands harsh outdoor conditions in exterior applications, including driving rain, snow accumulation, and airborne dust, while maintaining aestheic suitability for indoor installations as well, allowing versatile specification for mixed environments

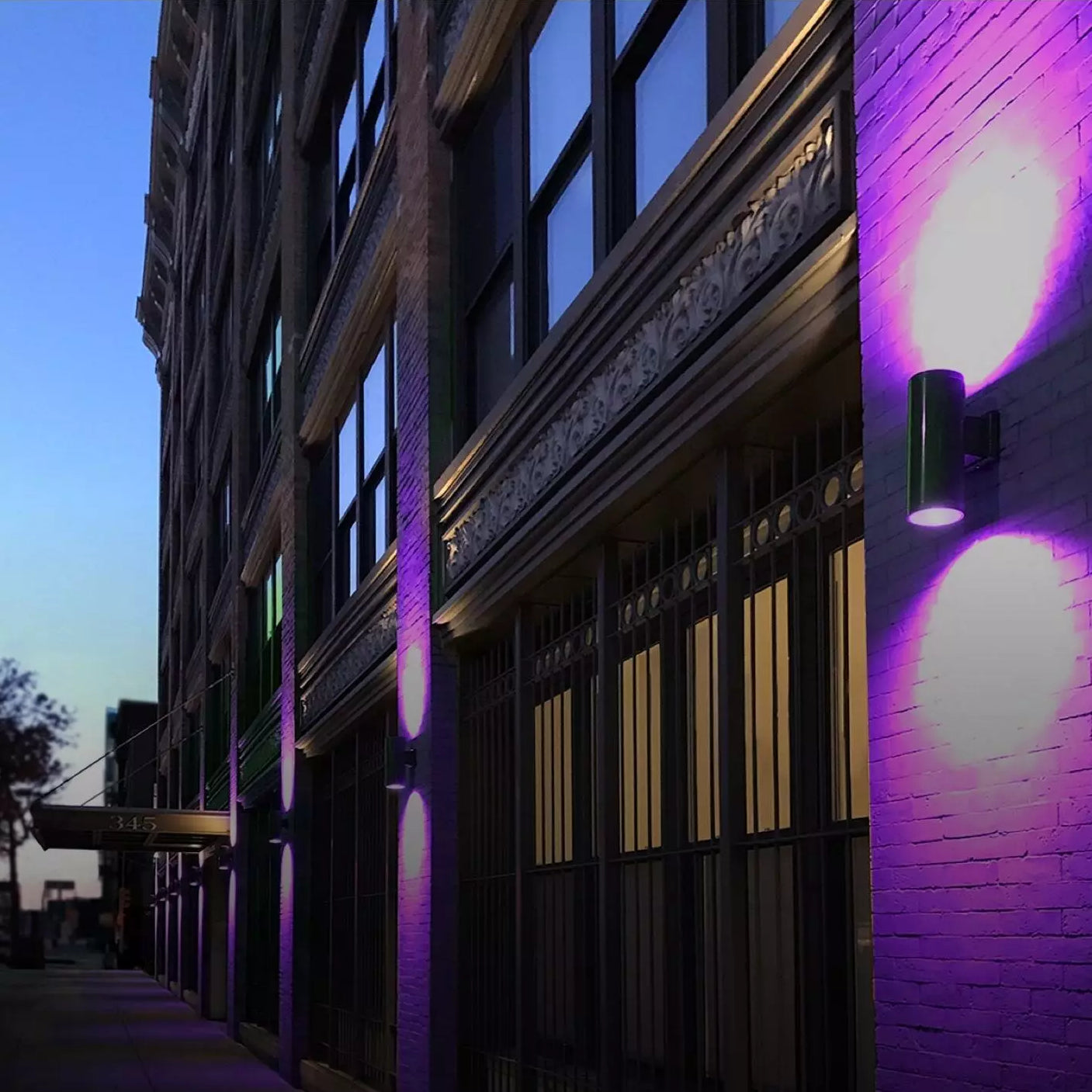

Ideal for historic buildings, traditional commercial architecture, upscale hospitality properties, senior living facilities, and residential communities where bronze finish complements brick, stone, and classic design elements. The sophisticated bronze finish adds warmth to traditional and transitional architecture while delivering contractor-grade reliability with on-site adjustability that eliminates returns, and automated photocell operation that reduces maintenance calls and energy bills for property managers.
Specs
| Wattage(s) | 12/16/20W |
| Replaces Wattage(s) | 75/100/125W |
| Light Output | 1,200/1,600/2,000 lumens |
| Luminous Efficacy (lm/W) | 100 lm/W |
| Average Lamp Life | 50,000-Hour LED lifespan based on IES LM-70 results |
| Color Temperature(s) | 3000/4000/5000K |
| CRI (Color Accuracy) | 90 |
| Dimming | Dimmable down to 5% on compatible 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. |
| Beam Angle | 40° installed. Field swappable reflectors sold separately for 25° or 60° beam angle. |
| Light Distribution Pattern |
Selectable dip switch for up, down, or up/down light
Learn More
×
Light Distribution OptionsType III Beam ![]() Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles. Type IV Beam ![]() Provides forward directed light with minimal backlighting - great for perimeter installations. Type V Beam ![]() Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations. |
| Lens Cover | Clear. Field swappable frosted lens available. |
| Enclosure Rating | IP65 - Suitable for use indoors and outdoors in dry, damp, or wet environments. |
| Input Voltage | 120-277VAC |
| Power Factor | ≥0.9 |
| THD (Total Harmonic Distortion) | ≤20% |
| Temperature Rating | -40°F to 120°F (-40°C to 45°C) |
| Housing Material | Aluminum extrusion housing with die-cast cover |
| Certification | UL Listed |
| Warranty | RAB 5-year, limited warranty |
| Additional Specifications | Integrated photocell included with on/off switch. |
