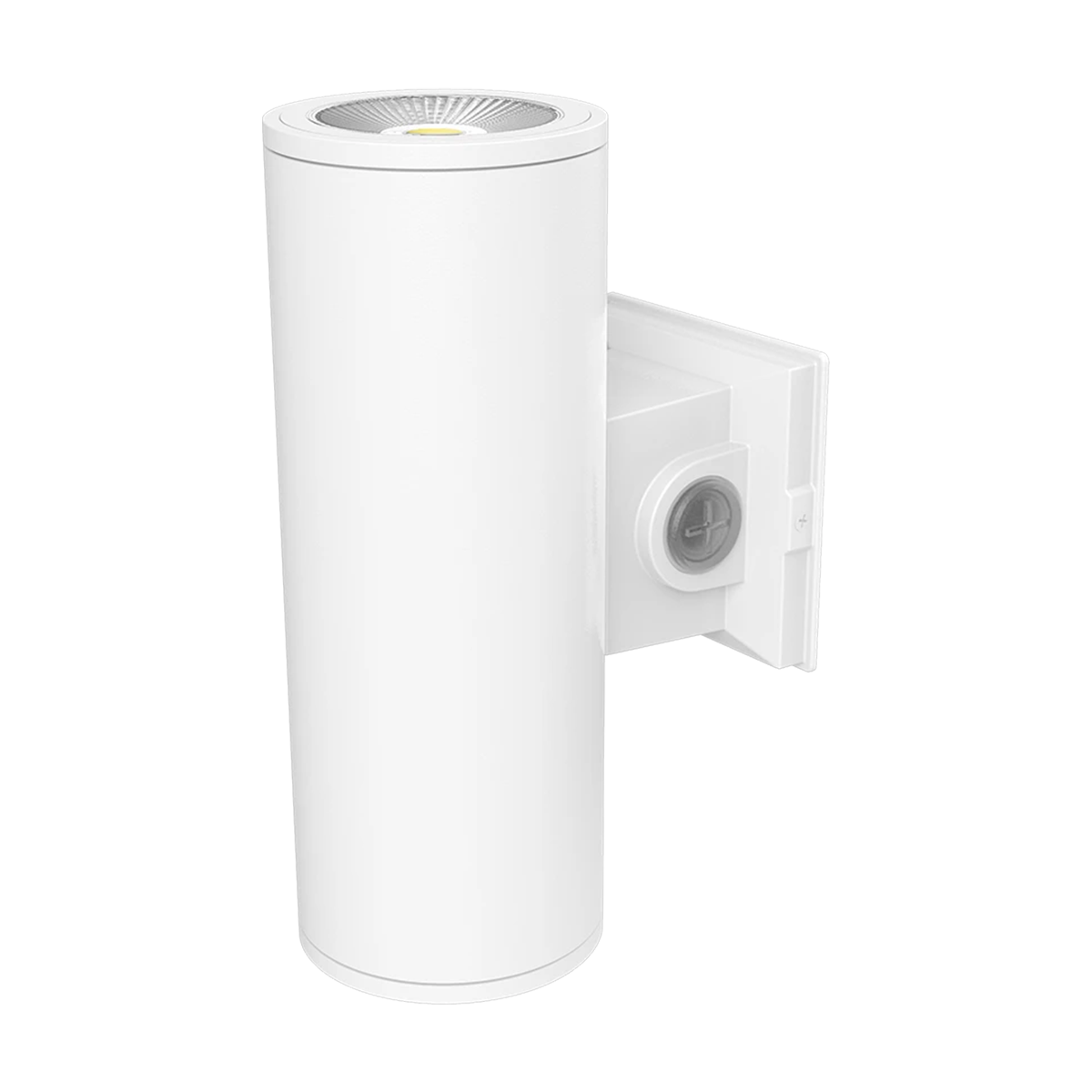

20W Selectable RAB CD34 4" Wall Sconce Cylinder Light - White
20W Selectable RAB CD34 4" Wall Sconce Cylinder Light - White
20W Selectable RAB CD34 4" Wall Sconce Cylinder Light - White
20W Selectable RAB CD34 4" Wall Sconce Cylinder Light - White
This white 12–20W 4" cylinder sconce delivers 1,200–2,000 lumens with selectable wattage, CCT, and beam angle— great for building entrances, walkways, and architectural accent lighting.
- Interior or exterior applications
- Up, down, or up/down lighting options
- Great for wall accents & feature lighting
Bulk Pricing: Text (858) 650-9400 or Request Quote
This white 12–20W 4" cylinder sconce delivers 1,200–2,000 lumens with selectable wattage, CCT, and beam angle— great for building entrances, walkways, and architectural accent lighting.
- Interior or exterior applications
- Up, down, or up/down lighting options
- Great for wall accents & feature lighting
Choose options
Details
Architectural Lighting Flexibility in Modern White Finish
- Selectable 20/16/12W output with up to 2000 lumens illuminates larger areas and higher mounting applications, delivering 50% more light than compact 3" models for professional-grade commercial and institutional projects
- Adjustable color temperature (3000K/4000K/5000K) adapts to design requirements on-site.
- Easy-swap reflector accesories allow beam spread to be customized for specific needs: 25° narrow spot for accent lighting, 40° medium beam (default) for building entries, or 60° wide flood for expansive area coverage and security applications
- Set light distribution to uplight only for architectural emphasis, downlight for functional pathway illumination, or both directions simultaneously for wall grazing effects.
- 90 CRI superior color quality ensures accurate rendering of building materials, landscaping, and branded signage. Colors appear natural and vibrant, critical for retail storefronts, hotels, and high-end residential applications
- Built-in photocell delivers automated dusk-to-dawn operation for exterior installations, perfect for facilities managers who need reliable, hands-off lighting that operates only when needed, reducing energy costs and extending LED life
- 0-10V dimming compatibility (dims down to 5%) gives you control over energy consumption and effect
- IP65 indoor/outdoor rating provides weatherproof protection against rain, snow, ice, and dust while remaining appropriate for interior lobbies, parking garages, and covered walkways to simplify specification across multiple building zones
Perfect for contemporary office buildings, medical facilities, educational campuses, modern retail developments, and high-end residential projects where clean white aesthetics are essential. The crisp white finish integrates seamlessly with modern architecture while contractors benefit from reduced callbacks through extensive on-site adjustability, and property managers enjoy automated operation that minimizes maintenance and reduces operating costs.
Specs
| Wattage(s) | 12/16/20W |
| Replaces Wattage(s) | 75/100/125W |
| Light Output | 1,200/1,600/2,000 lumens |
| Luminous Efficacy (lm/W) | 100 lm/W |
| Average Lamp Life | 50,000-Hour LED lifespan based on IES LM-70 results |
| Color Temperature(s) | 3000/4000/5000K |
| CRI (Color Accuracy) | 90 |
| Dimming | Dimmable down to 5% on compatible 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. |
| Beam Angle | 40° installed. Field swappable reflectors sold separately for 25° or 60° beam angle. |
| Light Distribution Pattern |
Selectable dip switch for up, down, or up/down light
Learn More
×
Light Distribution OptionsType III Beam  Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles. Type IV Beam  Provides forward directed light with minimal backlighting - great for perimeter installations. Type V Beam  Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations. |
| Lens Cover | Clear. Field swappable frosted lens available. |
| Enclosure Rating | IP65 - Suitable for use indoors and outdoors in dry, damp, or wet environments. |
| Input Voltage | 120-277VAC |
| Power Factor | ≥0.9 |
| THD (Total Harmonic Distortion) | ≤20% |
| Temperature Rating | -40°F to 120°F (-40°C to 45°C) |
| Housing Material | Aluminum extrusion housing with die-cast cover |
| Certification | UL Listed |
| Warranty | RAB 5-year, limited warranty |
| Additional Specifications | Integrated photocell included with on/off switch. |
