This black 12–20W 4" cylinder sconce delivers 1,200–2,000 lumens with selectable wattage, CCT, and beam angle— great for building entrances, walkways, and architectural accent lighting.
- Interior or exterior applications
- Up, down, or up/down lighting options
- Great for wall accents & feature lighting
Bulk Pricing: Text (858) 650-9400 or Request Quote
This black 12–20W 4" cylinder sconce delivers 1,200–2,000 lumens with selectable wattage, CCT, and beam angle— great for building entrances, walkways, and architectural accent lighting.
- Interior or exterior applications
- Up, down, or up/down lighting options
- Great for wall accents & feature lighting
Choose options
Details
Professional-Grade Illumination With Unmatched Versatility

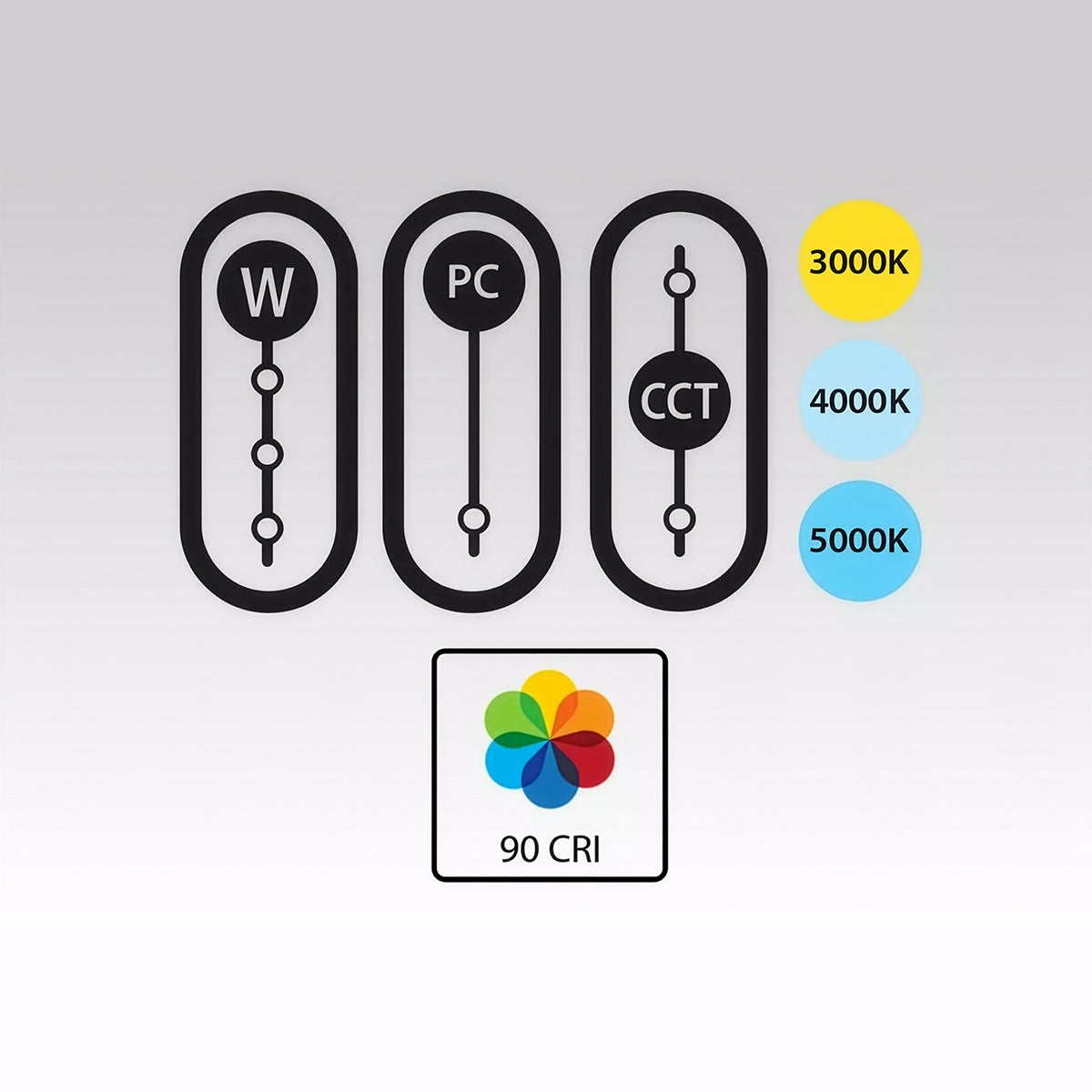

- Field-selectable CCT (3000K/4000K/5000K) eliminates specification guesswork. Adjust color temperature on-site to match existing installations, coordinate with interior lighting, or meet changing client preferences without fixture returns

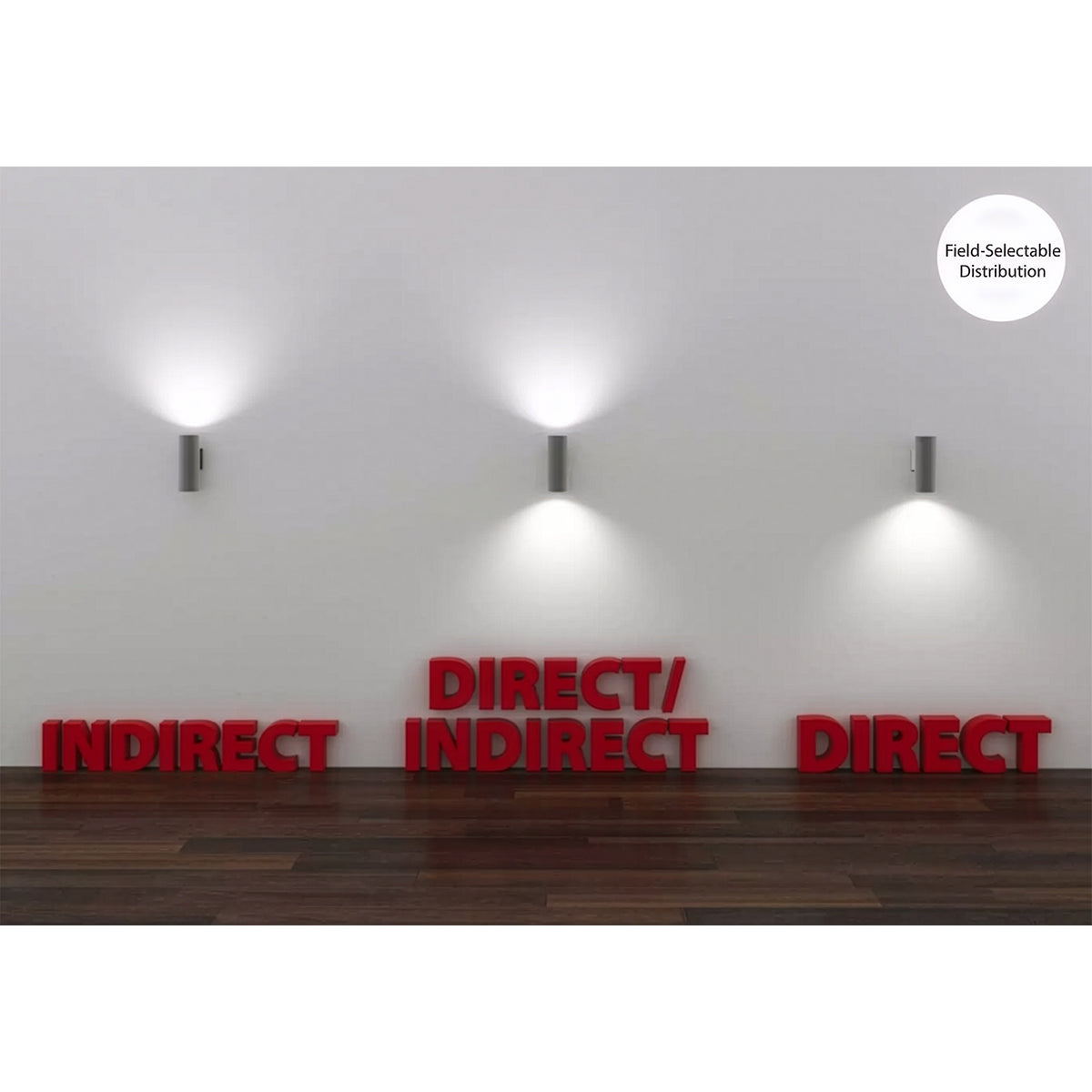

- Selectable light direction (up, down, or both) via dip switch transforms application possibilities: create dramatic uplight on walls and facades, functional downlight for walkways, or sophisticated bidirectional grazing that highlights textures and architectural details

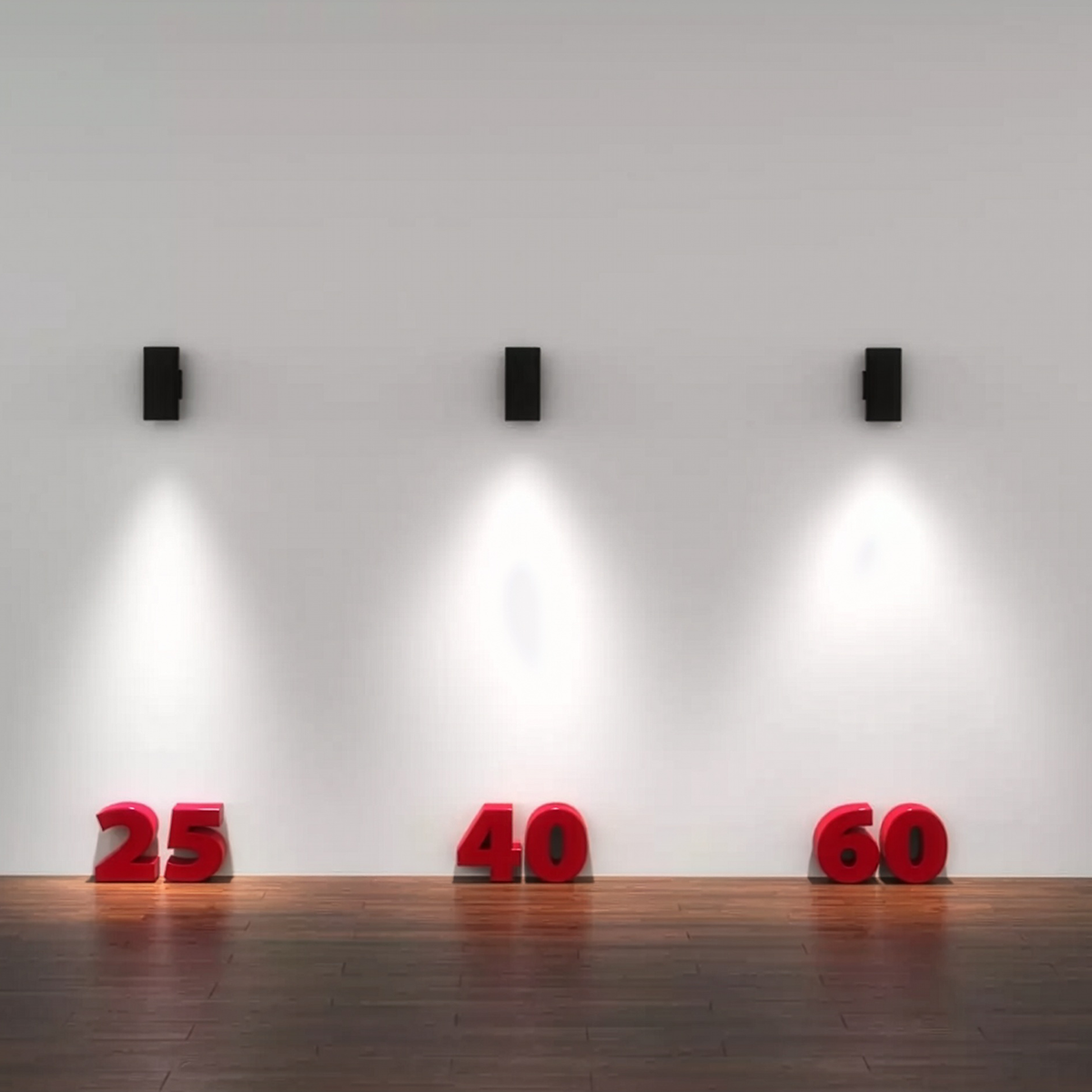

- Field-swappable optical reflectors deliver precise beam control: install 25° narrow reflector for dramatic column uplighting and architectural accents, 40° medium (included) for balanced entry illumination, or 60° wide flood for comprehensive wall washing and security lighting
- Integrated photocell with on/off switch provides set-it-and-forget-it dusk-to-dawn automation, eliminating timers, reducing energy waste, and ensuring consistent operation without manual intervention
- 90 CRI premium color rendering ensures spaces look natural and vibrant rather than washed out or distorted
- IP65-rated weatherproof construction handles rain, snow, and dust exposure outdoors while remaining suitable for indoor corridors, parking garages, and atriums—one specification handles multiple environments
- 20/16/12W tri-level power selection delivers 50% more output than 3" cylinders, for challenging applications like high-mounted facades, parking structure entries, and expansive wall surfaces
Ideal for commercial office buildings, retail centers, parking structures, loading docks, multi-family residential exteriors, and mixed-use developments. Contractors appreciate the one-fixture-fits-all approach that reduces callbacks and change orders, while property managers benefit from 50,000-hour maintenance-free operation, automated photocell control, and significant utility savings from dimming capabilities.
Specs
| Wattage(s) | 12/16/20W |
| Replaces Wattage(s) | 75/100/125W |
| Light Output | 1,200/1,600/2,000 lumens |
| Luminous Efficacy (lm/W) | 100 lm/W |
| Average Lamp Life | 50,000-Hour LED lifespan based on IES LM-70 results |
| Color Temperature(s) | 3000/4000/5000K |
| CRI (Color Accuracy) | 90 |
| Dimming | Dimmable down to 5% on compatible 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. |
| Beam Angle | 40° installed. Field swappable reflectors sold separately for 25° or 60° beam angle. |
| Light Distribution Pattern |
Selectable dip switch for up, down, or up/down light
Learn More
×
Light Distribution OptionsType III Beam ![]() Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles. Type IV Beam ![]() Provides forward directed light with minimal backlighting - great for perimeter installations. Type V Beam ![]() Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations. |
| Lens Cover | Clear. Field swappable frosted lens available. |
| Enclosure Rating | IP65 - Suitable for use indoors and outdoors in dry, damp, or wet environments. |
| Input Voltage | 120-277VAC |
| Power Factor | ≥0.9 |
| THD (Total Harmonic Distortion) | ≤20% |
| Temperature Rating | -40°F to 120°F (-40°C to 45°C) |
| Housing Material | Aluminum extrusion housing with die-cast cover |
| Certification | UL Listed |
| Warranty | RAB 5-year, limited warranty |
| Additional Specifications | Integrated photocell included with on/off switch. |
