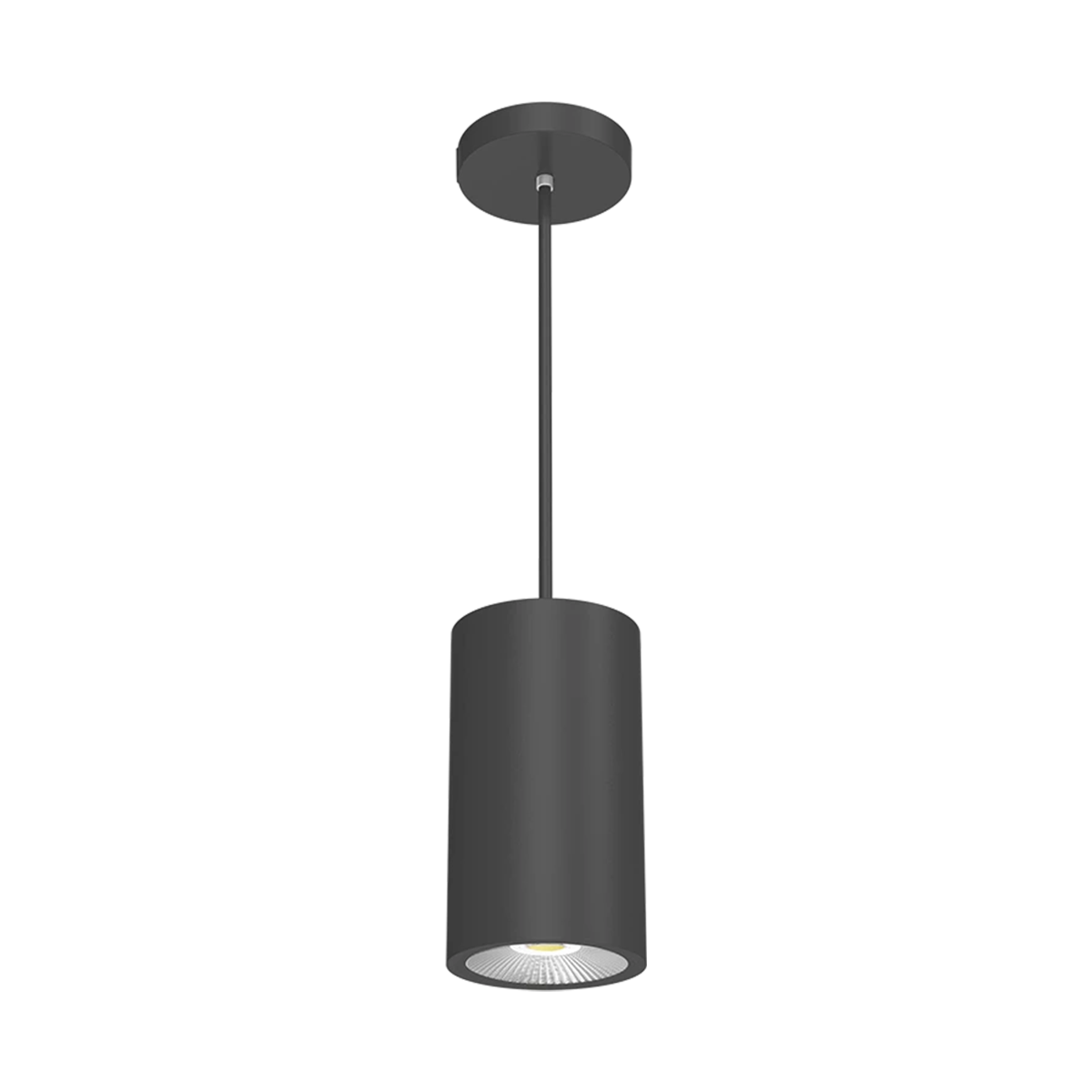

RAB CD34-4SPZ - 4" LED Cylinder Surface/Pendant Light (Bronze)

RAB CD34-4SPZ - 4" LED Cylinder Surface/Pendant Light (Bronze)
RAB CD34-4SPZ - 4" LED Cylinder Surface/Pendant Light (Bronze)
RAB CD34-4SPZ - 4" LED Cylinder Surface/Pendant Light (Bronze)
RAB CD34-4SPZ - 4" LED Cylinder Surface/Pendant Light (Bronze)
RAB CD34-4SPZ - 4" LED Cylinder Surface/Pendant Light (Bronze)
RAB CD34-4SPZ - 4" LED Cylinder Surface/Pendant Light (Bronze)
RAB CD34-4SPZ - 4" LED Cylinder Surface/Pendant Light (Bronze)
RAB CD34-4SPZ - 4" LED Cylinder Surface/Pendant Light (Bronze)
RAB CD34-4SPZ - 4" LED Cylinder Surface/Pendant Light (Bronze)
RAB Lighting

RAB CD34-4SPZ - 4" LED Cylinder Surface/Pendant Light (Bronze)

Outline Star
Outline Star
Outline Star
Outline Star
Outline Star
Filled Star
Filled Star
Filled Star
Filled Star
Filled Star
0 Reviews
SKU: CD34-4SPZ
Sale price$123.00
Regular price$0.00
Ships within 2-3 business days
Free Shipping Over $350

Bulk Pricing: Text (858) 650-9400 or Request Quote

Details

Architectural Downlight Adapts to Your Site Requirements

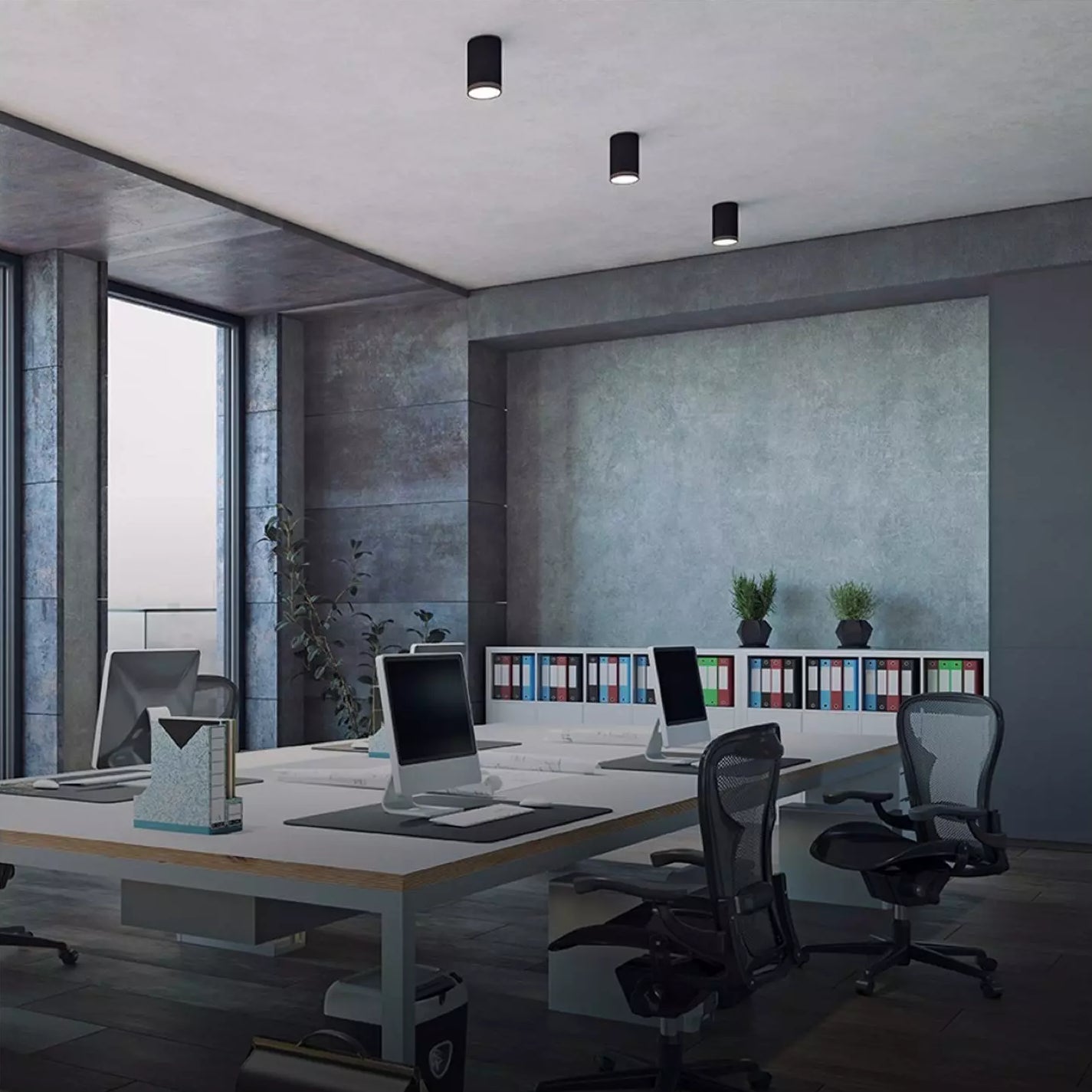

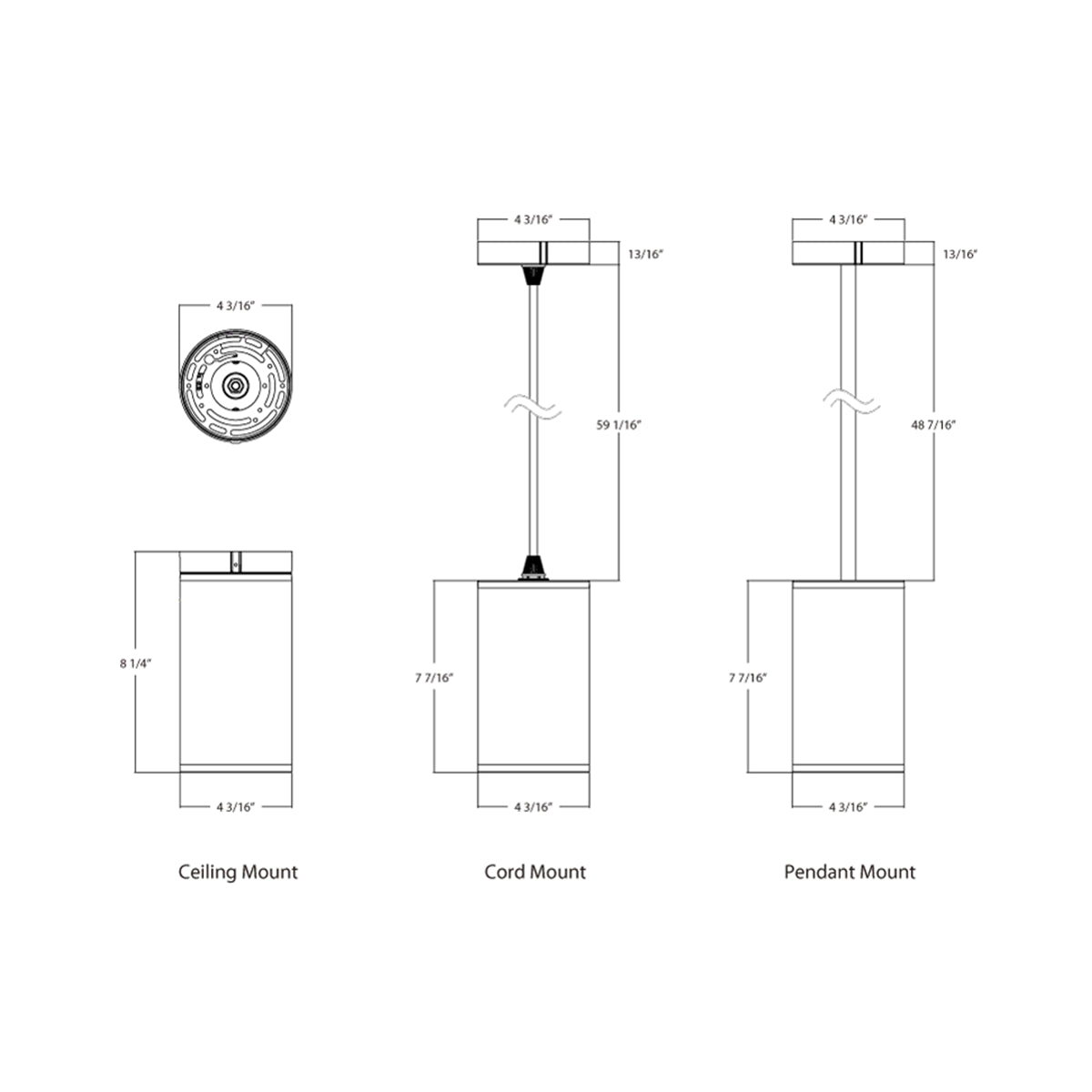

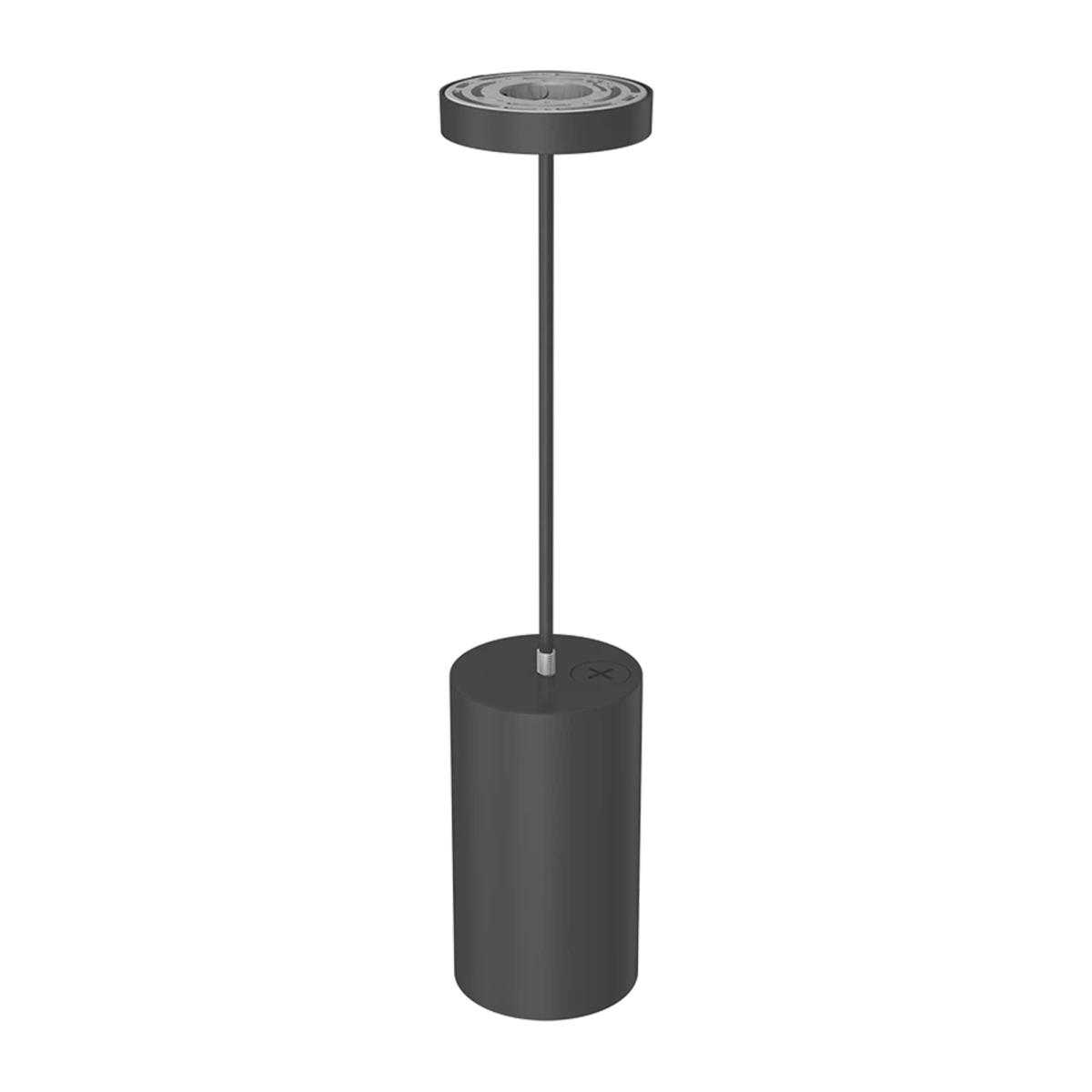

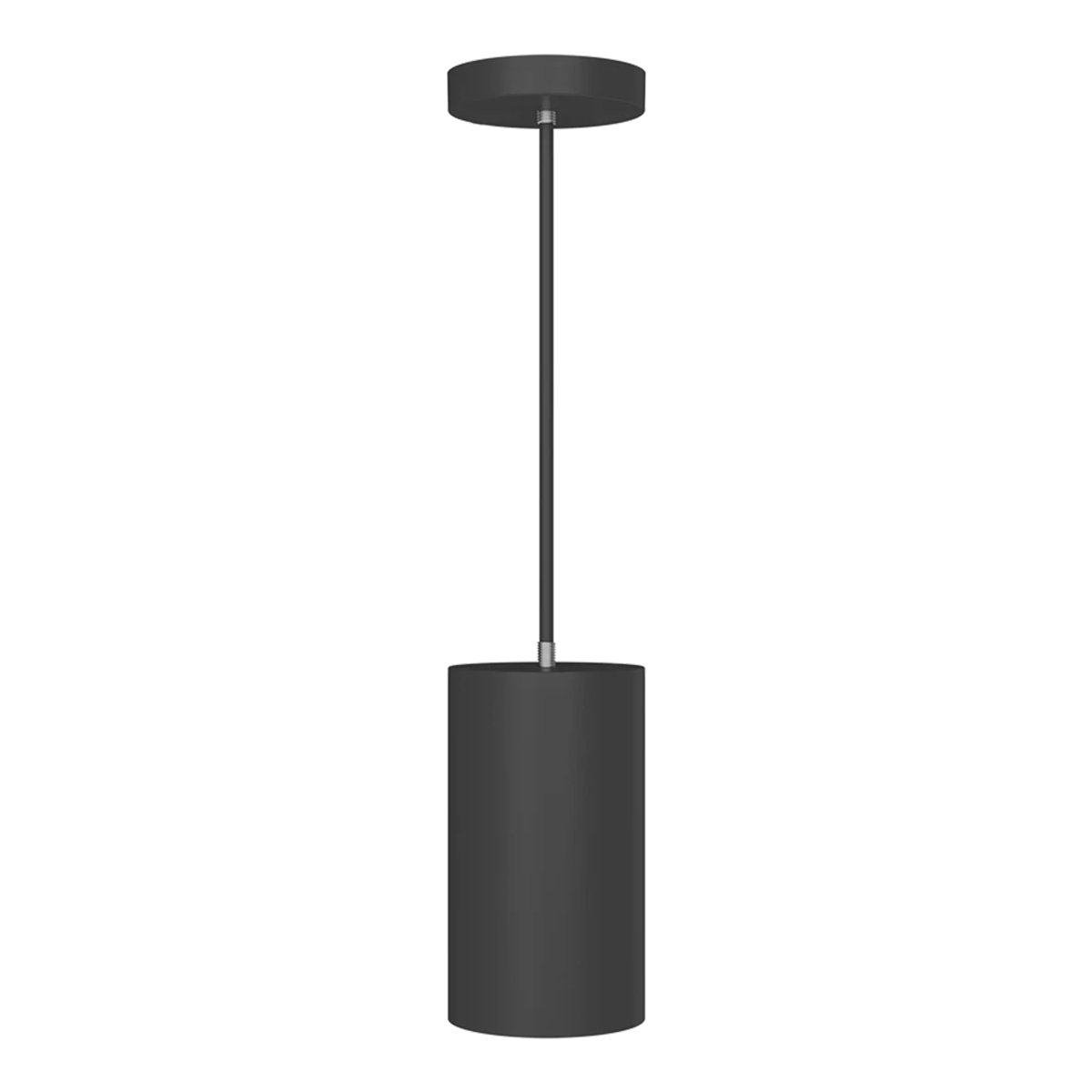

  1. Surface mount, or use the pendant kit to suspend, these cylinder lights in interior and covered exterior spaces
  2. IP65 rated with die-cast aluminum construction and 50,000-hour LED lifespan eliminates frequent lamp changes and reduces maintenance costs

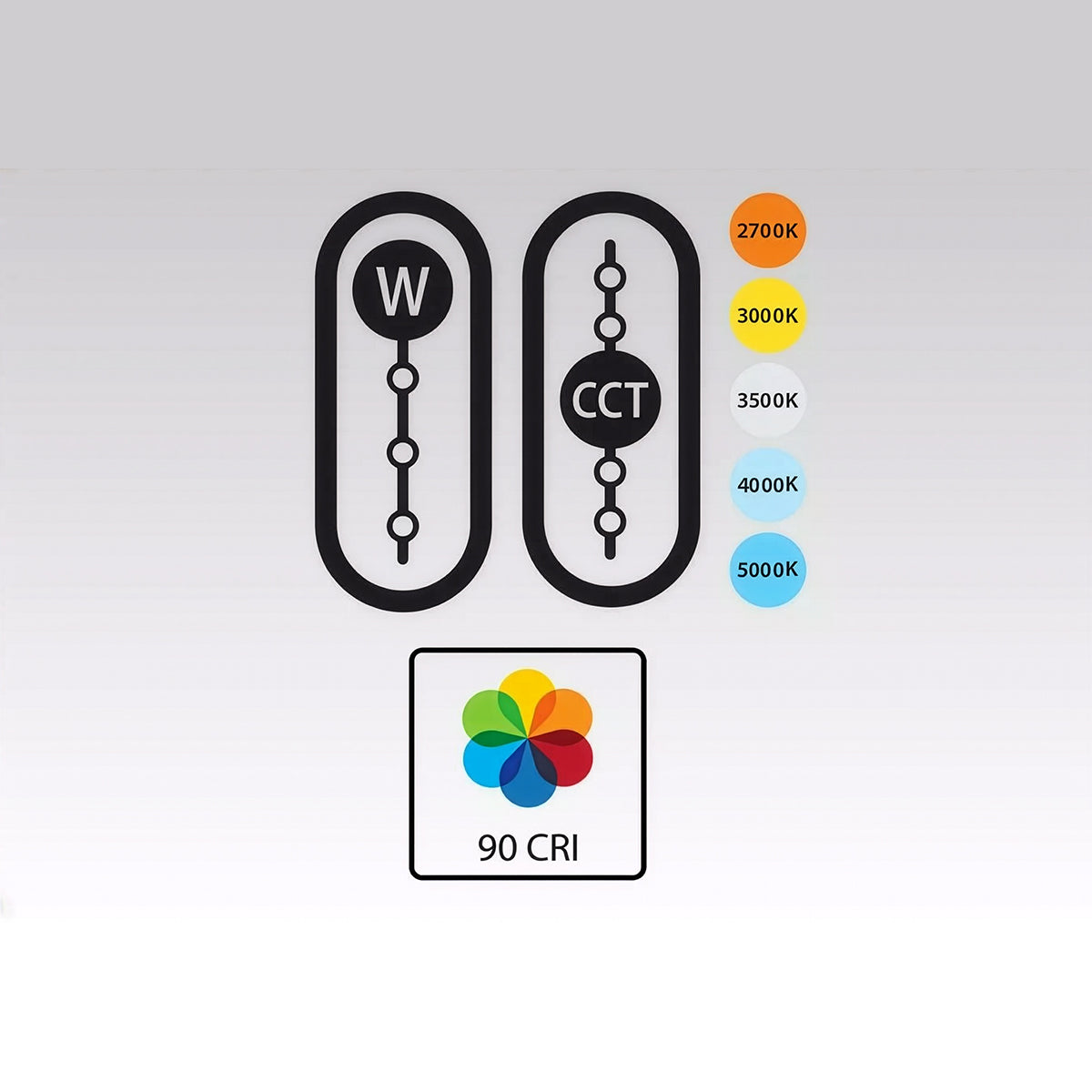

  3. With 1900/1520/1140 lumens and wide CCT range (2700K-5000K), these lights can be set up on site to match any interior design palette
  4. Easy-swap optics allow you to replace the standard 40° reflector with 25° or 60°, no tools required. Use the narrow beam for focused lighting, the medium for corridors and lobbies, and the wide angle for general illumination
  5. 90 CRI color accuracy shows products and spaces in natural, vibrant color

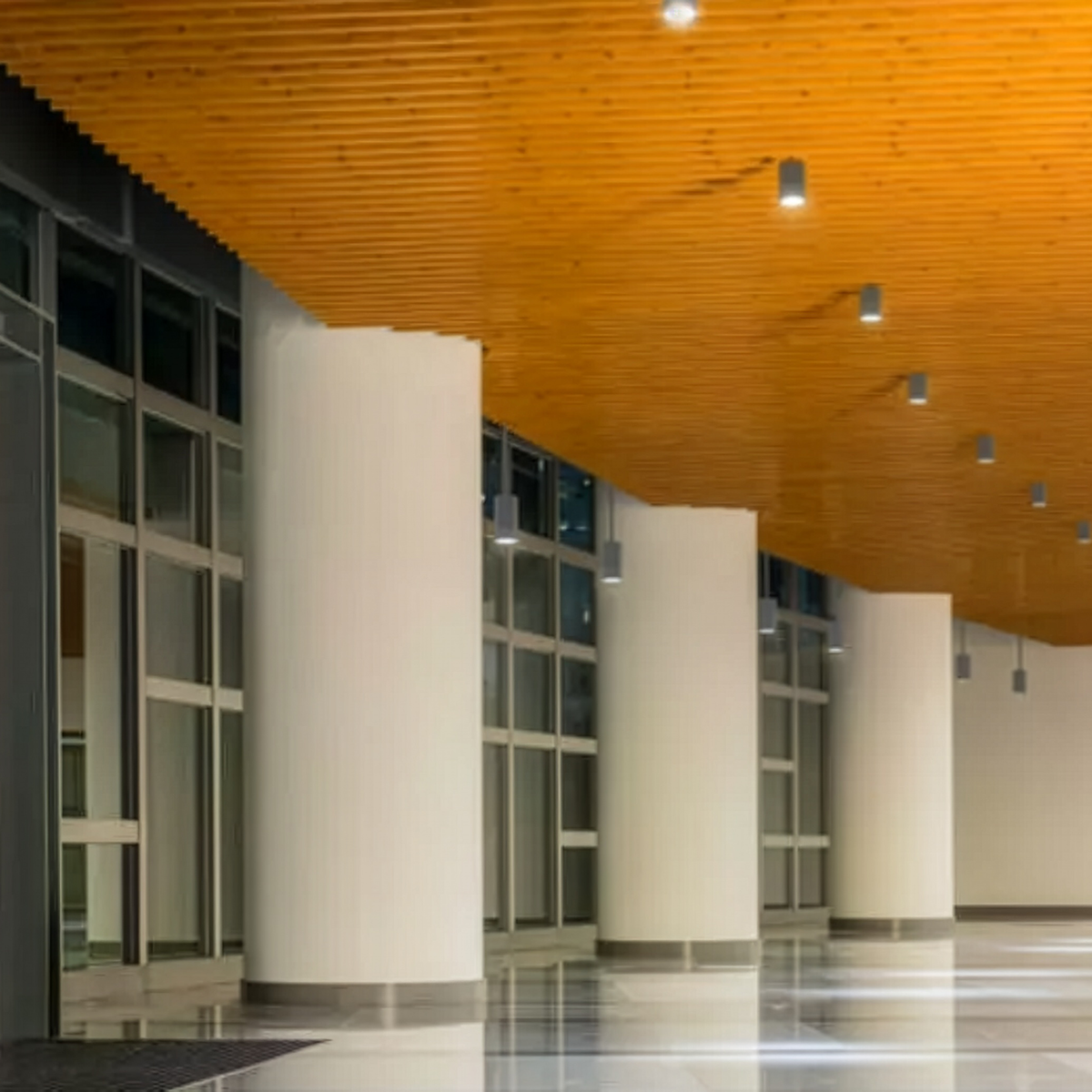

Great for retail lighting, hotel corridors, office lobbies, restaurant dining areas, and commercial interiors where precise downlighting is required. The bronze finish adds sophisticated warmth to traditional and transitional spaces while 50,000-hour operation and 0-10V dimming minimize maintenance and maximize energy savings for cost-conscious facility managers.

Specs

Wattage(s) 12/16/20W
Replaces Wattage(s) 75/100/125W
Light Output 1,140/1,520/1,900 lumens
Luminous Efficacy (lm/W) 95 lm/W
Average Lamp Life 50,000-Hour LED lifespan based on IES LM-70 results
Color Temperature(s) 2700/3000/3500/4000/5000K
CRI (Color Accuracy) 90
Dimming Dimmable down to 5% on compatible 0-10V dimming systems. Requires separate 0-10V DC dimming circuit.
Beam Angle 40° installed. Field swappable reflectors sold separately for 25° or 60° beam angle.
Lens Cover Clear. Field swappable frosted lens available.
Enclosure Rating IP65 - Suitable for use indoors and outdoors in dry, damp, or wet environments.
Input Voltage 120-277VAC
Power Factor ≥0.9
THD (Total Harmonic Distortion) ≤20%
Temperature Rating -40°F to 120°F (-40°C to 45°C)
Housing Material Aluminum extrusion housing with die-cast cover
Certification UL Listed
Warranty RAB 5-year, limited warranty
Additional Specifications Integrated photocell included with on/off switch.
