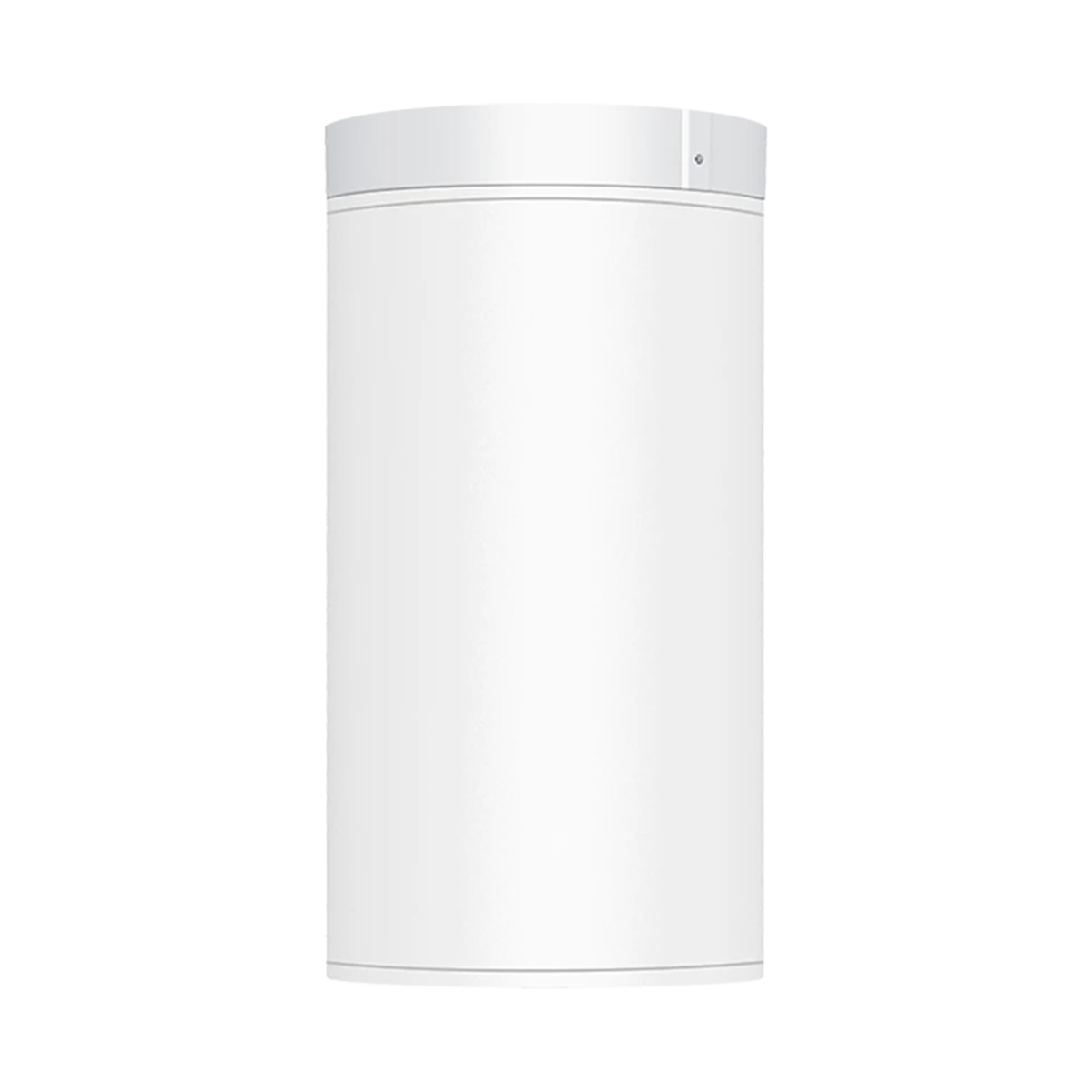

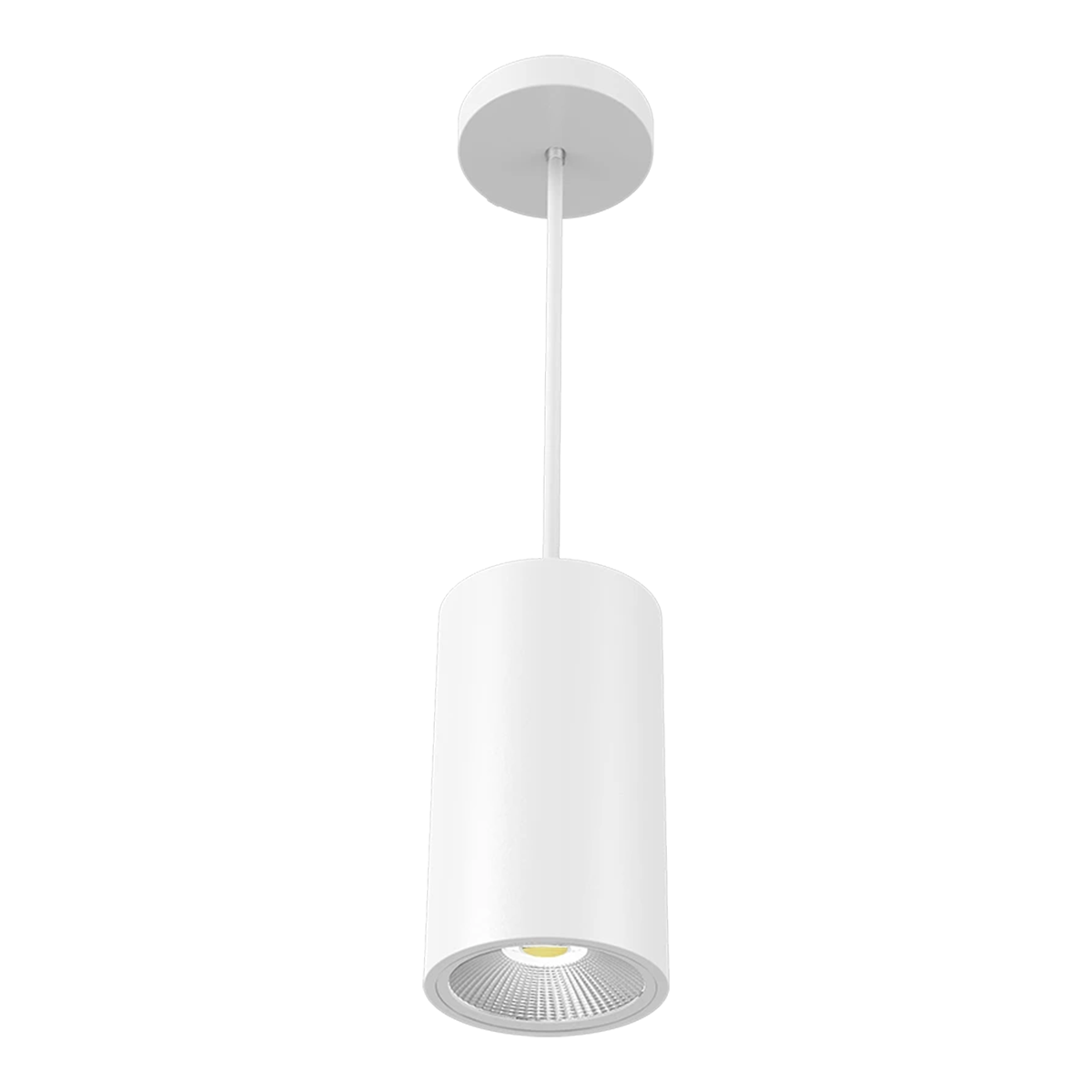

RAB CD34-4SPW - 4" LED Cylinder Surface/Pendant Light (White)

RAB CD34-4SPW - 4" LED Cylinder Surface/Pendant Light (White)
RAB CD34-4SPW - 4" LED Cylinder Surface/Pendant Light (White)
RAB CD34-4SPW - 4" LED Cylinder Surface/Pendant Light (White)
RAB CD34-4SPW - 4" LED Cylinder Surface/Pendant Light (White)
RAB CD34-4SPW - 4" LED Cylinder Surface/Pendant Light (White)
RAB CD34-4SPW - 4" LED Cylinder Surface/Pendant Light (White)
RAB CD34-4SPW - 4" LED Cylinder Surface/Pendant Light (White)
RAB CD34-4SPW - 4" LED Cylinder Surface/Pendant Light (White)
RAB CD34-4SPW - 4" LED Cylinder Surface/Pendant Light (White)
RAB Lighting

RAB CD34-4SPW - 4" LED Cylinder Surface/Pendant Light (White)

Outline Star
Outline Star
Outline Star
Outline Star
Outline Star
Filled Star
Filled Star
Filled Star
Filled Star
Filled Star
0 Reviews
SKU: CD34-4SPW
Sale price$123.00
Regular price$0.00
Free Shipping Over $350

Bulk Pricing: Text (858) 650-9400 or Request Quote

Details

Interior & Exterior Downlight Maintains Cohesive Look Throughout Your Property

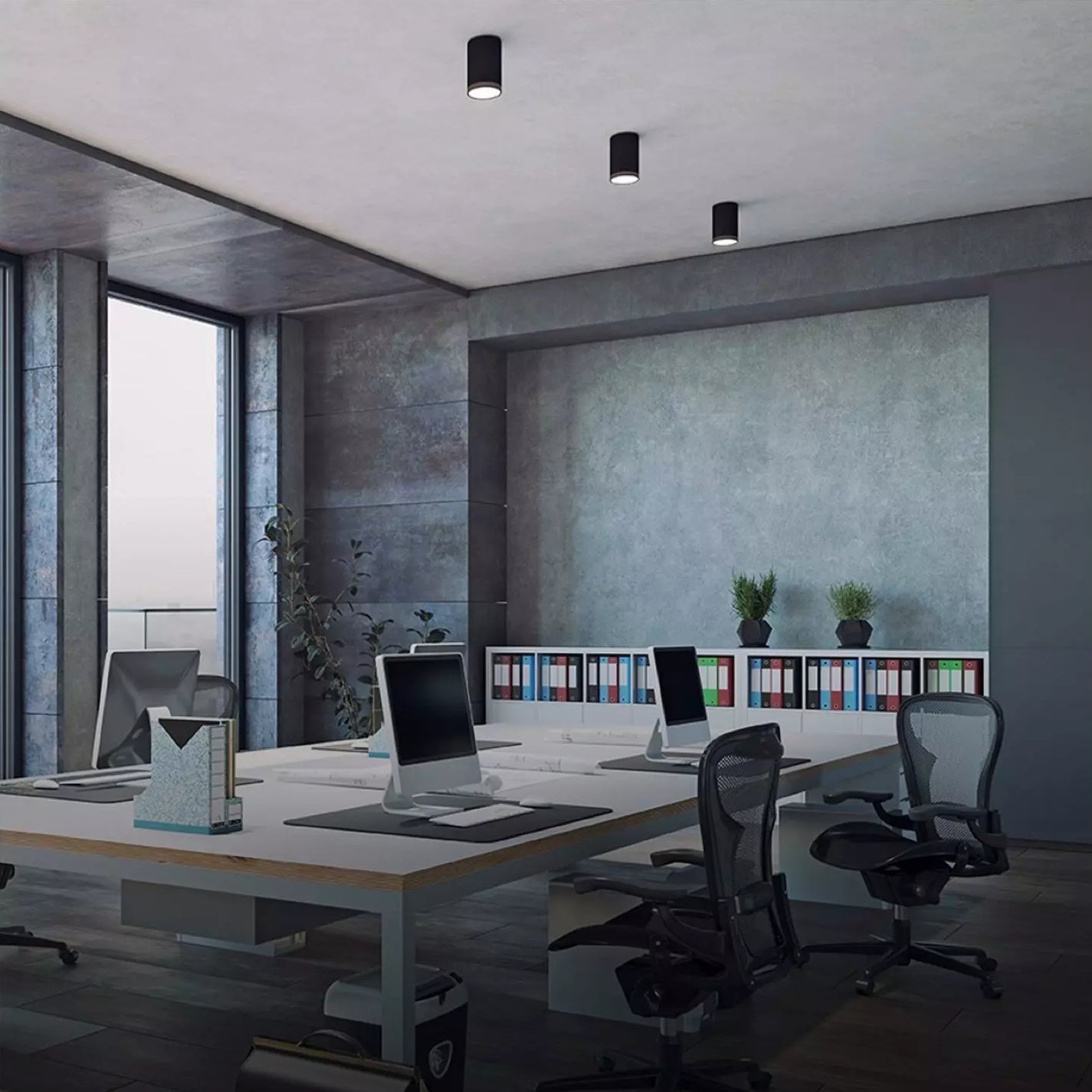

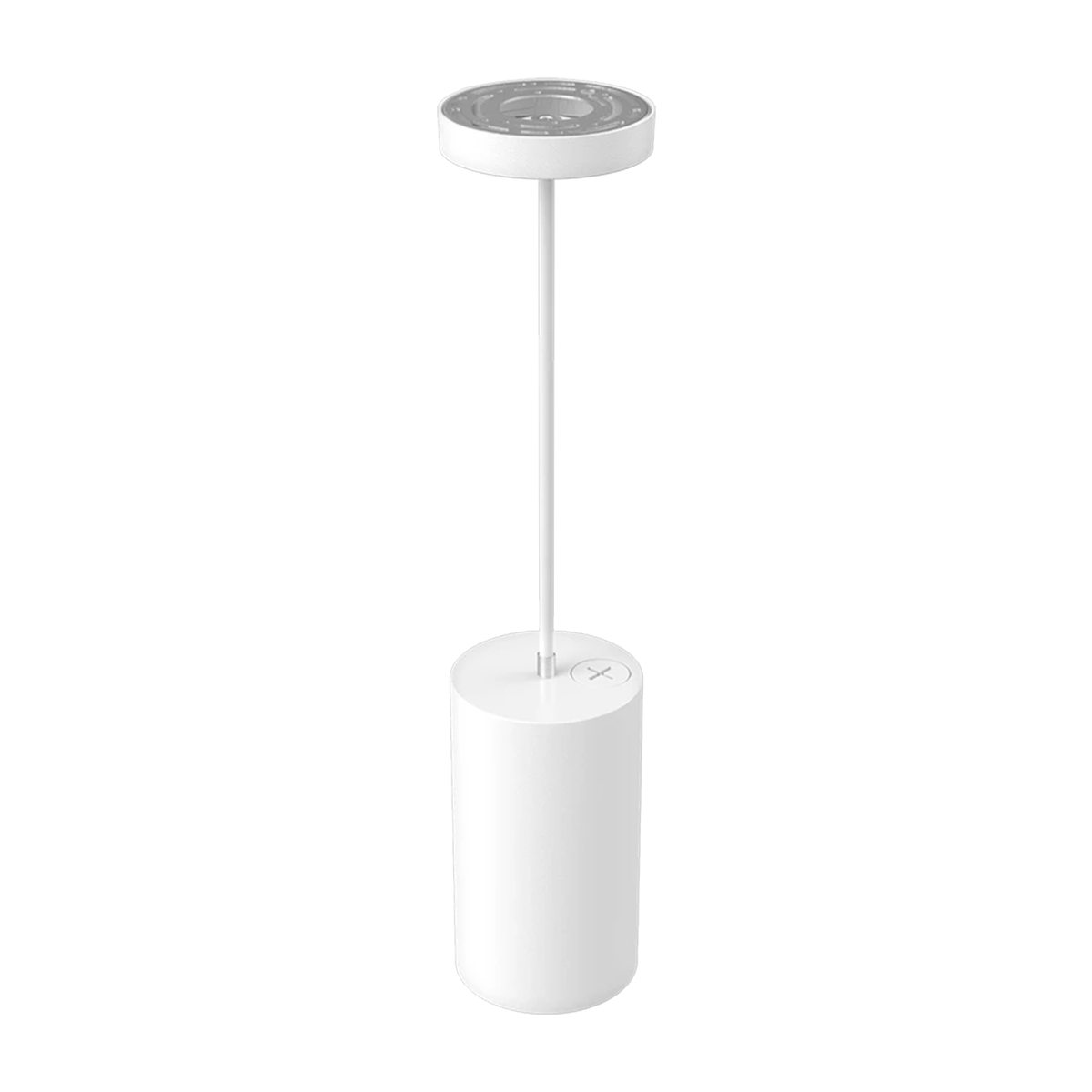

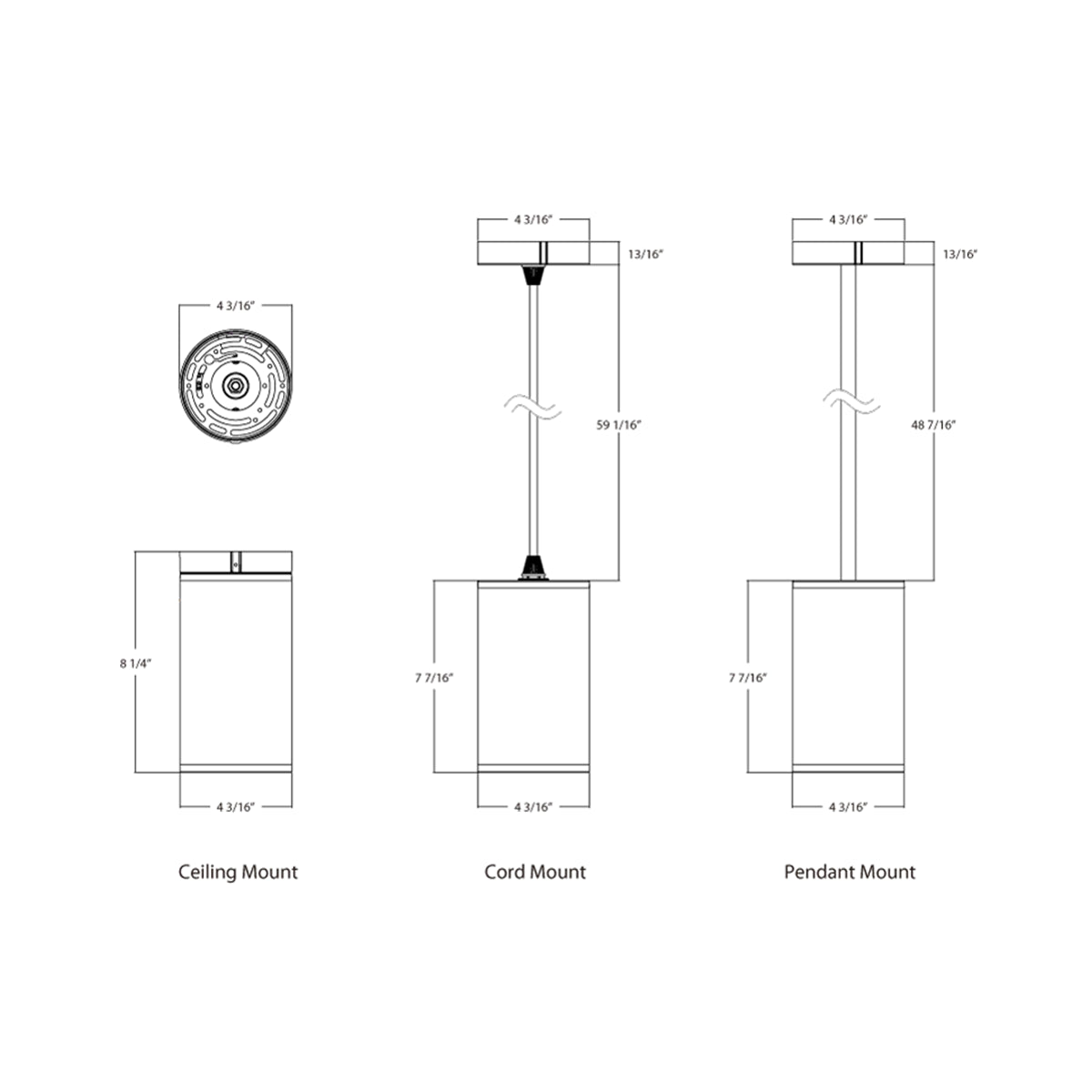

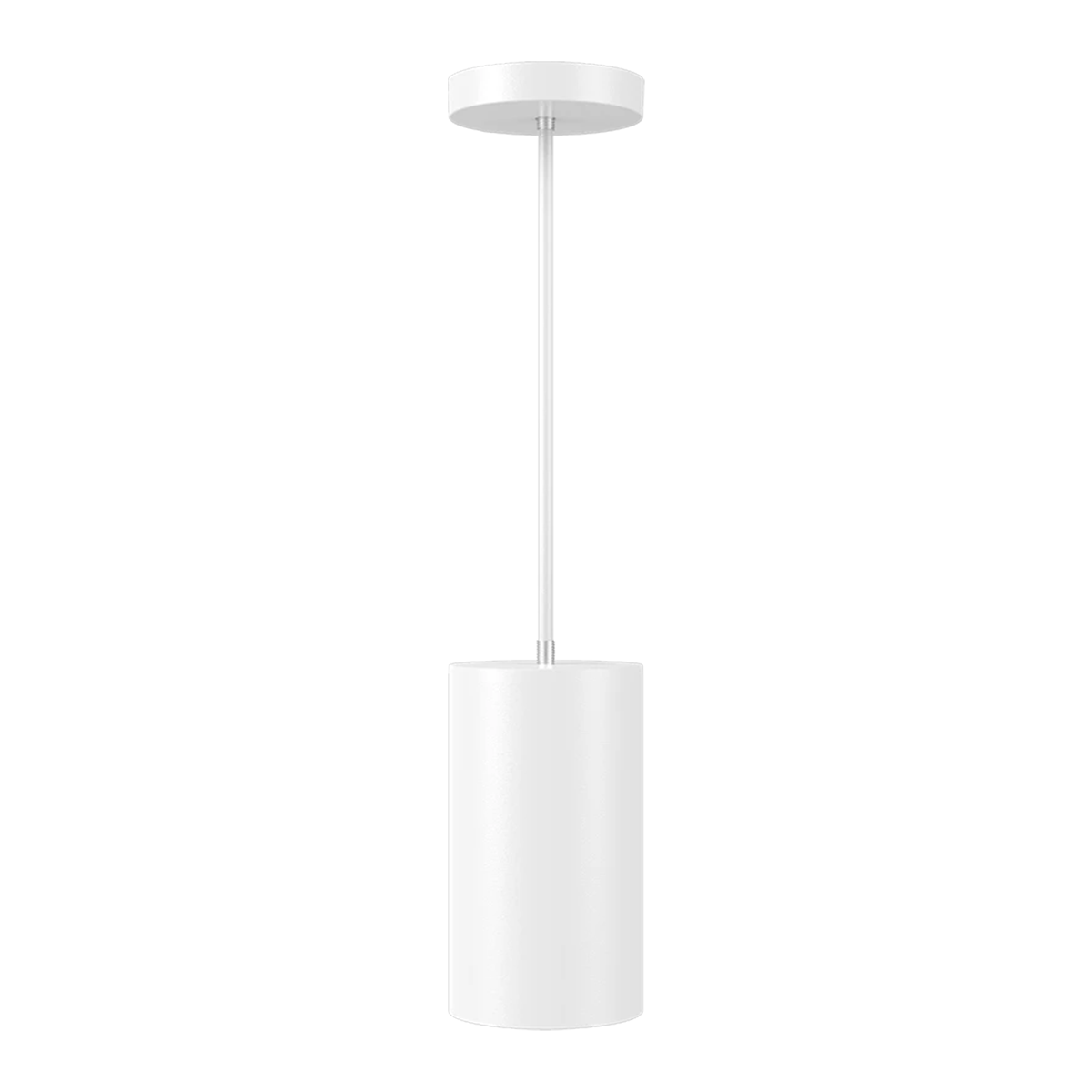

  1. Surface mount for direct ceiling installation or add optional pendant stem kit for suspended applications

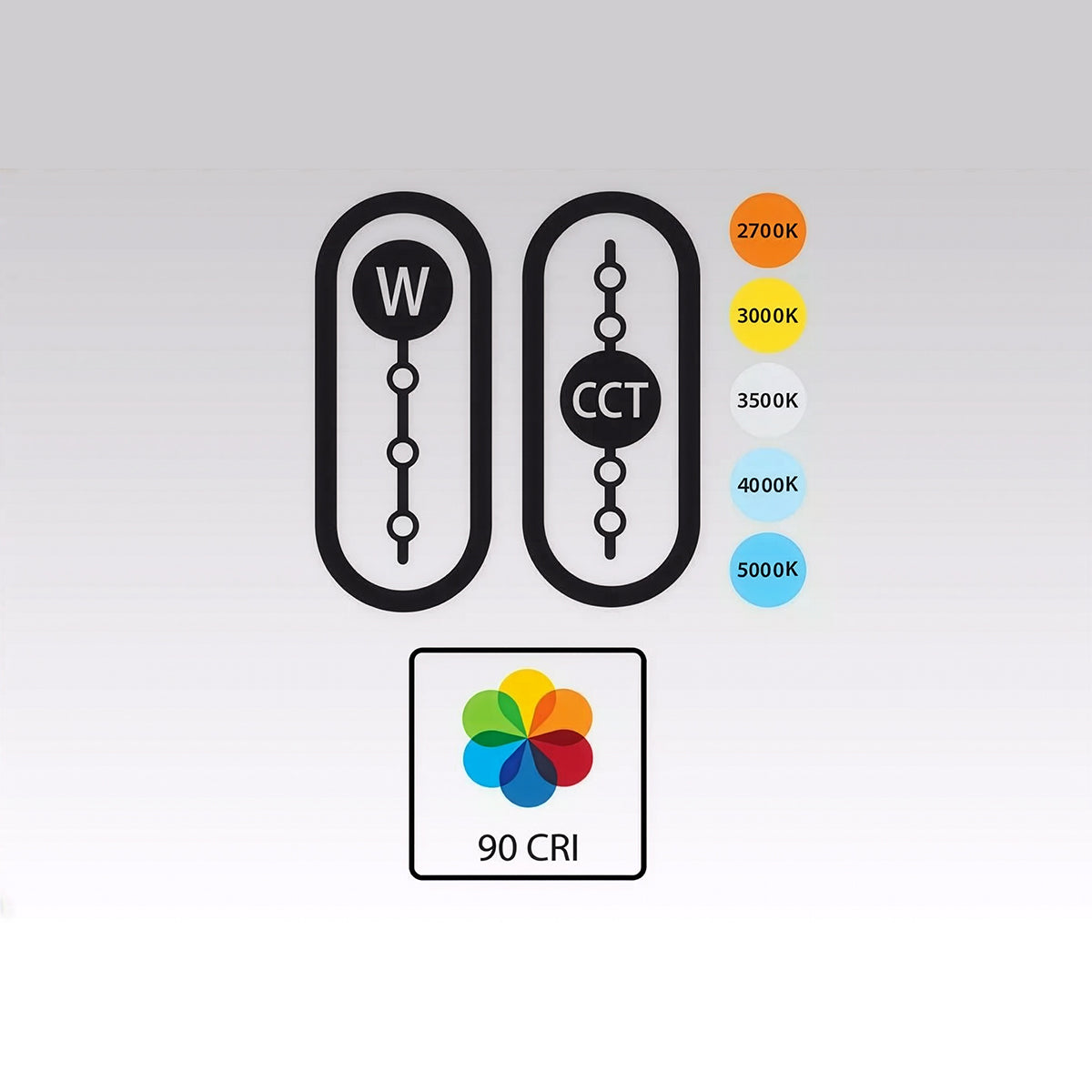

  2. With 1140/1520/1900 lumens and expanded CCT range (2700K-5000K), the light can be tuned to suit nearly any space, from warm hospitality ambiance to cool retail brightness/li>

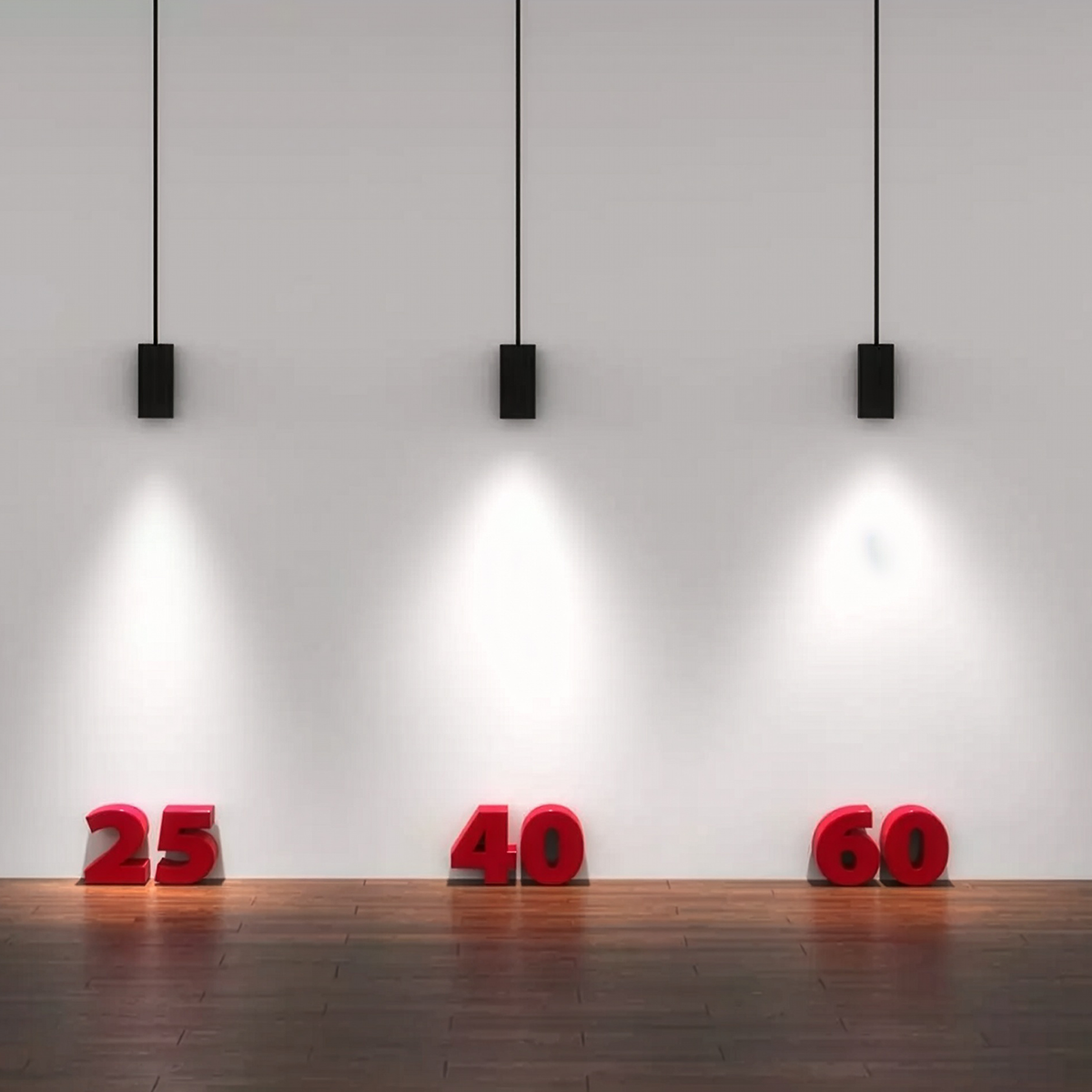

  3. Field-swappable optics—40° comes installed—offer precision beam control: 25° narrow for focused retail display and artwork, 40° medium for corridor and lobby lighting, or 60° wide for general area illumination
  4. 90 CRI color rendering reveals true product colors in retail, accurate fabric and finish in hospitality, and vibrant artwork in galleries—essential for spaces where color perception drives purchasing decisions

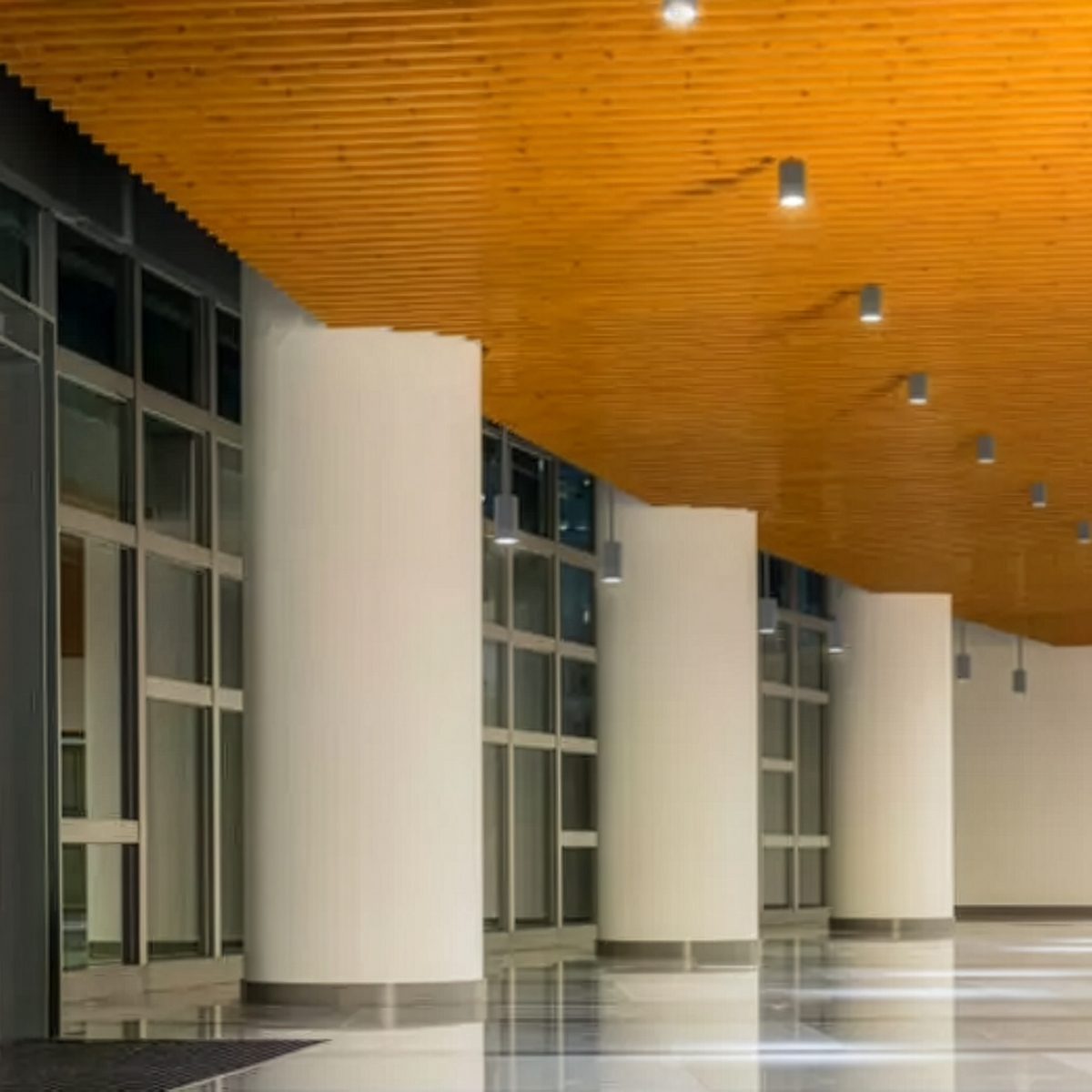

  5. IP65-rated for versatile indoor and outdoor use means one fixture specification handles interior lobbies, covered entryways, parking garages, and exterior canopies, simplifiying specification while maintaining a cohesive look, inside and out
  6. Die-cast aluminum construction with 50,000-hour LED lifespan eliminates frequent lamp changes and reduces maintenance costs—ideal for high-ceiling applications where access is expensive

Essential for retail display lighting, hotel corridors, office lobbies, restaurant dining areas, gallery spaces, and commercial interiors where precise downlighting is required. The white finish integrates seamlessly with contemporary ceilings and architectural millwork while 50,000-hour rated life and 0-10V dimming reduce operating costs and create the perfect ambiance for customers and occupants.

Specs

Wattage(s) 12/16/20W
Replaces Wattage(s) 75/100/125W
Light Output 1,140/1,520/1,900 lumens
Luminous Efficacy (lm/W) 95 lm/W
Average Lamp Life 50,000-Hour LED lifespan based on IES LM-70 results
Color Temperature(s) 2700/3000/3500/4000/5000K
CRI (Color Accuracy) 90
Dimming Dimmable down to 5% on compatible 0-10V dimming systems. Requires separate 0-10V DC dimming circuit.
Beam Angle 40° installed. Field swappable reflectors sold separately for 25° or 60° beam angle.
Lens Cover Clear. Field swappable frosted lens available.
Enclosure Rating IP65 - Suitable for use indoors and outdoors in dry, damp, or wet environments.
Input Voltage 120-277VAC
Power Factor ≥0.9
THD (Total Harmonic Distortion) ≤20%
Temperature Rating -40°F to 120°F (-40°C to 45°C)
Housing Material Aluminum extrusion housing with die-cast cover
Certification UL Listed
Warranty RAB 5-year, limited warranty
Additional Specifications Integrated photocell included with on/off switch.
