15W Selectable RAB Round LED Bulkhead Wall Sconce
15W Selectable RAB Round LED Bulkhead Wall Sconce
15W Selectable RAB Round LED Bulkhead Wall Sconce
15W Selectable RAB Round LED Bulkhead Wall Sconce
Suitable for commercial or residential applications, this 9–15W round bulkhead sconce offers field-selectable wattage and CCT, automated on/off, and 0–10V dimming.
- Selectable wattage and color temperature
- Integrated photocell to automate on/off
- Durable, water-sealed housing
Suitable for commercial or residential applications, this 9–15W round bulkhead sconce offers field-selectable wattage and CCT, automated on/off, and 0–10V dimming.
- Selectable wattage and color temperature
- Integrated photocell to automate on/off
- Durable, water-sealed housing
Choose options
Details
The RAB BULKH15R is a rugged round LED bulkhead wall sconce built for outdoor commercial and residential applications where durability and flexibility matter.
- Field-selectable wattage (15/12/9W) and color temperature (3000K/4000K/5000K) let you dial in the right output on-site without ordering multiple SKUs.
- UL Listed for wet locations with an IP65 rating and die-cast aluminum housing — built to handle the elements long-term.
- Includes an integrated on/off photocell and 0-10V dimming capability for straightforward installation and energy control.
Backed by a 5-year RAB warranty and available at ELEDLights with fast shipping and competitive pricing.
Specs
| Wattage(s) | 15/12/9W (selectable) |
| Replaces Wattage(s) | 60 |
| Light Output | 1,018–1,684 lm |
| Luminous Efficacy (lm/W) | 107.8–119.7 lm/W |
| Average Lamp Life | 100,000 hours (L70, per IES LM-80 / TM-21) |
| Color Temperature(s) | 3000K / 4000K / 5000K (selectable; factory default 5000K) |
| CRI (Color Accuracy) | 83–86 CRI |
| Dimming | Yes |
| Dimming Range | Dims to 10% (0-10V) |
| Safety Features | Mercury-free; UV-free; RoHS-compliant components |
| Bulb Shape | Round |
| Lens Cover | Glass lens |
| Installation | Wall mount |
| Working Environment | Wet locations; outdoor |
| Enclosure Rating | IP65 |
| Light Type | LED |
| LED Type | Long-life, high-efficacy, discrete, surface-mount LEDs |
| Input Voltage | 120–277V |
| Driver Type | Constant Current, Class 1, 120–277V, 50/60 Hz |
| Power Factor | 15W: 98.1% @ 120V, 92.5% @ 277V; 12W: 97.9% @ 120V, 91.1% @ 277V; 9W: 97.1% @ 120V, 86.5% @ 277V |
| Surge Protection | 2 kV |
| Input Power Rating | 9.1–14.6W |
| Input Current | 15W: 120V 0.13A / 208V 0.07A / 240V 0.06A / 277V 0.06A |
| Temperature Rating | Operating: -40°F to 113°F (-40°C to 45°C) |
| Housing Material | Die-cast aluminum |
| Housing Color | Bronze (factory default) |

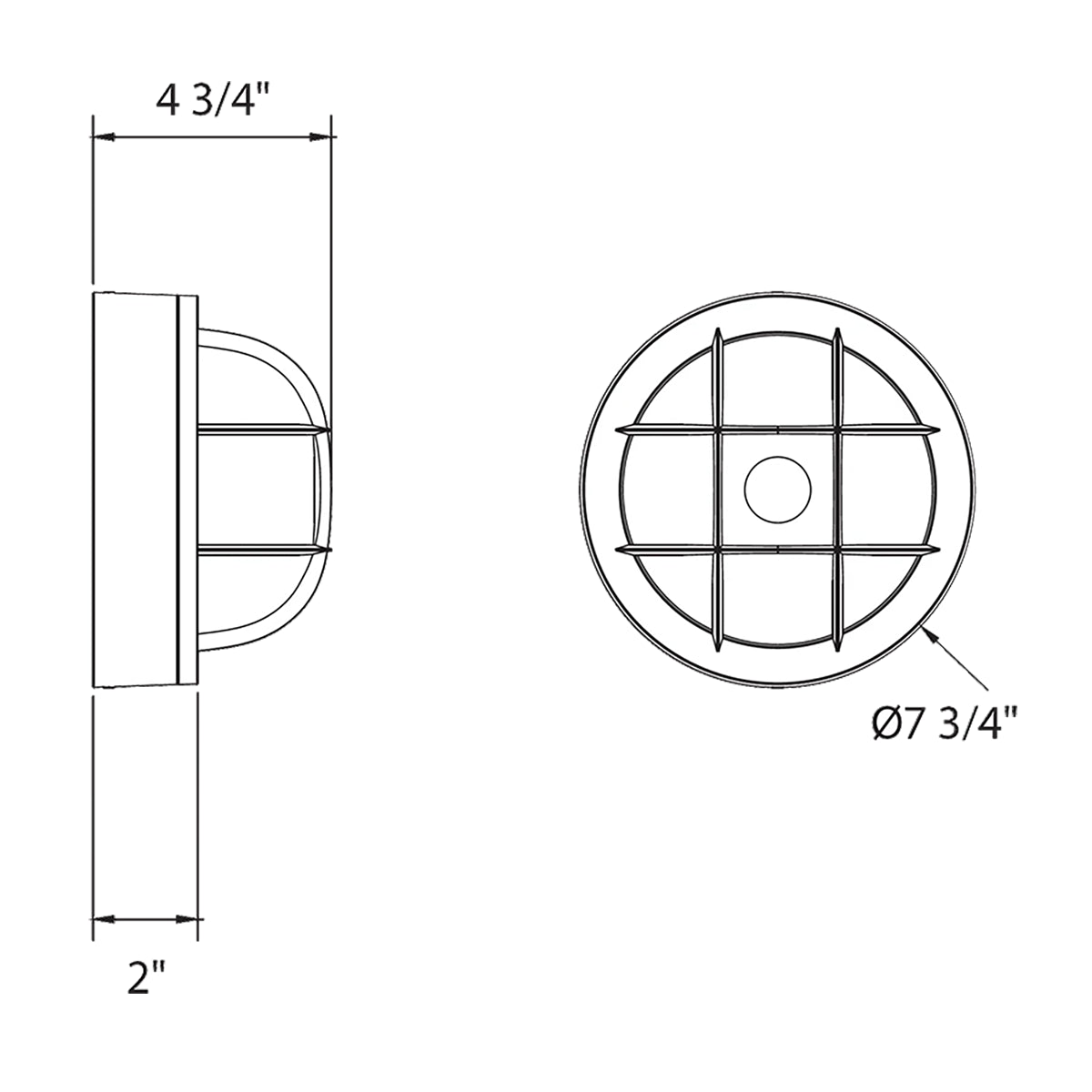

| Dimensions | 4-3/4" depth; Ø7-3/4" diameter |
| Shipping Weight | 3.3 lbs |
| Certification | UL Listed – Wet Location; IP65; IESNA LM-79 & LM-80 Tested; RoHS Compliant |
| Warranty | 5-Year Limited (light output, driver performance, paint finish) |
| Additional Specifications | Photocell: 120–277V selectable, on/off (factory default "On"); Gaskets: High-temperature silicone; Dim to Off: No; Aux Power Supply: No |
| Other Specifications | Available in Bronze (blank) or White (W) finish per ordering matrix |
