2” 10W Selectable RAB LED Downlight
2” 10W Selectable RAB LED Downlight
2” 10W Selectable RAB LED Downlight
2” 10W Selectable RAB LED Downlight
This field-selectable wafer downlight delivers up to 851 lumens of highly color-accurate light in a slim 2" package—great for bathroom accents, lobbies, retail and art displays, and more.
- Dimmable, flicker-free light at 90 CRI
- No j-box or recessed housing required
- Durable airtight, wet-location-rated housing
This field-selectable wafer downlight delivers up to 851 lumens of highly color-accurate light in a slim 2" package—great for bathroom accents, lobbies, retail and art displays, and more.
- Dimmable, flicker-free light at 90 CRI
- No j-box or recessed housing required
- Durable airtight, wet-location-rated housing
Choose options
Details

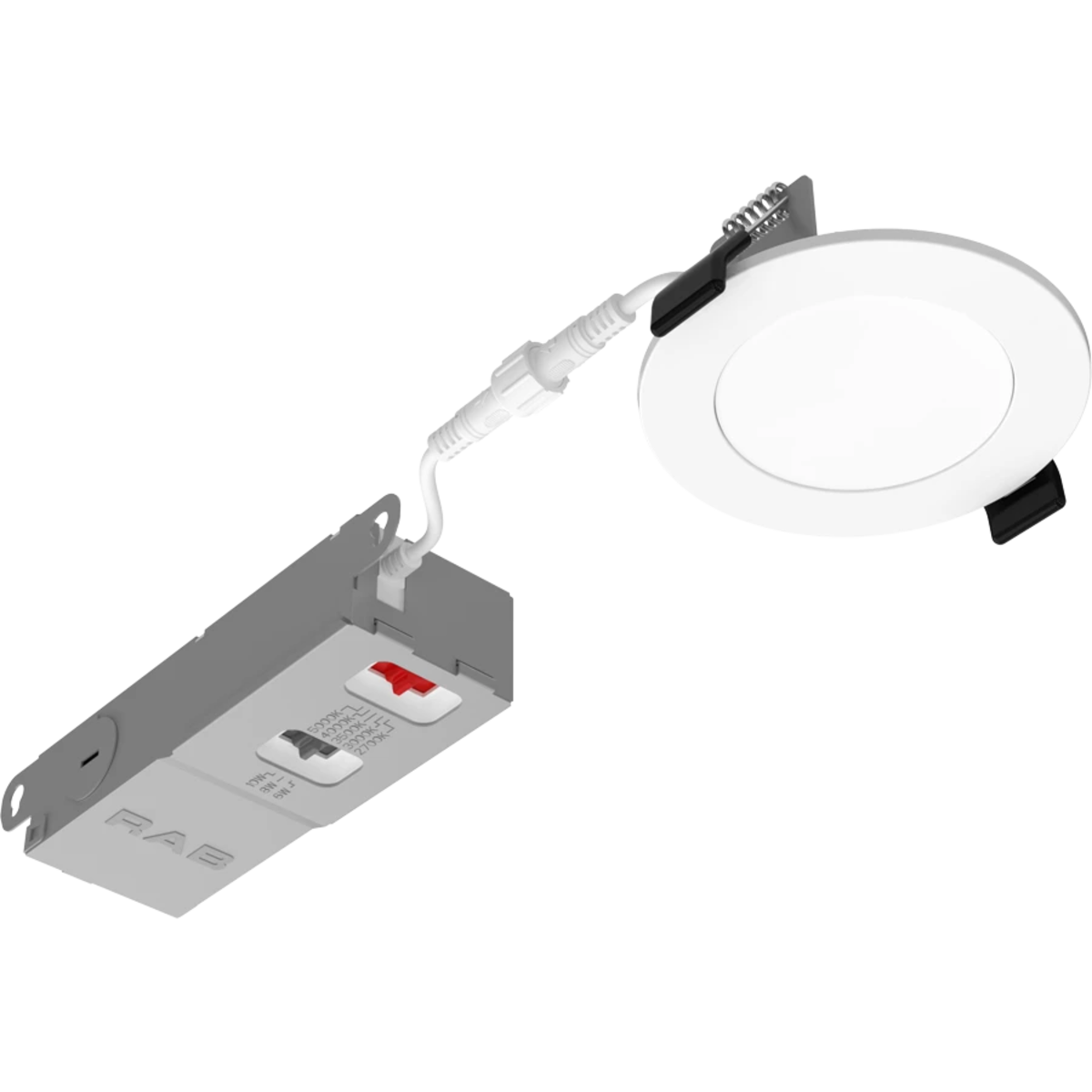

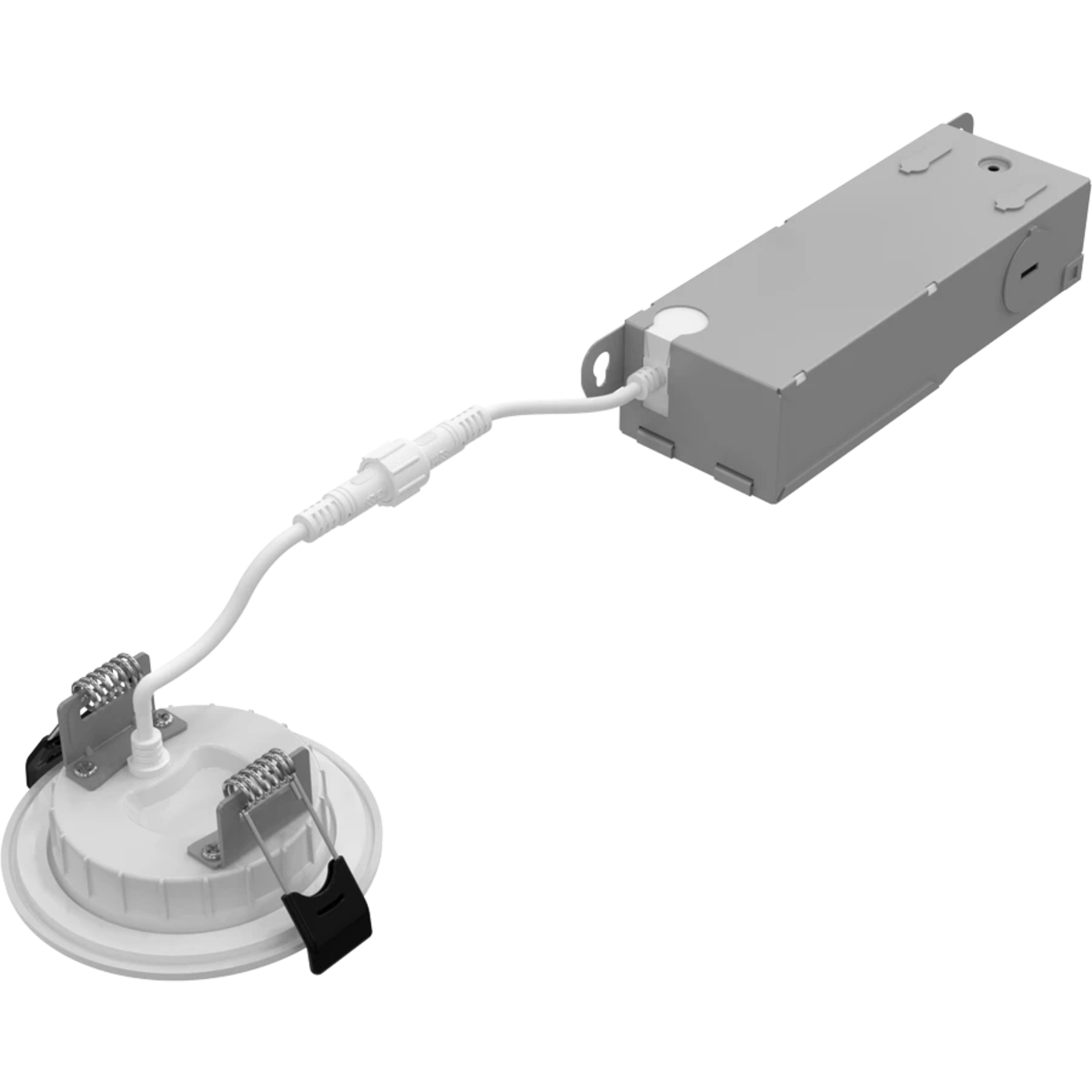

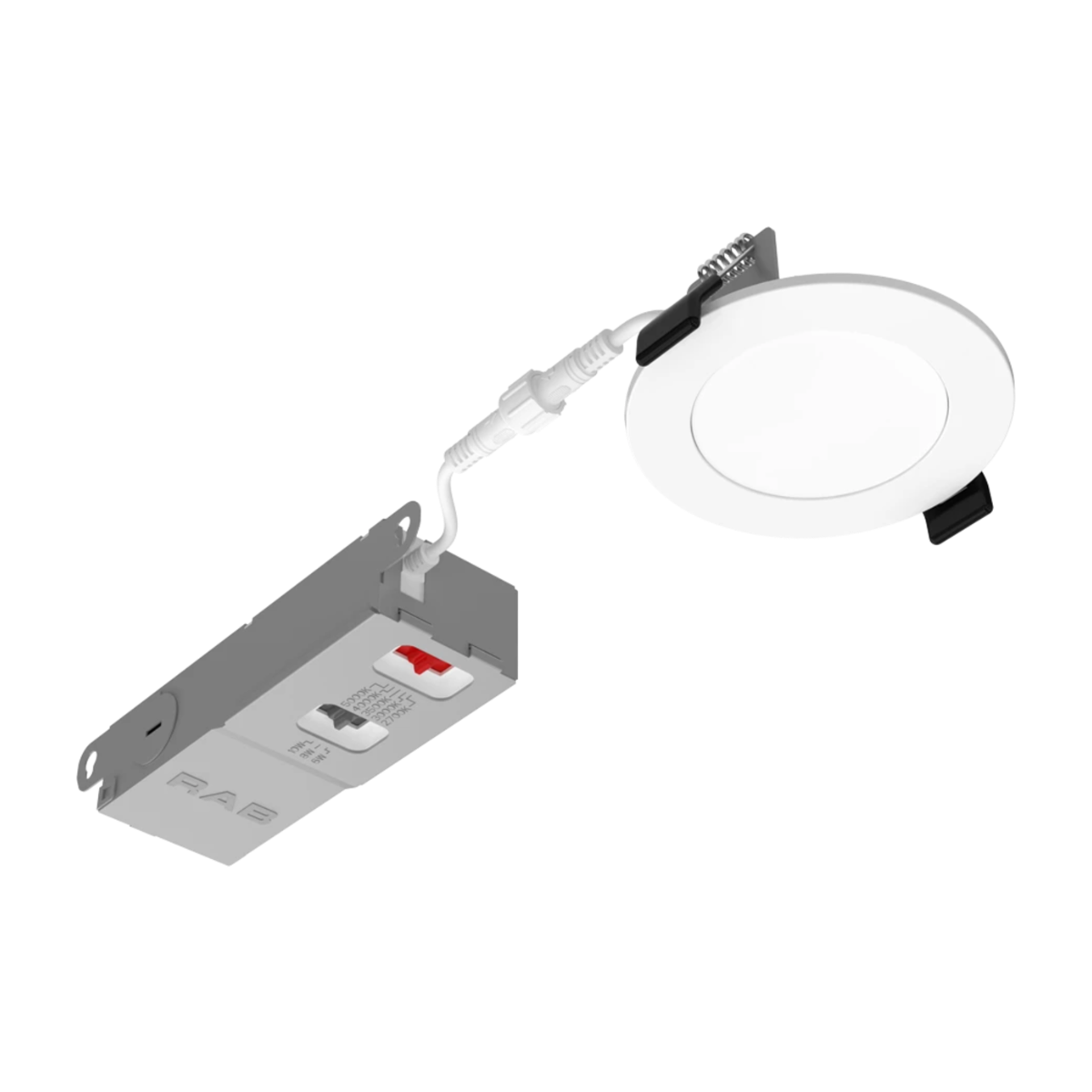

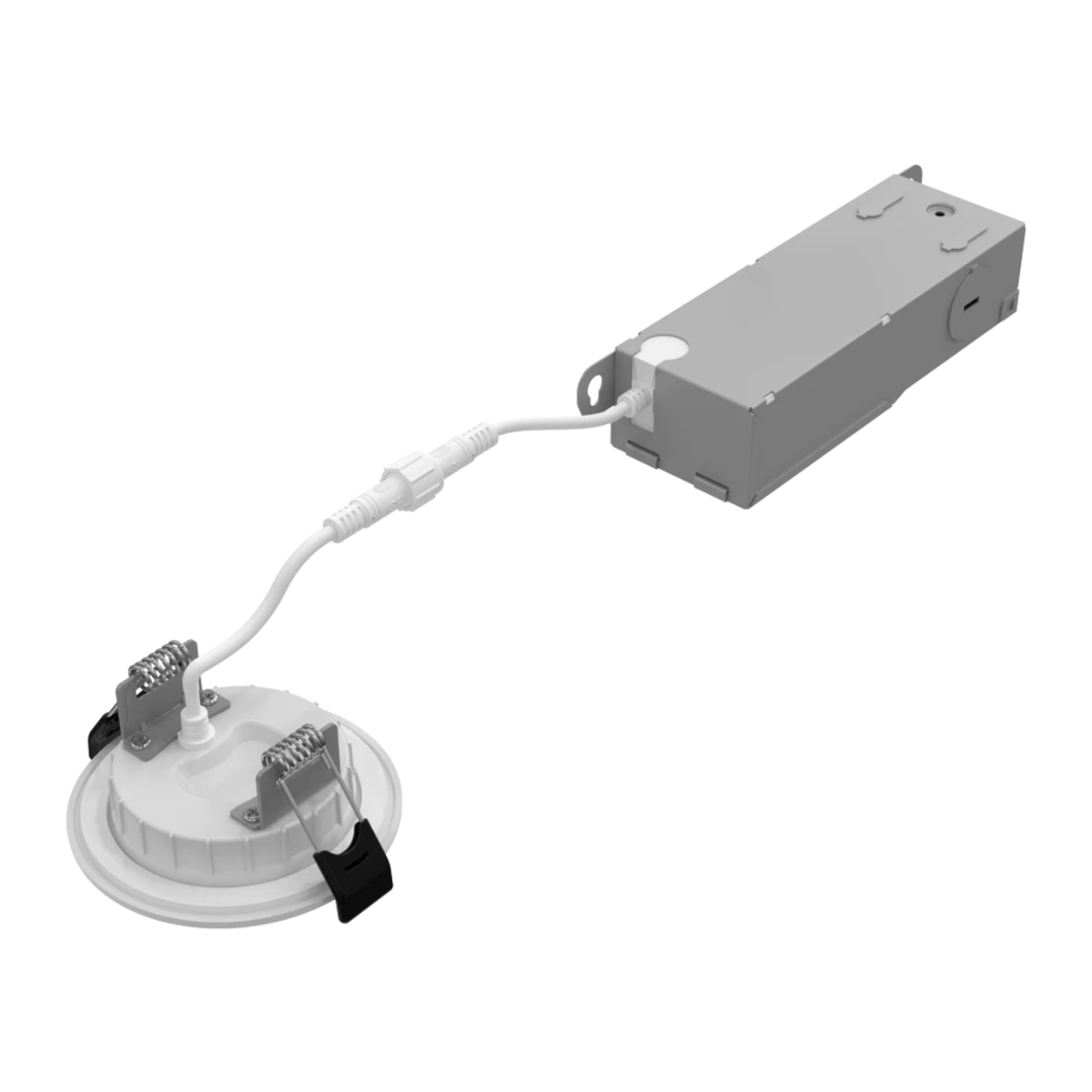

The RAB WFRX-2 is a 2” slim canless wafer downlight with field-selectable wattage and color temperature — built for contractors and builders tackling everything from bathroom vanity and shower lighting to hotel lobby canopies, office ceilings, retail accent walls, and residential new construction or retrofit projects.

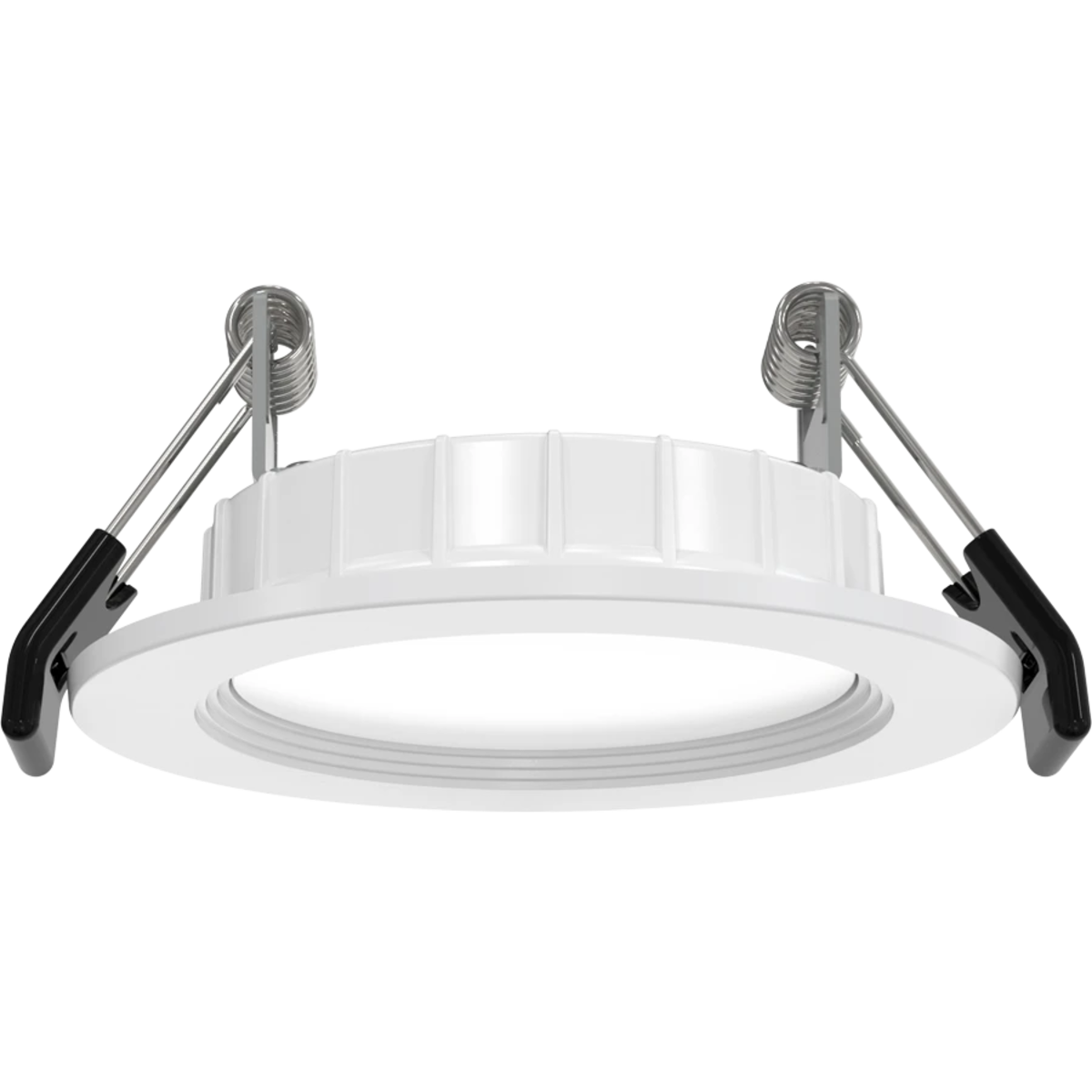

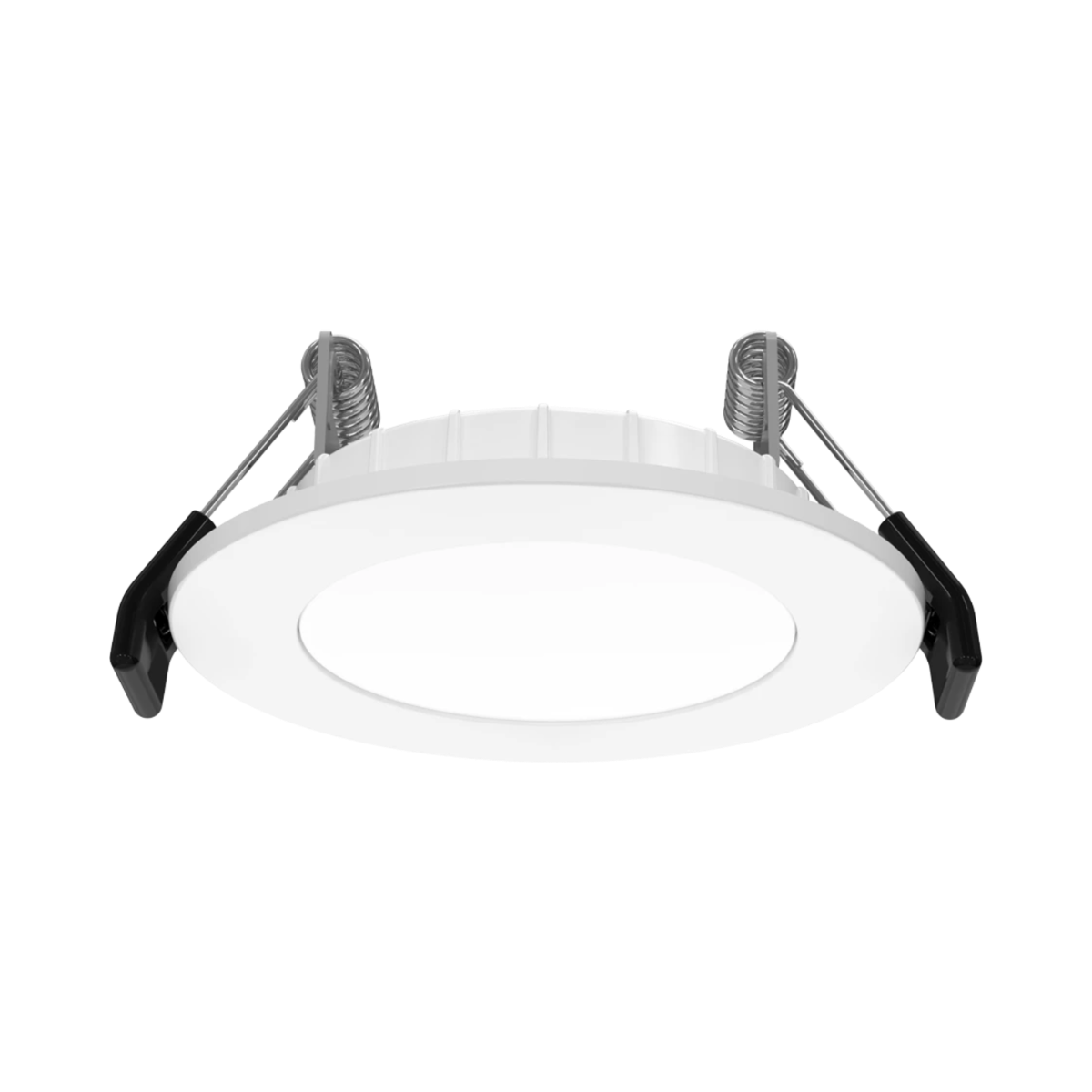

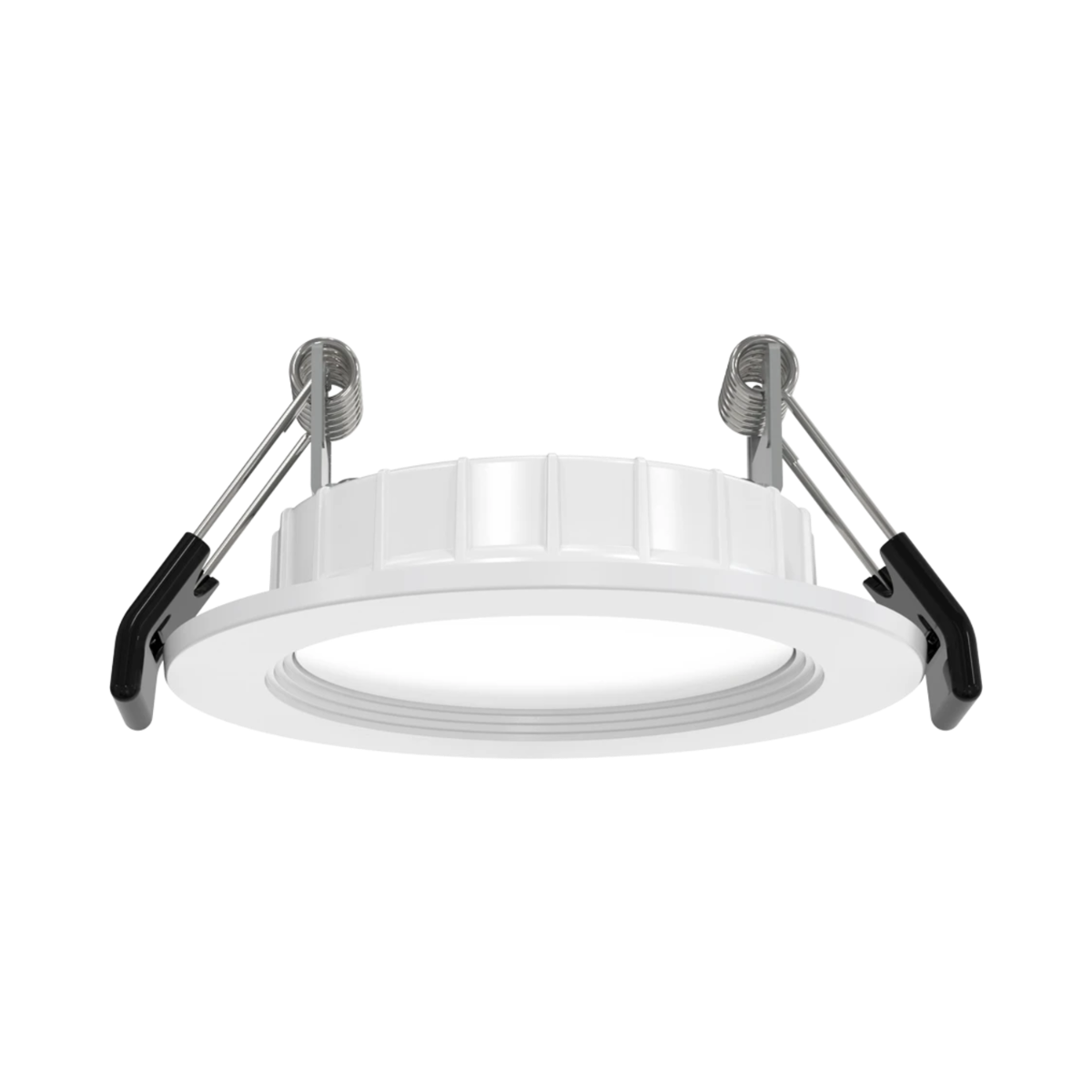

- Available in smooth or baffle trim — smooth lens for a clean, modern look; baffle trim to reduce glare in high-visibility spaces like retail counters, reception areas, and hospitality settings.
- Field-adjustable wattage (6/8/10WW) and CCT (2700K–5000K) via dip switch — easily tune on site for new construction or retrofits, indoors or out.
- 90 CRI delivers accurate, true-to-life color rendering, making it a smart choice for retail, hospitality, and any space where color appearance matters.
- Canless installation requires no recessed housing or j-box.
- Air Tight certified per ASTM-E283 — withstands dry, damp, and wet locations and keeps bugs out for low long-term maintenance.
- Energy Star certified and compliant with California Title 24 Part 6 high-efficacy LED source requirements.
Backed by RAB’s 5-year no-compromise warranty and available from ELEDLights with competitive 6-pack pricing and fast shipping.
Specs
| Wattage(s) | 6W/8W/10W Selectable |
| Light Output | @3000K: 552lm/719lm/840lm |
| Luminous Efficacy (lm/W) | @3000K: 96lm/W / 95 lm/W / 90 lm/W |
| Average Lamp Life | L70: 50,000 hours |
| Color Temperature(s) | 2700K/3000K/3500K/4000K/5000K Selectable (Default 3000K) |
| CRI (Color Accuracy) | 90 |
| Dimming | Yes |
| Dimming Range | 10–100% |
| Beam Angle | 110° |
| Lens Cover | Frosted Polycarbonate Lens |
| Installation | Recessed mounting; no housing or junction box required IC Rated: suitable for direct contact with air-permeable insulation; cULus listed for damp locations Air Tight rated per ASTM-E283 Die-formed metal driver/junction box with captive hinged cover Listed for maximum (4) 12AWG through branch circuit conductors rated for 90°C 2-in/2-out wiring (plus ground); (4) conduit pry-outs (3) quick snap-in connectors for line voltage connections Integral mounting for direct attachment to building structure or mounting frame |
| Working Environment | Indoors and outdoors; suitable for dry, damp, and wet locations |
| Enclosure Rating | Wet Location |
| Light Type | LED |
| Input Voltage | 120VAC, 60Hz |
| Driver Type | Constant Current, Class 2 |
| Power Factor | ≥0.9 |
| THD (Total Harmonic Distortion) | ≤20% |
| Temperature Rating | -4°F to 104°F (-20°C to 40°C) |
| Housing Material | Metal enclosure; plastic endcap; die-formed metal driver/junction box with captive hinged cover |
| Housing Color | White |

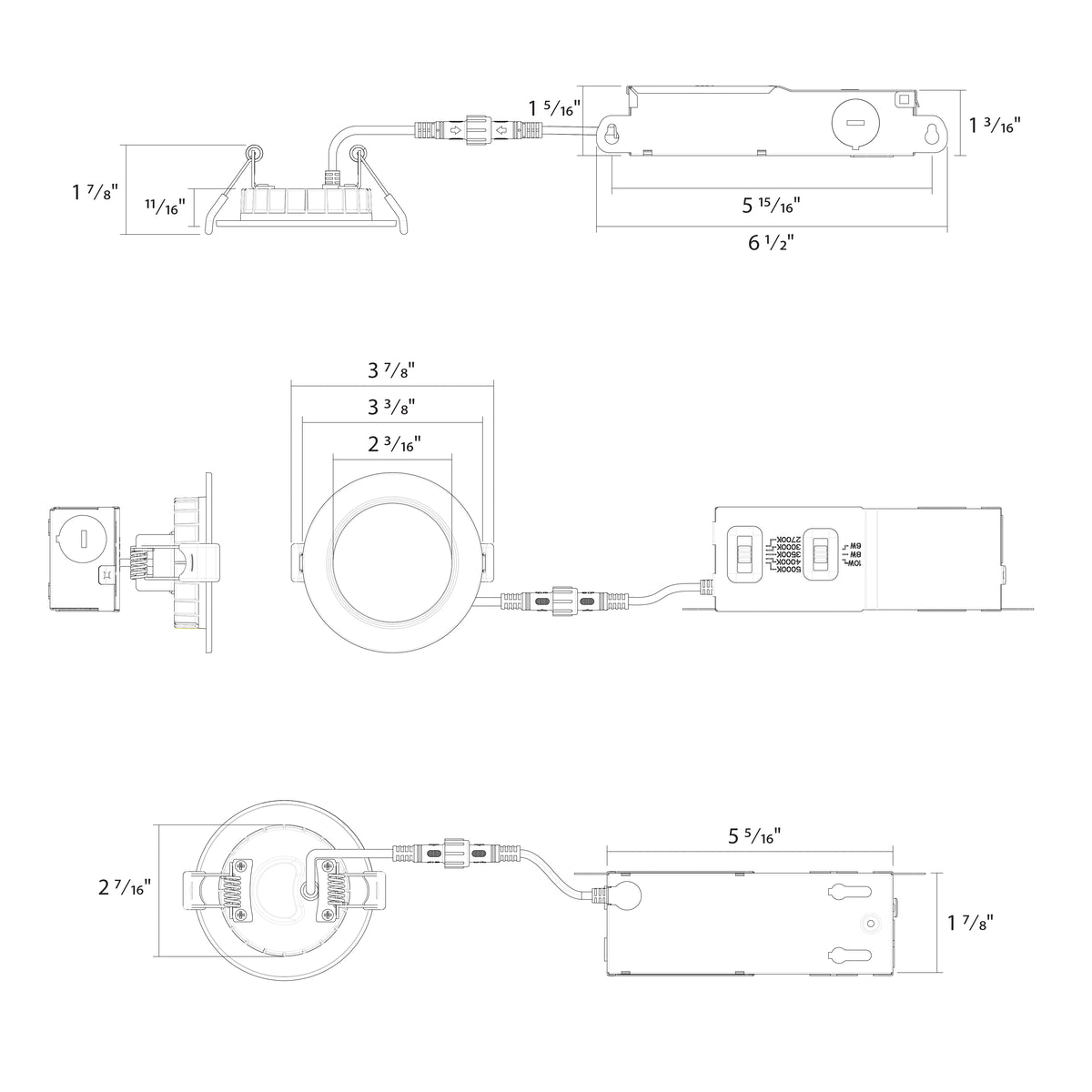

| Dimensions | 2” aperture |
| Weight | 0.8lbs |
| Shipping Weight | 1.5 lbs |
| Certification | UL Listed, Energy Star |
| Warranty | 5 years |
Data SheetCompare Key Features
Compare
2” 10W Selectable RAB LED Downlight
|
8W Selectable RAB LED Retrofit for 4" Recessed Downlights, Angle-Adjustable
|
4" 10.5W Selectable Nora FLIN LED Downlight
|
|
|---|---|---|---|
| Color Temperature (CCT) | 2700K/3000K/3500K/4000K/5000K Selectable (Default 3000K) | 2700K/3000K/3500K/4000K/5000K | 2700K/3000K/3500K/4000K/5000K |
| Color Accuracy (CRI) | 90 | >90 | >90 CRI |
| Light Output | @3000K: 552lm/719lm/840lm | 2700K: 719 lumens 3000K: 731 lumens 3500K: 746 lumens 4000K: 752 lumens 5000K: 768 lumens |
861 to 966 lumens |
| Dimming | Yes | Dims down to 10% on compatible TRIAC/ELV system | Triac or ELV |
| Enclosure Rating | Wet Location | Wet Location | |
| Certification | UL Listed, Energy Star | Energy Star, UL Listed | ETL, Energy Star, IC Rated |
|
