RAB Lighting

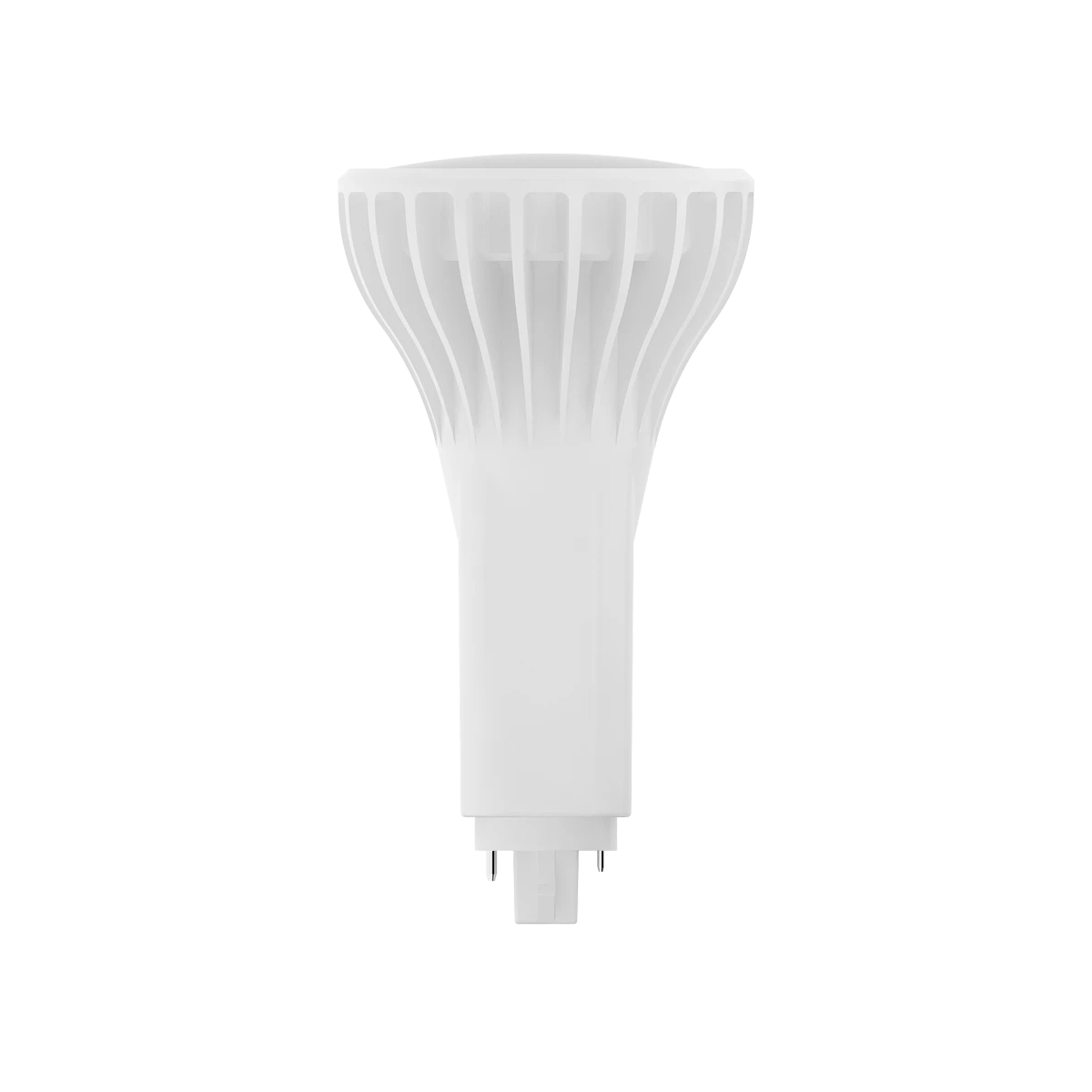

16.5W Vertical LED Lamp Replaces 42W PLT CFL - Type B
16.5W Vertical LED Lamp Replaces 42W PLT CFL - Type B
16.5W Vertical LED Lamp Replaces 42W PLT CFL - Type B
RAB Lighting
0 Reviews
16.5W Vertical LED Lamp Replaces 42W PLT CFL - Type B
Regular price
Retire 42W PLT CFL lamps in vertical fixtures with a 16.5W LED that bypasses the ballast.
- 16.5W direct-wire bypass delivers ~1,900 lumens — fits G24d, G24q, and 2G11 sockets.
- Eliminates ballast failures — UL classified for open or enclosed fixtures in damp locations.
- DLC listed for rebates — 50,000-hour lifespan, mercury-free, 5-year warranty.
Color Temperature
Need More? Text/call (858) 650-9400
Retire 42W PLT CFL lamps in vertical fixtures with a 16.5W LED that bypasses the ballast.
- 16.5W direct-wire bypass delivers ~1,900 lumens — fits G24d, G24q, and 2G11 sockets.
- Eliminates ballast failures — UL classified for open or enclosed fixtures in damp locations.
- DLC listed for rebates — 50,000-hour lifespan, mercury-free, 5-year warranty.
Choose options
Details
Vertical LED Retrofit Lamp Reduces Ongoing Costs by Over 60% Compared to CFL
- Ballast bypass wiring improves efficiency and removes ballast failure points
- High lumen output delivers strong illumination for larger spaces
- Direct fit into G24d/G24q sockets for an easy upgrade without fixture replacement
- 50,000-hour lifetime minimizes lamp changes and reduces operating costs
- UL Classified for use with open or enclosed fixtures in damp or dry locations — reliable in a wide range of settings
Ideal for vertical PLT fixtures in offices, schools, and hospitality spaces that need bright, long-lasting light.
Specs
| Wattage(s) | 16.5W |
| Replaces Wattage(s) | 42W PLT with G24d or G24q |
| Light Output | 1800 lumens (3000K), 1850 lumens (3500K), or 1900 lumens (4000K) |
| Luminous Efficacy (lm/W) | 109 lm/W (3000K), 112 lm/W (3500K), 115 lm/W (4000K) |
| Average Lamp Life | L70: 50,000 Hours |
| Color Temperature(s) | 3000K, 3500K or 4000K |
| CRI (Color Accuracy) | 80 CRI |
| Bulb Shape | PLT |
| Bulb Orientation | Vertical |
| Base Type | 2-Pin G24d |
| Lens Cover | Frosted |
| Ballast Compatibility | Ballast Bypass install |
| Working Environment | Indoor |
| Enclosure Rating |
Damp & dry locations Enclosed or open fixtures |
| Input Voltage | 120-277V, 50/60Hz |
| Driver Type | Integral Driver |
| Power Factor | >0.9 |
| THD (Total Harmonic Distortion) | 20% |
| Temperature Rating | -4°F to 113°F (-20°C to 45°C) |
| Housing Material | Polycarbonate |
| Certification | UL Listed |
| Warranty | 5 years |
