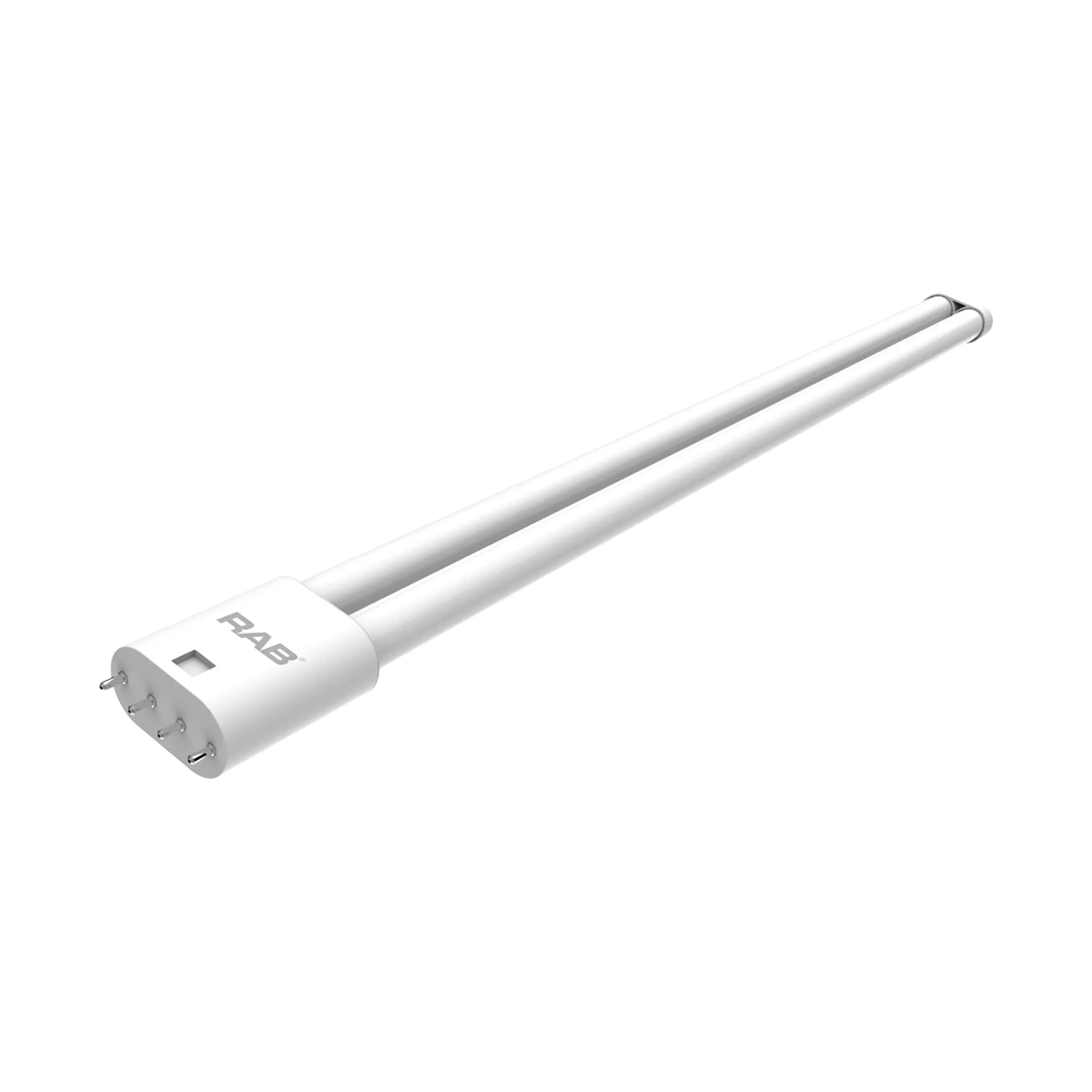

17W Horizontal LED Lamp Replaces 40W PLL CFL - Type B
17W Horizontal LED Lamp Replaces 40W PLL CFL - Type B
17W Horizontal LED Lamp Replaces 40W PLL CFL - Type B
RAB Lighting
0 Reviews
17W Horizontal LED Lamp Replaces 40W PLL CFL - Type B
Regular price
Replace 40W PLL CFL lamps with a 17W LED that bypasses the ballast — 50% lower energy cost.
- 17W direct-wire bypass replaces 40W CFL PLL via 2G11 base — eliminates ballast failures.
- NSF certified for food zones, UL classified for open or enclosed fixtures in damp locations.
- DLC listed for rebates — 50,000-hour life, mercury-free, 5-year warranty.
Color Temperature
Need More? Text/call (858) 650-9400
Replace 40W PLL CFL lamps with a 17W LED that bypasses the ballast — 50% lower energy cost.
- 17W direct-wire bypass replaces 40W CFL PLL via 2G11 base — eliminates ballast failures.
- NSF certified for food zones, UL classified for open or enclosed fixtures in damp locations.
- DLC listed for rebates — 50,000-hour life, mercury-free, 5-year warranty.
Choose options
Details
Replace CFL PLL Lamps & Save Over 50% in Ongoing Energy Costs
- Direct-wire bypass eliminates ballasts for greater efficiency and fewer failure points
- Replaces 40W CFL lamp with just 17W, reducing energy costs while maintaining brightness
- 2G11 base for quick installation into existing PLL fixtures
- 50,000-hour rated life provides extended performance for years of service
- Mercury-free design is safer for handling and disposal
- UL Classified for damp or dry locations and open or enclosed fixtures — built for real-world conditions
Ideal for 2G11 PLL fixtures in office ceilings, schools, and healthcare facilities where long-term reliability is critical.
Specs
| Wattage(s) | 17W |
| Replaces Wattage(s) | 40W PLL 2G11 |
| Light Output | 2100 lumens (3000K & 3500K), 2200 lumens (4000K & 5000K) |
| Luminous Efficacy (lm/W) | 124 lm/W (3000K & 3500K), 129 lm/W (4000K & 5000K) |
| Average Lamp Life | L70: 50,000 Hours |
| Color Temperature(s) | 3000K, 3500K, 4000K or 5000K |
| CRI (Color Accuracy) | 82 CRI |
| Bulb Shape | PLL |
| Bulb Orientation | Horizontal |
| Base Type | 2G11 |
| Lens Cover | Frosted |
| Ballast Compatibility | Ballast Bypass install |
| Working Environment | Indoor |
| Enclosure Rating |
Damp & dry locations Enclosed or open fixtures |
| Input Voltage | 120-277V, 50/60Hz |
| Driver Type | Integral Driver |
| Power Factor | 0.9 |
| THD (Total Harmonic Distortion) | <20% |
| Temperature Rating | -4°F to 113°F (-20°C to 45°C) |
| Certification | UL Listed, DLC |
| DLC ID(s) | PROP5ST1, PSNCMEPC, PJMAWKQ7, PQWNE0TM |
| Warranty | 5 years |
