RAB Lighting

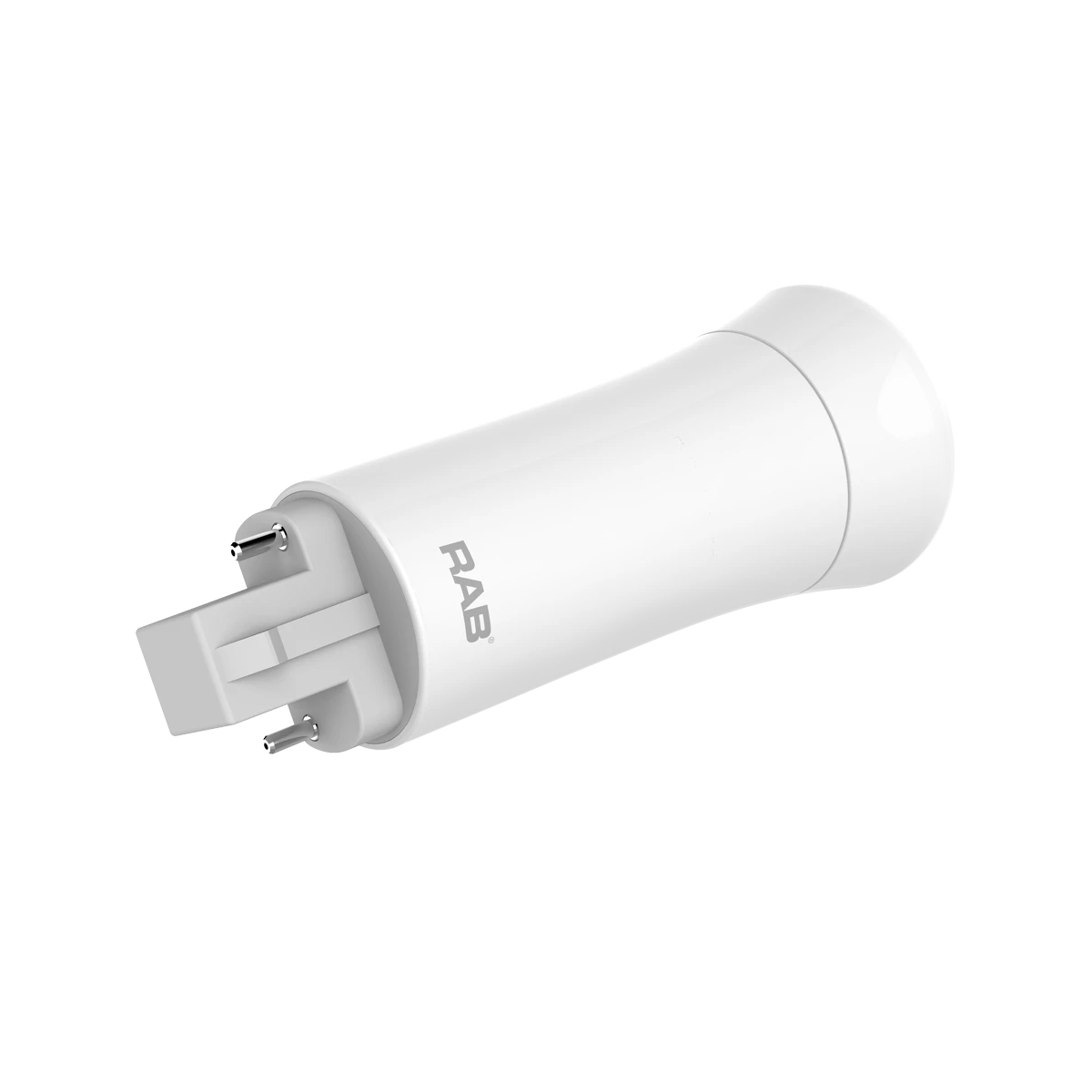

9W Vertical LED Lamp Replaces 32W PLC CFL - Type B

RAB Lighting

0 Reviews

SKU: PLC-9-V-827-BYP

$17.00

Upgrade vertical 2-pin CFL fixtures to LED — direct-wire bypass eliminates ballast failures.

9W ballast-bypass fits 2-pin G24d and 4-pin G24q sockets without fixture replacement.
Replaces 18W, 26W, and 32W CFL lamps with omnidirectional output and no shadows.
50,000-hour lifespan, mercury-free, UL listed for damp and enclosed fixtures — 5-year warranty.

Color Temperature

Variant

Need More? Text/call (858) 650-9400

Upgrade vertical 2-pin CFL fixtures to LED — direct-wire bypass eliminates ballast failures.

9W ballast-bypass fits 2-pin G24d and 4-pin G24q sockets without fixture replacement.
Replaces 18W, 26W, and 32W CFL lamps with omnidirectional output and no shadows.
50,000-hour lifespan, mercury-free, UL listed for damp and enclosed fixtures — 5-year warranty.

Details

Ballast bypass design eliminates ballast-related failures and simplifies long-term maintenance
Replaces 18W, 26W & 32W CFL lamps, reducing energy use while maintaining light levels
Fits standard 2-pin G24d and 4-pin G24q sockets, and installs easily into existing vertical-burn fixtures
50,000-hour lifespan keeps maintenance costs low with fewer lamp replacements
Mercury-free construction makes it an environmentally friendly upgrade from CFL technology
UL Listed — can be used with open or enclosed fixtures and in damp or dry locations
5-year no-compromise warranty covers light output, color stability, and driver performance

Ideal for PLC downlights and vertical sconces in hallways, reception areas, and other commercial spaces where reliability matters.

Wattage(s)	9W
Replaces Wattage(s)	26W CFL with G24d, GX24d, G24q, or GX24q base
Light Output	900 lumens (27000K), 950 lumens (3000K & 3500K), 1000 lumens (4000K & 5000K)
Luminous Efficacy (lm/W)	100 lm/W (2700K), 106 lm/W (3000K & 3500K), 111 lm/W (4000K & 5000K )
Average Lamp Life	L70: 50,000 Hours
Color Temperature(s)	2700K, 3000K, 3500K 4000K or 5000K
CRI (Color Accuracy)	82 CRI
Bulb Shape	PLC
Bulb Orientation	Vertical
Base Type	2-pin G24d/G24q
Lens Cover	Frosted
Ballast Compatibility	Ballast Bypass install
Working Environment	Indoor
Enclosure Rating	Damp & dry locations Enclosed or open fixtures
Input Voltage	120-277V AC, 50/60Hz
Driver Type	Integral Driver
Temperature Rating	-4°F to 113°F (-20°C to 45°C)
Housing Material	Polycarbonate
Certification	UL Listed
Warranty	5 years

Install Guide

Data Sheet

	9W Vertical LED Lamp Replaces 32W PLC CFL - Type B	8.5W Horizontal LED Lamp Replaces 32W PLC CFL - Type A/B	8.5W Vertical LED Lamp Replaces 32W PLC CFL - Type A/B
Color Temperature (CCT)	2700K, 3000K, 3500K 4000K or 5000K	3000/3500/4000K	3000/3500/4000K
Base Type	2-pin G24d/G24q	2-Pin G24d	2-Pin G24d
Ballast Compatibility	Ballast Bypass install	Hybrid Type A/B install	Hybrid Type A/B install
Enclosure Rating	Damp & dry locations Enclosed or open fixtures	Damp & dry locations Enclosed or open fixtures	Damp & dry locations Enclosed or open fixtures
Certification	UL Listed	UL Listed	UL Listed
	$17.00	$18.00 View Details	$18.00 View Details

Request a Custom Layout

Complex or unique space? Get a custom layout plan from our lighting experts.
