RAB Lighting

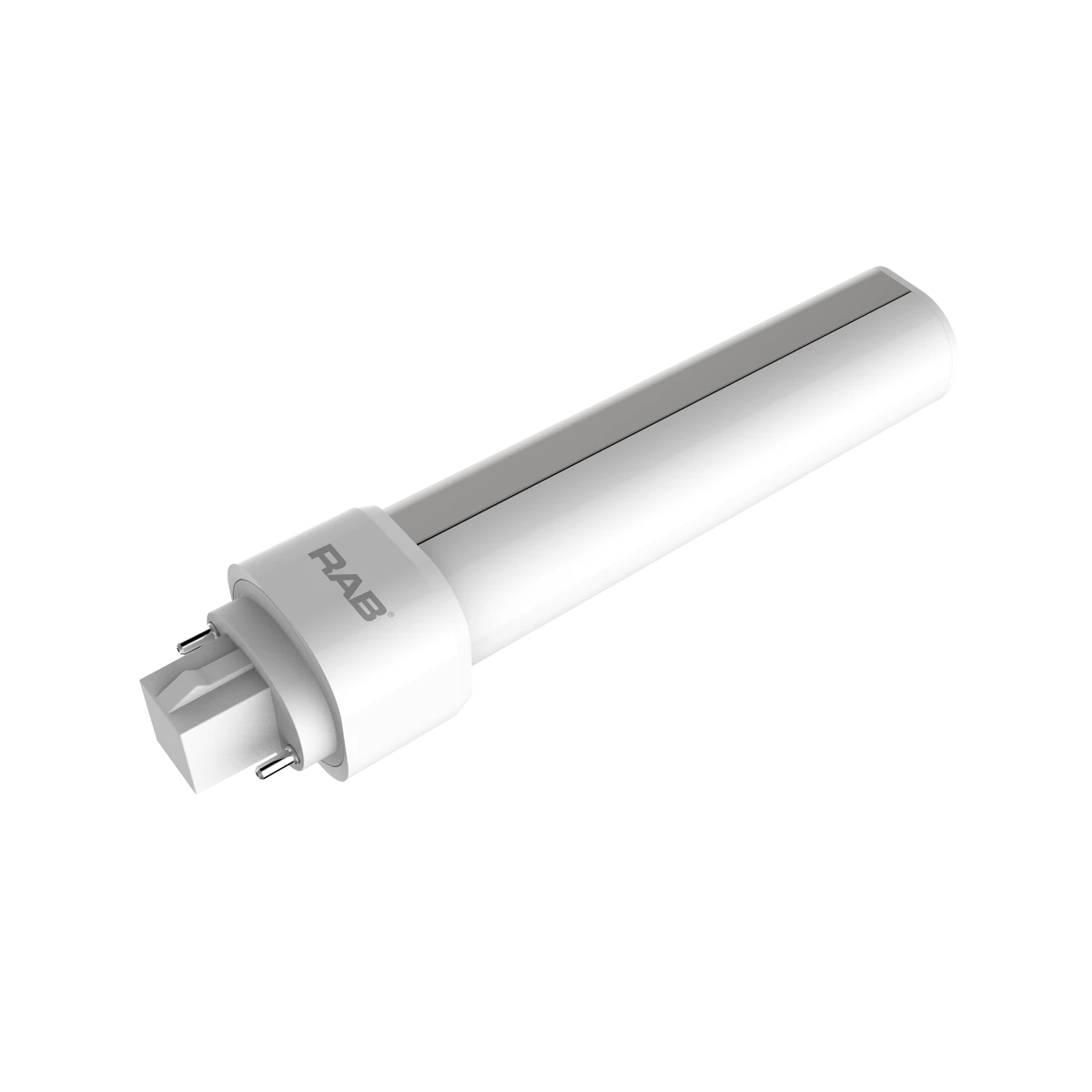

9W Horizontal LED Lamp Replaces 32W PLC CFL - Type B

RAB Lighting

0 Reviews

SKU: PLC-9-H-827-BYP

$13.00

Swap horizontal 2-pin CFL lamps in offices and retail with a 9W LED that bypasses the ballast.

9W direct-wire bypass replaces 18W, 26W, and 32W CFLs — fits G24d and G24q sockets.
Eliminates ballast failure points — UL listed for damp locations and open or enclosed fixtures.
Mercury-free, 50,000-hour life, 5-year warranty for offices, hospitality, and retail.

Color Temperature

Variant

Need More? Text/call (858) 650-9400

Swap horizontal 2-pin CFL lamps in offices and retail with a 9W LED that bypasses the ballast.

9W direct-wire bypass replaces 18W, 26W, and 32W CFLs — fits G24d and G24q sockets.
Eliminates ballast failure points — UL listed for damp locations and open or enclosed fixtures.
Mercury-free, 50,000-hour life, 5-year warranty for offices, hospitality, and retail.

Details

Direct-wire ballast bypass with integral driver eliminates ballast failures and reduces long-term maintenance costs
Replaces 18W/26W/32W CFL lamps for lower operating costs while delivering equivalent brightness
Compatible with both 2-pin and 4-pin G24d/G24q sockets for worry-free purchase
50,000-hour rated life dramatically reduces relamping costs
Mercury-free design is safer for people and the environment compared to CFLs
UL Listed ensures dependable performance in commercial applications, including damp locations and enclosed fixtures
5-year no-compromise warranty — backed by strong manufacturer support and peace of mind

Ideal for horizontal PLC fixtures in offices, hospitality, retail, and multifamily buildings where efficiency and longevity are essential.

Wattage(s)	9W
Replaces Wattage(s)	26W CFL with G24d, GX24d, G24q, or GX24q base
Light Output	900 lumens (27000K), 950 lumens (3000K & 3500K), 1000 lumens (4000K & 5000K)
Luminous Efficacy (lm/W)	100 lm/W (2700K), 106 lm/W (3000K & 3500K), 111 lm/W (4000K & 5000K )
Average Lamp Life	L70: 50,000 Hours
Color Temperature(s)	2700K, 3000K, 3500K 4000K or 5000K
CRI (Color Accuracy)	82 CRI
Bulb Shape	PLC
Bulb Orientation	Horizontal
Base Type	2-pin G24d/G24q
Lens Cover	Frosted
Ballast Compatibility	Ballast Bypass install
Working Environment	Indoor
Enclosure Rating	Damp & dry locations Enclosed or open fixtures
Input Voltage	120-277V, 50/60Hz
Driver Type	Integral Driver
Temperature Rating	-4°F to 113°F (-20°C to 45°C)
Housing Material	Polycarbonate
Certification	UL Listed
Warranty	5 years

Install Guide

Data Sheet

	9W Horizontal LED Lamp Replaces 32W PLC CFL - Type B	9W LED Lamp Replaces 32W PLC CFL - Type A/B	8.5W Horizontal LED Lamp Replaces 32W PLC CFL - Type A/B
Color Temperature (CCT)	2700K, 3000K, 3500K 4000K or 5000K	2700K, 3000K, 3500K or 4000K	3000/3500/4000K
Base Type	2-pin G24d/G24q	2-Pin G24d	2-Pin G24d
Ballast Compatibility	Ballast Bypass install	Hybrid Type A/B install	Hybrid Type A/B install
Enclosure Rating	Damp & dry locations Enclosed or open fixtures	Damp & dry locations Enclosed or open fixtures	Damp & dry locations Enclosed or open fixtures
Certification	UL Listed	UL Listed	UL Listed
	$13.00	$17.00 View Details	$18.00 View Details
