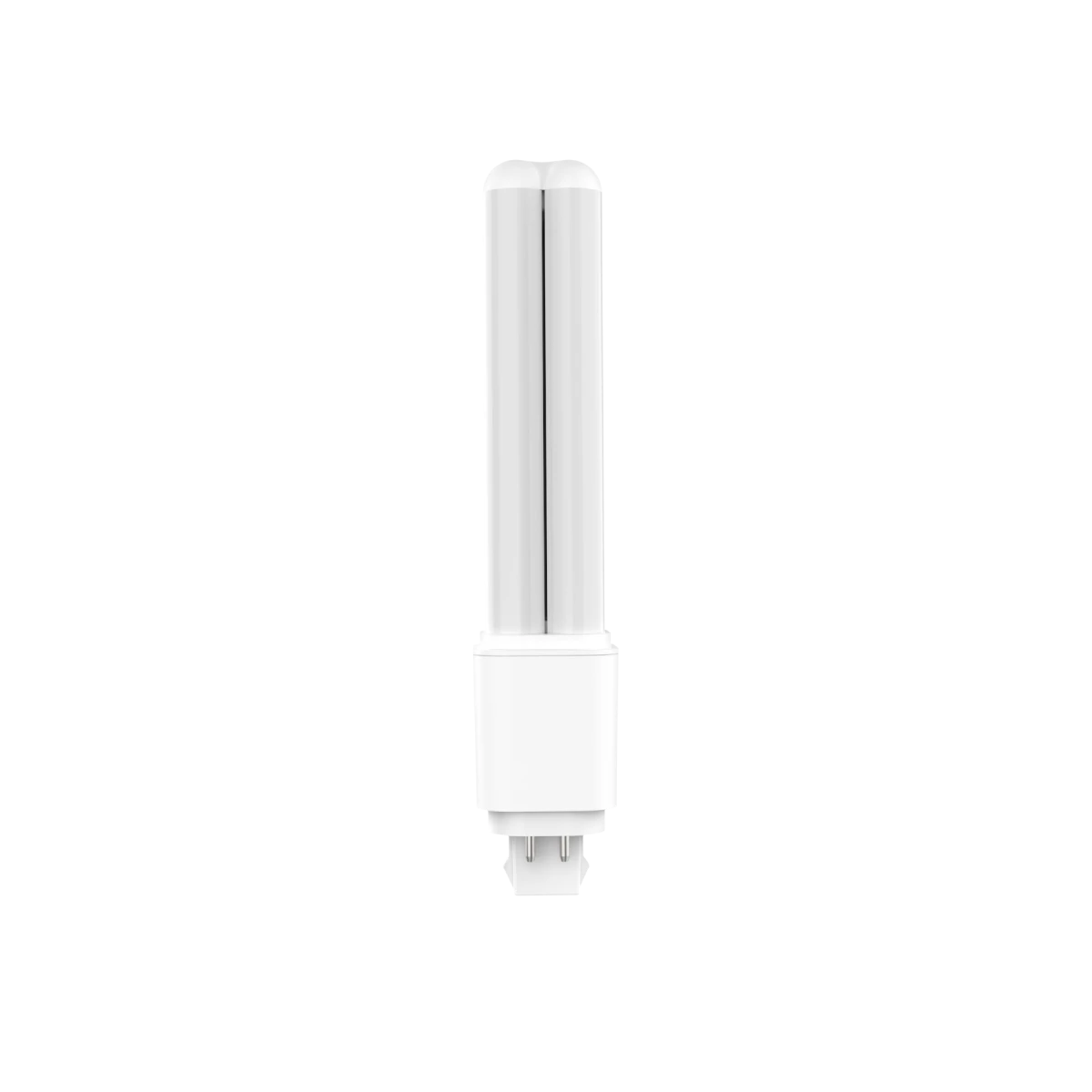

9.5W LED Lamp Replaces 26W PLC CFL - Type A/B

RAB Lighting

0 Reviews

SKU: PLC-9.5-O-827-HYB-G24Q

$17.00

Replace 26W CFL lamps in 4-pin G24q fixtures and cut energy costs by over 60% — NSF certified.

9.5W delivers up to 1,250 lumens — works plug-and-play on magnetic ballasts or wires direct.
NSF/ANSI certified for food zones — rated for damp locations and enclosed fixtures.
50,000-hour service life — saves over 60% vs. the 26W CFL it replaces.

Color Temperature

Variant

Need More? Text/call (858) 650-9400

Replace 26W CFL lamps in 4-pin G24q fixtures and cut energy costs by over 60% — NSF certified.

9.5W delivers up to 1,250 lumens — works plug-and-play on magnetic ballasts or wires direct.
NSF/ANSI certified for food zones — rated for damp locations and enclosed fixtures.
50,000-hour service life — saves over 60% vs. the 26W CFL it replaces.

Details

Meets NSF/ANSI standards for use in food zones
Adaptable for your retrofit projects: Plug & play installation on magnetic CFL ballasts, or direct-wire ballast bypass regardless of ballast type
Omnidirectional light output ensures full, even coverage in fixtures
Reduces power draw while maintaining brightness, saving you over 60% in lighting costs
50,000-hour service life reduces maintenance and labor costs
Rated for use in damp locations and enclosed fixtures

Ideal for high-use PLC applications such as food prep, dining, and food processing spaces that need reliable light and lower operating costs.

Wattage(s)	9.5W
Replaces Wattage(s)	26W CFL with G24q or GX24q base
Light Output	1150 lumens (2700K), 1200 lumens (3000K), 1250 lumens (3500K & 4000K)
Luminous Efficacy (lm/W)	121 lm/W (2700K), 126 lm/W (3000K), 132 lm/W (3500K & 4000K)
Average Lamp Life	L70: 50,000 Hours
Color Temperature(s)	2700K, 3000K, 3500K or 4000K
CRI (Color Accuracy)	80 CRI
Dimming	Type A install: 0-10V dimming with compatible ballast Type B install: Not suggested
Bulb Shape	PLC
Bulb Orientation	Omnidirectional
Base Type	4-pin G24q
Lens Cover	Frosted
Ballast Compatibility	Hybrid Type A/B install
Working Environment	Indoor
Enclosure Rating	Damp & dry locations Enclosed fixtures
Input Voltage	120-277V, 50/60Hz
Power Factor	≥0.9
THD (Total Harmonic Distortion)	≤20%
Temperature Rating	-4°F to 113°F (-20°C to 45°C)
Housing Material	Polycarbonate
Certification	UL Listed, NSF
Warranty	5 years

Install Guide

Data Sheet

	9.5W LED Lamp Replaces 26W PLC CFL - Type A/B	9W LED Lamp Replaces 32W PLC CFL - Type A/B	8.5W Vertical LED Lamp Replaces 32W PLC CFL - Type A/B
Color Temperature (CCT)	2700K, 3000K, 3500K or 4000K	2700K, 3000K, 3500K or 4000K	3000/3500/4000K
Base Type	4-pin G24q	2-Pin G24d	2-Pin G24d
Ballast Compatibility	Hybrid Type A/B install	Hybrid Type A/B install	Hybrid Type A/B install
Enclosure Rating	Damp & dry locations Enclosed fixtures	Damp & dry locations Enclosed or open fixtures	Damp & dry locations Enclosed or open fixtures
Certification	UL Listed, NSF	UL Listed	UL Listed
	$17.00	$17.00 View Details	$18.00 View Details
