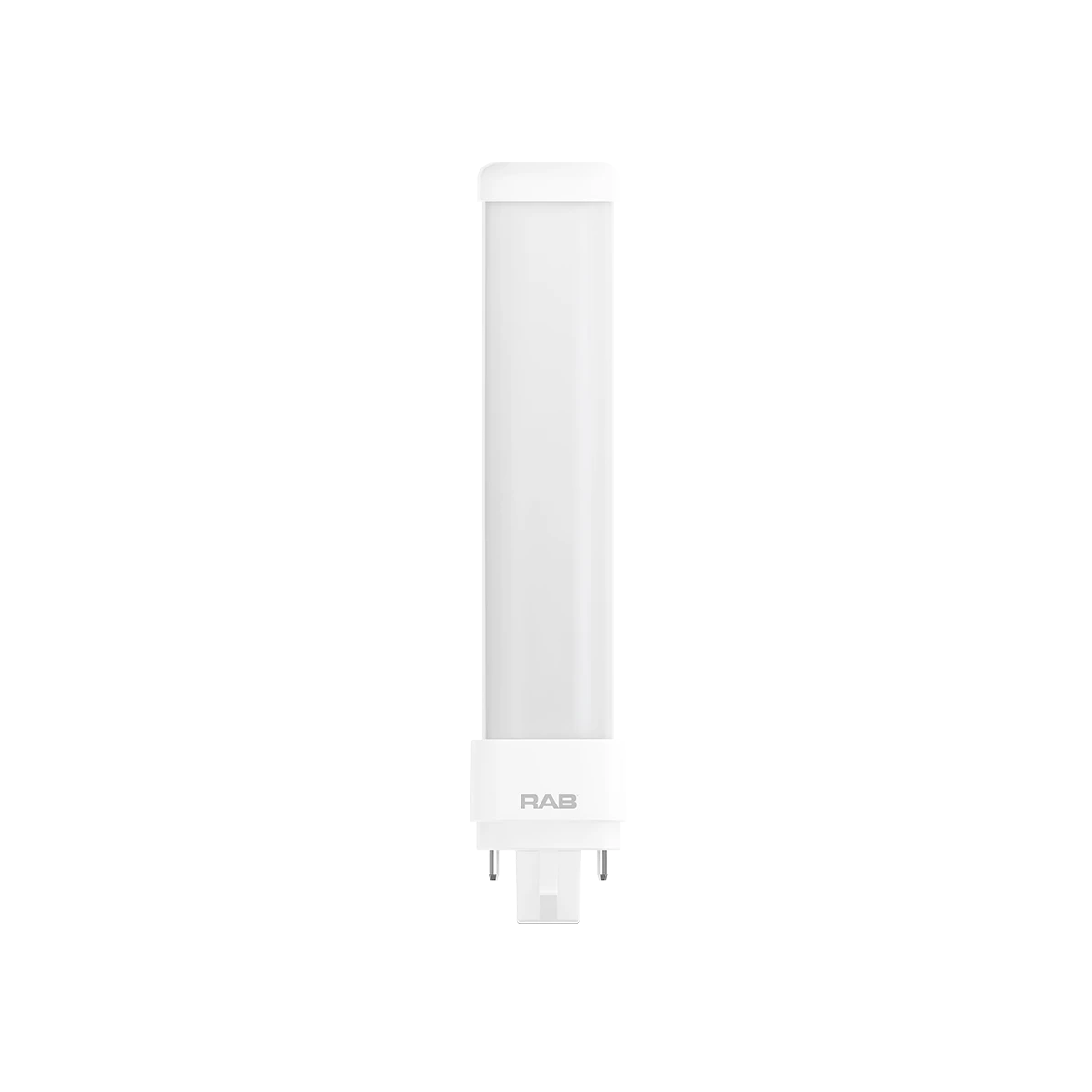

8.5W Horizontal LED Lamp Replaces 32W PLC CFL - Type A/B

RAB Lighting

0 Reviews

SKU: PLC-8.5-H-8FA-HYB

$18.00

One horizontal PLC lamp with three color temps — replace 18W to 32W CFLs and pick the right tone.

8.5W delivers 960–1,050 lumens in 3 selectable CCTs — rotating base for precise orientation.
Type A/B hybrid works on magnetic ballasts or bypasses — fits G24d and G24q sockets.
50,000-hour life, UL listed for damp and enclosed fixtures, saves nearly 75% vs. CFL.

Color Temperature

Variant

Need More? Text/call (858) 650-9400

One horizontal PLC lamp with three color temps — replace 18W to 32W CFLs and pick the right tone.

8.5W delivers 960–1,050 lumens in 3 selectable CCTs — rotating base for precise orientation.
Type A/B hybrid works on magnetic ballasts or bypasses — fits G24d and G24q sockets.
50,000-hour life, UL listed for damp and enclosed fixtures, saves nearly 75% vs. CFL.

Details

Flexible light covers a wide range of needs
Includes field-adjustable color temperature (3000K/3500K/4000K)
Hybrid install — plug and play with existing magnetic ballasts, or bypass the ballast for wider fixture compatibility
Rotating base allows you to adjust lamp orientation for optimal light placement
Cuts energy costs significantly when replacing 18W, 26W, or 32W CFL lamps
50,000-hour rated life reduces downtime and maintenance needs
Worry-free UL Listing — rated for use in open or enclosed fixtures and in damp locations

Ideal for horizontal PLC fixtures where color flexibility and easy installation are important for varied environments.

Wattage(s)	8.5W
Replaces Wattage(s)	26W or 32W CFL with G24d, GX24d, G24q, or GX24q base
Light Output	960/1020/1050 lumens
Luminous Efficacy (lm/W)	113/120/123lm/W
Average Lamp Life	L70: 50,000 Hours
Color Temperature(s)	3000/3500/4000K
CRI (Color Accuracy)	80 CRI
Bulb Shape	PLC
Bulb Orientation	Horizontal
Base Type	2-Pin G24d
Lens Cover	Frosted
Ballast Compatibility	Hybrid Type A/B install
Working Environment	Indoor
Enclosure Rating	Damp & dry locations Enclosed or open fixtures
Input Voltage	120-277V, 50/60Hz
Power Factor	>0.9
THD (Total Harmonic Distortion)	20%
Temperature Rating	-4°F to 113°F (-20°C to 45°C)
Housing Material	Polycarbonate
Certification	UL Listed
Warranty	5 years

Install Guide

Data Sheet

	8.5W Horizontal LED Lamp Replaces 32W PLC CFL - Type A/B	8.5W Vertical LED Lamp Replaces 32W PLC CFL - Type A/B
Color Temperature (CCT)	3000/3500/4000K	3000/3500/4000K
Base Type	2-Pin G24d	2-Pin G24d
Ballast Compatibility	Hybrid Type A/B install	Hybrid Type A/B install
Enclosure Rating	Damp & dry locations Enclosed or open fixtures	Damp & dry locations Enclosed or open fixtures
Certification	UL Listed	UL Listed
	$18.00	$18.00 View Details
