27W Selectable Mini LED Flood Light

Mini LED Flood Light 3 CCT with compact design, bright output, and durable IP65 housing for outdoor use

Mini LED Flood Light 3 CCT illuminating a snowy driveway and modern house exterior at night

Mini LED Flood Light 3 CCT 11/16/20/27W with rugged IP65 housing and adjustable mounting bracket

ELEDLights

27W Selectable Mini LED Flood Light

0 Reviews

SKU: FDM11D027WSCSP-KN

$37.49

This field-selectable 11–27W mini LED flood light delivers up to 3,672 lumens of aimable, wide-distribution light—great for driveways, small facades, signage, and landscape accents.

Up to 3,672 lumens at up to 141 lm/W
Field-selectable wattage and color temperature
Knuckle or trunnion mount for easy aiming

Mounting Bracket

Variant

This field-selectable 11–27W mini LED flood light delivers up to 3,672 lumens of aimable, wide-distribution light—great for driveways, small facades, signage, and landscape accents.

Up to 3,672 lumens at up to 141 lm/W
Field-selectable wattage and color temperature
Knuckle or trunnion mount for easy aiming

Details

Great for Courtyards • Driveways • Perimeters • Facades • Billboards

Small Size, Strong Output

Evenly Highlights landscaping, property signage, and architectural features without harsh shadows.
Reduces Glare compared to narrower beams.
Water-, Dust-, and UV-Resistant with a Rugged, IP65-rated housing.
Built for the Very Cold, withstanding temperatures down to -40°F.
Easy mounting with either a 1/2" knuckle or yoke mount bracket.

Specs

Wattage(s)	11W/20W/27W
Replaces Wattage(s)	30W to 90W
Light Output	1,690/2,234/2,856/3,672 lumens
Luminous Efficacy (lm/W)	130-141 lm/W
Average Lamp Life	50,000 hours
Color Temperature(s)	3000K/4000K/5000K
CRI (Color Accuracy)	70
Dimming	1-10V
Beam Angle	130° x 130° (NEMA 7H x 7V)

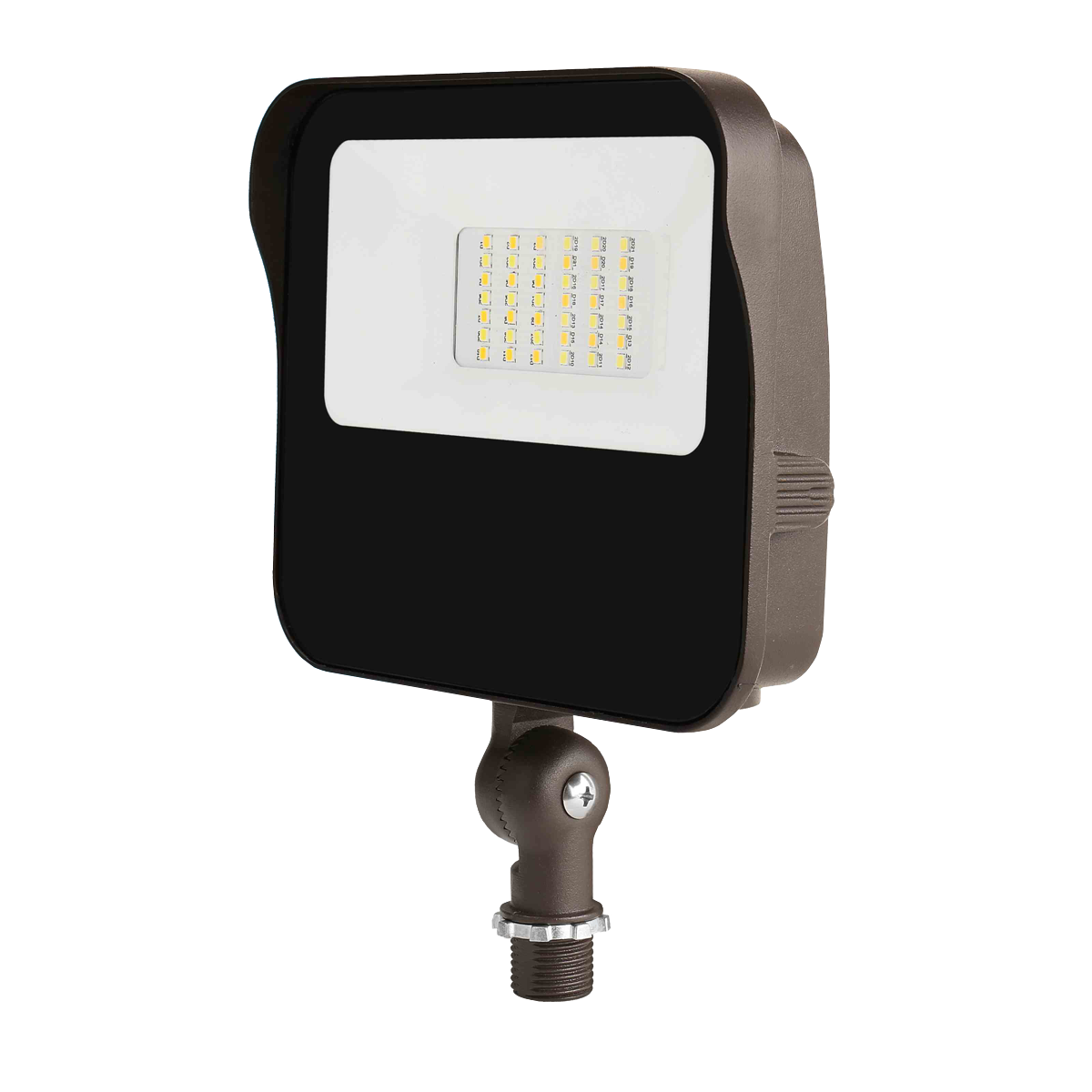

Installation	Knuckle mount
Working Environment	Outdoor
Enclosure Rating	IP65, UL Wet Location
Input Voltage	120-277VAC
Temperature Rating	-40°F - +104°F
Housing Material	Aluminum alloy & tempered glass
Housing Color	Dark Bronze

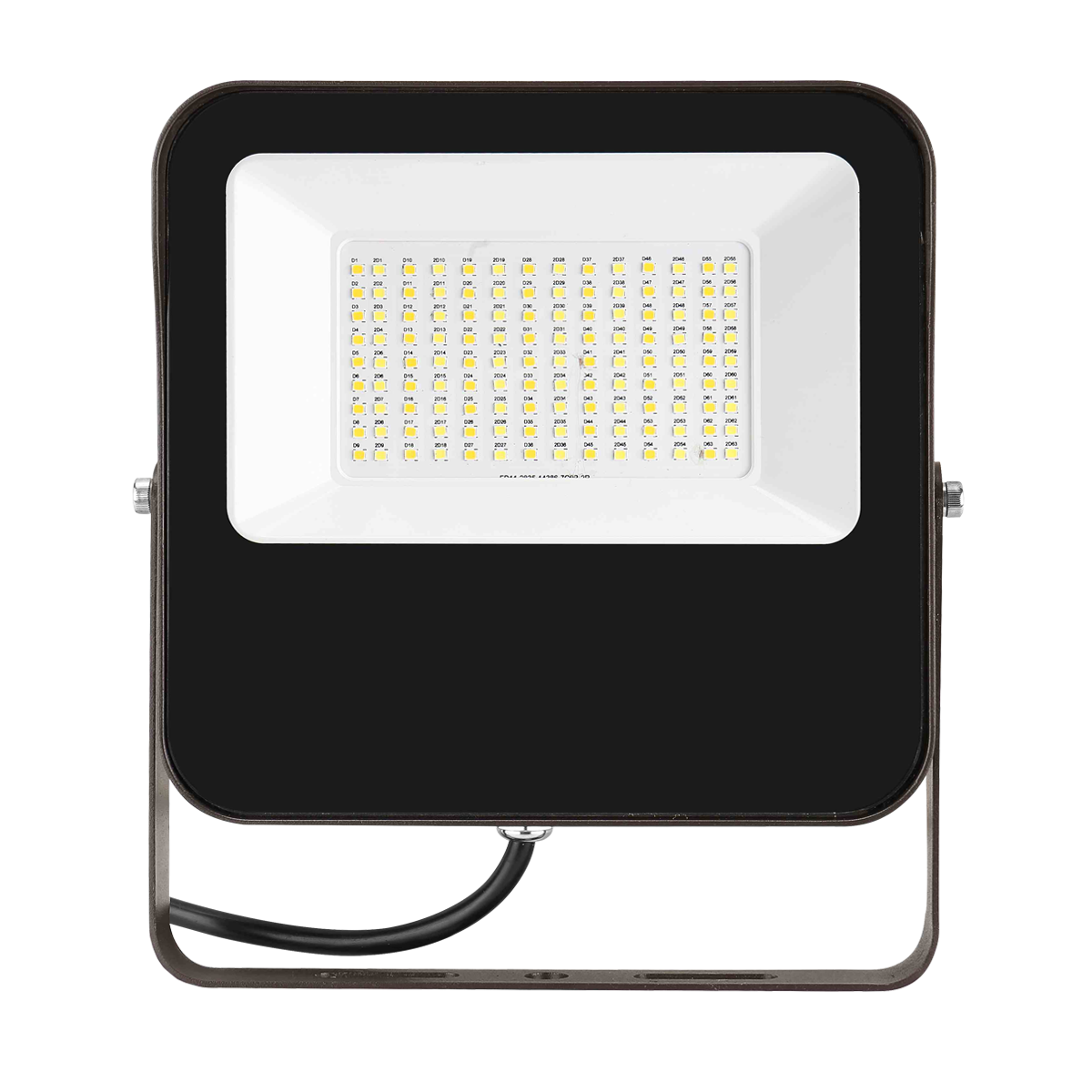

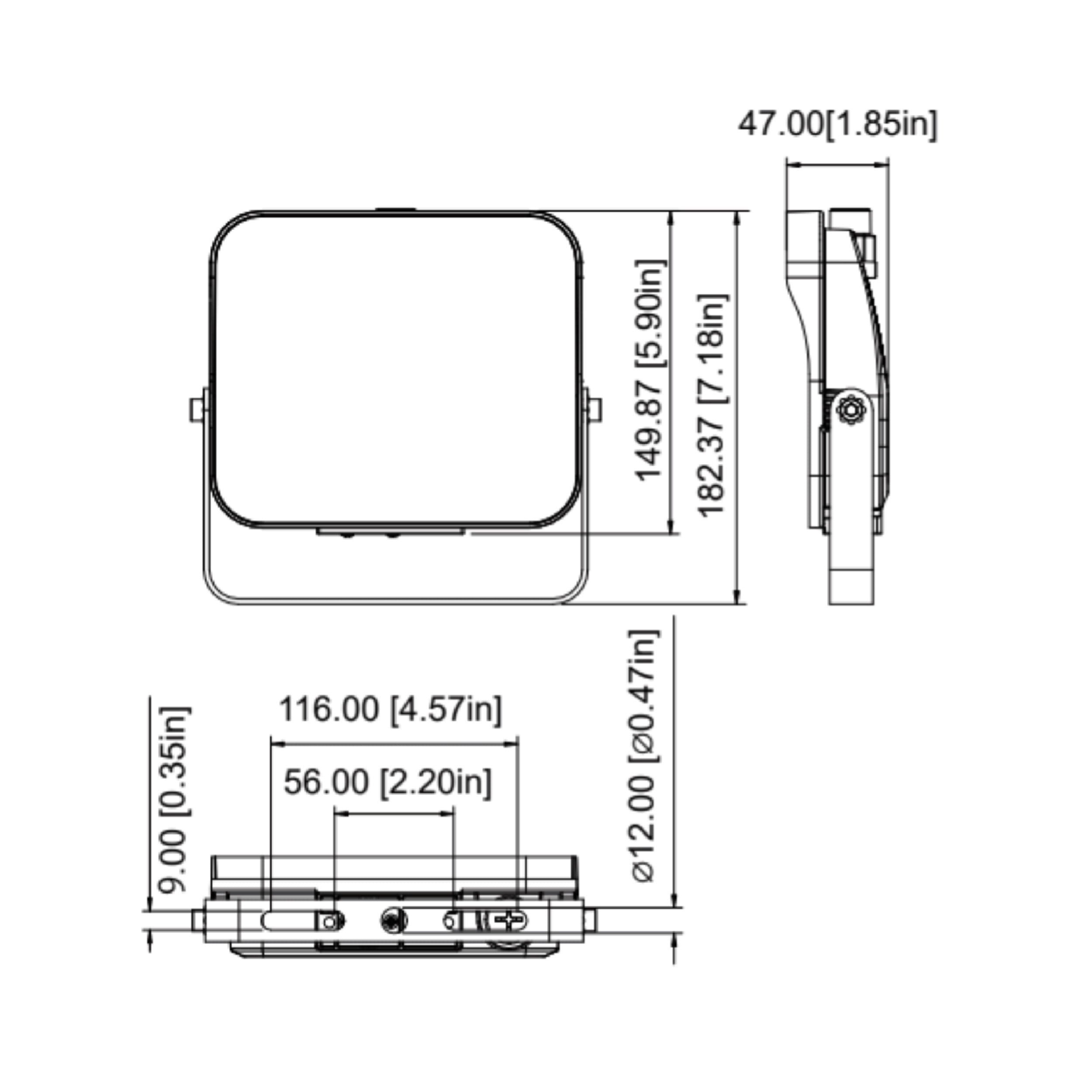

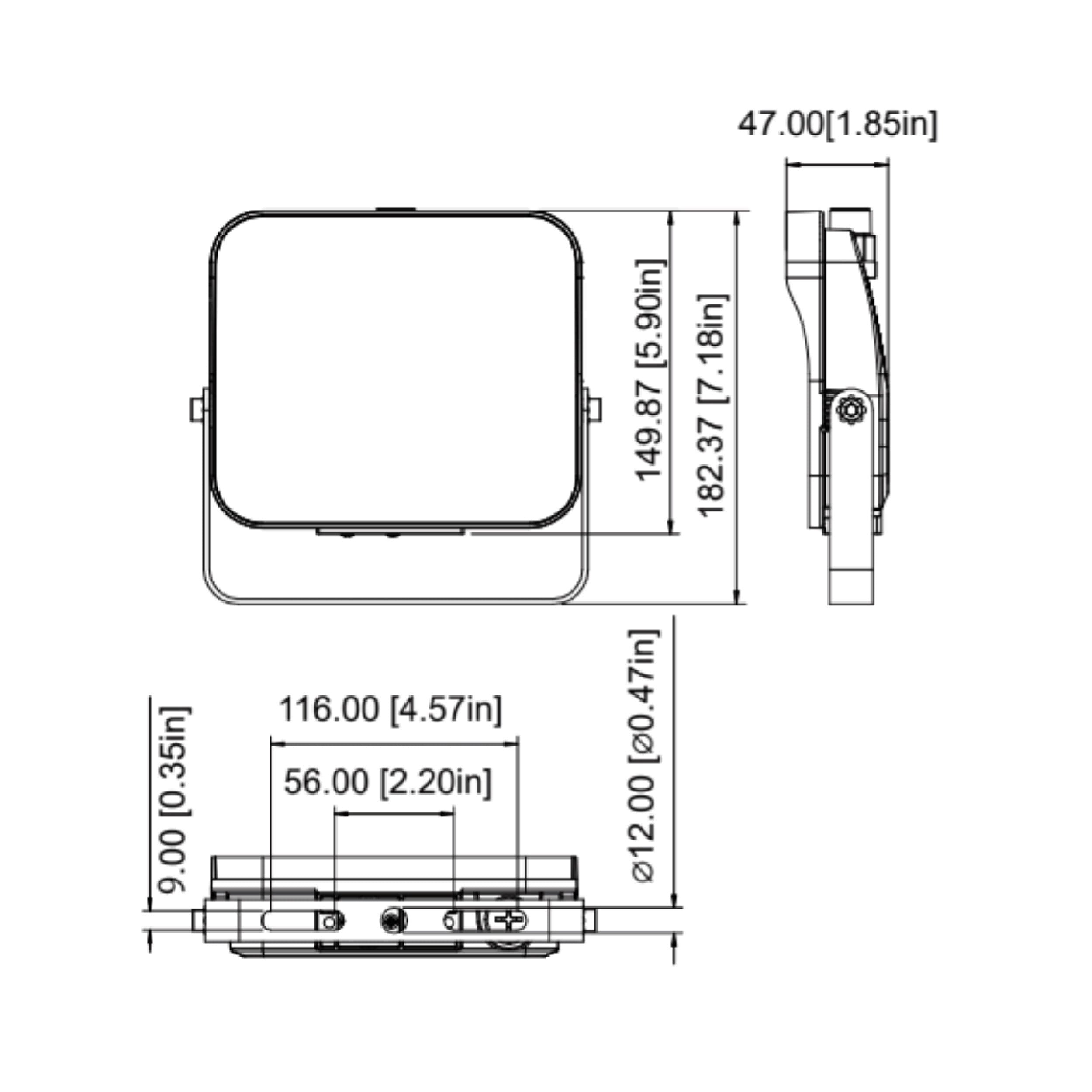

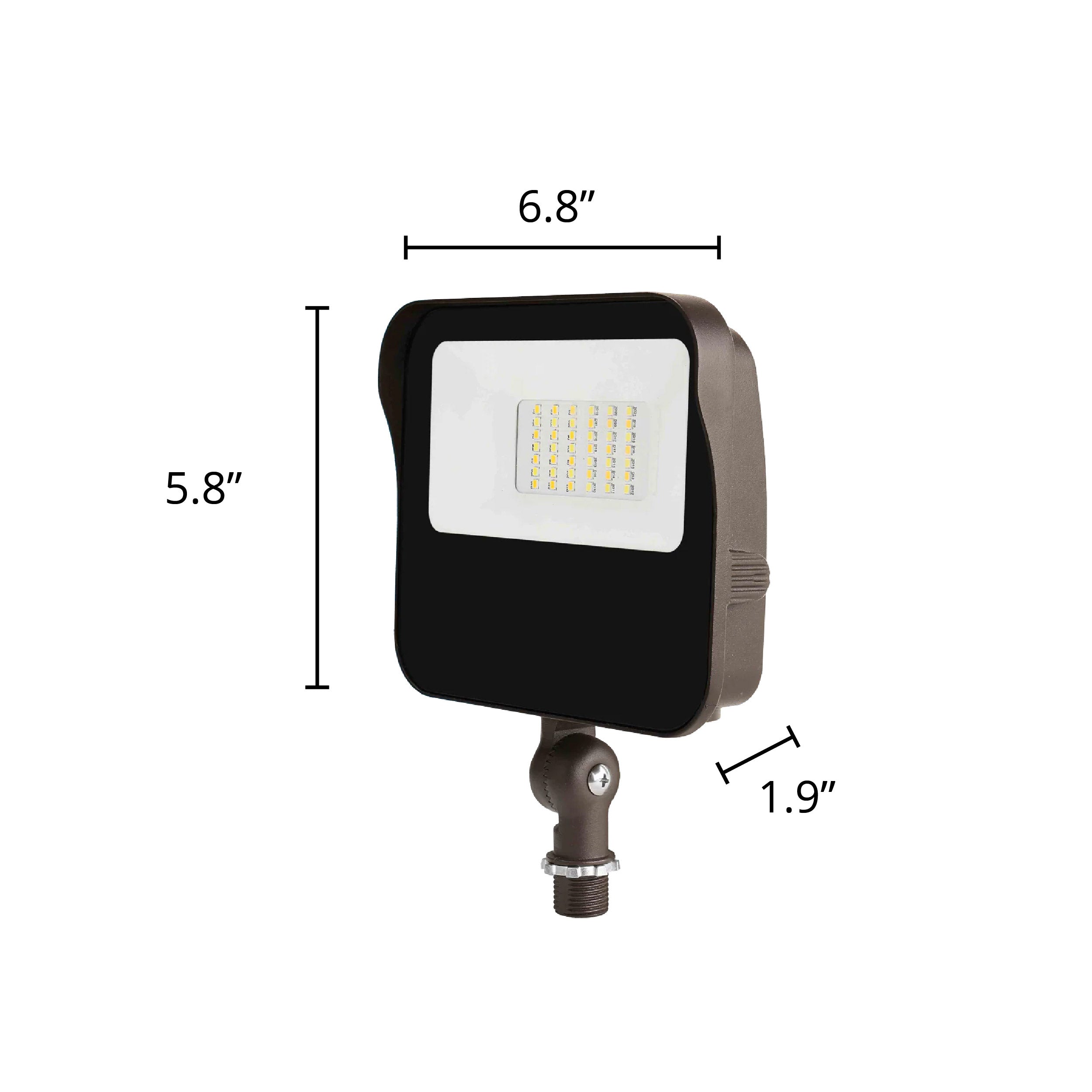

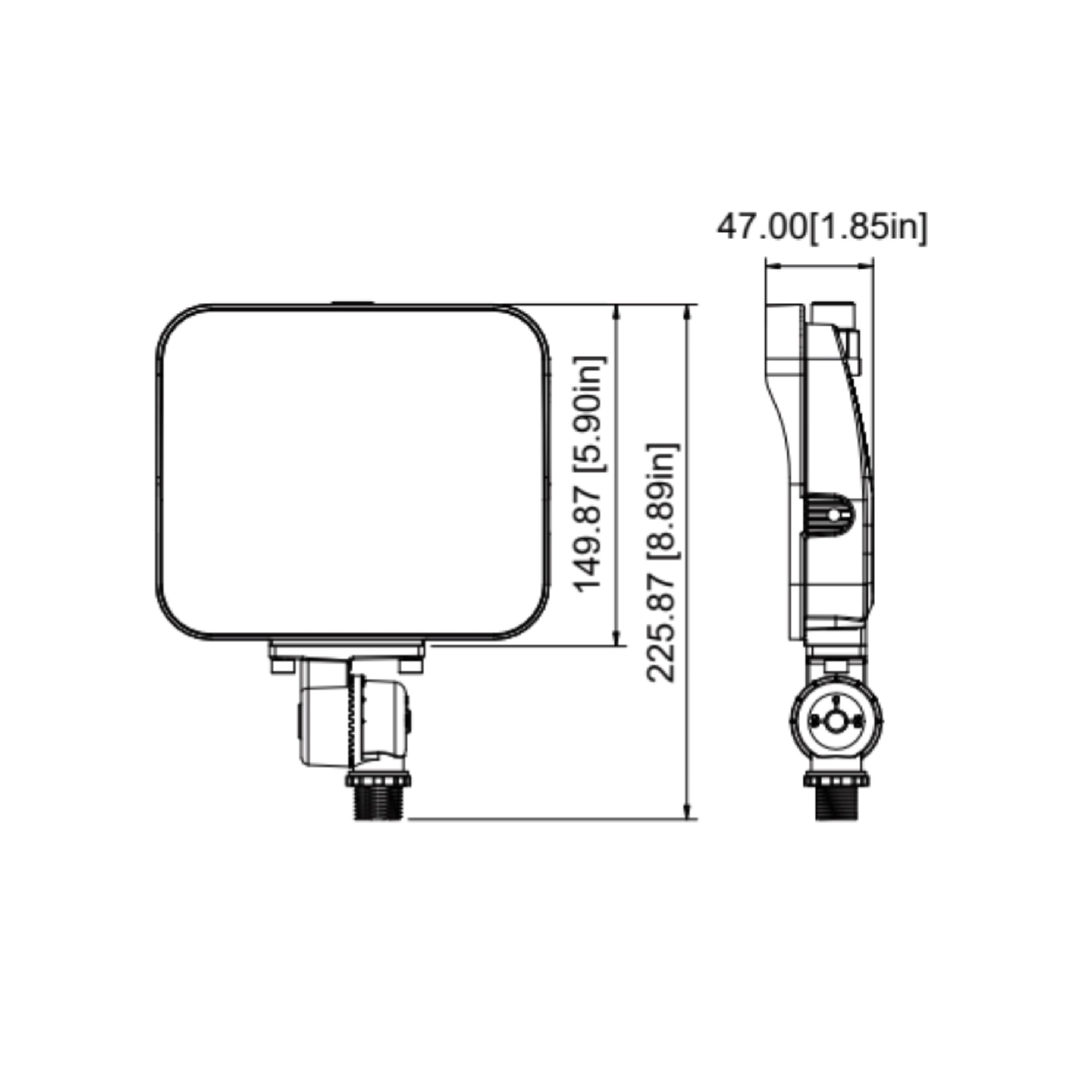

Dimensions	Knuckle Mount: 6.8" x 5.8" x 1.9" (8.5" including mount) Trunnion Mount: 7.2" x 7.16" x 1.9"
Certification	UL
Warranty	1 Year

Data Sheet

Compare Key Features

Compare

	27W Selectable Mini LED Flood Light	25W Selectable MaxLite LED Bullet Flood Light with Photocell	30W RGBW RAB X34 LED Flood Light
Replaces Wattage(s)	30W to 90W	Up to 125W	100W
Light Output	1,690/2,234/2,856/3,672 lumens	9W: 1,180 to 1,300 lumens 16W: 2,090 to 2,320 lumens 25W: 3,060 to 3,320 lumens	3,674 lumens (at 2200K) to 3,932 lumens (at 6500K)
Color Temperature (CCT)	3000K/4000K/5000K	3000K/4000K/5000K	RGBW CCT tunable 2200K to 6500K
Enclosure Rating	IP65, UL Wet Location	IP65	UL listed suitable for wet locations
Installation	Knuckle mount	Knuckle mount	Knuckle mount
Temperature Rating	-40°F - +104°F	-40°F to 104°F	-40°F to 104°F
	$37.49	$94.99 View Details	$123.99 View Details
