168 in stockArchitectural, Edge-Lit Exit Signs
- Modern, Thin-Profile Housing: High-polish, injection-molded virgin acrylic that is ultrasonically welded to eliminate visible hardware.
- Flexible Install: Mount from the top, side, or back; pivots for installations on sloped ceilings.
- Easy-Apply Direction Indicators: Chevrons are included to customize the sign to your needs.
Configurations Available:
Single or Double-Sided
Double-sided configurations have a mirror divider.

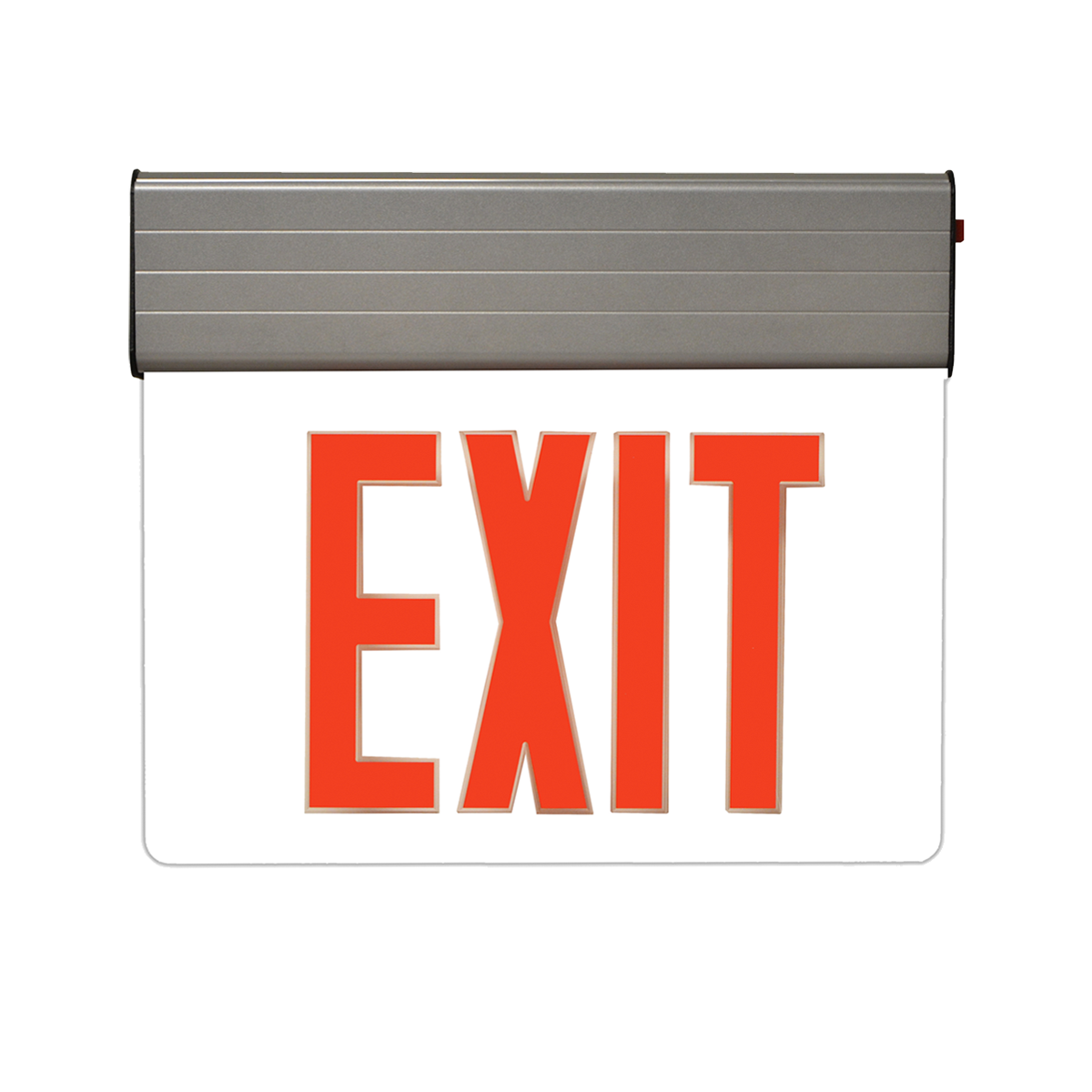

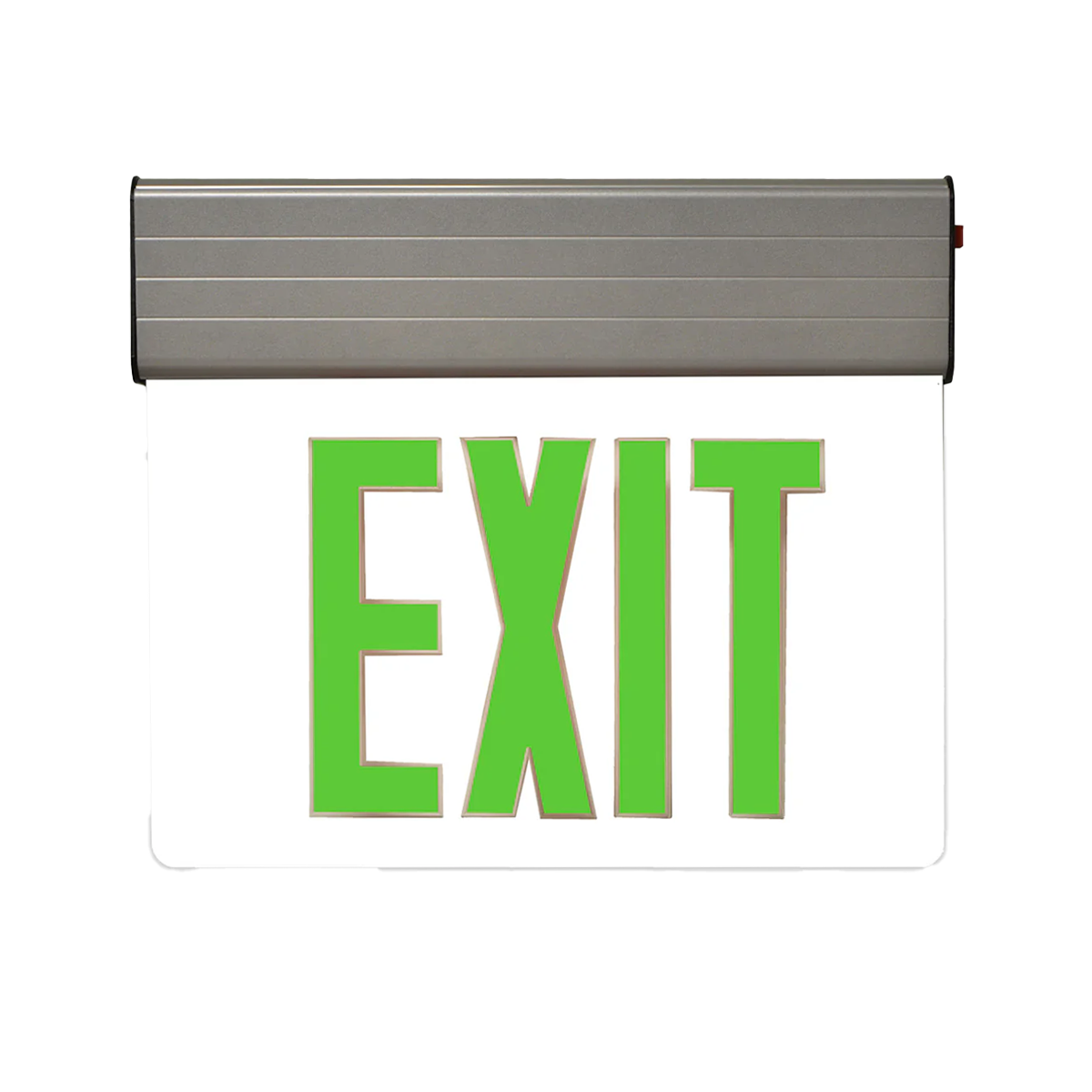

Red or Green Letters
Graduated depth of molded letters provides uniform light distribution on graphics.
Saves $/year in energy costs*
Buying 12 or more?
Get a better price:
Architectural, Edge-Lit Exit Signs
- Modern, Thin-Profile Housing: High-polish, injection-molded virgin acrylic that is ultrasonically welded to eliminate visible hardware.
- Flexible Install: Mount from the top, side, or back; pivots for installations on sloped ceilings.
- Easy-Apply Direction Indicators: Chevrons are included to customize the sign to your needs.
Configurations Available:
Single or Double-Sided
Double-sided configurations have a mirror divider.
Red or Green Letters
Graduated depth of molded letters provides uniform light distribution on graphics.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
5 Year Warranty
168 in stock
Buying 12 or more?
Get a better price:
5 Year Warranty
168 in stock
Buying 12 or more?
Get a better price:
SPECIFICATIONS
| Installation | Included mounting bracket allows installation via top, side, or back of exit sign. |
| Working Environment | Indoors |
| Input Voltage | 120V/277V |
| Temperature Rating | 68°F - 104°F |
| Housing Material | Injection-molded virgin acrylic |

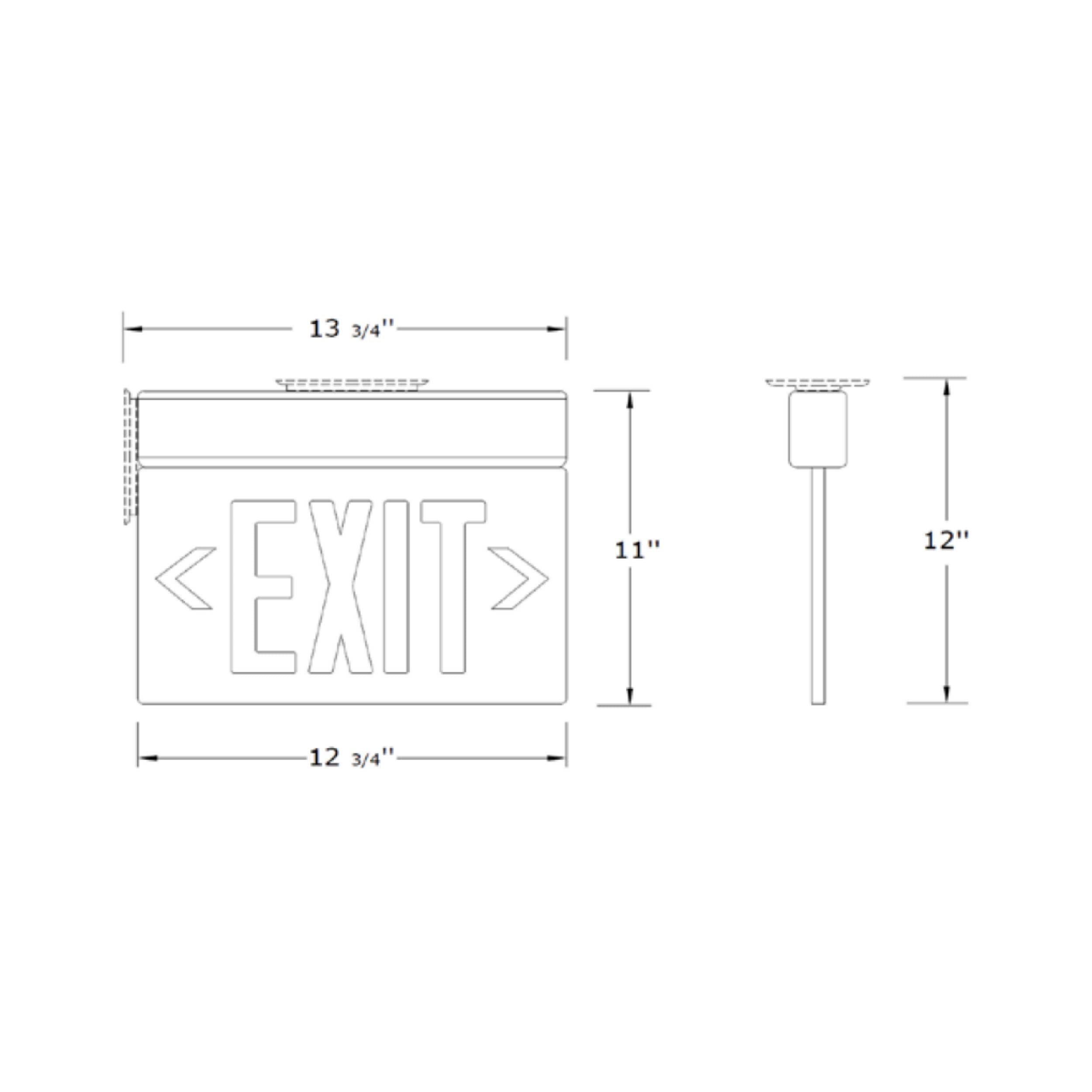

| Dimensions |
12.75" W x 11" H Mounting bracket adds another inch to top or side. |
| Certification | CSA, UL924 Listed for Damp Locations (DL) |
| Warranty | 5 Years |
Key Features
Sleek, Upscale Design
Snap-Fit, No-Hardware Faceplate
Easy-Apply Direction Indicators

Architectural, Edge-Lit Exit Signs
- Modern, Thin-Profile Housing: High-polish, injection-molded virgin acrylic that is ultrasonically welded to eliminate visible hardware.
- Flexible Install: Mount from the top, side, or back; pivots for installations on sloped ceilings.
- Easy-Apply Direction Indicators: Chevrons are included to customize the sign to your needs.
Configurations Available:
Single or Double-Sided
Double-sided configurations have a mirror divider.
Red or Green Letters
Graduated depth of molded letters provides uniform light distribution on graphics.
