Slim LED Exit Sign
Slim LED Exit Sign
Slim LED Exit Sign
Slim LED Exit Sign

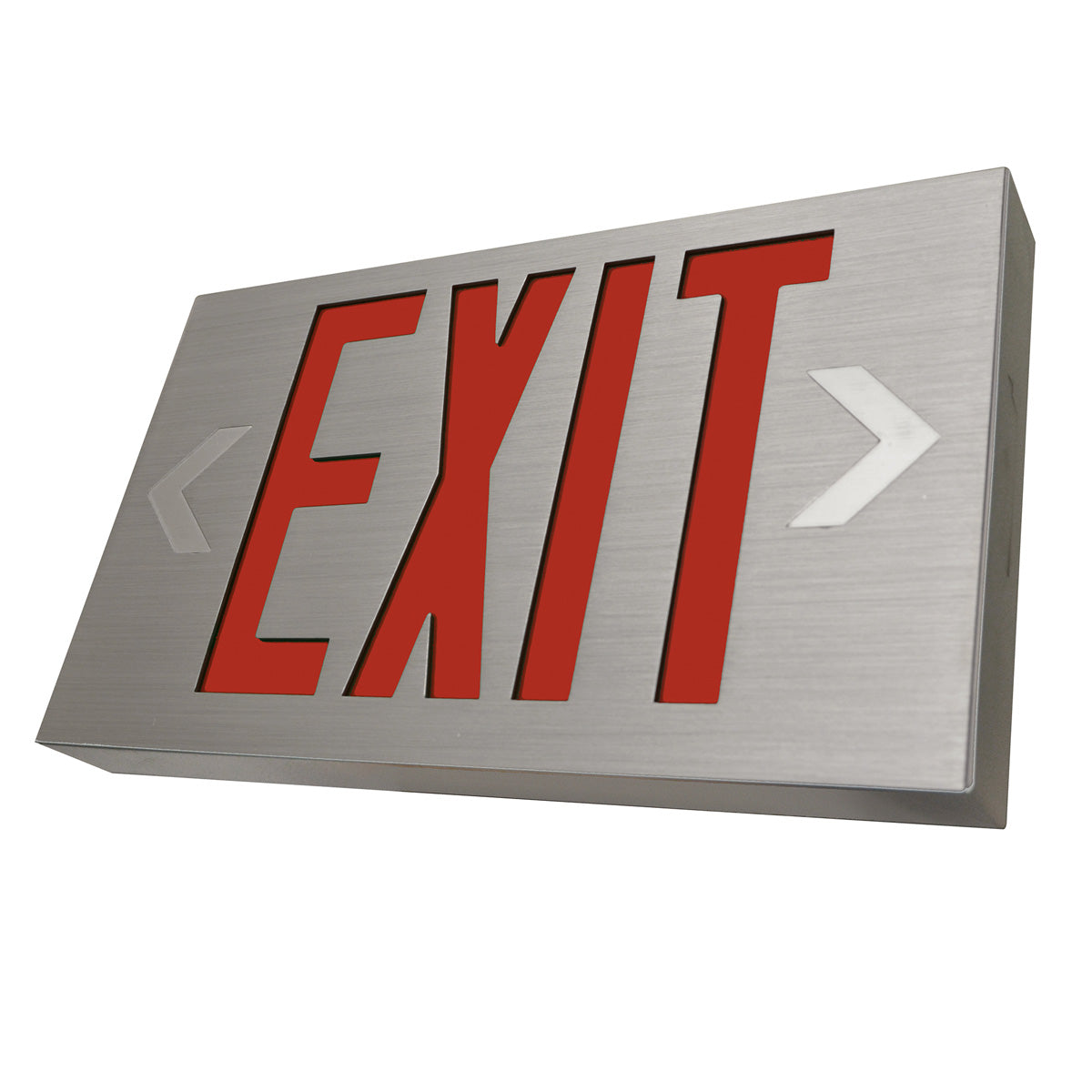

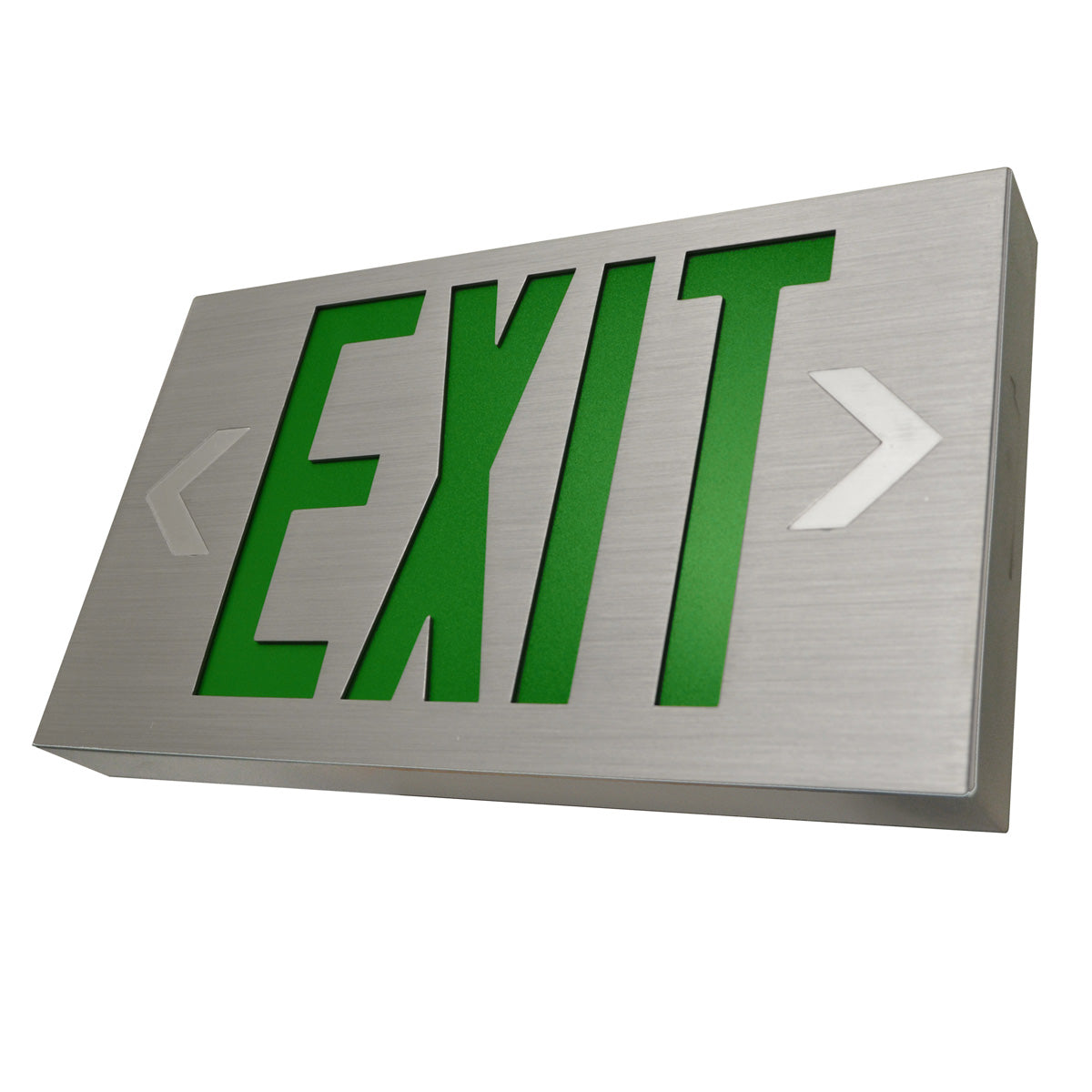

A sleek, low-profile exit sign with a brushed aluminum face for lobbies or warehouses alike.
- Snap-fit faceplate converts instantly from single- to double-sided — configure on-site.
- Universal mounting plate connects to any j-box on walls or ceilings — red or green letters.
- UL924-listed for damp locations, visible from 50 feet, backed by a 5-year warranty.
Need More? Let's Talk Text (858) 650-9400 or Request Quote
A sleek, low-profile exit sign with a brushed aluminum face for lobbies or warehouses alike.
- Snap-fit faceplate converts instantly from single- to double-sided — configure on-site.
- Universal mounting plate connects to any j-box on walls or ceilings — red or green letters.
- UL924-listed for damp locations, visible from 50 feet, backed by a 5-year warranty.
Choose options
Details
Versatile, Universal Exit Lighting
Universal Mounting Plate: Allows for attaching the sign to ceilings or walls.
Customizable Chevrons: Adapt the sign to point the direction of the exit, whichever way it is.
Easy, Snap-Fit Faceplate: An extra faceplate allows for setup as single- or double-sided.
This sign has an attractive brushed aluminum faceplate that comes with green or red thermoplastic letters. It is a great option for commercial or multi-residential properties.
Specs
| Installation | Ceiling or wall using universal bracket to connect to j-box |
| Working Environment | Indoors |
| Input Voltage | Universal operating voltage 100V-300V |
| Temperature Rating | 10°F - 104°F |
| Housing Material | UV stabilized UL-94VO thermoplastic with brushed aluminum faceplate |
| Dimensions |

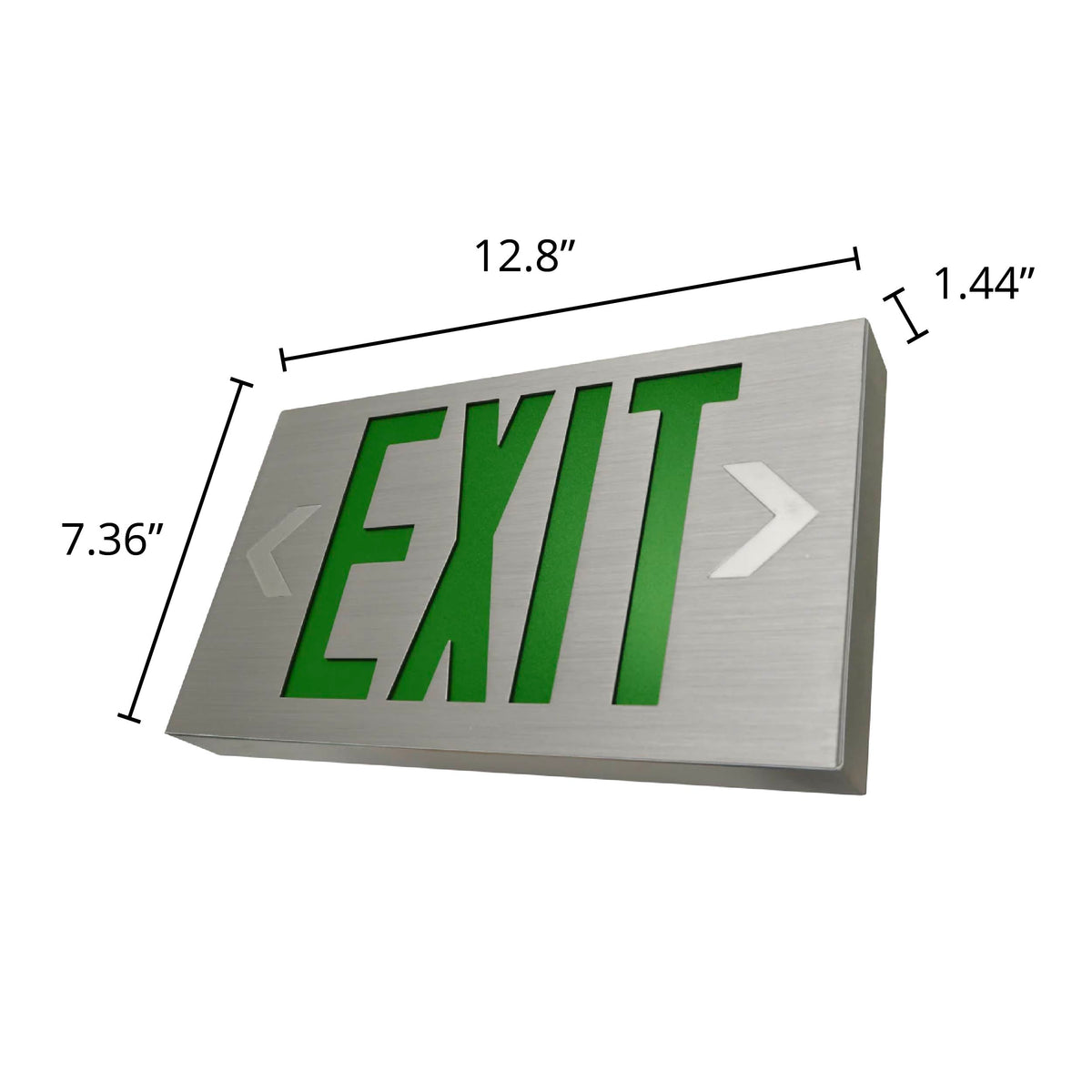

12.8" W x 7.36" H x 1.44" D Universal bracket is 4.33" W x 4.72" H x 0.98" D |
| Certification | CSA, UL924 Listed for Damp Locations (DL) |
| Warranty | 5 Years |
Data SheetLayout & Planning
