MaxLite

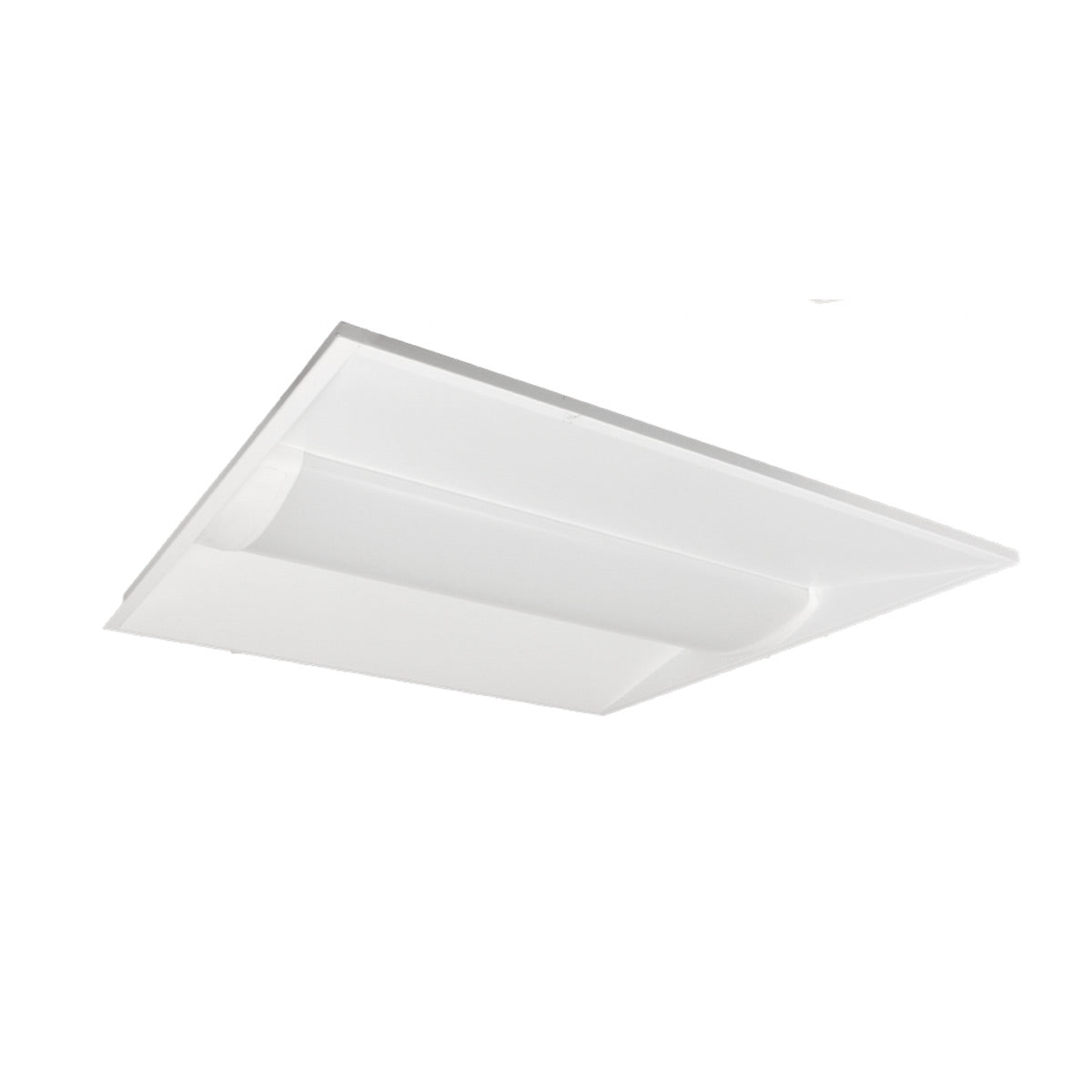

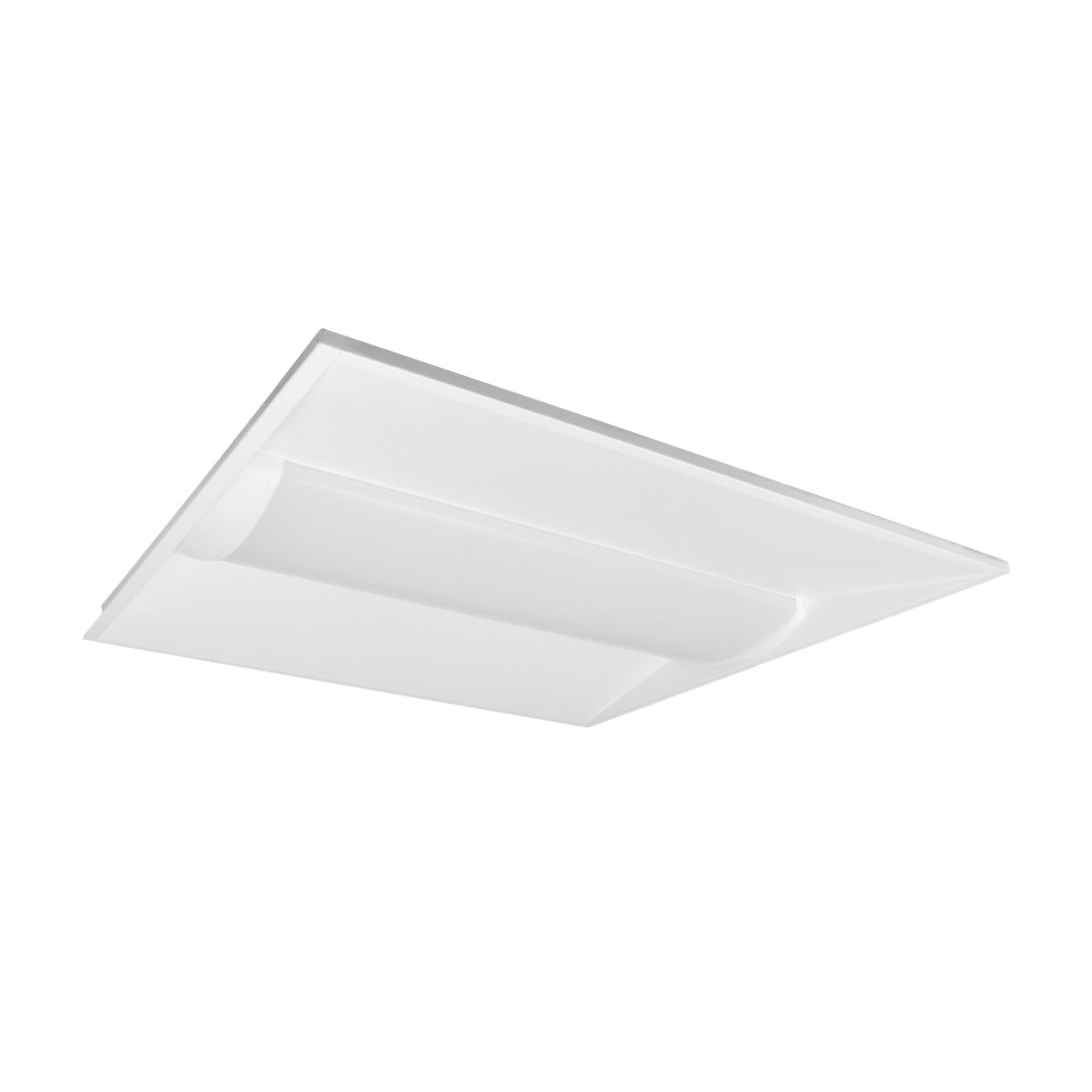

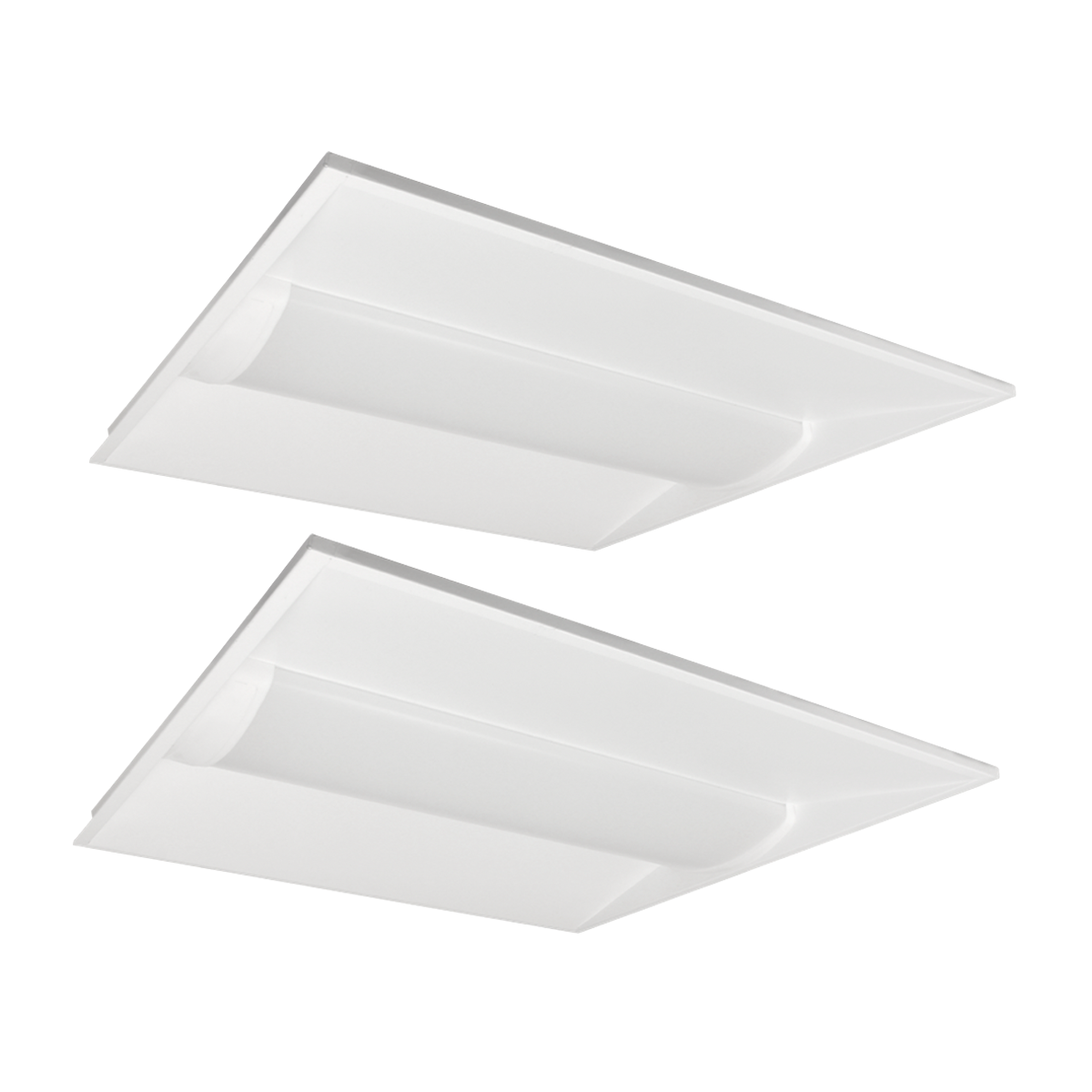

2x2 26W Selectable MaxLite ArcMax LED Troffer (2-Pack)
2x2 26W Selectable MaxLite ArcMax LED Troffer (2-Pack)
2x2 26W Selectable MaxLite ArcMax LED Troffer (2-Pack)
MaxLite
0 Reviews
2x2 26W Selectable MaxLite ArcMax LED Troffer (2-Pack)
Regular price
This 2x2 troffer is controls-ready, so you can add a plug-in smart sensor for occupancy or daylight harvesting anytime, without rewiring.
- Up to 155 lm/W for lower energy bills
- 100,000-hour rated life — double the industry standard
- 10-year warranty, the longest in the lineup
This 2x2 troffer is controls-ready, so you can add a plug-in smart sensor for occupancy or daylight harvesting anytime, without rewiring.
- Up to 155 lm/W for lower energy bills
- 100,000-hour rated life — double the industry standard
- 10-year warranty, the longest in the lineup
Choose options
Regular price
Regular price
Specs
| Wattage(s) | 13W/20W/26W |
| Light Output |
At 3500K: 1,950/3,000/3,900 lumens At 4000K: 2,010/3,100/4,030 lumens At 5000K: 1,960/3,020/3,920 lumens |
| Luminous Efficacy (lm/W) | Up to 155 lm/W |
| Average Lamp Life | L70: ≥100,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K |
| CRI (Color Accuracy) | >80 |
| Dimming | 0-10V |
| Dimming Range | 10-100% (Dim to OFF Voltage: 0.3V ± 0.2V) |
| Occupancy Sensor | Optional - Can be installed in the field |
| Working Environment | Indoors |
| Enclosure Rating | Damp location |
| Input Voltage | 120-277VAC, 50/60 Hz |
| Power Factor | ≥ 0.87 |
| Surge Protection | 2.5KV |
| Temperature Rating | -4°F to 122°F |
| Humidity | 10% to 80% RH non-condensing |
| Housing Material | Sheet metal with a PMMA lens |
| Housing Color | White |

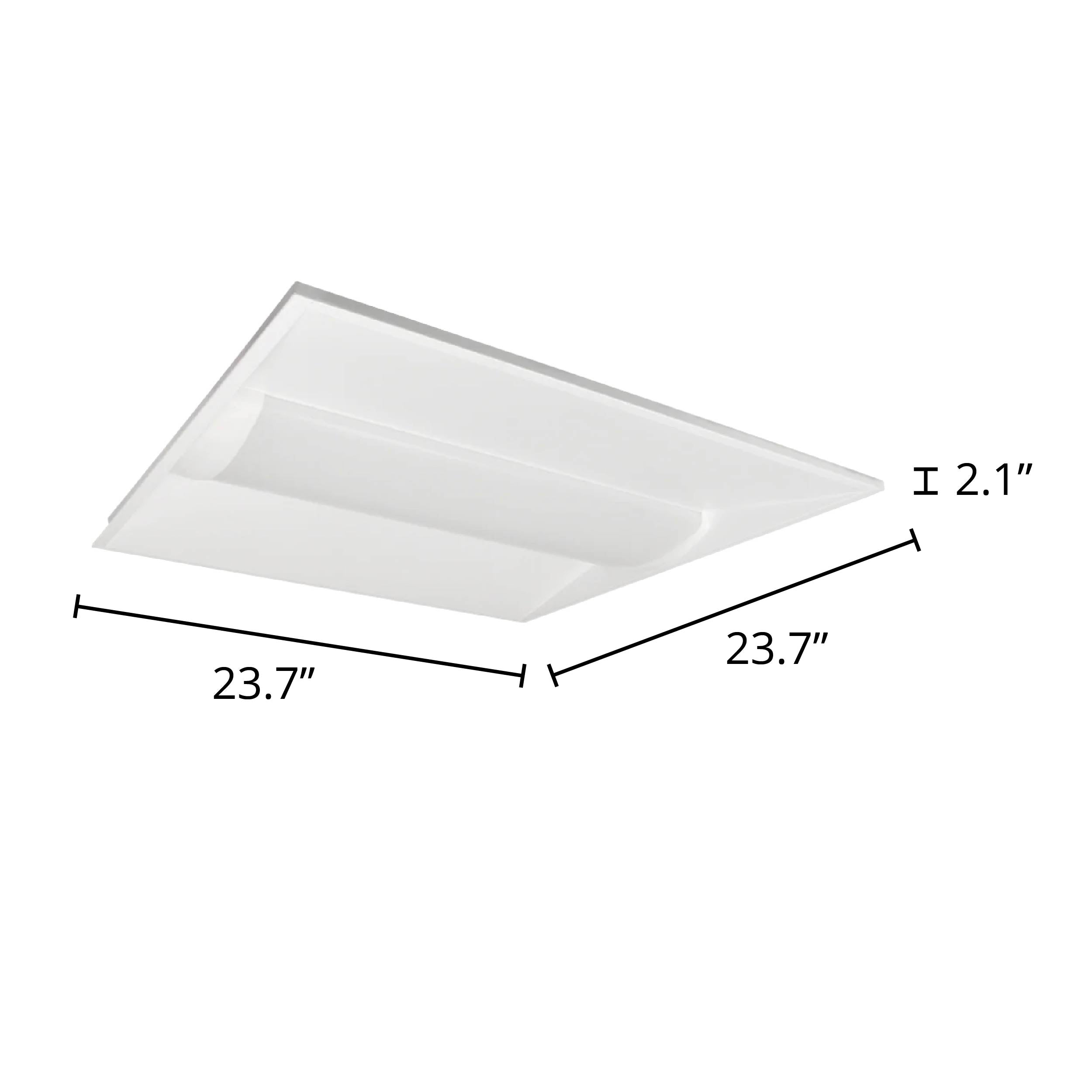

| Dimensions | 23.7" x 23.7" x 2.1" |
| Certification | DLC, UL |
| DLC ID(s) | S-2FHSCX |
| Warranty | 10 Years |
Data SheetDetails
Controls-Ready Lighting Built to Outlast the Standard
Plug-and-Play Controls — add motion and daylight sensors without rewiring, whenever you're ready.
Double the Standard Lifespan — 100,000-hour rated life and a 10-year warranty.
What You Get
| Spec | Value | Why It Matters |
|---|---|---|
| Light Output | 1,950–4,030 lm (varies by CCT) | Scales to match the room without swapping fixtures |
| Efficacy | Up to 155 lm/W | Among the most efficient 2x2 troffers available |
| Wattage & CCT | 3 selectable wattages (13/20/26W), 3 CCTs (3500K/4000K/5000K) | No need to special-order three different fixtures |
| Lamp Life | L70: ≥100,000 hours | Roughly double the typical troffer lifespan |
| CRI | >80 | Accurate color rendering for offices and classrooms |
| Dimming | 0-10V, field-installable occupancy sensor | Add smart controls anytime without rewiring |
| Enclosure Rating | Damp location | Suitable for a wide range of indoor commercial spaces |
| Certifications | DLC, UL | Qualifies for utility rebates; meets safety code |
Controls-Ready, Whenever You're Ready
- Selectable Wattage: Choose 13W, 20W, or 26W to match room size and light-level needs.
- Selectable CCT: Choose 3500K, 4000K, or 5000K to fit the space.
- Field-Installable Sensor: Add a plug-and-play occupancy or daylight sensor at any time, with no rewiring.
- 0-10V Dimming: Dim from 10% to 100% for precise energy control.
Built for Long-Term Commercial Performance
- 100,000-Hour Rated Life (L70): Roughly double the industry-standard 50,000-hour lifespan.
- 10-Year Warranty: The longest warranty of any 2x2 troffer we carry.
- Low-Glare Optics: Delivers uniform brightness that's easy on the eyes.
- Damp-Location Rated: Suitable for a wide range of indoor commercial spaces.
Ideal for offices, classrooms, healthcare facilities, and other spaces upgrading to smart, controls-ready lighting.
×
×
Instant Rebates
Check if your utility offers rebates for new LED lights installed in commercial & industrial buildings:
×
