1200W Selectable High-Output LED Sports Light
1200W Selectable High-Output LED Sports Light
1200W Selectable High-Output LED Sports Light
1200W Selectable High-Output LED Sports Light
Engineered for professional stadiums, collegiate athletic fields, and high-mast poles, this field-selectable 800–1200W LED sports light delivers up to 205,100 lumens at 165 lm/W.
- ~10% brighter than other 1200W fixtures
- 30° standard beam; 45° and 60° lens accessories available
- Impact-resistant, water-tight aluminum alloy housing
Engineered for professional stadiums, collegiate athletic fields, and high-mast poles, this field-selectable 800–1200W LED sports light delivers up to 205,100 lumens at 165 lm/W.
- ~10% brighter than other 1200W fixtures
- 30° standard beam; 45° and 60° lens accessories available
- Impact-resistant, water-tight aluminum alloy housing
Choose options
Specs
| Wattage(s) | 800W/1000W/1200W |
| Replaces Wattage(s) | 3600W |
| Light Output |
800W: 139,200–144,700 lumens 1000W: 169,900–176,100 lumens 1200W: 198,200–205,100 lumens |
| Luminous Efficacy (lm/W) | 165 lm/W |
| Average Lamp Life | L90: >100,000 hrs L80: >100,000 hrs L70: >100,000 hrs |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | >70 |
| Dimming |
DALI D4I dimming with Zhaga base for Synapse. >Users with Synapse controller can mount the controller on the Zhaga base. For users without Synapse controller, the unit functions as ON/OFF. Note that the DALI function and the power-selectable function cannot be used simultaneously. |
| Beam Angle |
30˚ Standard Optional lenses for 45˚ and 60˚ |
| Lens Cover | High-transmittance polycarbonate lens |
| Installation | Bracket mount |
| EPA (Effective Projected Area) |
@20˚: 0.155m² (1.666ft²) @40˚: 0.227m² (2.441ft²) @60˚: 0.281m² (3.023ft²) @80˚: 0.305m² (3.281ft²) |
| Enclosure Rating | IP66, IK08, C4 ISO 9223:2012 |
| LED Type | LED 3737 |
| Input Voltage | 200-480VAC, 50/60 Hz |
| Driver Type | Constant Current |
| Power Factor | >0.97 at full load |
| THD (Total Harmonic Distortion) | <20% |
| Surge Protection | 10KV L-N, 20KV L/N-E |
| Temperature Rating | -30˚C to 50˚C (-22˚F to 122˚F) |
| Housing Material |
Low-copper die cast aluminum alloy housing ZAM-treated powder-coated SPCC steel mounting brackets |

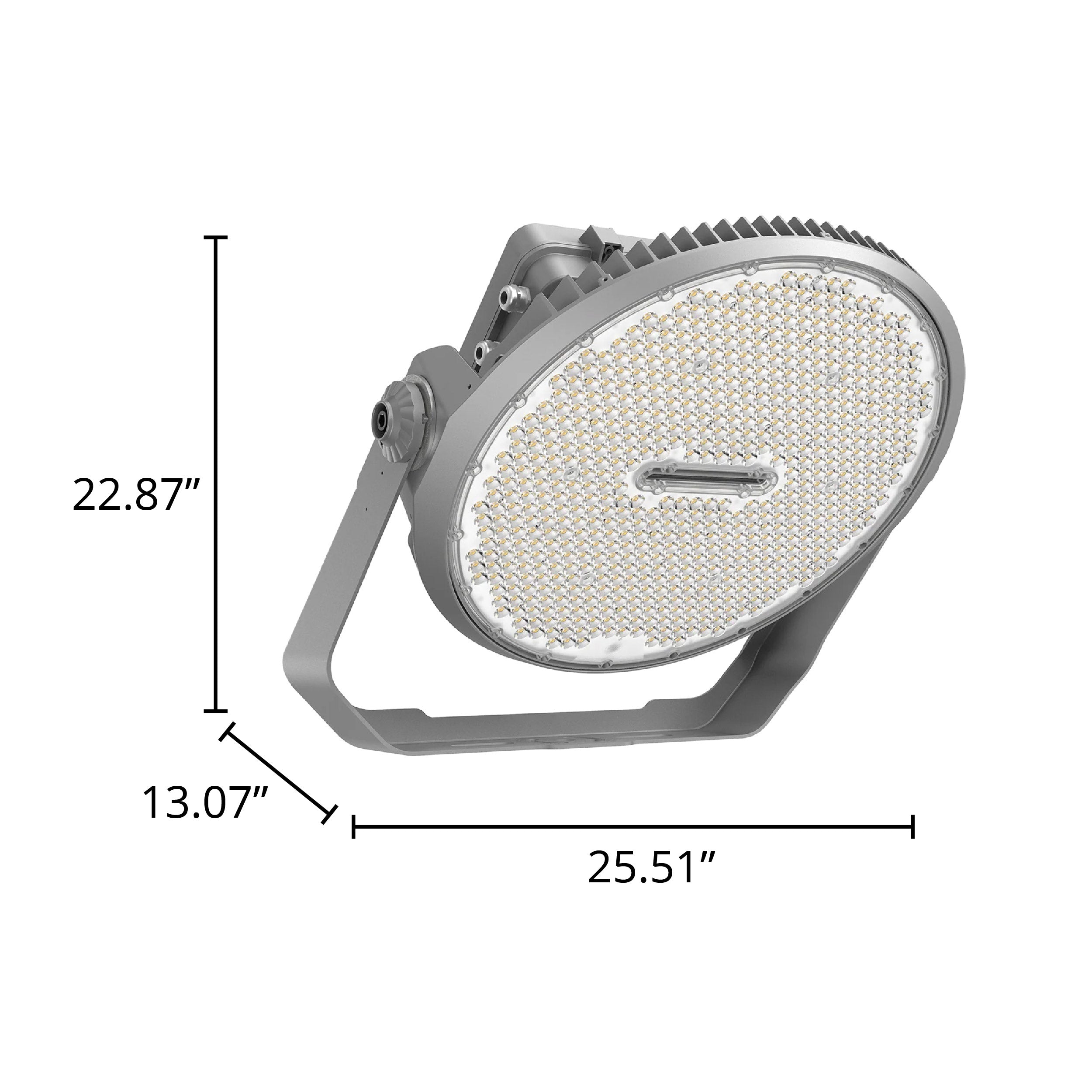

| Dimensions | 581 x 648 x 332mm (22.87" x 25.51" x 13.07") |
| Weight | 25.14 kg (55.42 Ibs) |
| Certification | UL, DLC Premium |
| Warranty | 5 Years |
Data SheetDetails
Maximum-Power Sports Lighting for Professional-Grade Installations
- Extreme-output wattage selection (1200W/1000W/800W) allows precise tuning for premier sports facilities and very tall pole heights.
- Exceptional brightness producing up to 205,100 lumens at 165 lm/W—ideal when you need maximum coverage with fewer fixtures.
- Built for control with Zhaga base supporting DALI D4 control through Synapse dimming module.
- Engineered for durability with IP66, IK08 impact protection, corrosion-resistant materials, and wide-range 200–480VAC input for demanding environments.

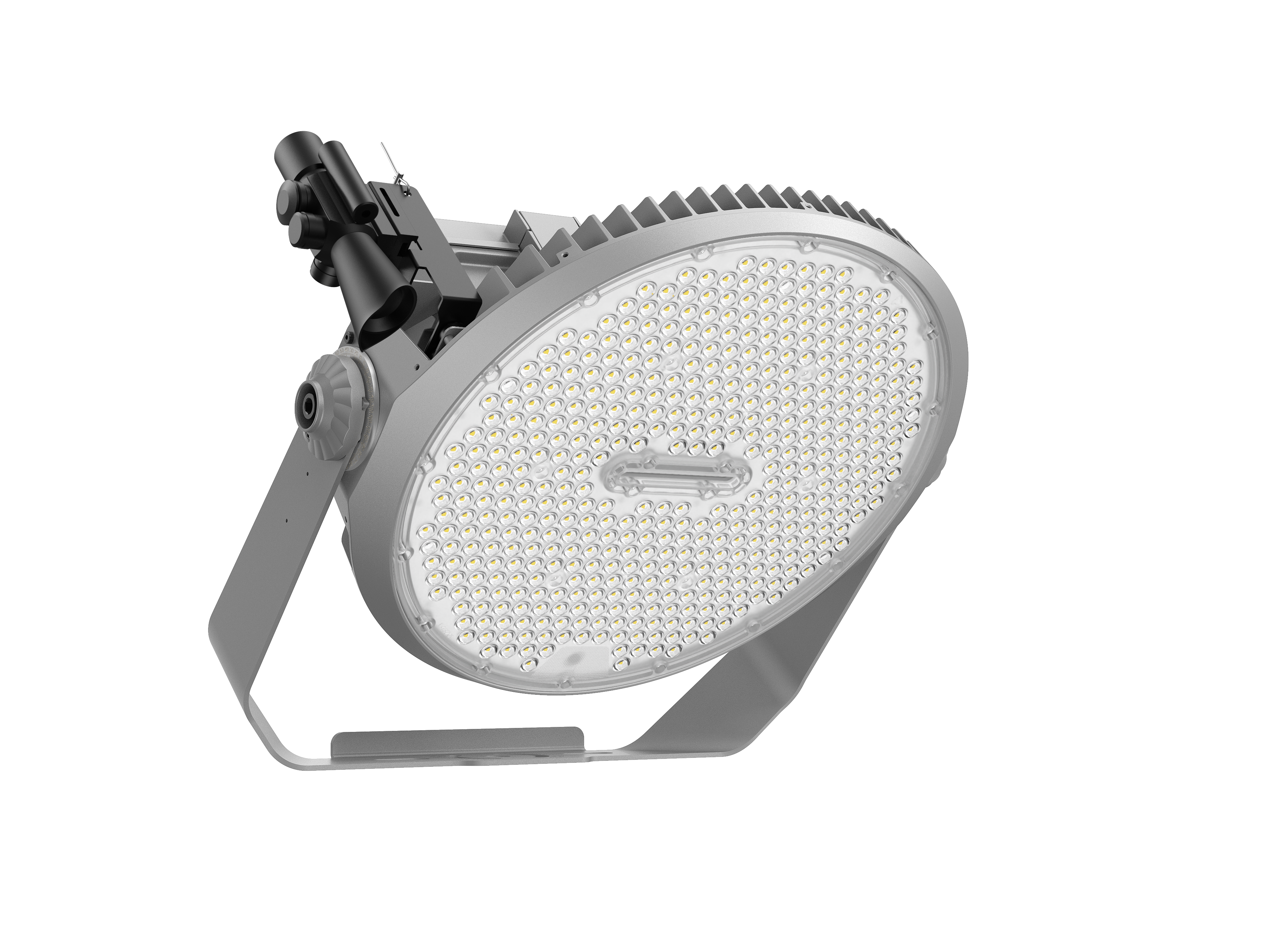

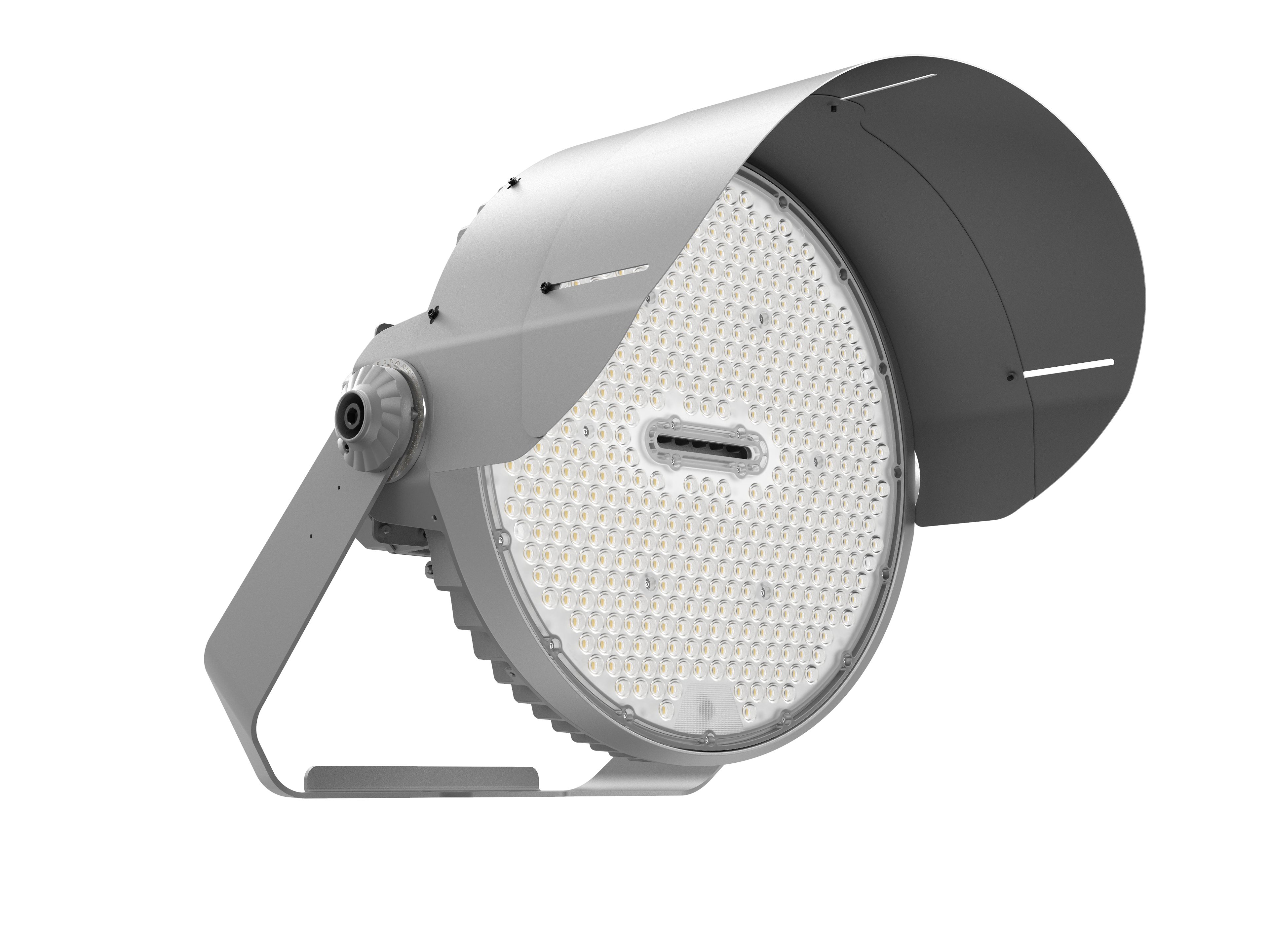

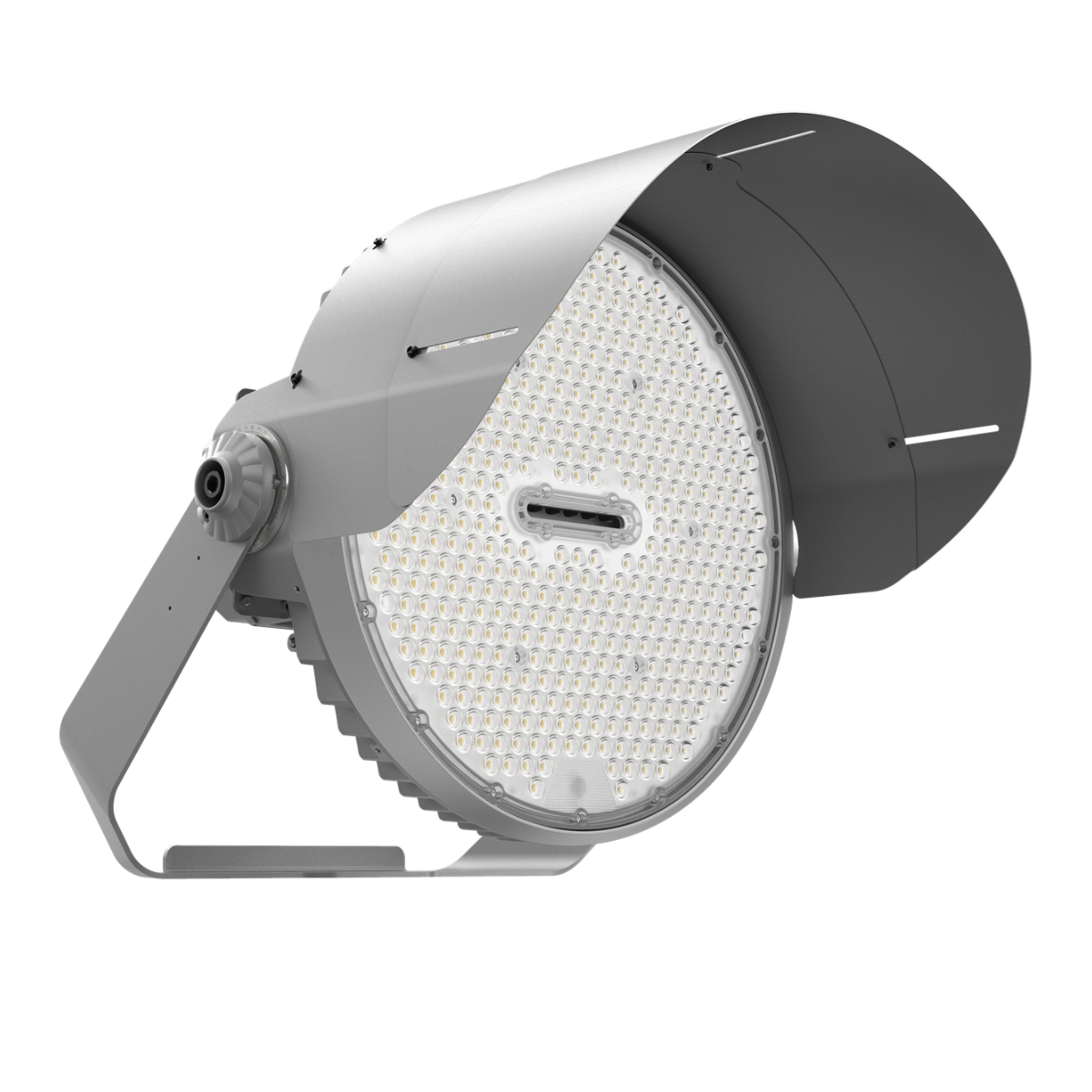

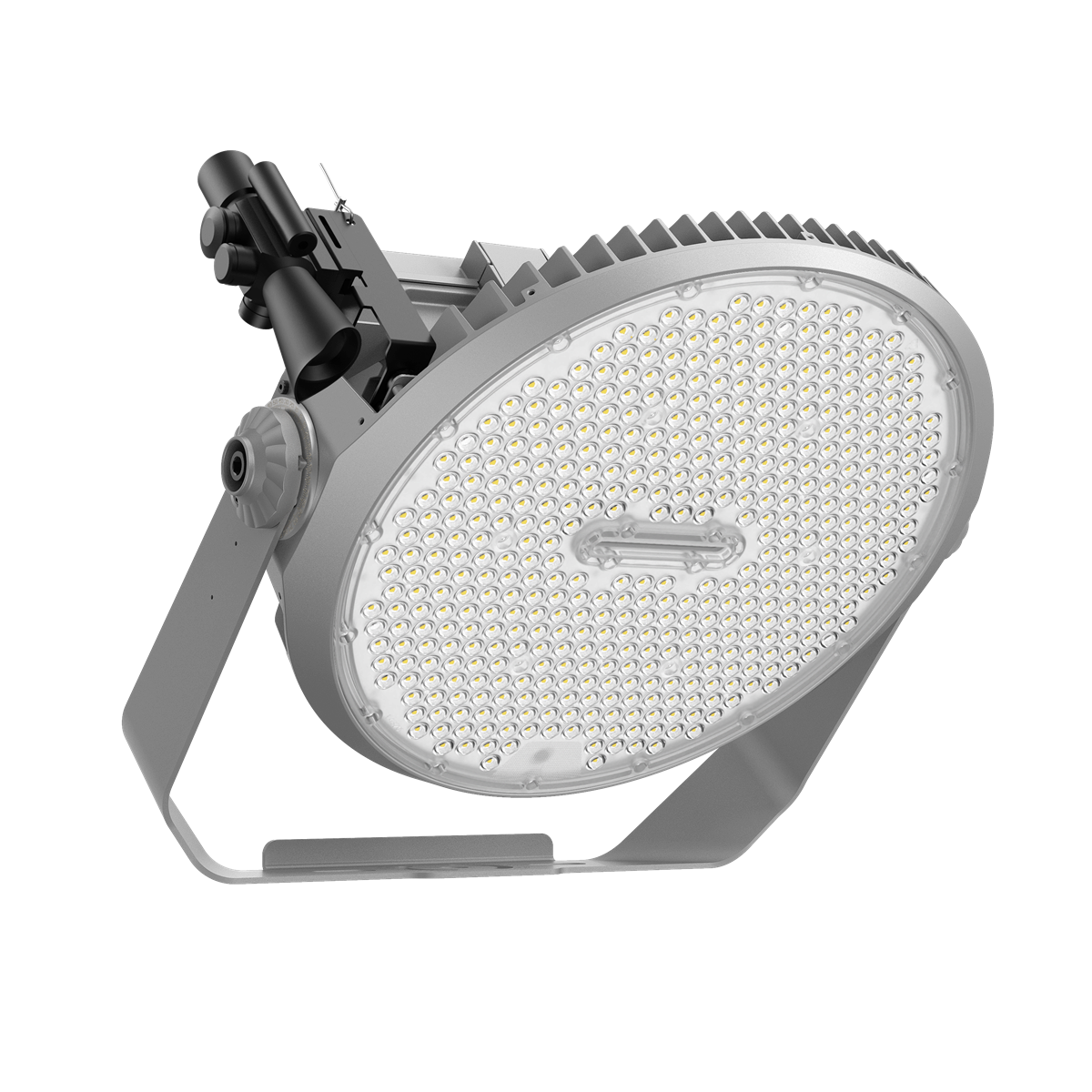

- Value-added accessories Reduce guesswork during installation with the optional aiming device. Minimize glare on the field and reduce light pollution with an attractive visor/glare shield. Swap to different optics with accessory lenses.
Use cases
Professional stadiums, collegiate athletic fields, high-mast poles over large areas, airport perimeters, and expansive recreation or municipal sports facilities.
Layout & Planning
Request a Custom Layout
Complex or unique space? Get a custom layout plan from our lighting experts.
Save More with Rebates
Check available incentives in your area to reduce your upfront cost.
Instant Rebates
Check if your utility offers rebates for new LED lights installed in commercial & industrial buildings:
