Linear LED High Bay – 2 CCT – Swappable Optics – 270/230/200W
High-Efficacy 100k Lamp Life Linear High Bay with Adjustable Wattage, Color, and Lensing, 30 to 40 ft Ceilings
Regular price
Lumens:
30,000-40,500
Watts:
200W-270W
Color Temp:
4000K/5000K
Tune output and color on site. Swap 90° open-area lens with optional 50×90° aisle lens for easy viewing of product and labels on shelf-fronts and reduced light loss. High-efficiency design (up to 150 lm/W) with extended (100,000hr) lamp life.
5 Year Warranty
Low-Cost Lighting for Ceilings to 40 ft
Versatile, dependable lighting for 25 to 40 ft ceilings that's easy to install, lasts for years, and pays for itself with low energy costs.
- High 150 lm/W efficacy means low operating costs for years to come. Average L70 lamp life is 100,000 hours.
- Customize on site with 3 wattage settings and 2 color temperature settings.

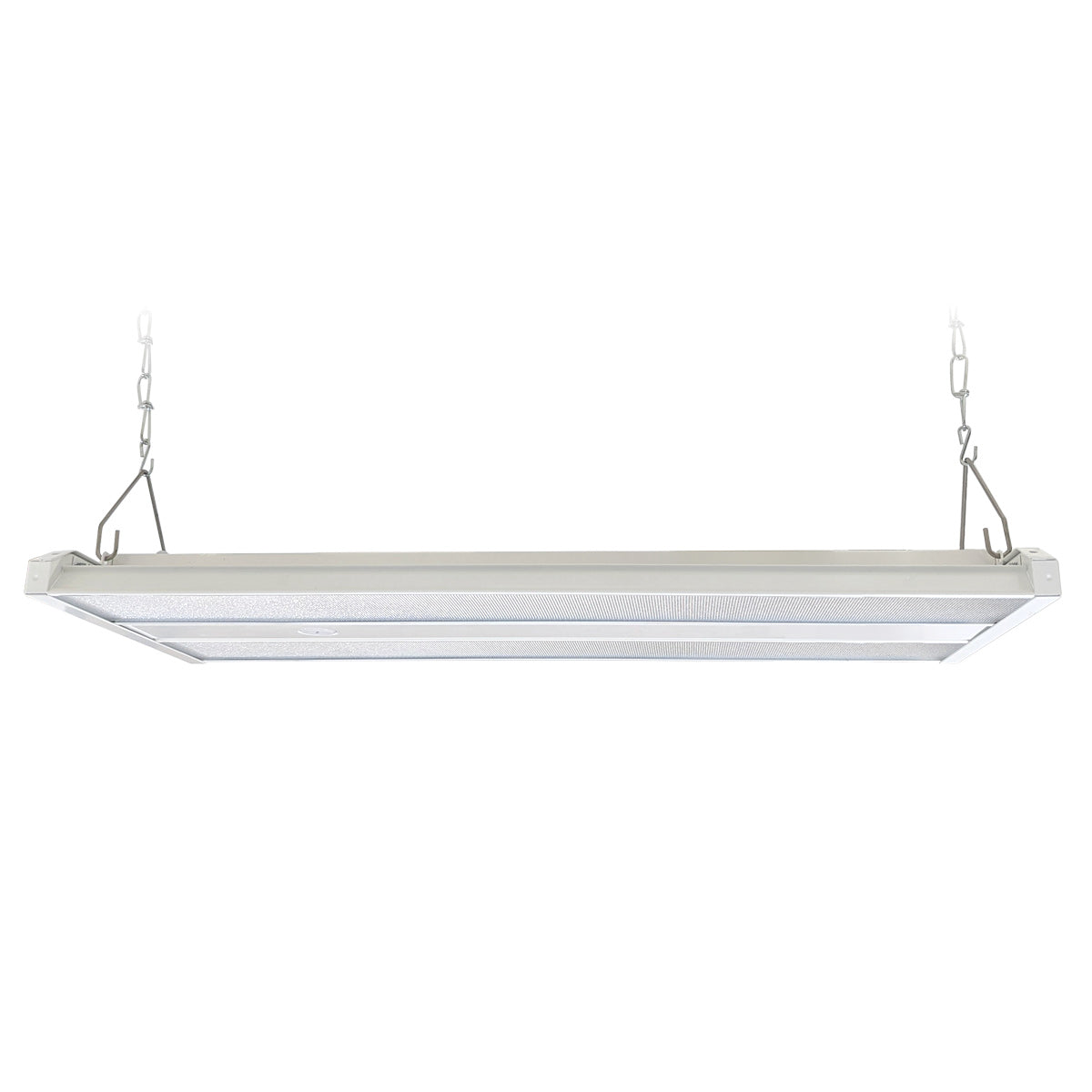

- Easy installation - comes with a V-hook and chain suspension kit.
- Easy-swap lenses allow you to convert the standard 90˚ angle to an asymmetrical 50˚ x 90˚, meeting both today's needs and tomorrow's.
Great for warehouses, distribution centers, industrial facilities, airports, exhibition centers, and gymnasiums.
Saves $/year in energy costs*
Regular price
Order Within
$12 flat rate / FREE over $500
Buying 12 or more?
Get a better price & free shipping:
Text: (858) 650-9400
Call: (215) 355-7200
or Request Bulk Quote
Low-Cost Lighting for Ceilings to 40 ft
Versatile, dependable lighting for 25 to 40 ft ceilings that's easy to install, lasts for years, and pays for itself with low energy costs.
- High 150 lm/W efficacy means low operating costs for years to come. Average L70 lamp life is 100,000 hours.
- Customize on site with 3 wattage settings and 2 color temperature settings.
- Easy installation - comes with a V-hook and chain suspension kit.
- Easy-swap lenses allow you to convert the standard 90˚ angle to an asymmetrical 50˚ x 90˚, meeting both today's needs and tomorrow's.
Great for warehouses, distribution centers, industrial facilities, airports, exhibition centers, and gymnasiums.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Regular price
Lumens:
30,000-40,500
Watts:
200W-270W
Color Temp:
4000K/5000K
Tune output and color on site. Swap 90° open-area lens with optional 50×90° aisle lens for easy viewing of product and labels on shelf-fronts and reduced light loss. High-efficiency design (up to 150 lm/W) with extended (100,000hr) lamp life.
5 Year Warranty
Regular price
Order Within
$12 flat rate / FREE over $500
Buying 12 or more?
Get a better price & free shipping:
Text: (858) 650-9400
Call: (215) 355-7200
or Request Bulk Quote
Regular price
Lumens:
30,000-40,500
Watts:
200W-270W
Color Temp:
4000K/5000K
Tune output and color on site. Swap 90° open-area lens with optional 50×90° aisle lens for easy viewing of product and labels on shelf-fronts and reduced light loss. High-efficiency design (up to 150 lm/W) with extended (100,000hr) lamp life.
5 Year Warranty
Regular price
Order Within
$12 flat rate / FREE over $500
Buying 12 or more?
Get a better price & free shipping:
Text: (858) 650-9400
Call: (215) 355-7200
or Request Bulk Quote
SPECIFICATIONS
| Wattage(s) | 200/230/270W Selectable |
| Replaces Wattage(s) | 600W to 1000W |
| Light Output | 30,000/34,500/40,500 lumens |
| Luminous Efficacy (lm/W) | 150 lm/W |
| Average Lamp Life | L70: 100,000 hours |
| Color Temperature(s) | 4000K/5000K Selectable |
| CRI (Color Accuracy) | 80 |
| Dimming | 0-10V Dimming |
| Beam Angle | 90° (Standard) changeable to 50°x90° for Aisle Application with field-swappable lens |
| Installation | Suspension Mount, Surface Mount, 3/4” NPT Pendant Mount |
| Input Voltage | 120-277VAC |
| Temperature Rating | -40°F to +122°F |
| Housing Material | Sheet Metal Stamping, Polycarbonate Optical Lens |
| Housing Color | White |

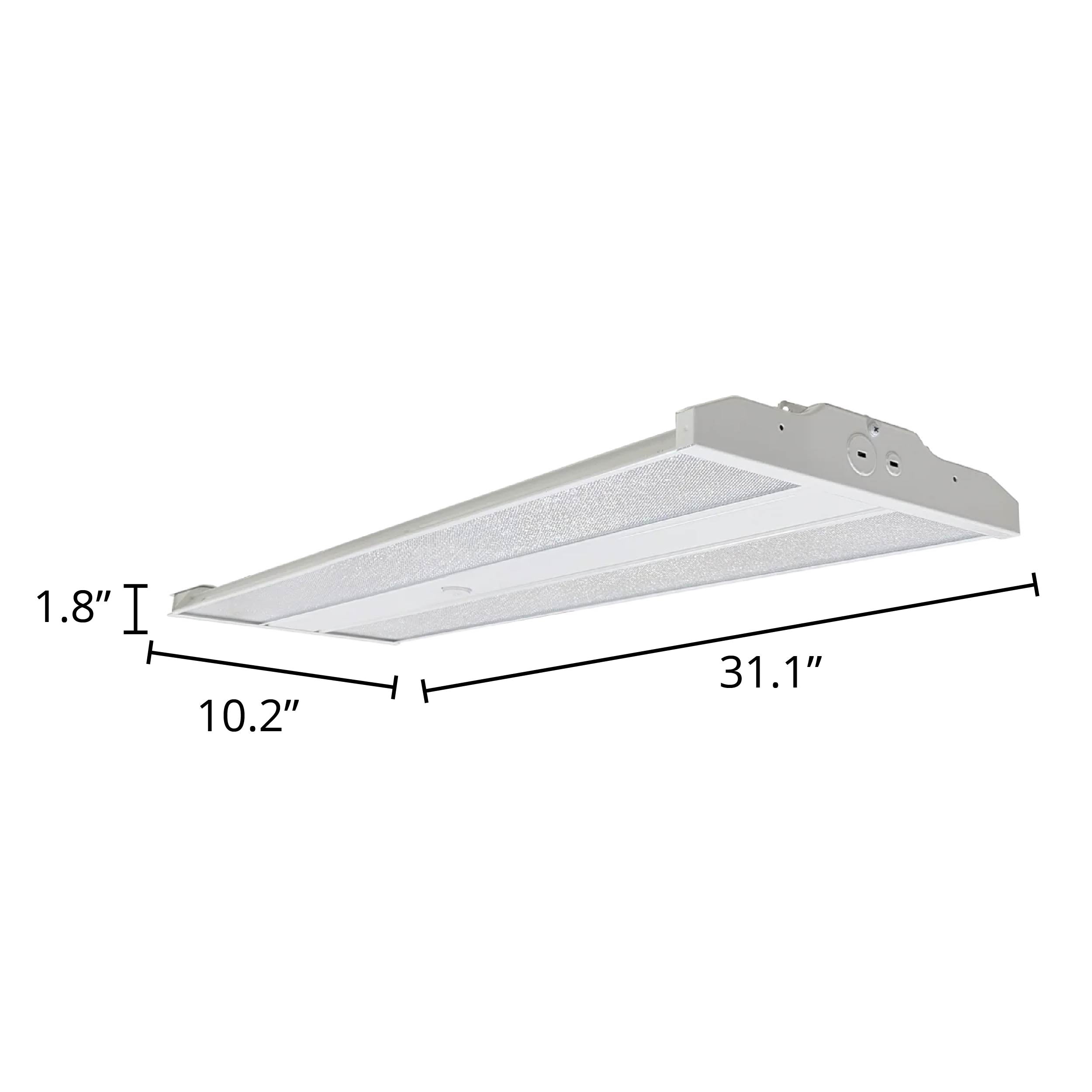

| Dimensions | 31.1" x 10.2" x 1.8" |
| Certification | DLC Premium, UL |
| Warranty | 5 Years |
FIXTURE CALCULATOR
Our easy tool tells you how many lights you need & how far apart they should be installed.
Click the cube icon
& enter the room's dimensions. "Workplane Height" is where the light levels will be measured from. For example, 2.5 ft is about desk height. "Suspension Length" is how far your fixture will hang below the ceiling. If the fixture will be flush with the ceiling or recessed, enter 0.
As you make changes, the layout updates instantly to show recommended fixture (luminaire) quantities and spacing. Click the printer icon
in the top bar to get a report you can print or share.
COMPARE KEY FEATURES
Linear LED High Bay – 2 CCT – Swappable Optics – 270/230/200W
|
LED Linear High Bay - 4000K/5000K CCT - 60/105/140/210W Selectable
|
LED Linear High Bay - 4000K/5000K CCT - 95/160/215/320W Selectable
|
|
|---|---|---|---|
| Wattage | 200/230/270W Selectable | 60/105/140/210W Selectable | 95/160/215/320W Selectable |
| Efficacy | 150 lm/W | Standard Efficiency Model: @4000K: 162 lm/W @5000K: 160 lm/W High Efficiency Model: @4000K: 172 lm/W @5000K: 170 lm/W |
Standard Efficiency Model: @4000K: 162 lm/W @5000K: 160 lm/W High Efficiency Model: @4000K: 172 lm/W @5000K: 170 lm/W |
| Color Temperature (CCT) | 4000K/5000K Selectable | 4000/5000K Selectable (Call for 4000K or 5000K fixed) | 4000/5000K Selectable (Call for 4000K or 5000K fixed) |
| Color Accuracy (CRI) | 80 | 80 | 80 |
| Temperature Rating | -40°F to +122°F | -25°C to +50°C (-13°F to +122°F) | -25°C to +50°C (-13°F to +122°F) |
| Warranty | 5 Years | 5 Years | 5 Years |
|
$78.00
|
$98.95
View Details
|
$127.95
View Details
|
Key Features
Customize Wattage & CCT
Suitable for Damp Locations

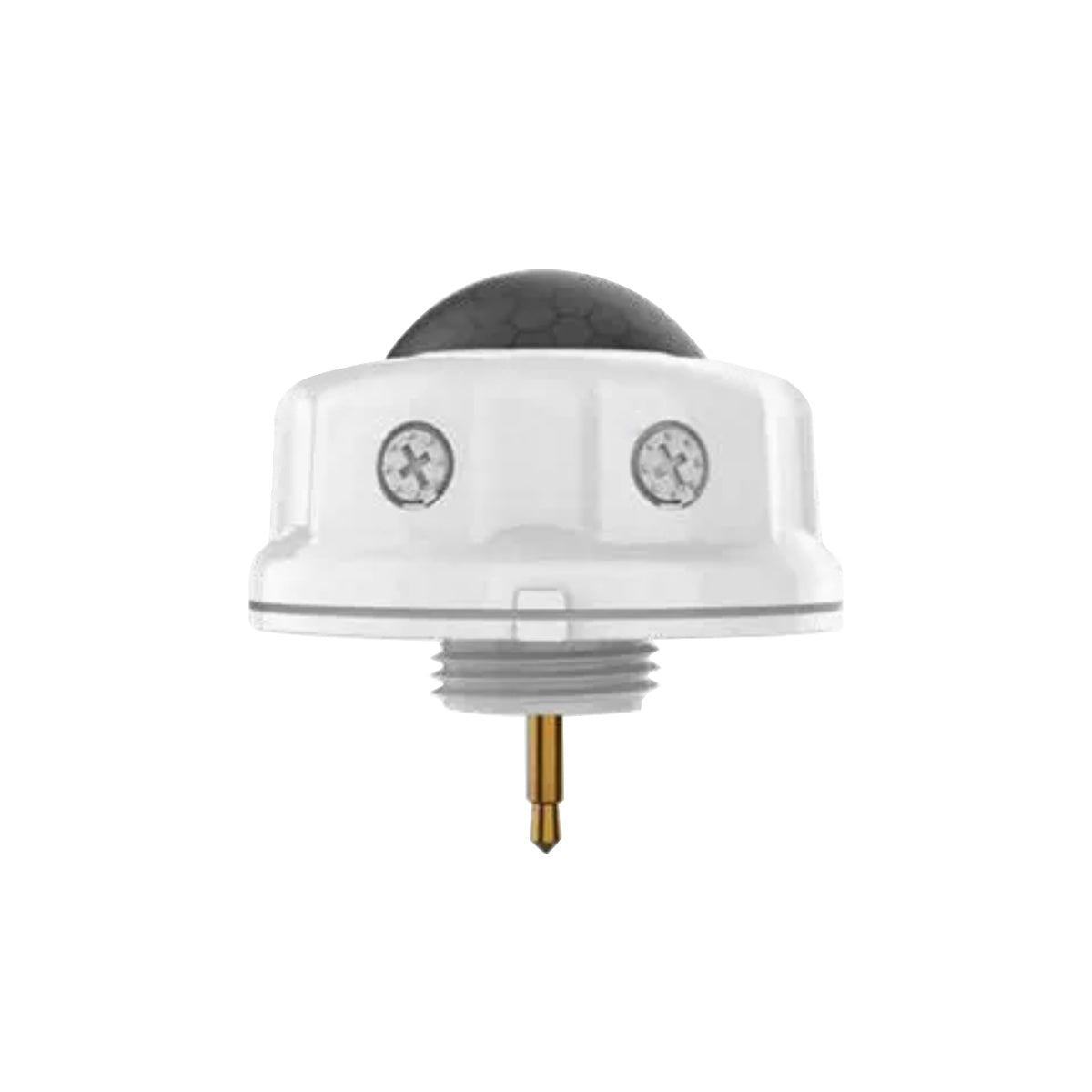

Sensor Ready
Practical Lighting for High Ceilings in Warehouses and Other Commercial Buildings
Versatile, dependable lighting for 20 to 40 ft ceilings that's easy to install, lasts for years, and pays for itself with low energy costs.
- High 150 lm/W efficacy means low operating costs for years to come. Average L70 lamp life is 100,000 hours.
- Customize on site with 3 wattage settings and 2 color temperature settings.
- Easy installation - comes with a V-hook and chain suspension kit.
- Easy-swap lenses allow you to convert the standard 90˚ angle to an asymmetrical 50˚ x 90˚, meeting both today's needs and tomorrow's.
Great for warehouses, distribution centers, industrial facilities, airports, exhibition centers, and gymnasiums.
Control Your Energy Costs
Balance your light requirements against your energy consumption. Here's the light output at each wattage setting:
23,500
lumens
23,500, 27,750, 30,000
