What You Get

A Mid-Tier Workhorse Built to Last

This linear high bay pairs DLC Premium efficiency with field-swappable optics and selectable settings. It delivers commercial-grade reliability at a price point that's hard to beat, suited equally to new construction and retrofit projects.

• Replaces Aging HID and Fluorescent Lighting: Delivers 23,500-30,000 lumens, comparable to 400–600W metal halide and fluorescent high bays, at a fraction of the operating cost.
• Lasts Roughly Twice as Long as Budget Fixtures: Rated for 100,000 hours at L70, this fixture stays bright about twice as long as many mega-marketplace high bays. That means fewer lift rentals, fewer service calls, and fewer headaches over the life of the fixture.
• DLC Premium Listed: Qualifies for the highest tier of utility rebates available, often leading to lower per-unit cost than cheap mega-marketplace alternatives.

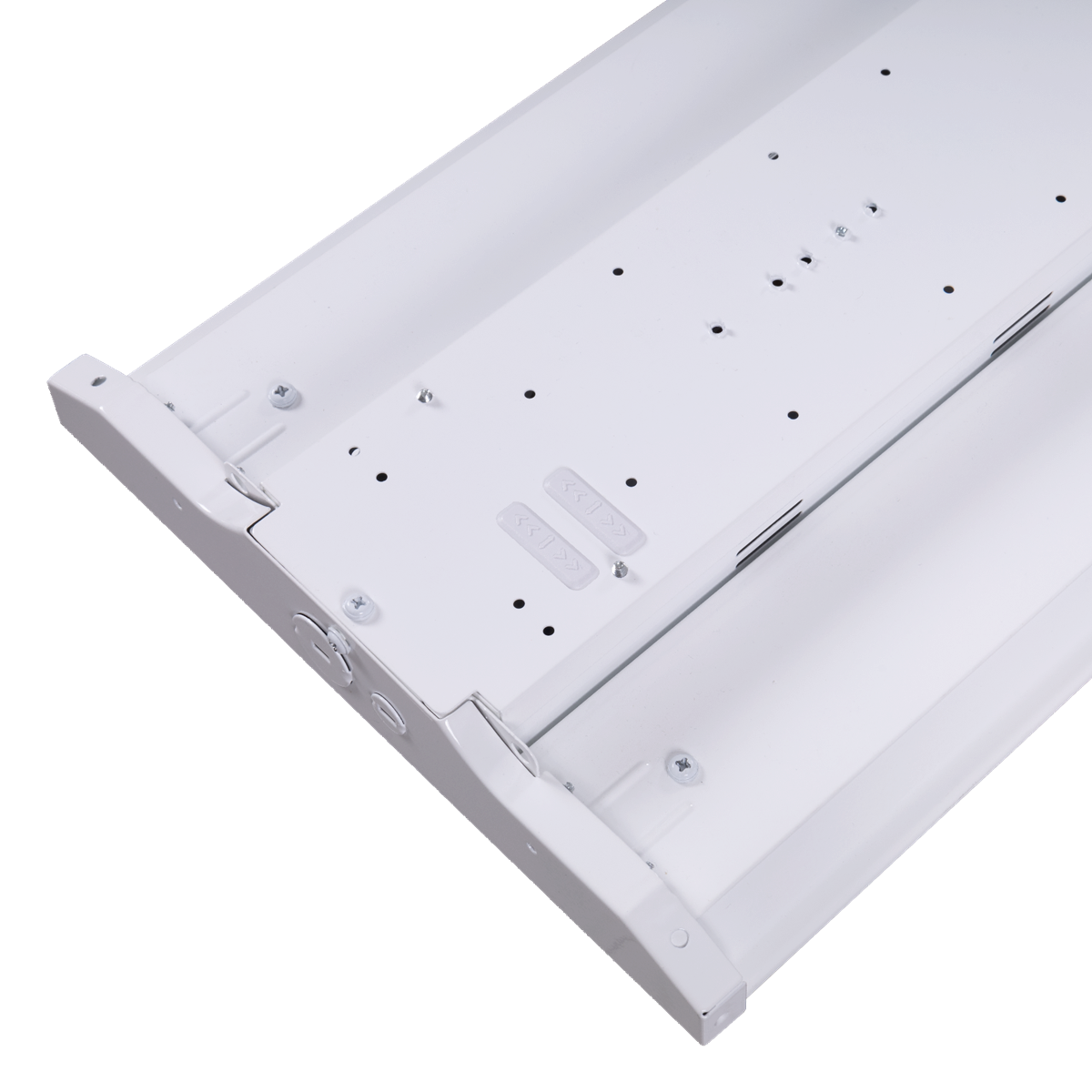

• Selectable Wattage and Color Temperature: Three wattage settings (155W/185W/200W) and two CCTs (4000K/5000K) allow tuning on site. One SKU covers multiple zones without the hassle of stocking multiple fixtures or making returns.
• Standard Lens Included, Aisle Lens Available: Ships with a 90° wide-angle lens suited to open floor areas; swap in an optional 50°x90° asymmetrical lens to redirect output down narrow aisles and racking corridors without replacing the fixture.
• Fast, Flexible Mounting: Includes a V-hook and chain suspension kit — a single fixture typically hangs in 5–10 minutes once power is run. Optional surface mount kits are available for direct ceiling or beam mounting where chain suspension isn't practical.
• PIR Daylight Harvesting Sensor Compatible: The fixture's 0-10V dimming driver works with an optional PIR daylight harvesting and occupancy sensor (sold separately) for automatic brightness control based on occupancy and ambient light. It's a setup that pays for itself over time.

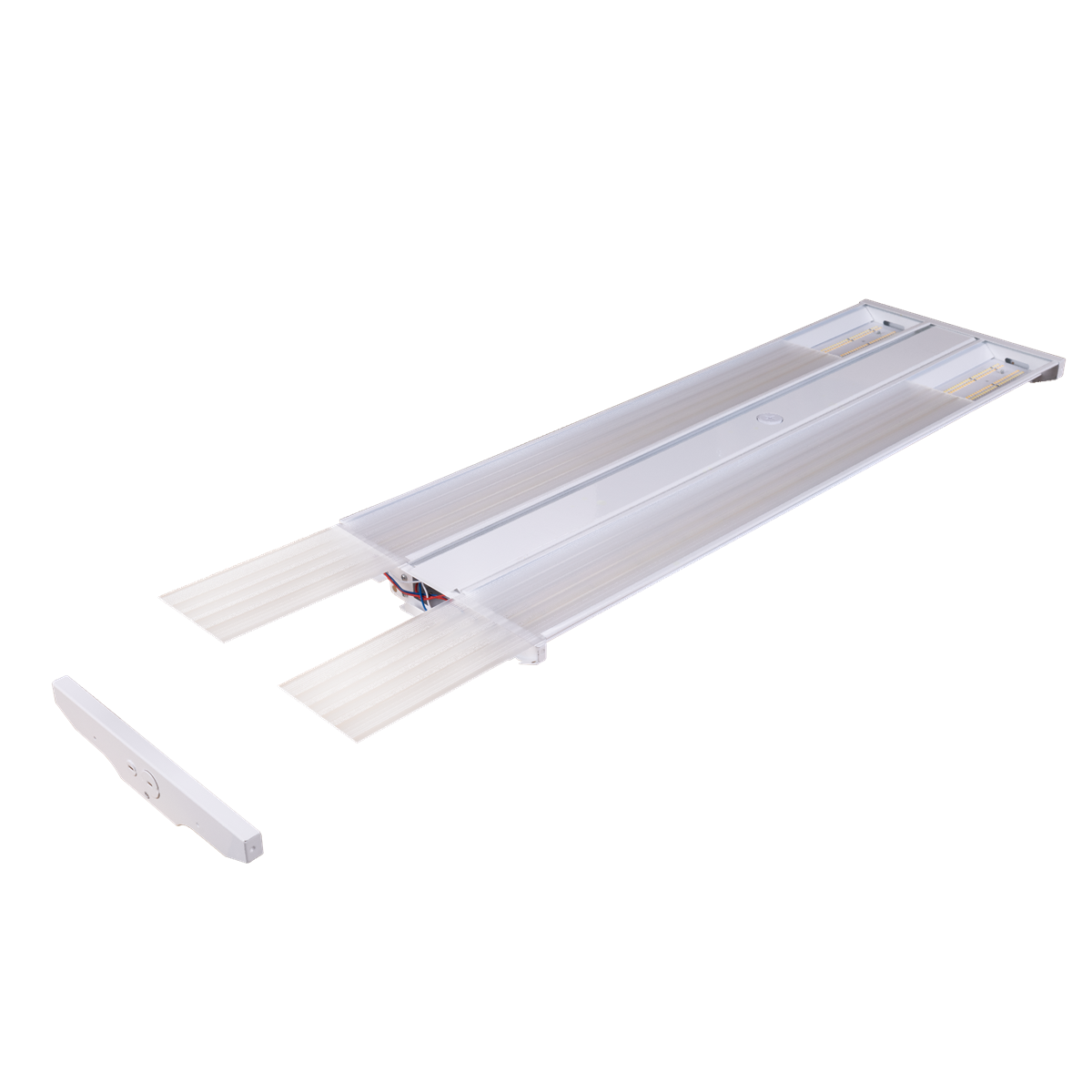

Lens Swaps in Under Two Minutes

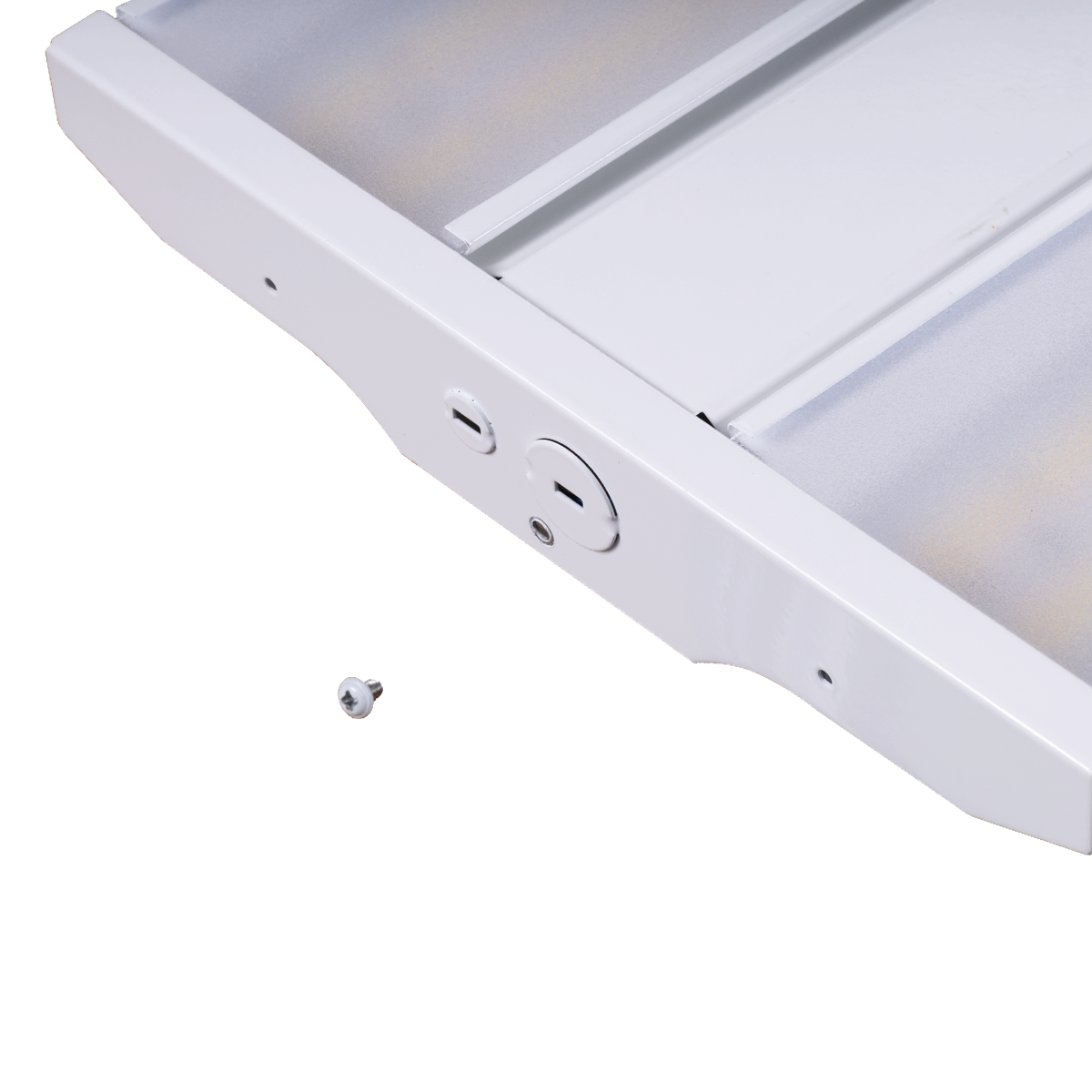

Step 1: Remove the screw from the end cap.

Step 2: Slide out the existing lens panels.

Step 3: Slide in the new lens panels.

Step 4: Replace the end cap and tighten the screw.

Ideal Applications

1. Warehouses & Distribution Centers: Standard 90° lens delivers broad, even coverage across open floor areas at this fixture's rated ceiling range.
2. Racking Aisles & Narrow Corridors: Swap to the optional 50°x90° asymmetrical lens to focus light down aisles rather than spreading it across adjacent racks, improving visibility of labels and shelved product.
3. Exhibition Halls & Big-Box Retail: High lumen output and even distribution suit large open commercial spaces where consistent illumination supports both browsing and operations.

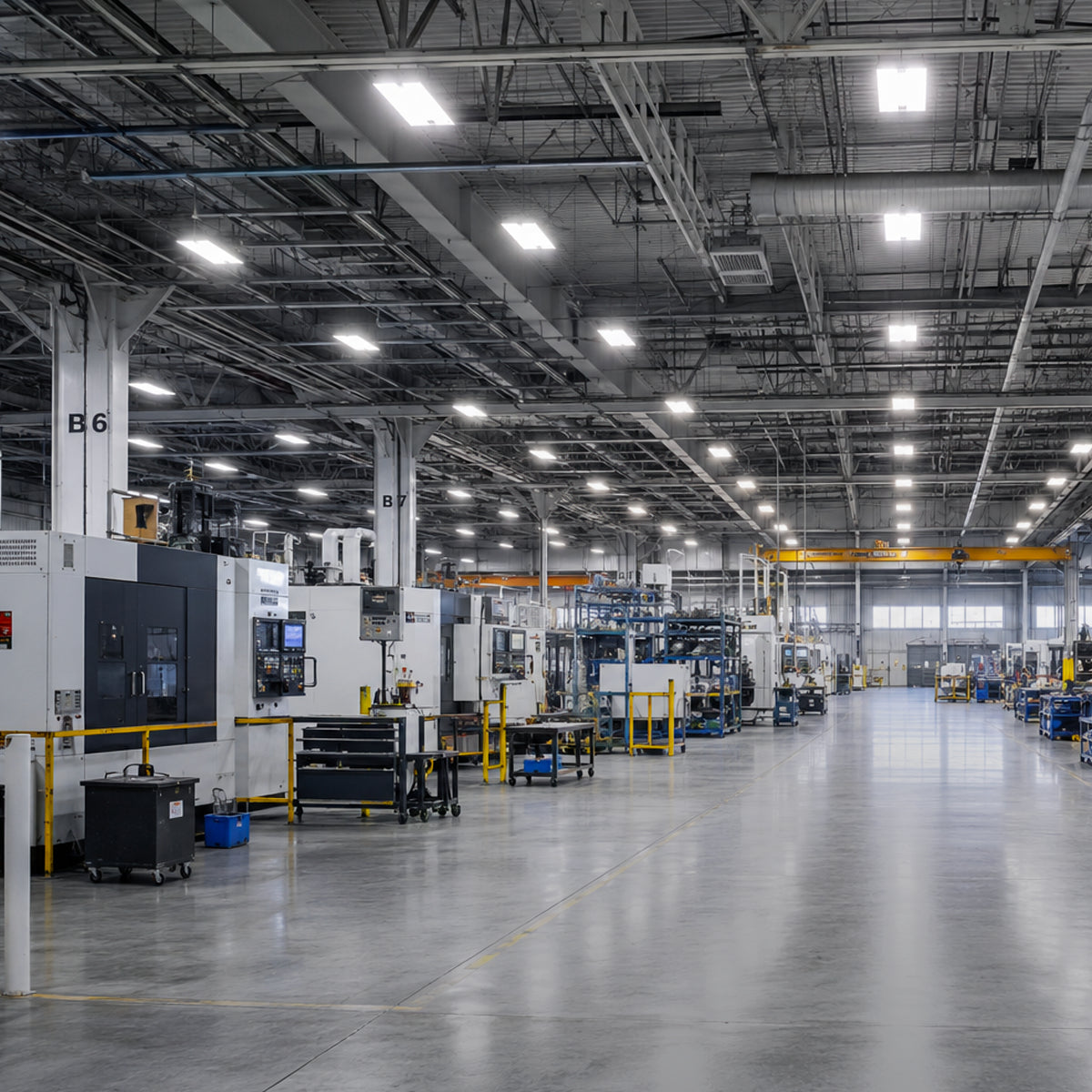

4. Manufacturing, Assembly & Vehicle Service Bays: Bright, even light across open production floors and service areas where 5000K CCT setting supports both productivity and safety.
5. Zones with Intermittent Activity: Add the optional PIR daylight harvesting sensor to automatically dim in low-traffic periods or when ambient daylight contributes enough light on its own.

Ceilings Above 30 ft? For higher-ceiling spaces, step up to the 270W version of this fixture at a max 40,500 lumens.

What Separates This Commercial Fixture from a Cheap One

A $45–55 high bay purchased from a mega-marketplace site may look the same in the listing photo, but here's where we stand above the competition, delivering lower actual project costs and a better product that won't become a headache six months after purchase.

A small step up in build quality can make a meaningful difference in long-term cost and ease of management — and with our instant volume discounts and rebate support, we're often cheaper on the front-end anyways.

ELEDLights Stands Behind It

• DLC 5.1 listed — qualifies for most utility rebate programs
• US-based support Monday–Friday, 8am–8pm EST — call, text, or email a real person
• In stock, ships fast straight from our U.S. warehouses
