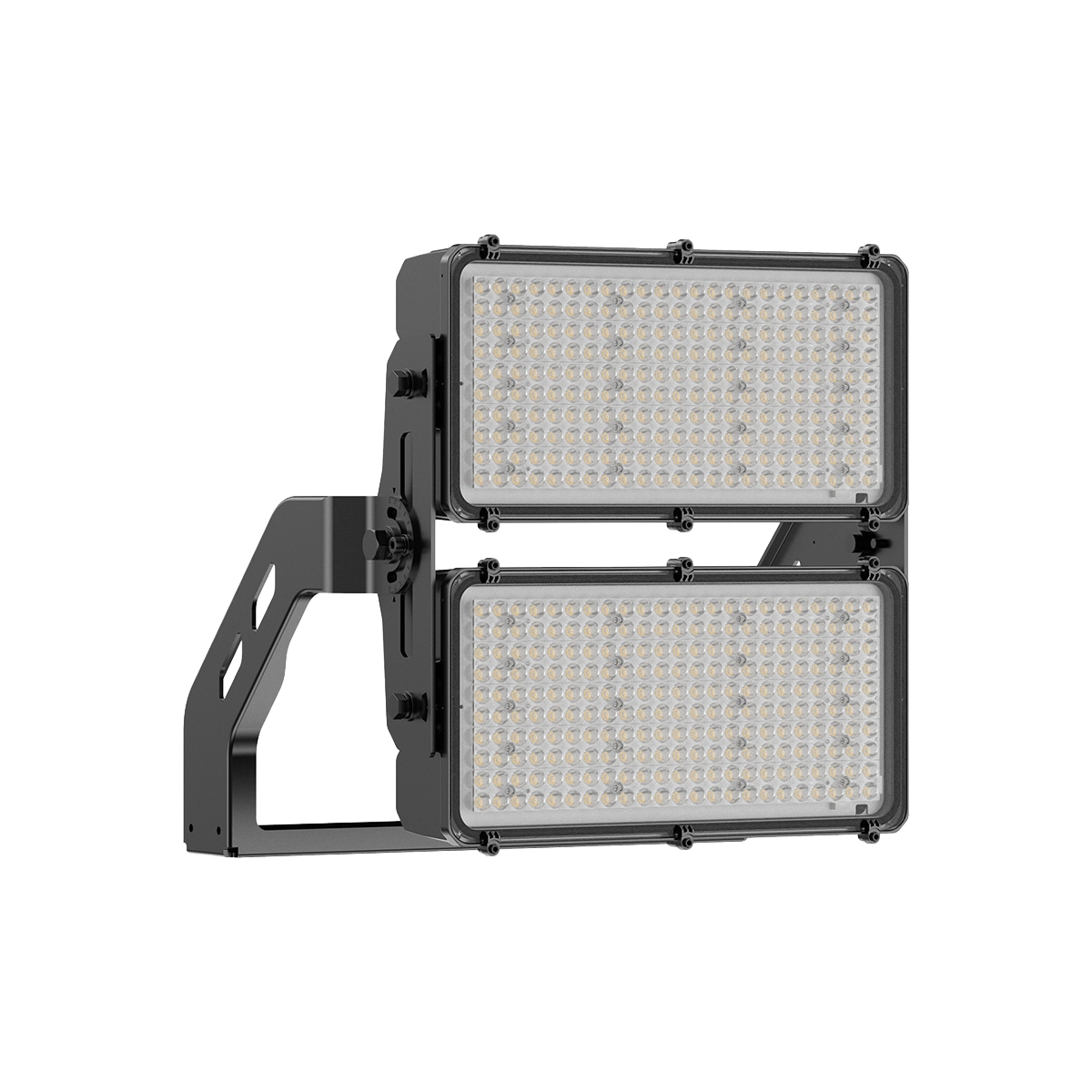

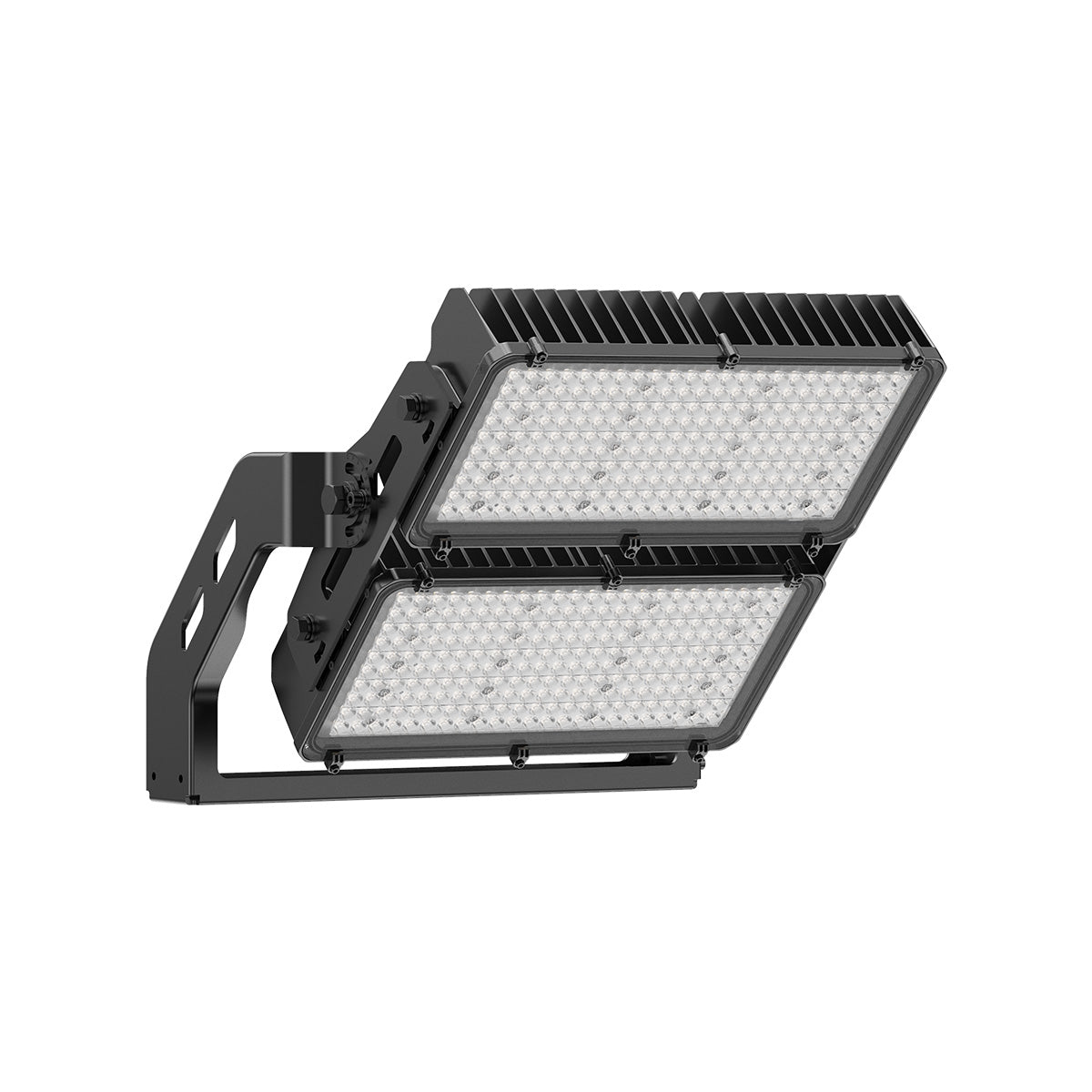

960W LED High Mast Stadium Light - 277-480V




















960W LED High Mast Stadium Light - 277-480V




















960W LED High Mast Stadium Light - 277-480V
960W LED High Mast Stadium Light - 277-480V
Brilliantly light large open outdoor spaces.
- 144,000 lumens with 60° beam
- Flexible mounting of driver for easier maintenance
- Protected against weather & impacts
Need More? Text/call (858) 650-9400
Brilliantly light large open outdoor spaces.
- 144,000 lumens with 60° beam
- Flexible mounting of driver for easier maintenance
- Protected against weather & impacts
Choose options
Details
Our state-of-the-art high mast LED light delivers powerful and uniform illumination for large open spaces. Engineered with energy efficiency and longevity in mind, this high mast lighting solution is perfect for highways, ports, airports, industrial zones, stadiums, and more. The advanced LED technology ensures minimal glare and shadows, promoting safety, visibility, and smooth operations in areas that require extensive coverage.
Features

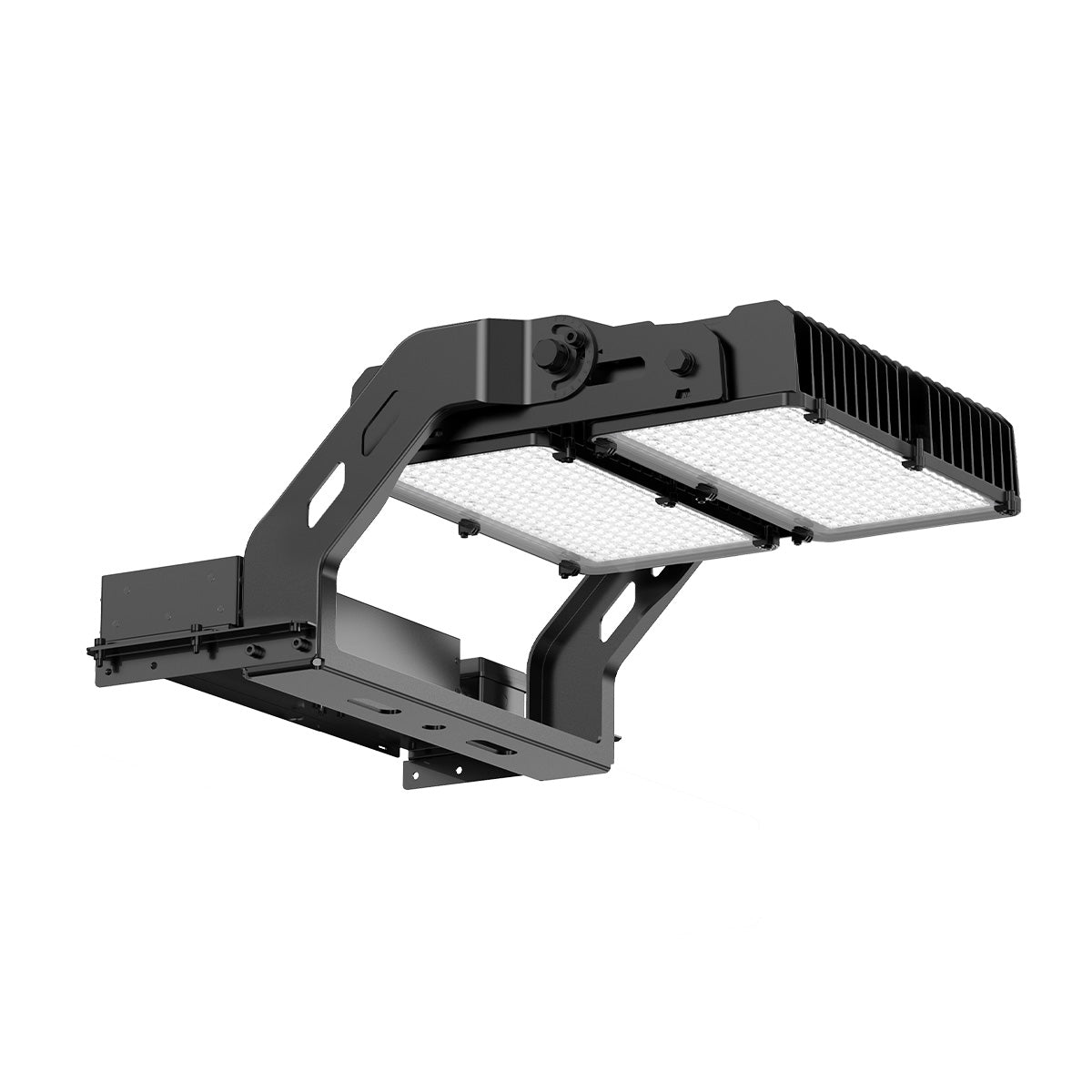

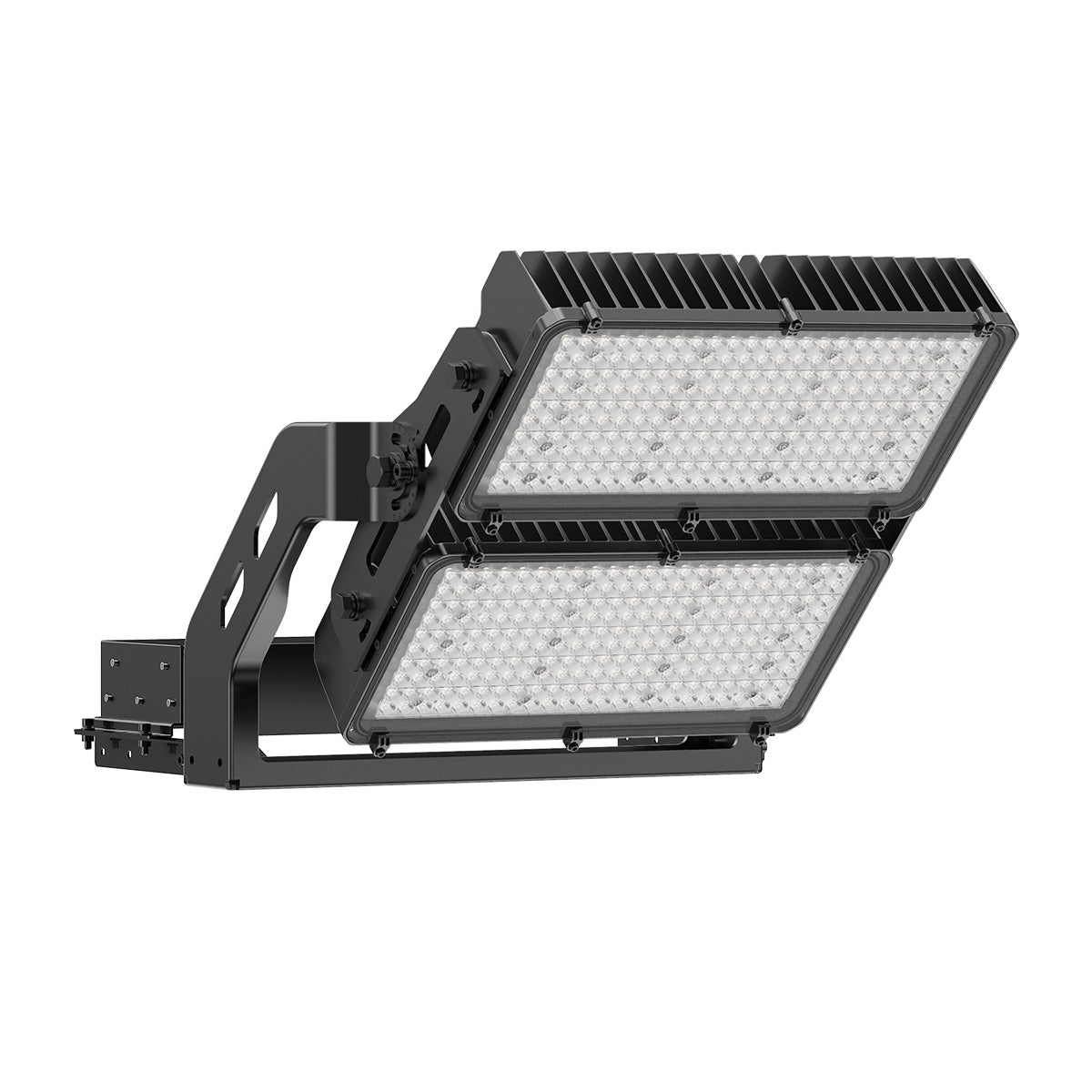

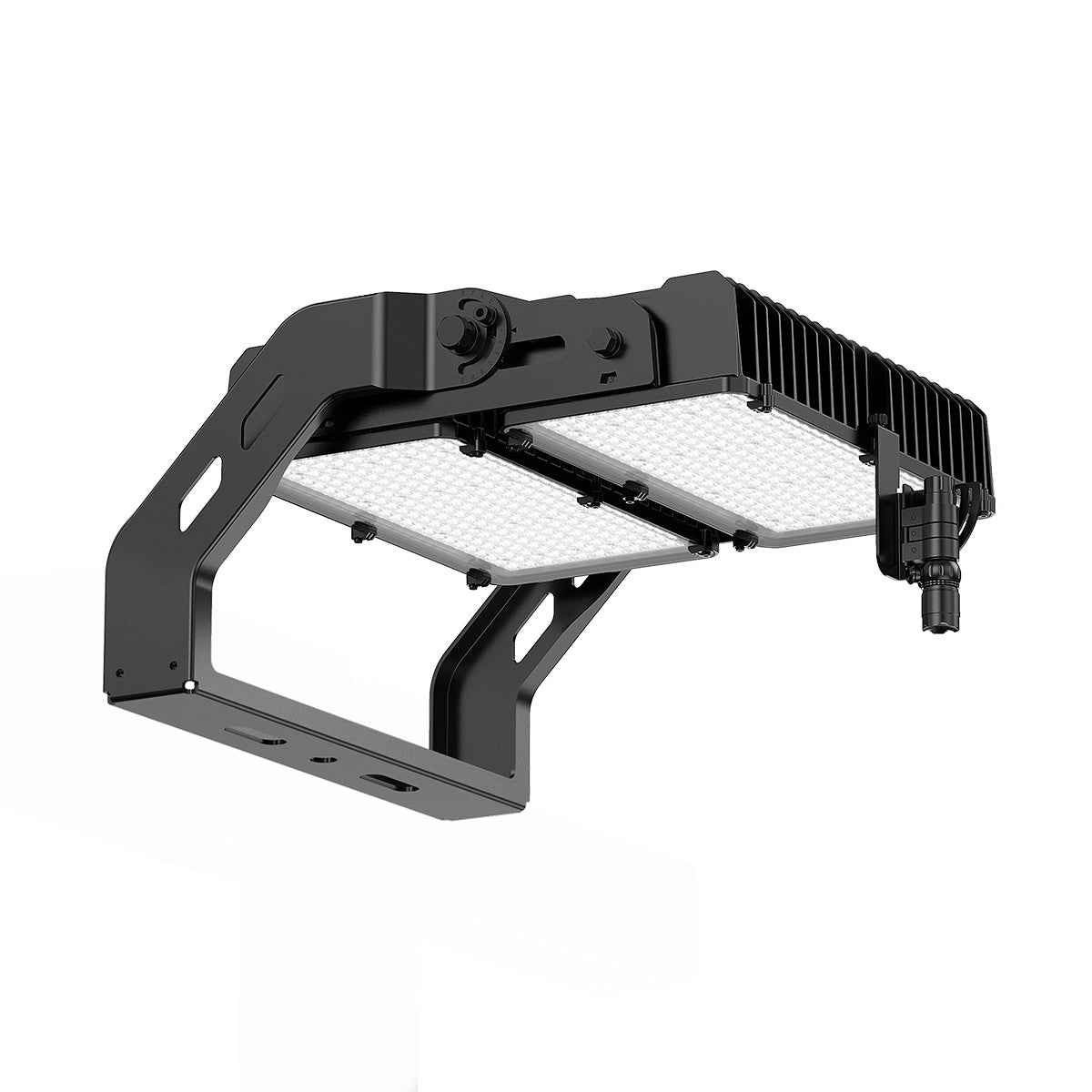

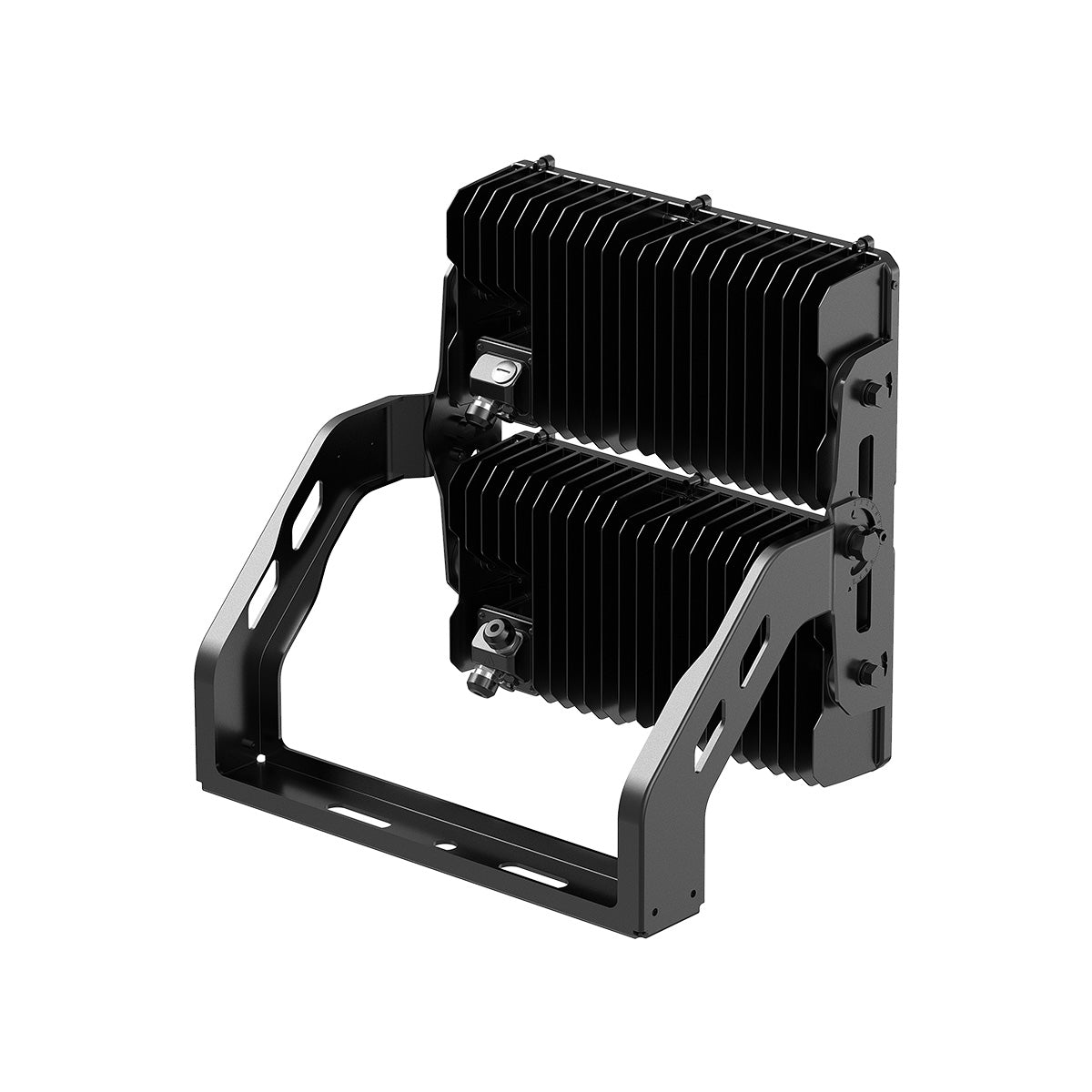

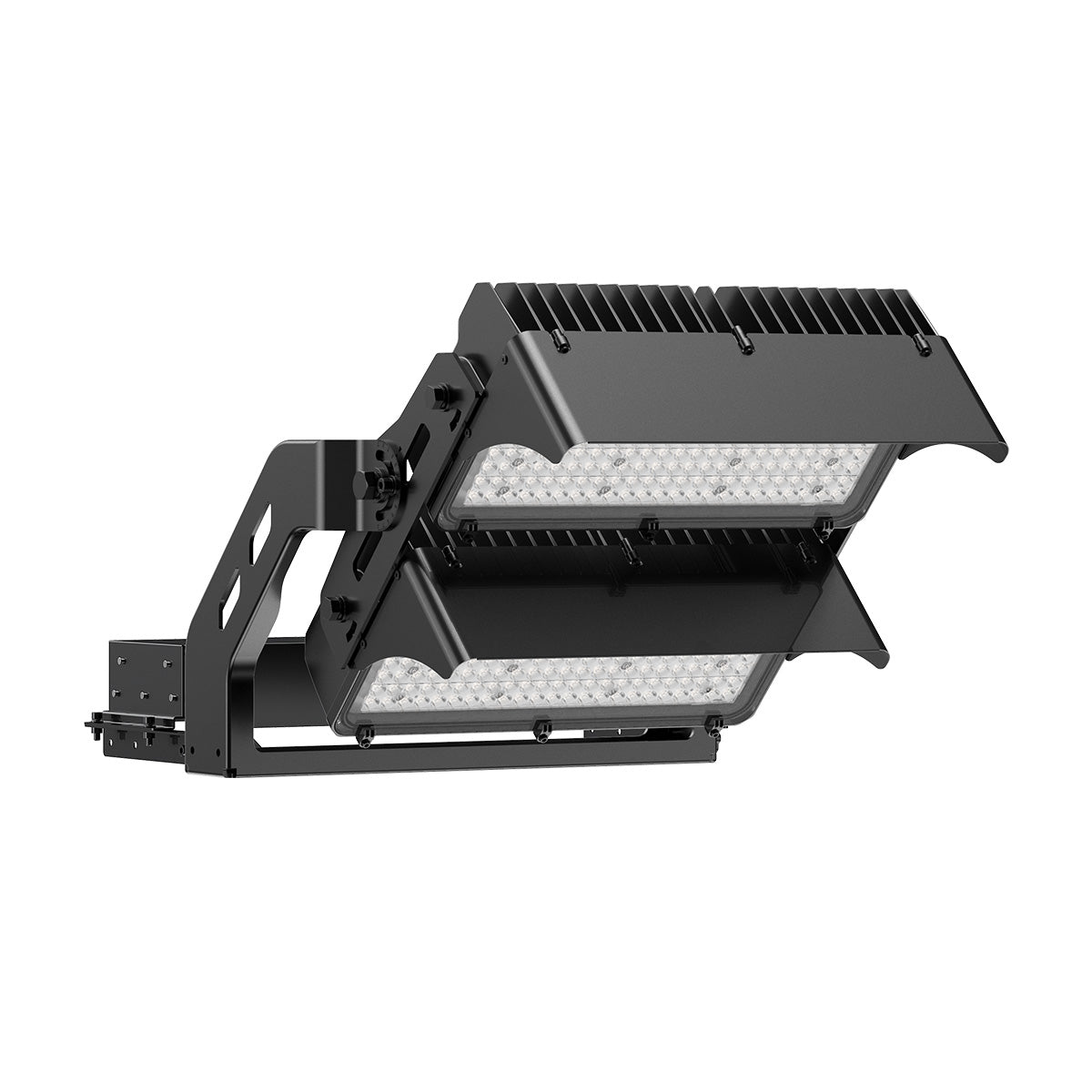

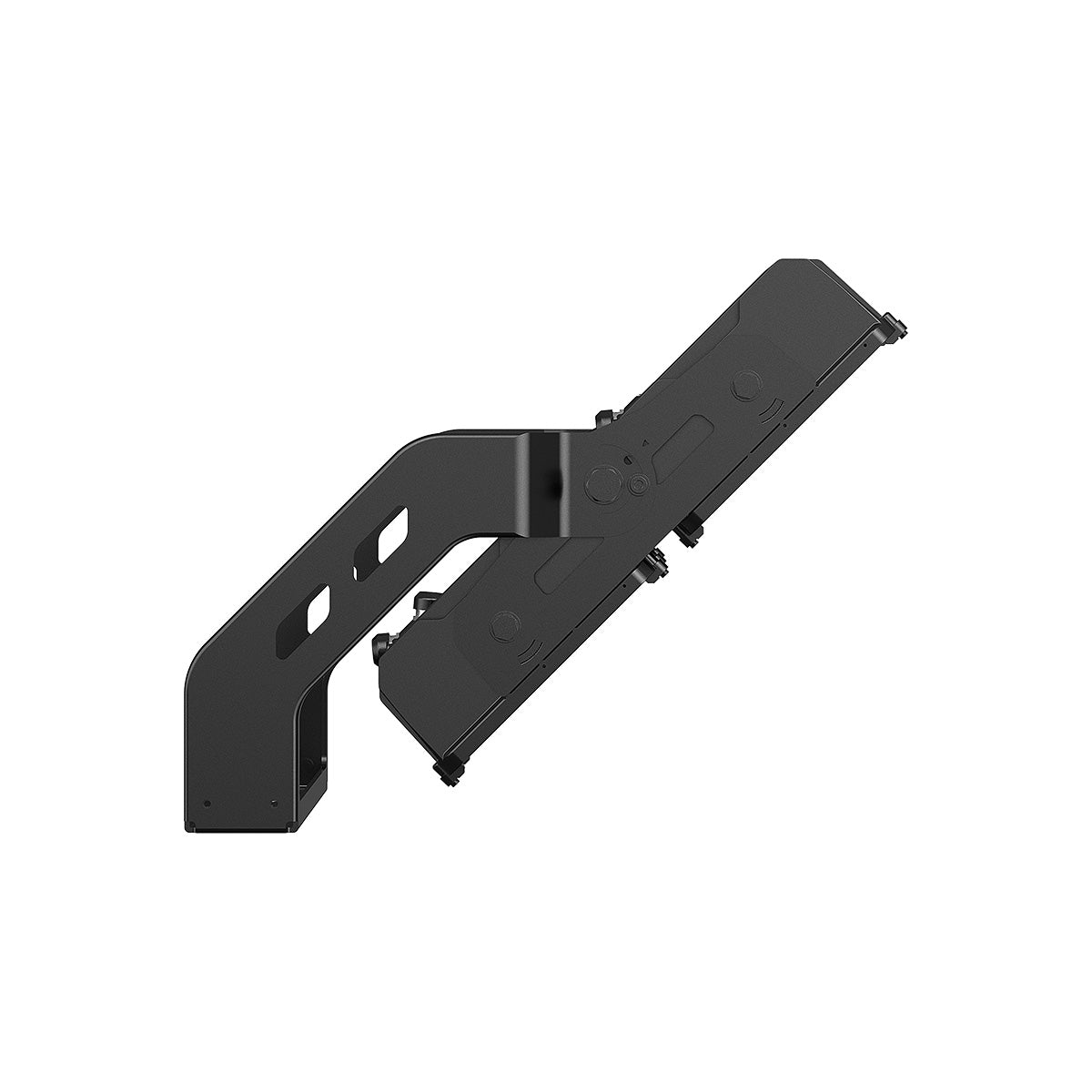

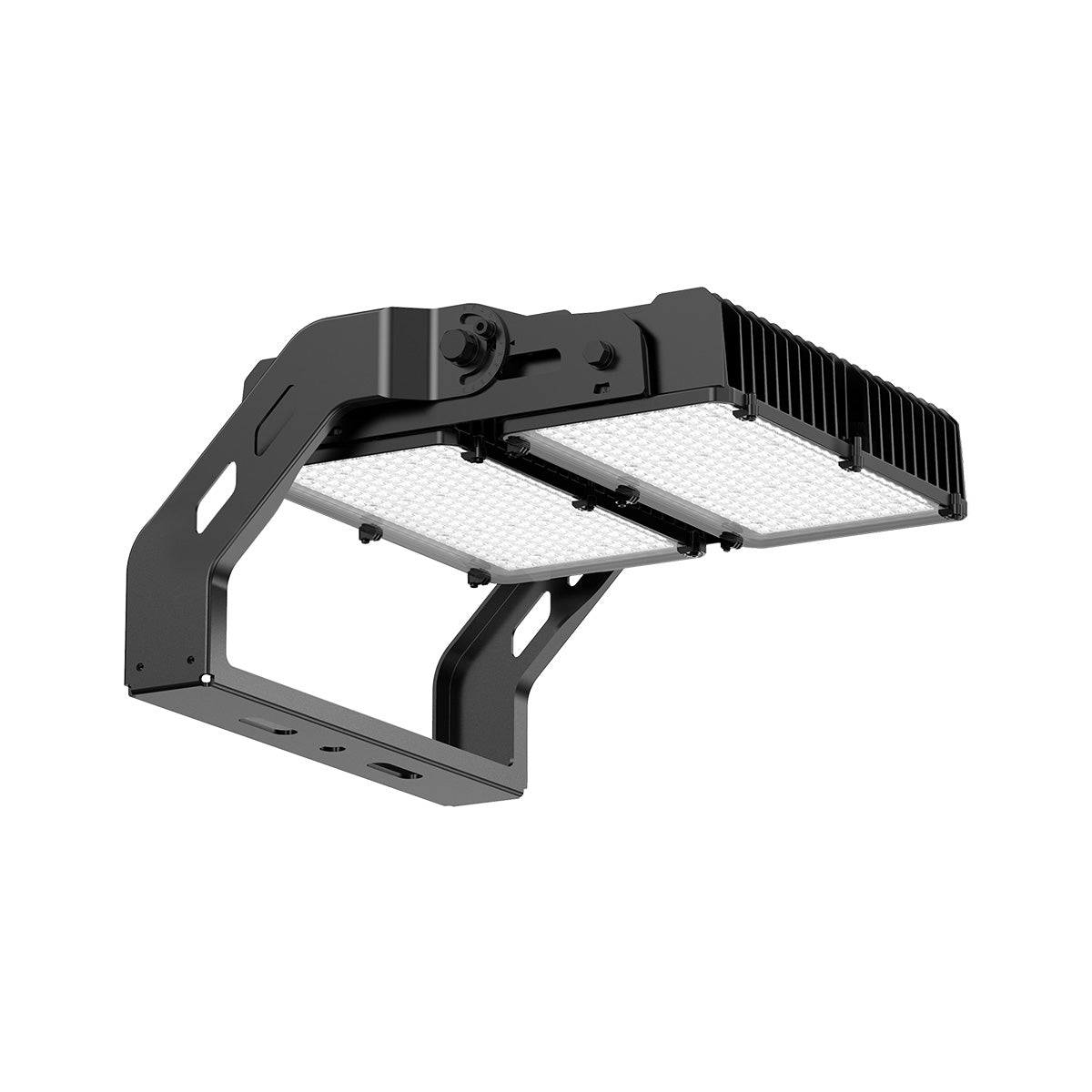

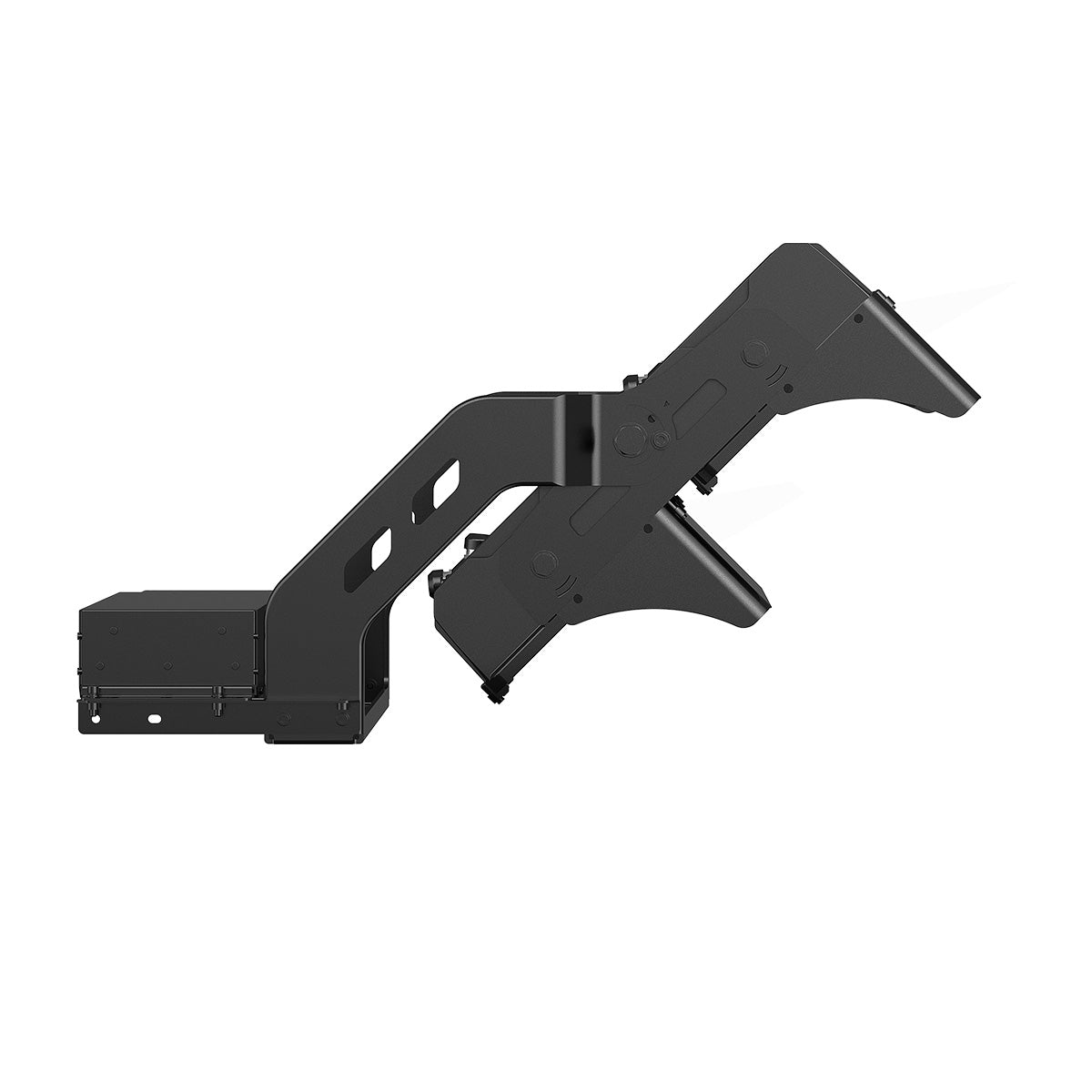

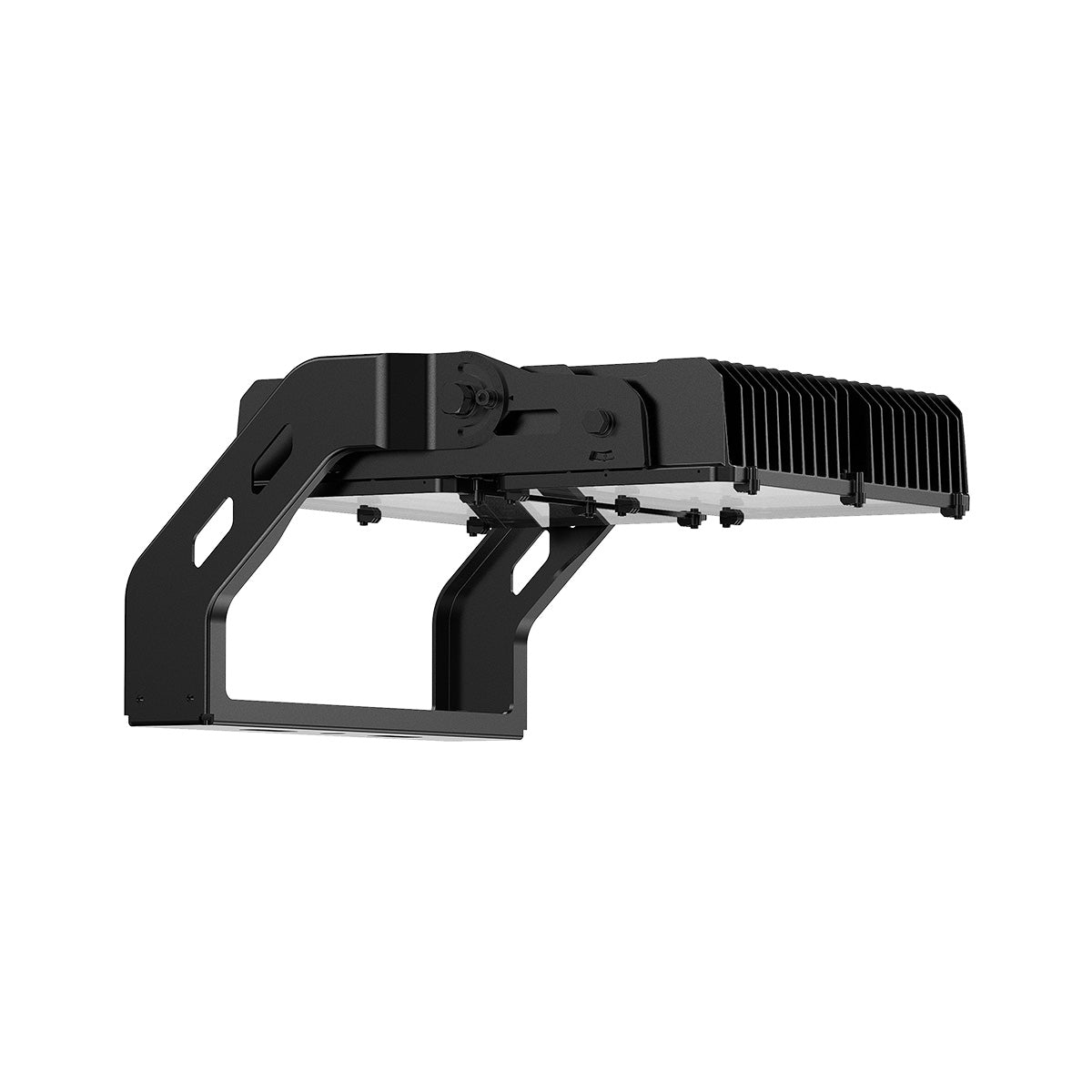

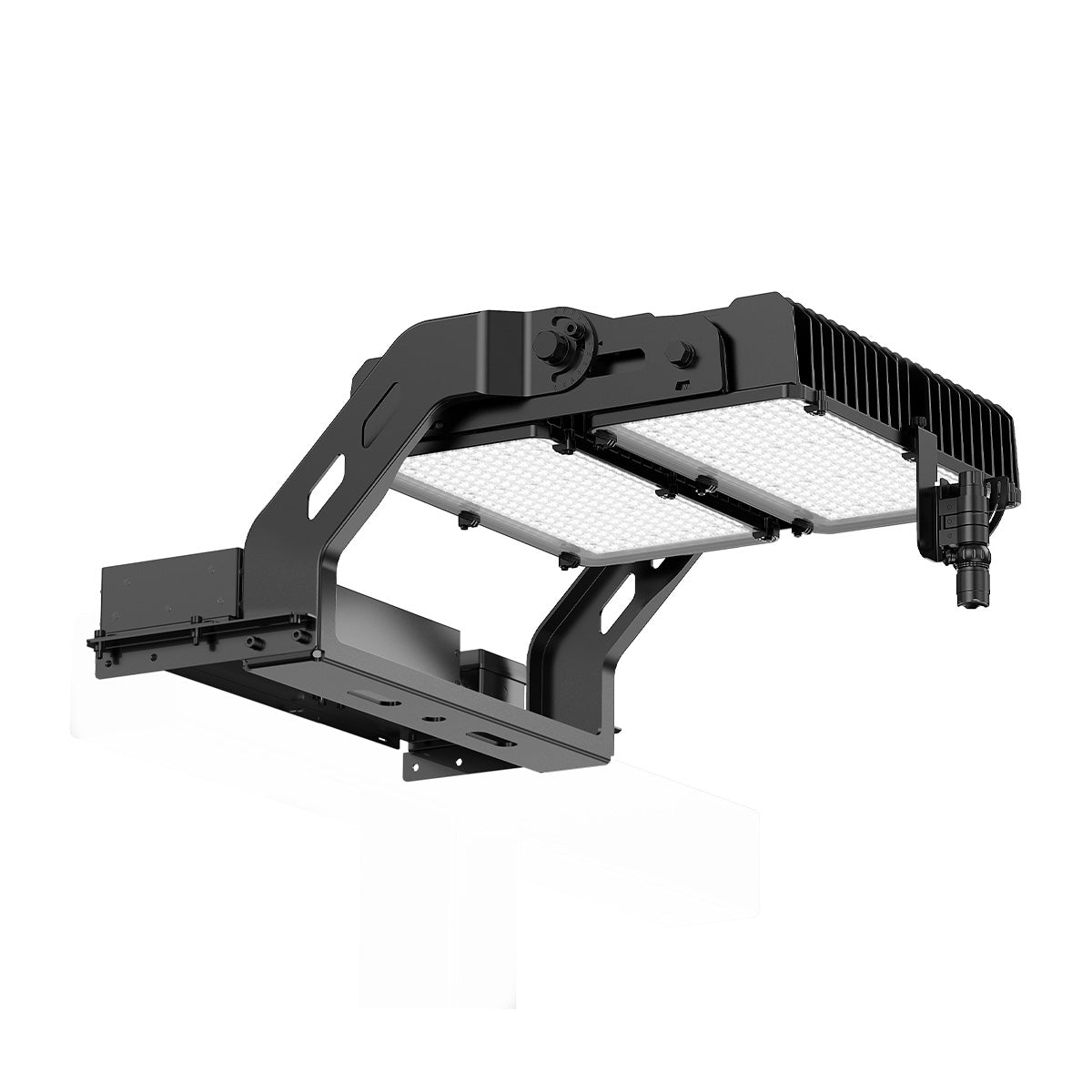

- Get the Right Angle on the Situation: The light's trunnion bracket is 180° angle adjustable, while each module can be adjusted ±30° within the bracket.

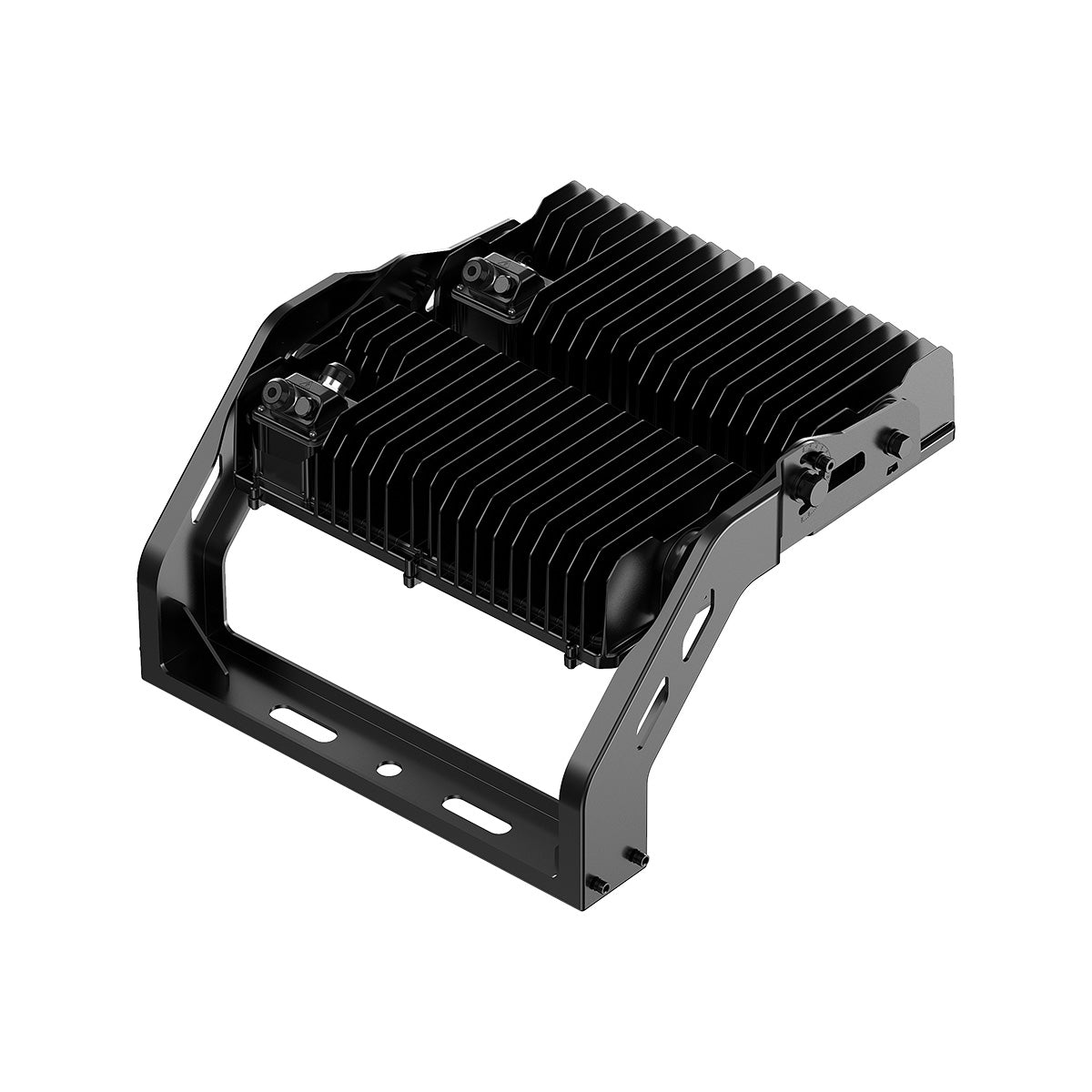

- In for the Long Haul: The IP66 and IK08 rated housing is made of low-copper die-cast aluminum with special anti-corrosion surface treatment. The brackets are made of anti-corrosion materials, the screws are stainless steel, and the fin's gap design minimizes wind resistance, which is important for a fixture that will be installed as high in the air as stadium lights. Additionally, 10Kv line-line & 20Kv line-earth surge protection is included.

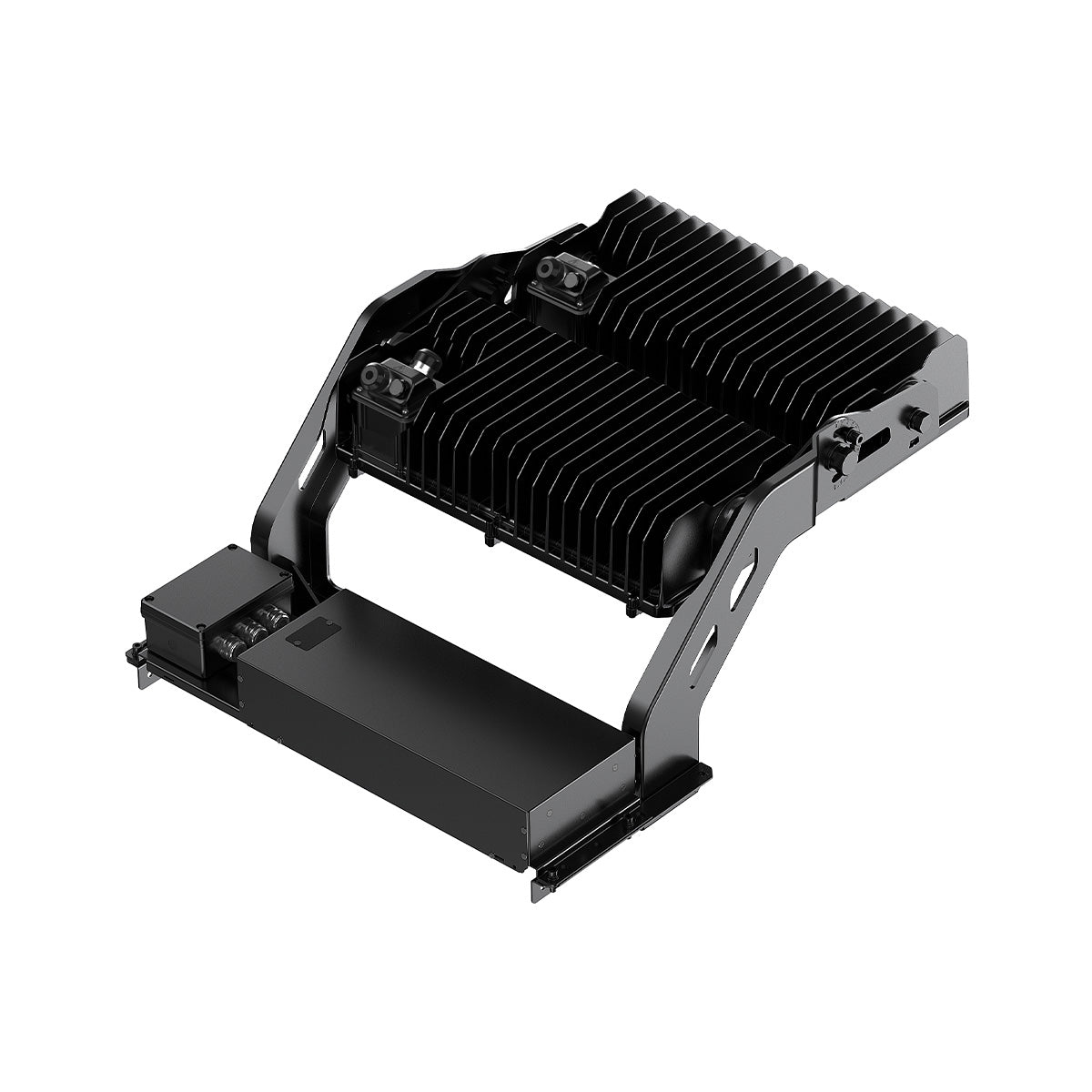

- Flexible Installation: The light's driver can be mounted on the fixture bracket, at the bottom of the pole, or in an electric cabinet up to 650 feet away.

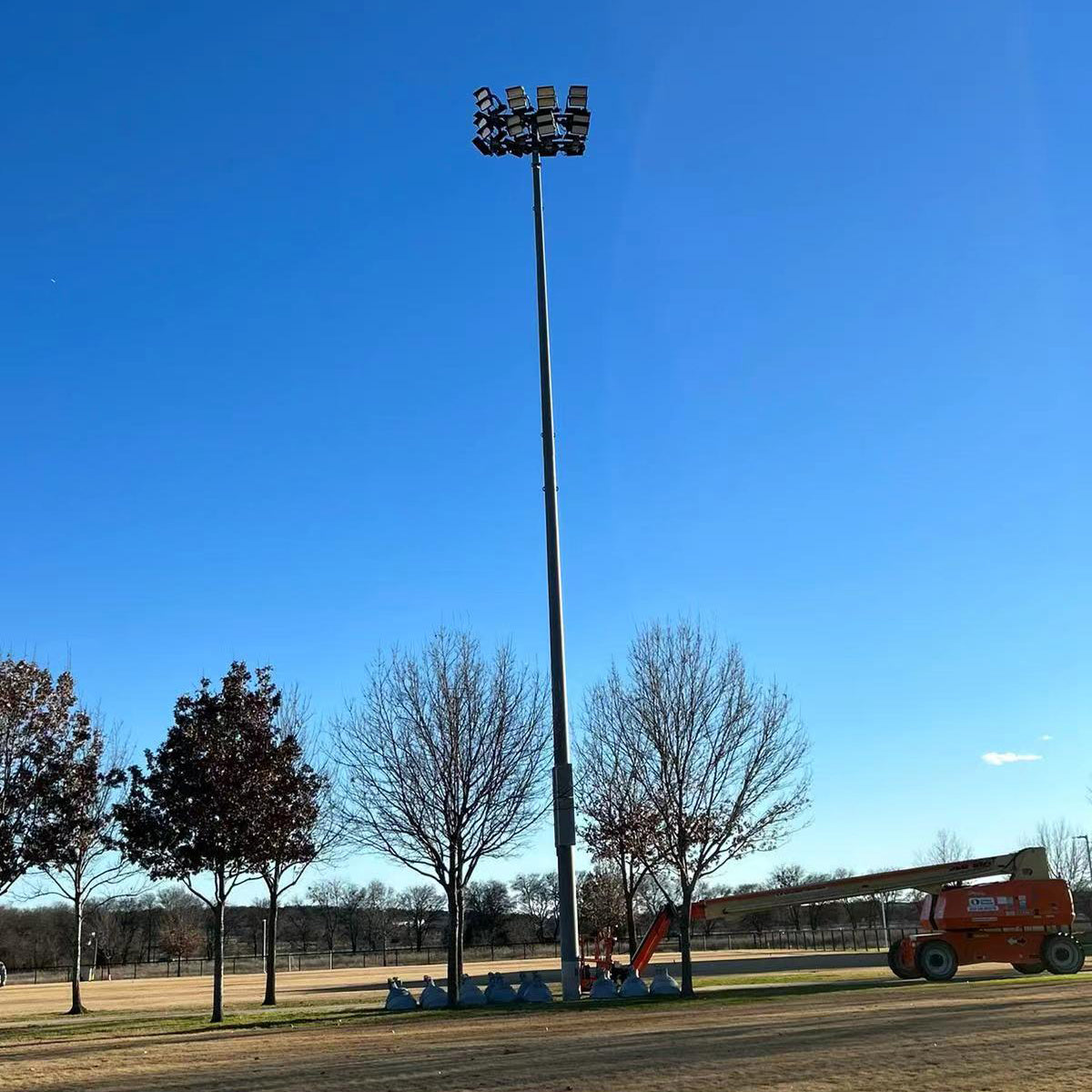

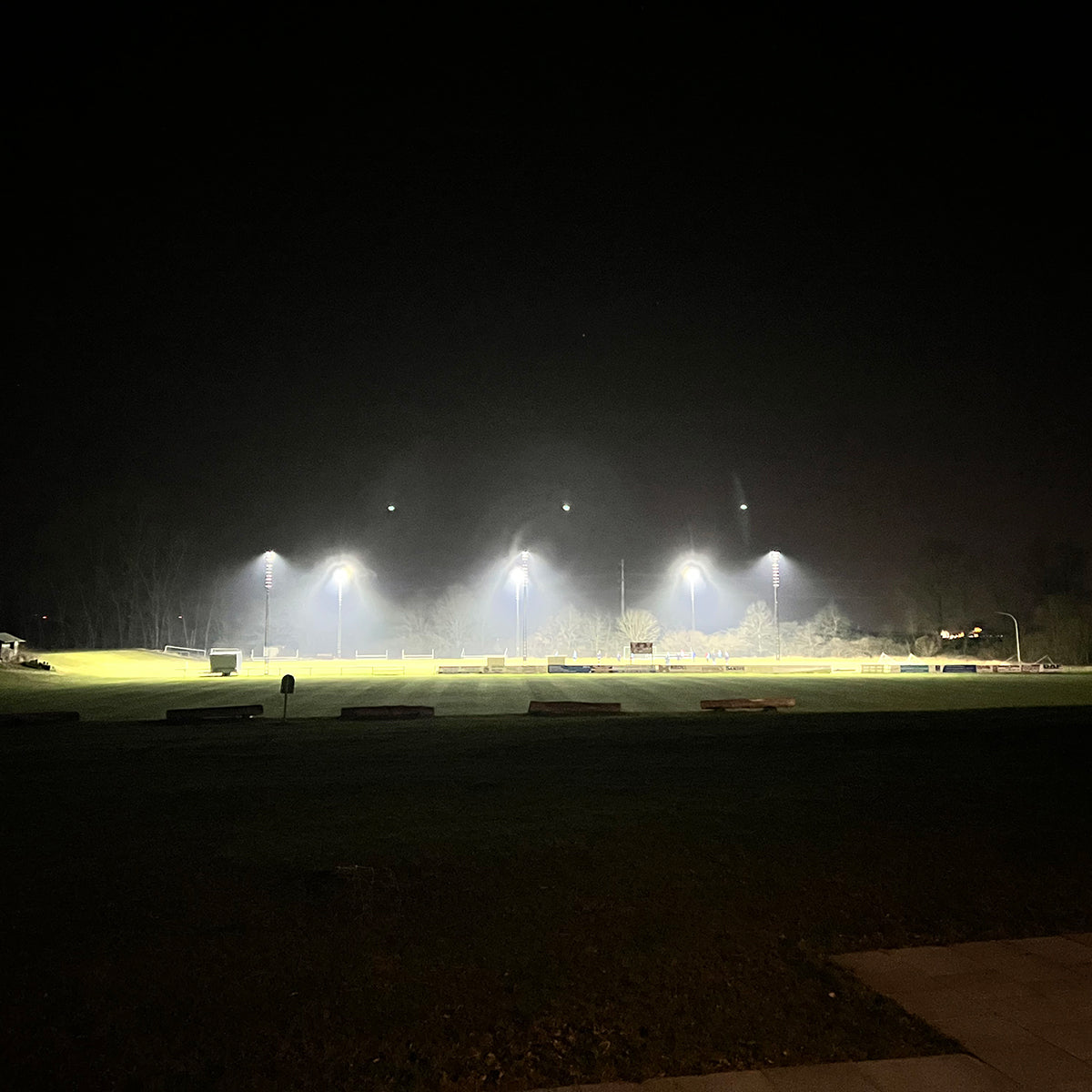

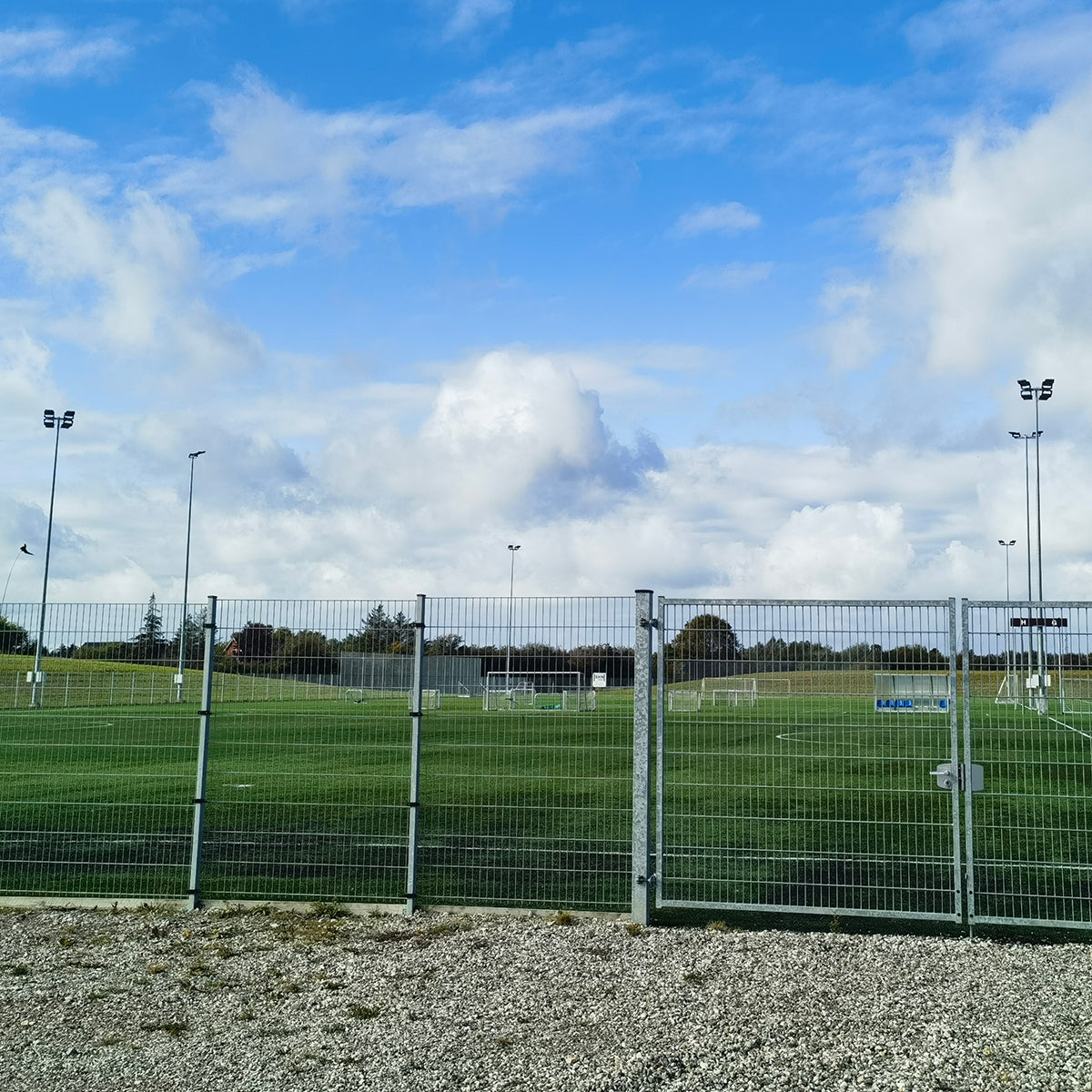

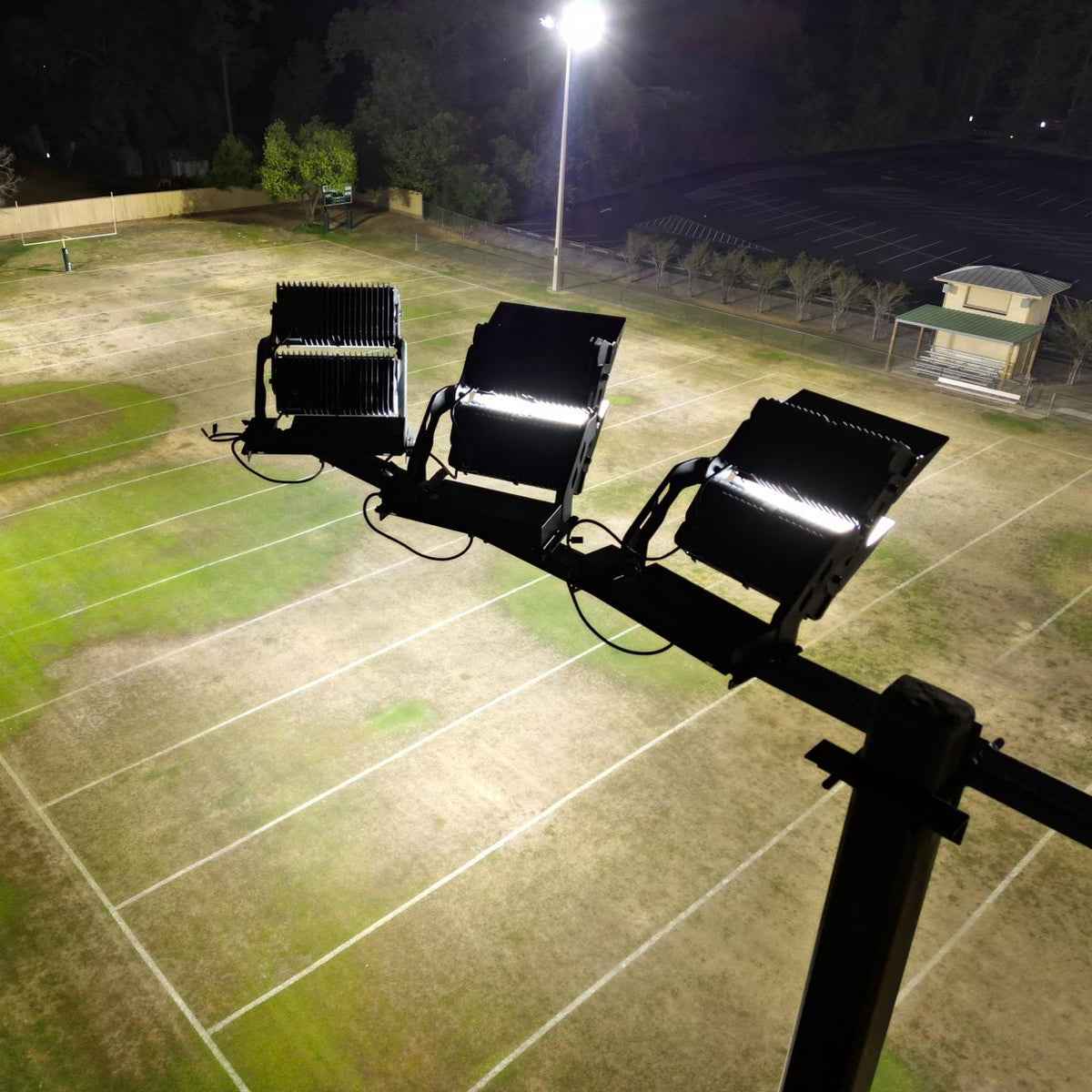

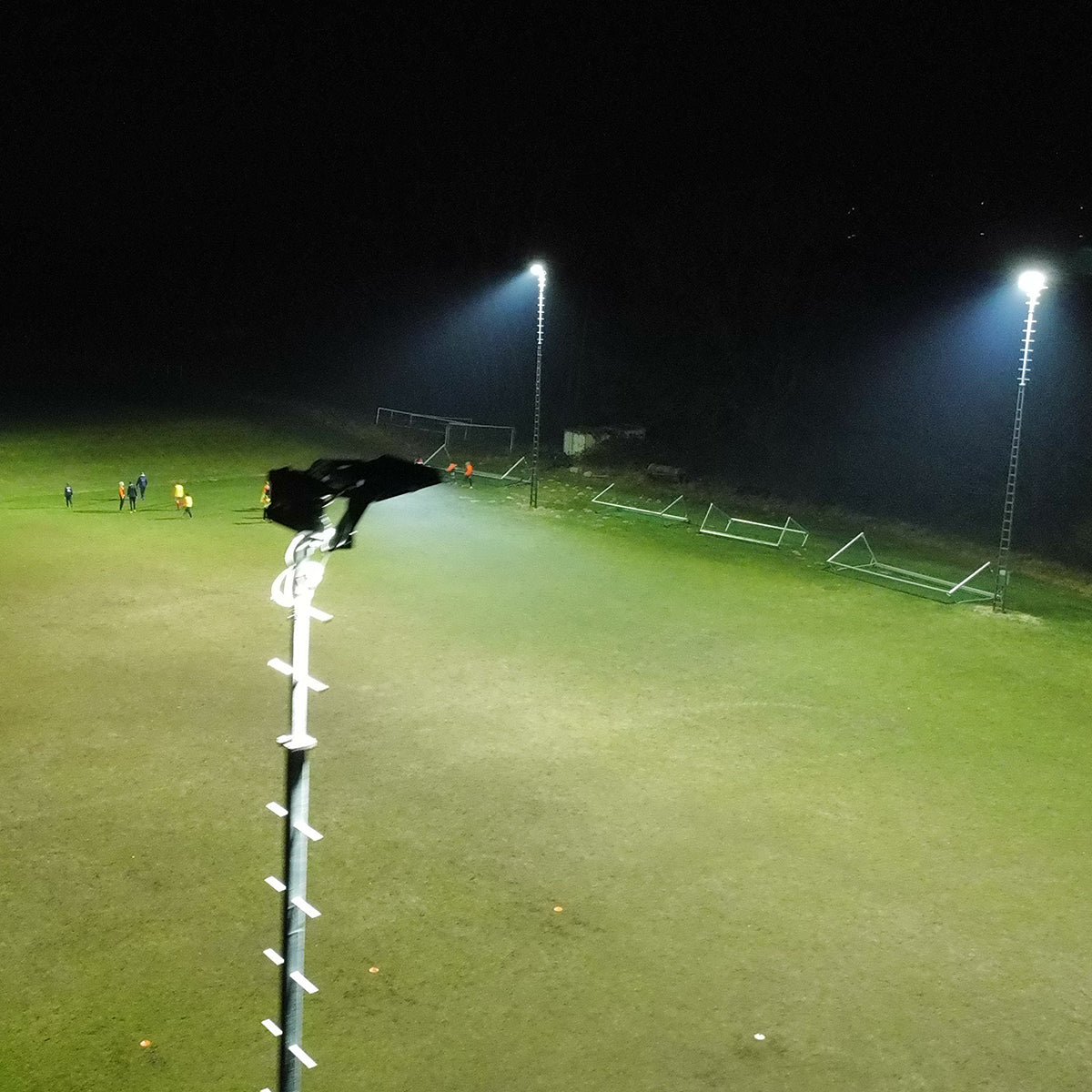

- Applications: High mast lighting & light towers used in stadiums, sports complexes, shipyards, railway yards, airports, container terminals, industrial zones and factories, racetracks, highways, interchanges, and large parking lots.
With a long lifespan, low maintenance requirements, and significant energy savings, our high mast LED light is an investment in both sustainability and top-notch performance. Experience the benefits of this cutting-edge lighting solution and transform the way you illuminate your large-scale projects—order high mast lights for your project today.
Specs
| Wattage(s) | 960W |
| Replaces Wattage(s) | 2500W |
| Light Output | 144,000 lm |
| Luminous Efficacy (lm/W) | 150 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 5700K |
| CRI (Color Accuracy) | >70 |
| Dimming | Yes |
| Beam Angle | 60° |
| Working Environment | Outdoor |
| Enclosure Rating | IP66, IK08 |
| Input Voltage | 120-277VAC or 277-480VAC |
| Temperature Rating | -22°F to 104°F |
| Housing Material | Low-copper die cast aluminum with polycarbonate lens |
| Housing Color | Black |
| Dimensions | Light module: 17.40" W x 16.69" H x 4.29" D / With bracket: 20.08" W x 20.75" H x 11.38" D |
| Warranty | Warehouse clearance 1 year warranty with USA warranty support direct from ELEDLights |
