LED High Mast Flood Light - 1200/960/800W
Premium Ultra-Bright LED Flood Light with Remote Driver & Forward-Throw Optics, 80 to 120 ft
Regular price
Lumens:
116,360-174,540
Watts:
800W-1200W
Color Temp:
5700K
Asymmetrical forward-throw optics for maximal lighting uniformity and limited backward spill. Projects light on a field while keeping it out of the stands. Remote driver for easier, safer maintenance on fixtures up to 120ft high. Withstands wet locations (IP66) and impacts by small birds (IK08). Extended 326,000hr lamp life.
5 Year Warranty
Powerful, Uniform Illumination for Large Open Spaces
Wherever high power lighting is needed, the HS01 high mast LED lights brightly illuminate while saving as much as 60% less compared to HID.
- Light Where You Need It: Asymmetrical forward-throw optics keeps light on the field, not in the stands.
-

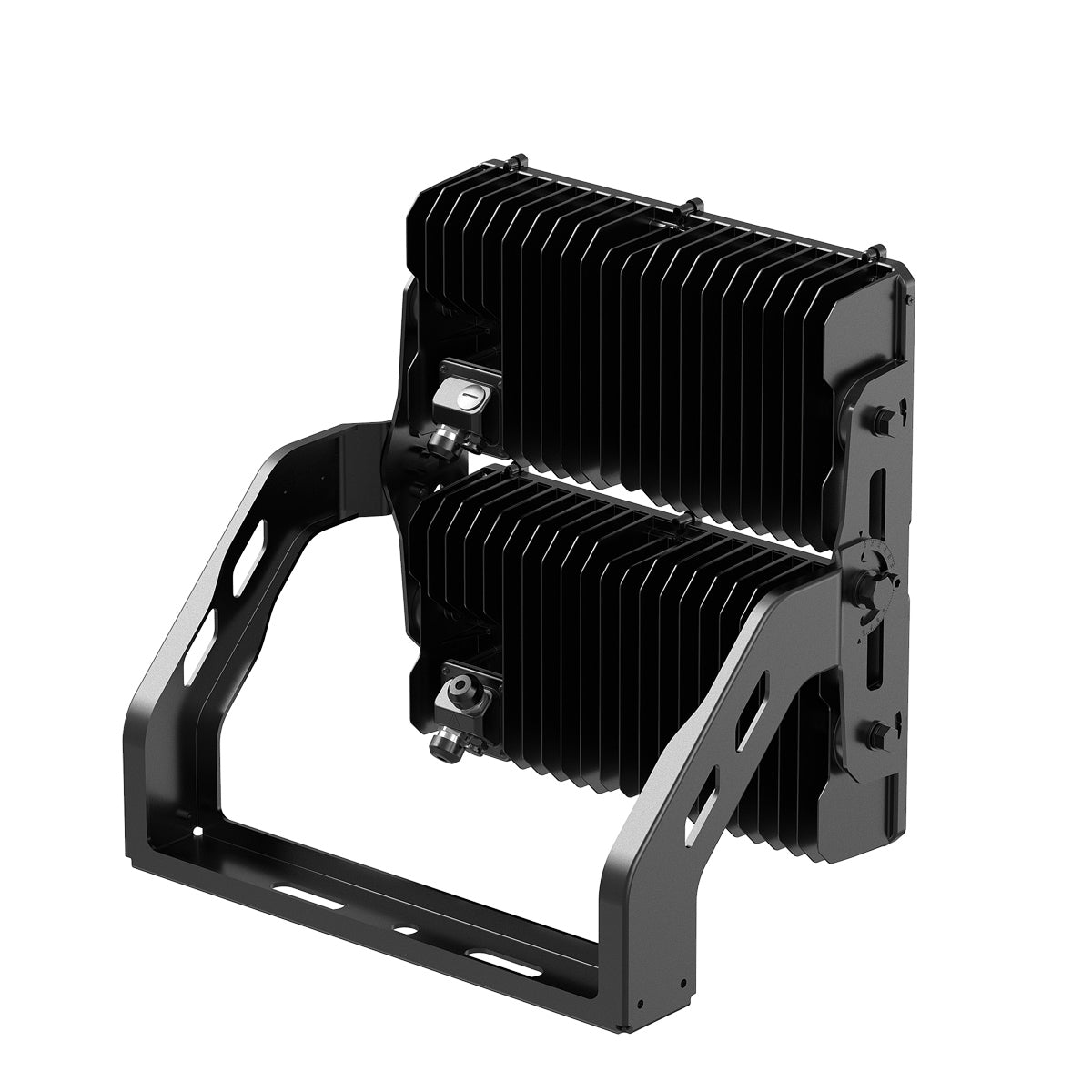

Built to Endure: From minimized wind resistance to anti-corrosion materials and IP66/IK08 ratings, the HS01 is designed to last
- Flexible Setup: Modules are angle adjustable by ±90°, and the external driver can be installed on the bracket or up to 200 meters away from the light.
Perfect for highways, ports, airports, industrial zones, stadiums, and more, the HS01 high mast light is an investment in both sustainability and top-notch performance.
Saves $/year in energy costs*
Regular price
Order Within
Ships free!
Buying 12 or more?
Get a better price & free shipping:
Text: (858) 650-9400
Call: (215) 355-7200
or Request Bulk Quote
Powerful, Uniform Illumination for Large Open Spaces
Wherever high power lighting is needed, the HS01 high mast LED lights brightly illuminate while saving as much as 60% less compared to HID.
- Light Where You Need It: Asymmetrical forward-throw optics keeps light on the field, not in the stands.
-
Built to Endure: From minimized wind resistance to anti-corrosion materials and IP66/IK08 ratings, the HS01 is designed to last
- Flexible Setup: Modules are angle adjustable by ±90°, and the external driver can be installed on the bracket or up to 200 meters away from the light.
Perfect for highways, ports, airports, industrial zones, stadiums, and more, the HS01 high mast light is an investment in both sustainability and top-notch performance.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Regular price
Lumens:
116,360-174,540
Watts:
800W-1200W
Color Temp:
5700K
Asymmetrical forward-throw optics for maximal lighting uniformity and limited backward spill. Projects light on a field while keeping it out of the stands. Remote driver for easier, safer maintenance on fixtures up to 120ft high. Withstands wet locations (IP66) and impacts by small birds (IK08). Extended 326,000hr lamp life.
5 Year Warranty
Regular price
Order Within
Ships free!
Buying 12 or more?
Get a better price & free shipping:
Text: (858) 650-9400
Call: (215) 355-7200
or Request Bulk Quote
Regular price
Lumens:
116,360-174,540
Watts:
800W-1200W
Color Temp:
5700K
Asymmetrical forward-throw optics for maximal lighting uniformity and limited backward spill. Projects light on a field while keeping it out of the stands. Remote driver for easier, safer maintenance on fixtures up to 120ft high. Withstands wet locations (IP66) and impacts by small birds (IK08). Extended 326,000hr lamp life.
5 Year Warranty
Regular price
Order Within
Ships free!
Buying 12 or more?
Get a better price & free shipping:
Text: (858) 650-9400
Call: (215) 355-7200
or Request Bulk Quote
SPECIFICATIONS
| Wattage(s) | 800W/960W/1200W |
| Light Output |
800W: 116,360 lumens 960W: 139,632 lumens 1200W: 174,540 lumens |
| Luminous Efficacy (lm/W) | 145 lm/W |
| Average Lamp Life |
L90: 82,000 hours L80: 197,000 hours L70: 326,000 hours |
| Color Temperature(s) | 5700K |
| CRI (Color Accuracy) | 70 |
| Dimming | 0-10V Dimming |
| Light Distribution Pattern | Type IV |
| Installation | Bracket mount |
| EPA (Effective Projected Area) | 0.24 m2/2.68 ft2 Max |
| Working Environment | Outdoors |
| Enclosure Rating | IP66, IK08 |
| LED Type | LED 3737 |
| Input Voltage | 277-480VAC, 50/60Hz |
| Driver Type | Constant Current (CC) |
| Power Supply | Done/uPowerTek |
| Power Factor | >0.97 |
| Surge Protection | 10kV line-line, 20kV line-earth |
| Temperature Rating | -22°F to 122°F |
| Housing Material | Aluminum alloy, glass, polycarbonate optical lens |
| Housing Color | Black |
| Certification | DLC, ETL |
| Warranty | 5 Years |
Key Features
Flexible Installation
Big Energy Saver
Intense Light Output
Powerful, Uniform Illumination for Large Open Spaces
Wherever high power lighting is needed, the HS01 high mast LED lights brightly illuminate while saving as much as 60% less compared to HID.
Advanced LED technology ensures minimal glare and shadows, promoting safety, visibility, and smooth operations in areas that require extensive coverage.
A Well Thought-Out Lighting Solution
- Light Where You Need It: Asymmetrical forward-throw optics keeps light on the field, not in the stands.
-
Built to Endure: From minimized wind resistance to anti-corrosion materials and IP66/IK08 ratings, the HS01 is designed to last
- Flexible Setup: Modules are angle adjustable by ±90°, and the external driver can be installed on the bracket or up to 200 meters away from the light.
Perfect for highways, ports, airports, industrial zones, stadiums, and more, the HS01 high mast light is an investment in both sustainability and top-notch performance.
Light Output
This light is wattage-selectable. Click a wattage to see the light output for that setting.
58,180
lumens
116,360
lumens
58,180, 69,816, 87,270, 116,360, 139,632, 174,540
