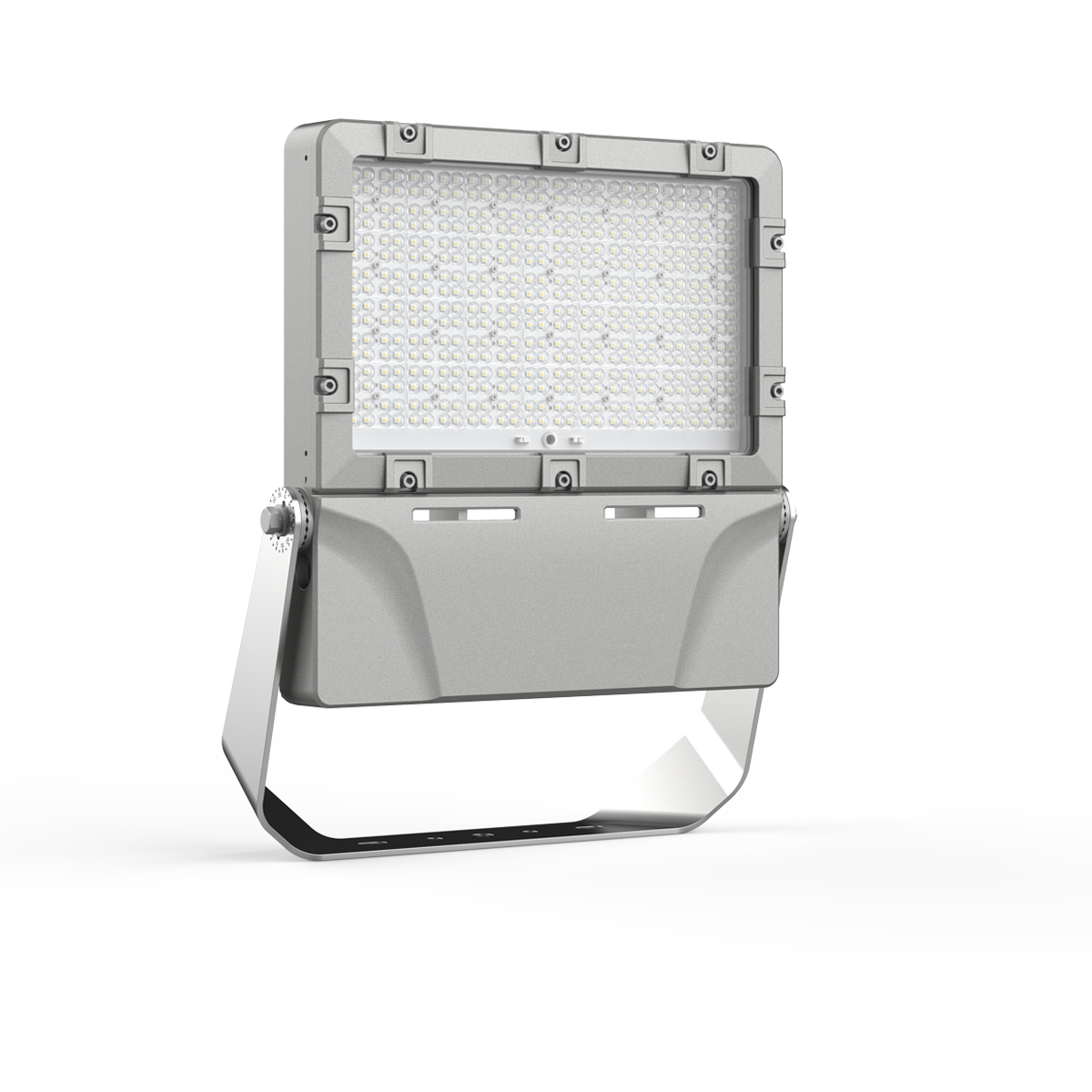

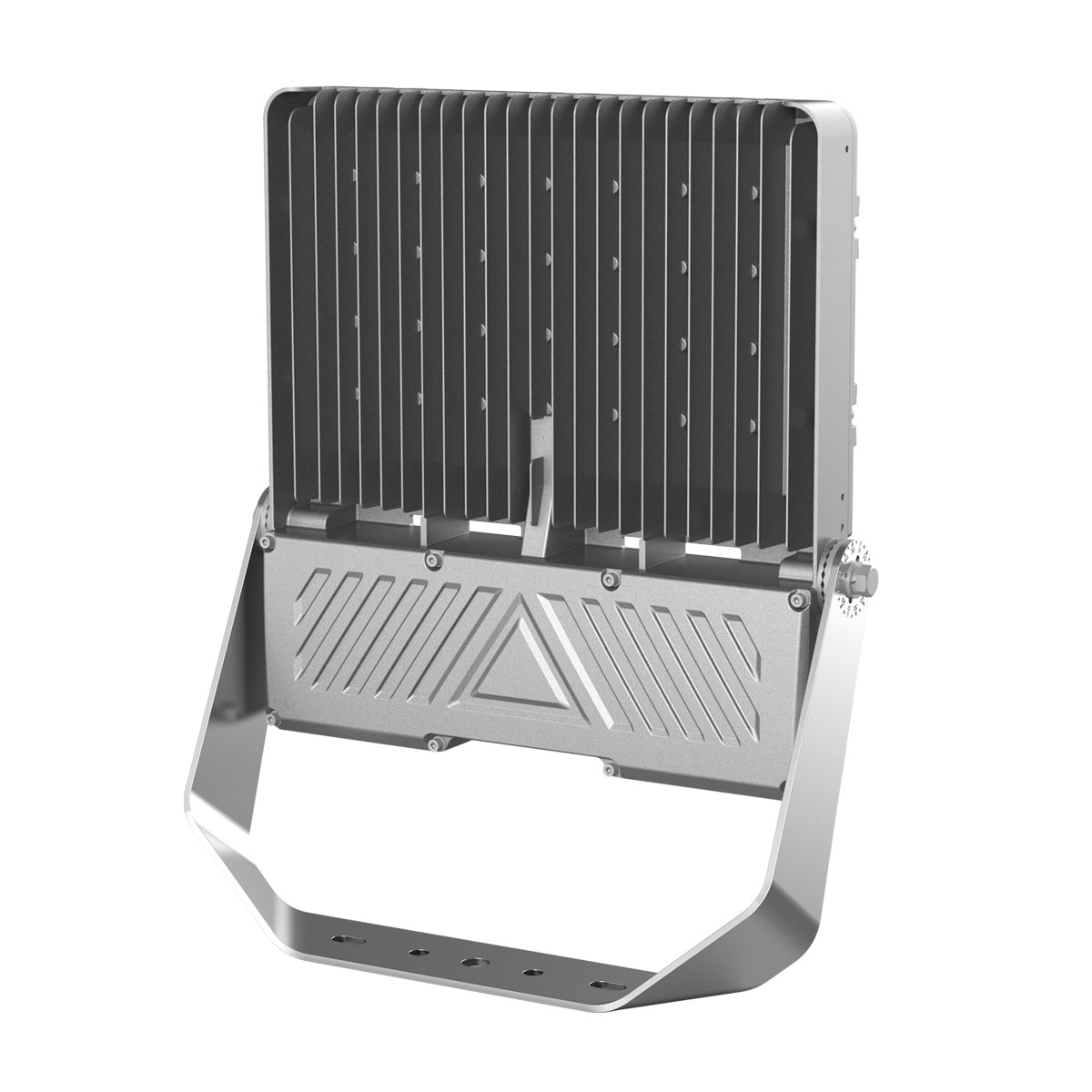

150W Hazardous Location & Marine Grade Flood Light
150W Hazardous Location & Marine Grade Flood Light
150W Hazardous Location & Marine Grade Flood Light
150W Hazardous Location & Marine Grade Flood Light
A 150W Class I Div 2 flood light for wide-area coverage in hazardous and marine environments.
- Class I Div 2 & Zone 2; Class II Div 1 & Zone 20/21 — Type 4X, IP66, marine-rated.
- Self-locking spring terminals with double-cable entry — angle-adjustable mounting bracket.
- 5-year warranty for outdoor hazardous areas, refineries, chemical plants, and marine docks.
A 150W Class I Div 2 flood light for wide-area coverage in hazardous and marine environments.
- Class I Div 2 & Zone 2; Class II Div 1 & Zone 20/21 — Type 4X, IP66, marine-rated.
- Self-locking spring terminals with double-cable entry — angle-adjustable mounting bracket.
- 5-year warranty for outdoor hazardous areas, refineries, chemical plants, and marine docks.
Choose options
Specs
| Wattage(s) | 150W |
| Replaces Wattage(s) | 450W |
| Light Output | 22,500 lumens |
| Luminous Efficacy (lm/W) | 150 lm/W |
| Average Lamp Life |
L90: 75,198 hours L80: 230,119 hours L70: 378,051 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | 70 |
| Beam Angle | Type 5 (146°) |
| EPA (Effective Projected Area) | 0.19m2 (2ft2) |
| Enclosure Rating | IP66, IK08 |
| LED Type | LED 3030 |
| Input Voltage | 100-277VAC, 50/60Hz |
| Driver Type | Constant Current (CC) |
| Power Supply | INVENTRONICS |
| Power Factor | >0.9 |
| Surge Protection | 10kV line-line, 10kV line-earth |
| Operating Temperature | -40°F to +104°F |
| Housing Material | Aluminum Alloy (less than 0.4% copper content), Polycarbonate Optical Lens |
| Housing Color | Gray |
| Dimensions | 22.32” x 18.62” x 6.86” |
| Weight | 28.6±0.66 lbs |
| Certification | UL |
| Warranty | 5 Years |
| Additional Specifications |
Classifications Class I, Div. 2, GR. A, B, C, D Class II, Div. 1, GR. E, F, G Class II, Div. 2, GR. F, G Class III Class I, Zone 2, Group IIC, IIB, IIA Zone 20, 21, or 22 |
Data SheetDetails
High-Performance Lighting for Use in Tough & Hazardous Environments
Unmatched durability combined with LED efficiency and safety certifications to deliver powerful illumination in hazardous and marine environments.
-
Easy Installation with self-locking spring terminals, an angle-adjustable mounting bracket, and double-cable entry for interconnection between fixtures. Slipfitter mounting accessory also available.
- Hazardous Location Rated (Class I Div 2 & Zone 2) – For areas where explosive gases may be present only under abnormal conditions, such as in the event of a leak or failure.
- Dust-ignition Proof (Class II Div 1 & Zone 20/21) – For use in environments where there's a risk of combustible dust explosion.
- Simultaneous Presence – Built for use in environments with both flammable gases/vapors and combustible dust/fibers.
- Weather Resistant (Type 4X, IP66, Marine-rated) – Withstands rain, hose-downs, and salt spray.
- Suited to Cold Environments with an operating temperature down to -40°F.
This flood light is a great choice for power plants, heavy industrial storage facilities, paper mills, wastewater treatment, loading docks, shipyards, and chemical or petrochemical processing facilities.
