50W Hazardous Location, Explosion Proof & Marine Grade LED Living Light
50W Hazardous Location, Explosion Proof & Marine Grade LED Living Light
50W Hazardous Location, Explosion Proof & Marine Grade LED Living Light
50W Hazardous Location, Explosion Proof & Marine Grade LED Living Light
Class I Div 1 — the highest hazardous location rating — certified safe where gas is always present.
- Explosion Proof Class I Div 1 & Zone 1; Class II Div 1 & Zone 20/21 — Type 4X, IP66, -40°F.
- IK10 impact rated — trunnion and pendant mounting included, 7,000 lumens at 5000K.
- 5-year warranty for chemical plants, power plants, petroleum facilities, and Class I Div 1 spaces.
Class I Div 1 — the highest hazardous location rating — certified safe where gas is always present.
- Explosion Proof Class I Div 1 & Zone 1; Class II Div 1 & Zone 20/21 — Type 4X, IP66, -40°F.
- IK10 impact rated — trunnion and pendant mounting included, 7,000 lumens at 5000K.
- 5-year warranty for chemical plants, power plants, petroleum facilities, and Class I Div 1 spaces.
Choose options
Details
Safety, Durability, and Performance
Waterproof, dustproof, corrosion-resistant, impact-resistant, and certified explosion proof, the HRHB01 provides reliable operation in tough and hazardous conditions.
- Fast, Convenient Install thanks to quick-connection design
-

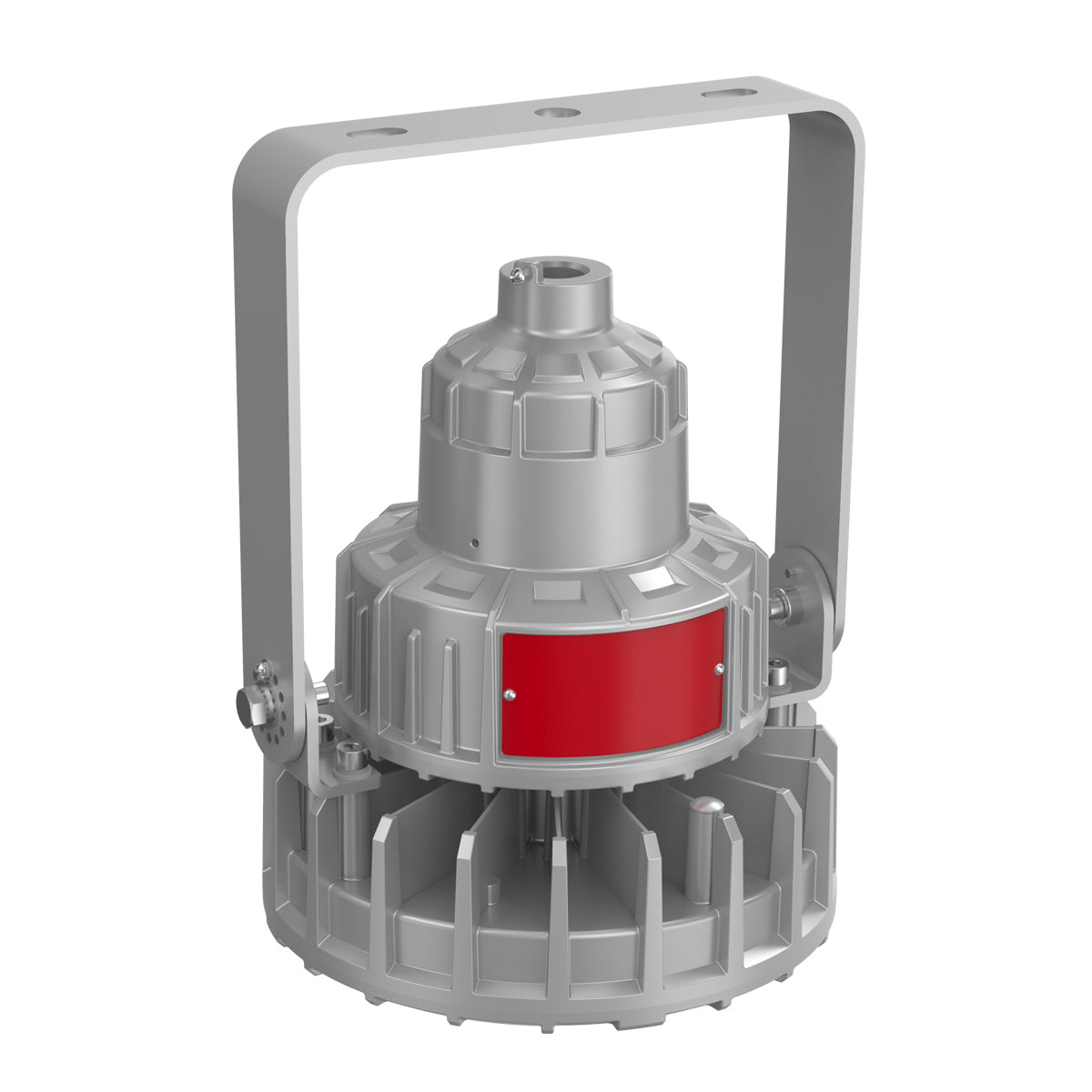

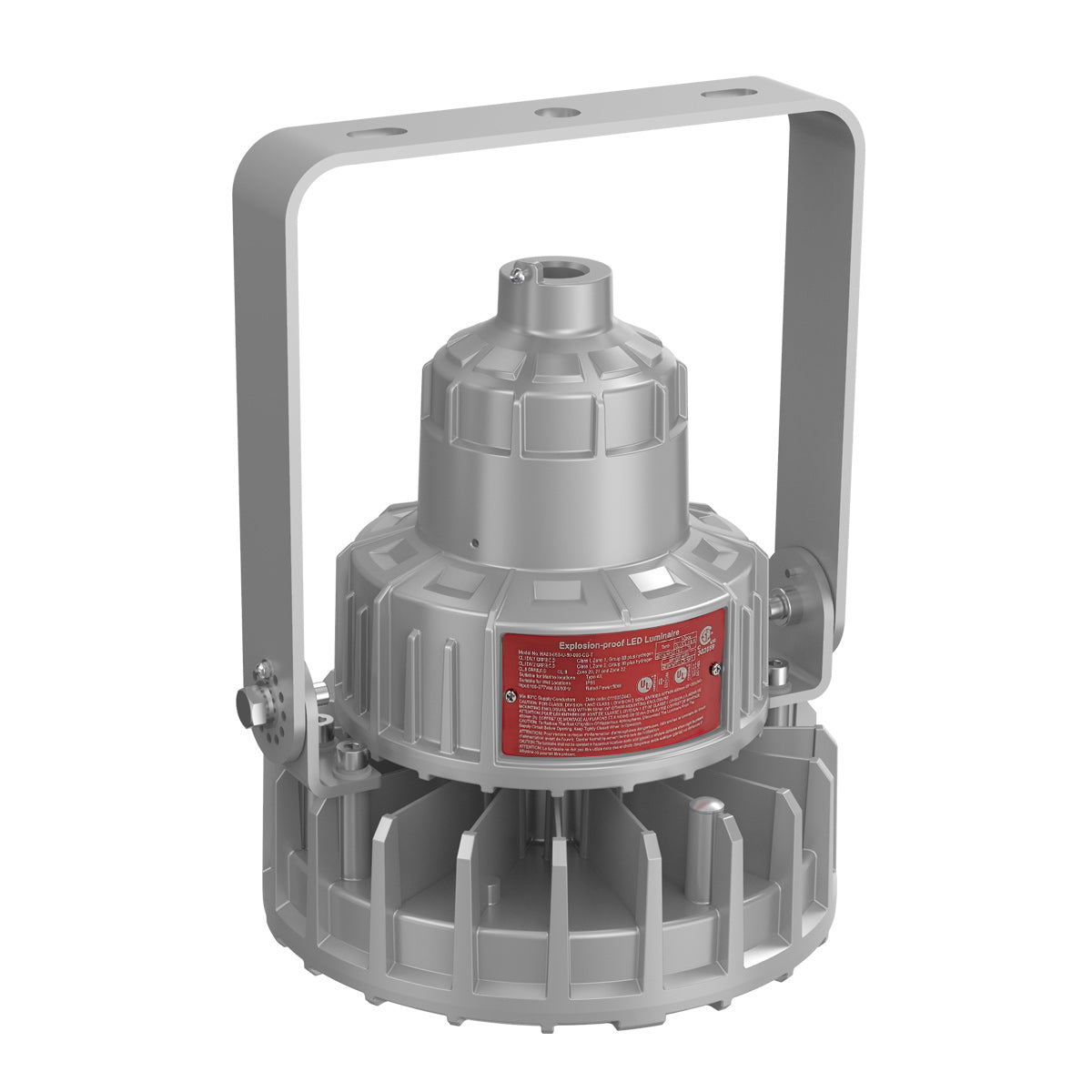

Flexible Install with both trunnion and pendant (3/4" NPT conduit) mounting hardware included in the box
- Explosion Proof (Class I Div 1 & Zone 1) – Safe for use where flammable gases, vapors, or liquids, including hydrogen, propane, and ethylene, are present in sufficient quantities to create an explosive or ignitable mixture.
- Dust-ignition Proof (Class II Div 1 & Zone 20/21) – Safe for use in environments where there's a risk of combustible dust explosion
- Weather Resistant (Type 4X, IP66, Marine-rated) – Withstands rain, hose-downs, and salt spray
- Top Notch Performance even in challenging environmental conditions with its wide operating temperate range (-40°F to +149°F) and IK10 impact rating
This light is safe to use in many challenging applications, including oil and gas facilities, chemical and pharmaceutical plants, grain and food processing, mining & coal handling, marine & offshore environments, and wastewater treatment and sewage plants.
Specs
| Wattage(s) | 50W |
| Replaces Wattage(s) | 150W |
| Light Output | 7,000 lumens |
| Luminous Efficacy (lm/W) | 140 lm/W |
| Average Lamp Life |
L90: 77,000 hours L80: 175,200 hours L70: 282,900 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | 70 |
| Beam Angle | 120° |
| Recommended Installation Height | 10 to 15 ft |
| EPA (Effective Projected Area) | 0.05m2 (0.5ft2) |
| Enclosure Rating | IP66, IK10 |
| LED Type | LED 3030 |
| Input Voltage | 100-277VAC, 50/60Hz |
| Driver Type | Constant Current (CC) |
| Power Supply | INVENTRONICS |
| Power Factor | >0.9 |
| Surge Protection | 4kV line-line, 6kV line-earth |
| Temperature Rating | -40°F to +149°F |
| Housing Material | Aluminum Alloy (less than 0.4% copper content), Glass |
| Housing Color | Gray |

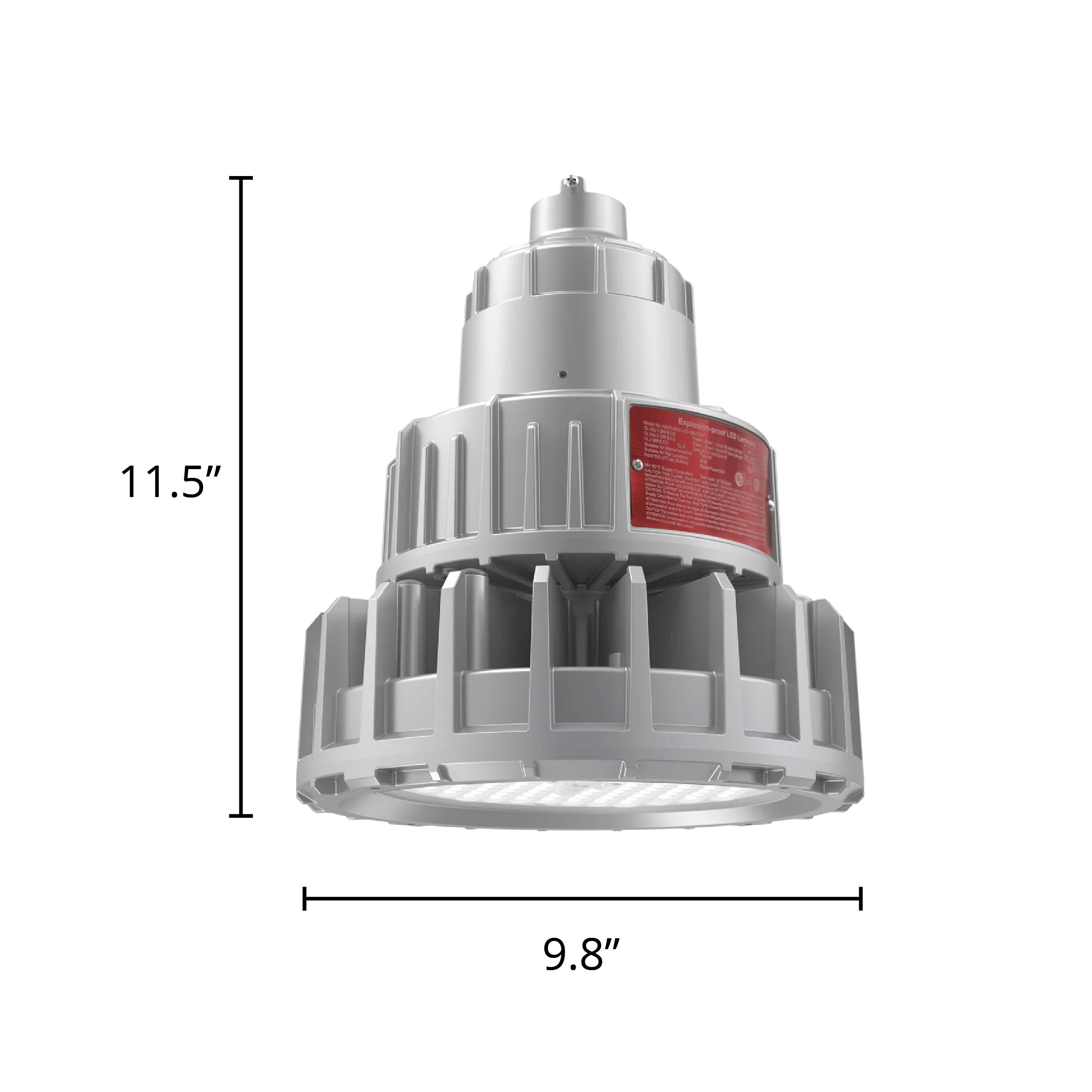

| Dimensions |
φ248x292mm (φ9.8” x 11.”) with pendant mount 284x248x348mm (11.2” x 9.8” x 13.7”) with trunnion mount |
| Weight |
7.3kg (16.06lbs) with pendant mount 9kg (19.8lbs) with trunnion mount |
| Certification | UL, CSA |
| Warranty | 5 Years |
| Additional Specifications |
Classifications Class I, Division 1, Groups B, C, D Class I, Division 2, Groups B, C, D Class II, Division 1, Groups E, F, G Class II, Division 2, Groups F, G Class III Class l, Zone 1, Group llB plus hydrogen Class l, Zone 2, Group llB plus hydrogen Zone 20 and Zone 21 Zone 22 |
Data SheetLayout & Planning
