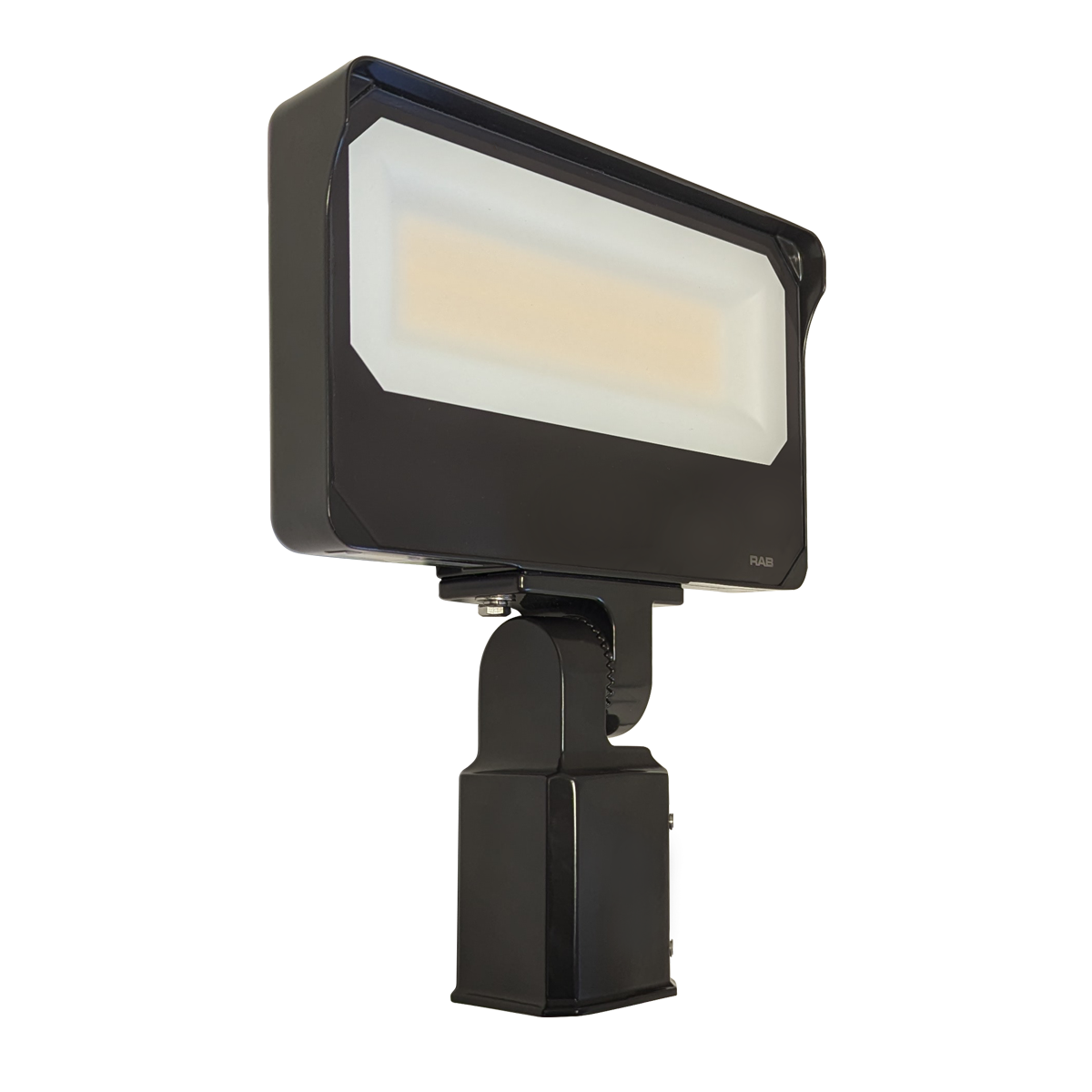

160W RGBW RAB X34 LED Flood Light
160W RGBW RAB X34 LED Flood Light
160W RGBW RAB X34 LED Flood Light
160W RGBW RAB X34 LED Flood Light
This 160W RGBW LED flood light delivers up to 20,732 lumens with full phone app control—great for large-scale color washing of sports arenas, civic sites, skyscrapers, and outdoor festivals.
- 16M+ colors plus tunable white 2200K–6500K
- Lightcloud Blue app control, no gateway or hub needed
- NEMA 7×7 wide beam
Need More? Let's Talk Text (858) 650-9400 or Request Quote
This 160W RGBW LED flood light delivers up to 20,732 lumens with full phone app control—great for large-scale color washing of sports arenas, civic sites, skyscrapers, and outdoor festivals.
- 16M+ colors plus tunable white 2200K–6500K
- Lightcloud Blue app control, no gateway or hub needed
- NEMA 7×7 wide beam
Choose options
Details
Go Big with High-Impact Lighting for Large Spaces
- Lightcloud Blue compatible for Easy Set Up & Control
- Everything Included: No DMX Controller, Gateway, or Hub Needed
- White, High-Reflectance Coating Maximizes Light Outpu

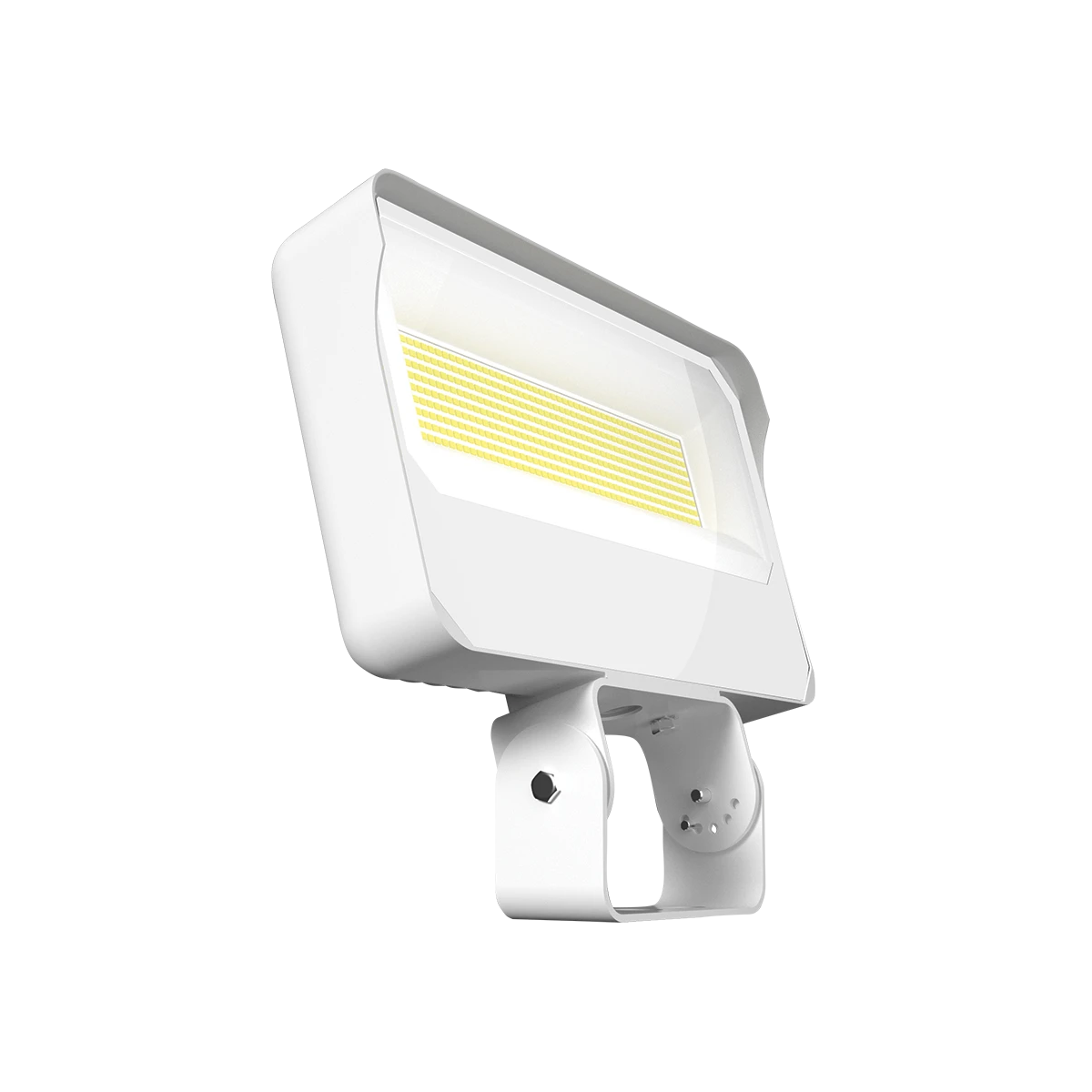

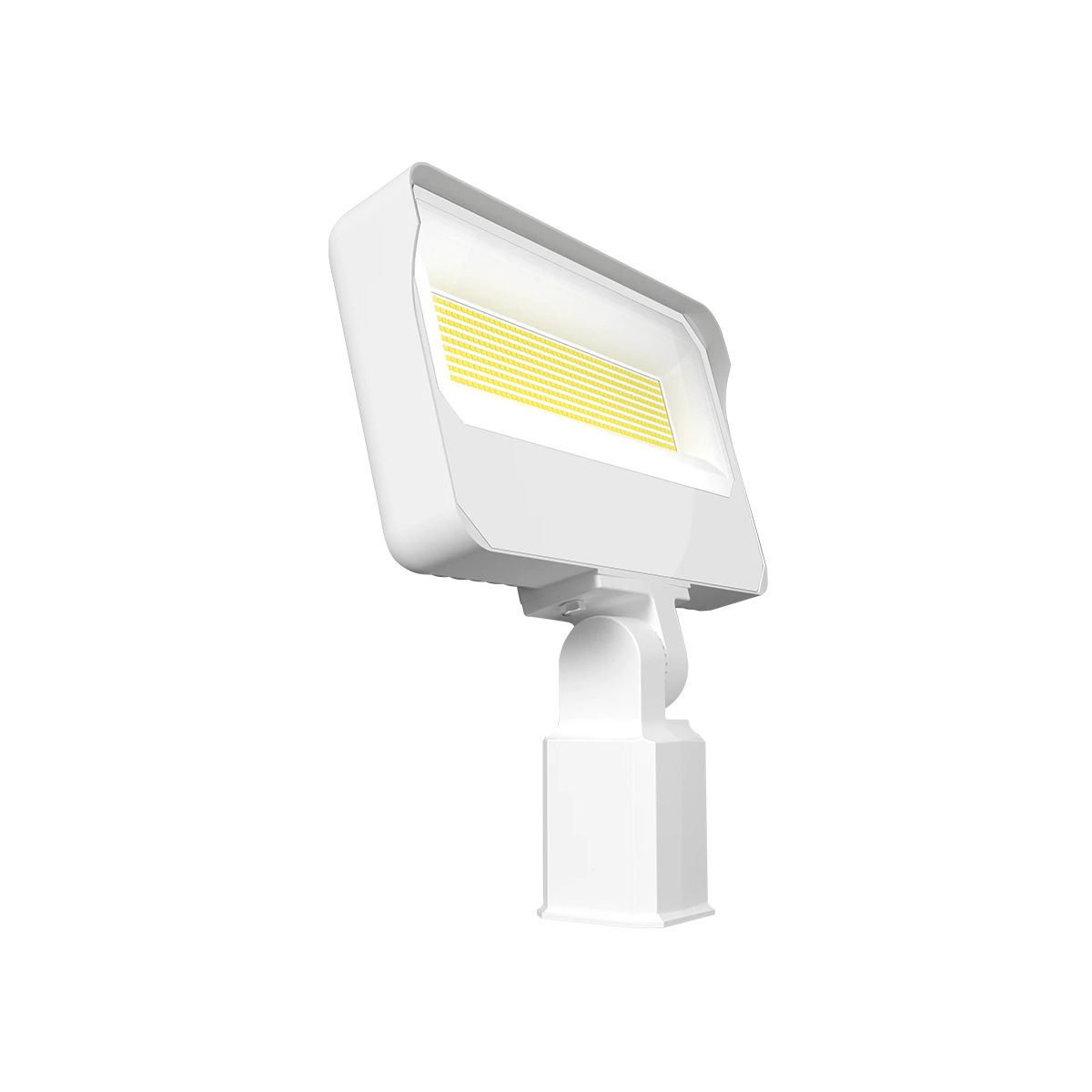

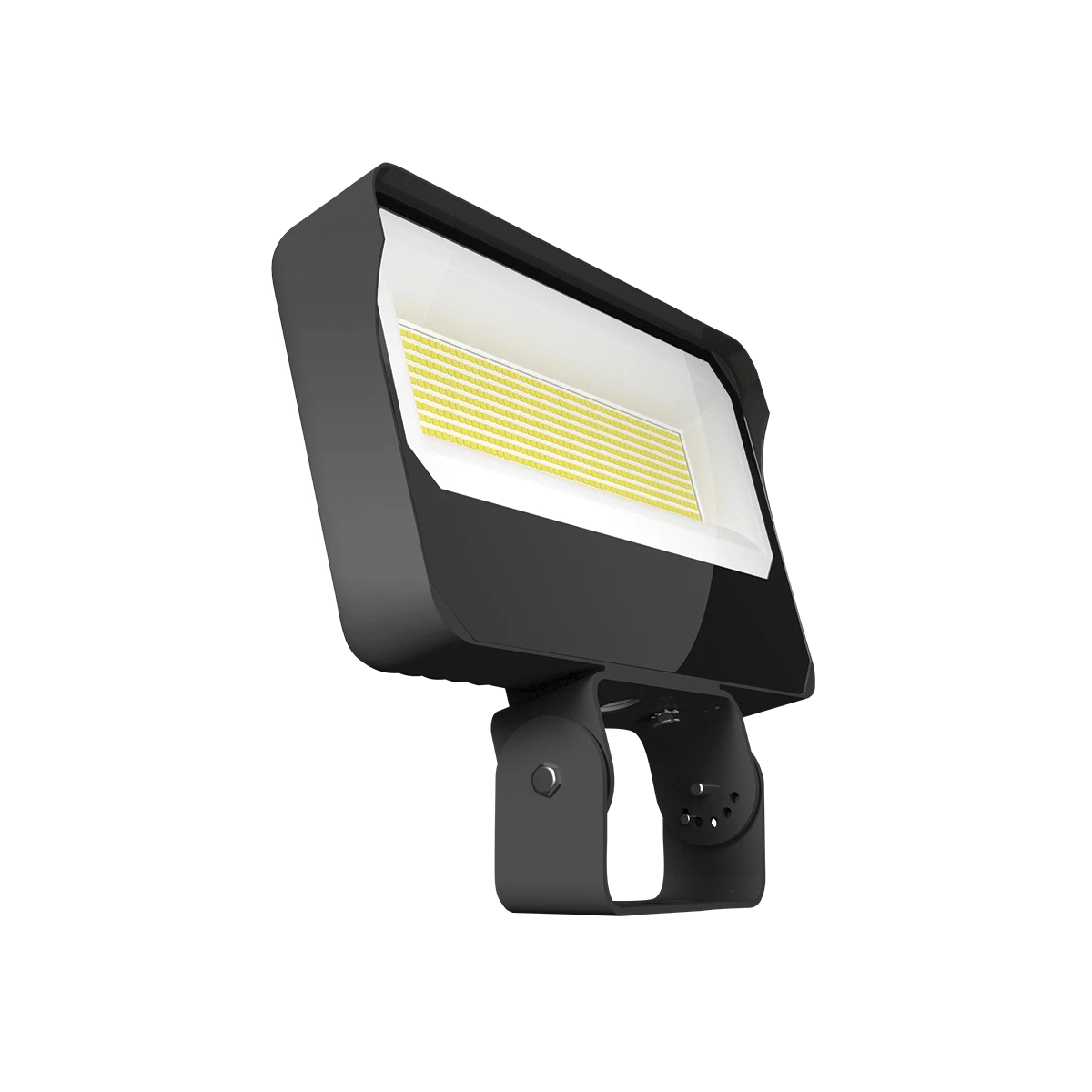

- Two Mounting Options: Slipfitter for Pole Mount (shown) or Trunnion for Walls/Roofs
- Average Lifespan of 100,000 Operating Hours
- Protected by a 5-Year Warranty
Great for sports arenas, outdoor festivals, skyscrapers, suspension bridges, theme parks, national monument celebrations, and more with dynamic, easily programmed color effects. Lightcloud Blue app allows for provisioning and controlling hundreds of lights with ease.
Specs
| Wattage(s) | 160W |
| Replaces Wattage(s) | 400W |
| Light Output | 19,347 lumens (at 2200K) to 20,732 lumens (at 6500K) |
| Luminous Efficacy (lm/W) | 124.6 to 133.7 lm/W |
| Average Lamp Life | 100,000 hours |
| Color Temperature(s) |
RGBW CCT tunable 2200K to 6500K |
| CRI (Color Accuracy) | 80 |
| Dimming | Via the Lightcloud Blue mobile app |
| Beam Angle | NEMA beam spread of 7H x 7V |
| Installation | Trunnion or slipfitter mount |
| EPA (Effective Projected Area) | 1.1 |
| Working Environment | Outdoor |
| Enclosure Rating | UL listed suitable for wet locations |
| Input Voltage | 120-277V, 50/60Hz |
| Driver Type | Constant Current, Class 1 |
| Power Factor | @120V: 99.6% at 2700K, 99.6% at 4000K, 99.6% at 6500K |
| THD (Total Harmonic Distortion) | @120V: 6.4% at 2700K, 7.6% at 4000K, 7.6% at 6500K |
| Surge Protection | 2kV |
| Temperature Rating | -40°F to 104°F |
| Housing Material | Precision die-cast aluminum |

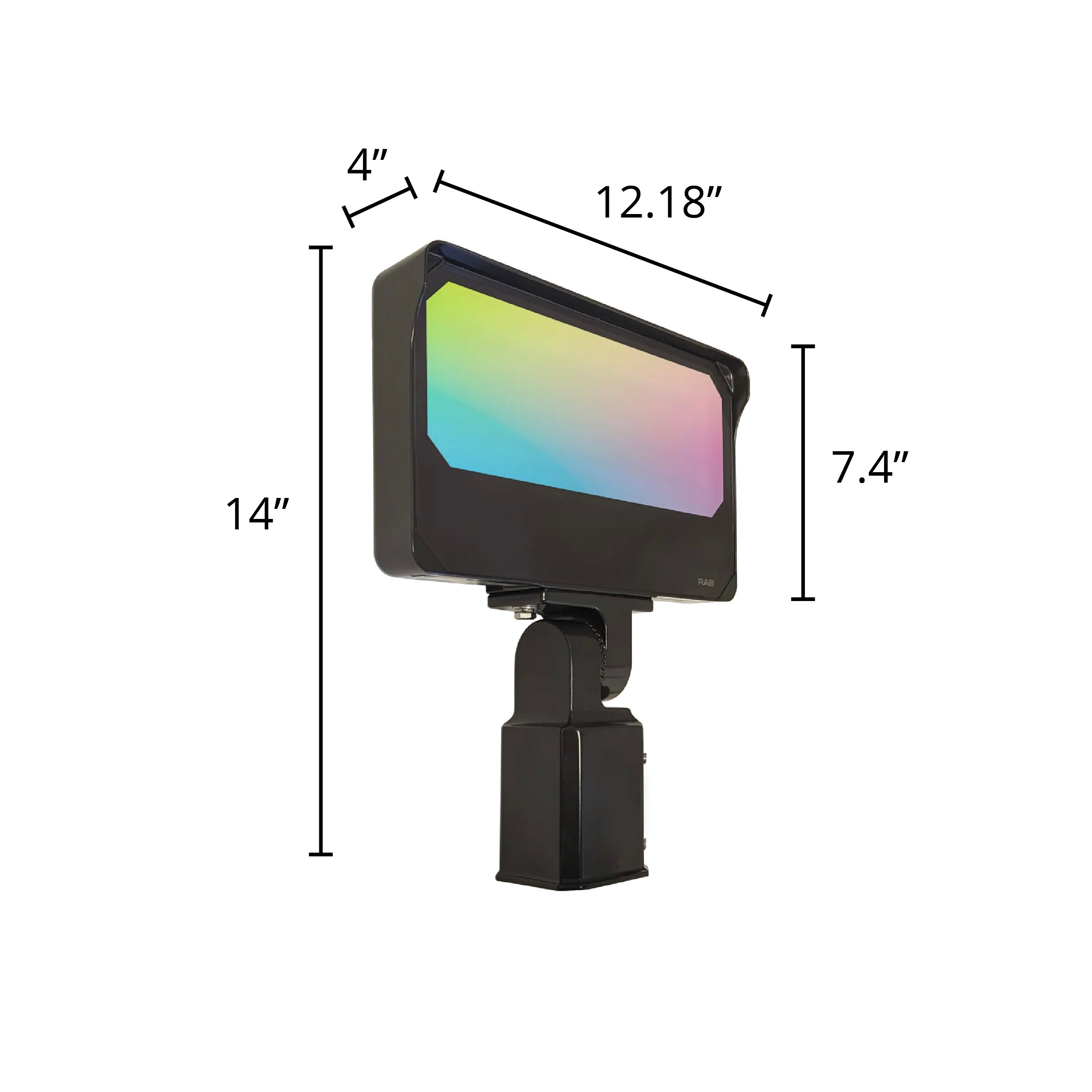

| Dimensions | 12 3/16" x 7 7/16" (11 1/16" with trunnion, 14 1/16" with slipfitter) x 3 1/4" |
| Weight | 9 lbs |
| Certification | UL, Wet Location |
| Warranty | 5 Years |
