600W Selectable High-Output LED Sports Light
600W Selectable High-Output LED Sports Light
600W Selectable High-Output LED Sports Light
600W Selectable High-Output LED Sports Light
Engineered for sports fields, stadiums, municipal parks, and school athletic facilities, this field-selectable 400–600W LED sports light delivers up to 103,600 lumens at 165 lm/W.
- ~10% brighter than other 600W fixtures
- 60° standard beam; 22°, 30°, and 45° lens accessories available
- Impact-resistant, water-tight aluminum alloy housing
Bulk Pricing: Text (858) 650-9400 or Request Quote
Engineered for sports fields, stadiums, municipal parks, and school athletic facilities, this field-selectable 400–600W LED sports light delivers up to 103,600 lumens at 165 lm/W.
- ~10% brighter than other 600W fixtures
- 60° standard beam; 22°, 30°, and 45° lens accessories available
- Impact-resistant, water-tight aluminum alloy housing
Choose options
Details
High-Power Sports Lighting Built for Demanding Outdoor Installations
- Flexible wattage selection (600W/500W/400W) lets contractors fine-tune output on site to meet project specifications without changing fixtures.
- High-performance illumination delivering up to 103,600 lumens at 165 lm/W with a crisp 5000K daylight color for superior field visibility.
- Dimming control with Zhaga base that supports DALI D4 control through Synapse dimming module.
- Rugged, all-weather construction with an IP66, IK08, corrosion-resistant housing and wide 200–480VAC input range for reliable operation on any high-mast or sports application.

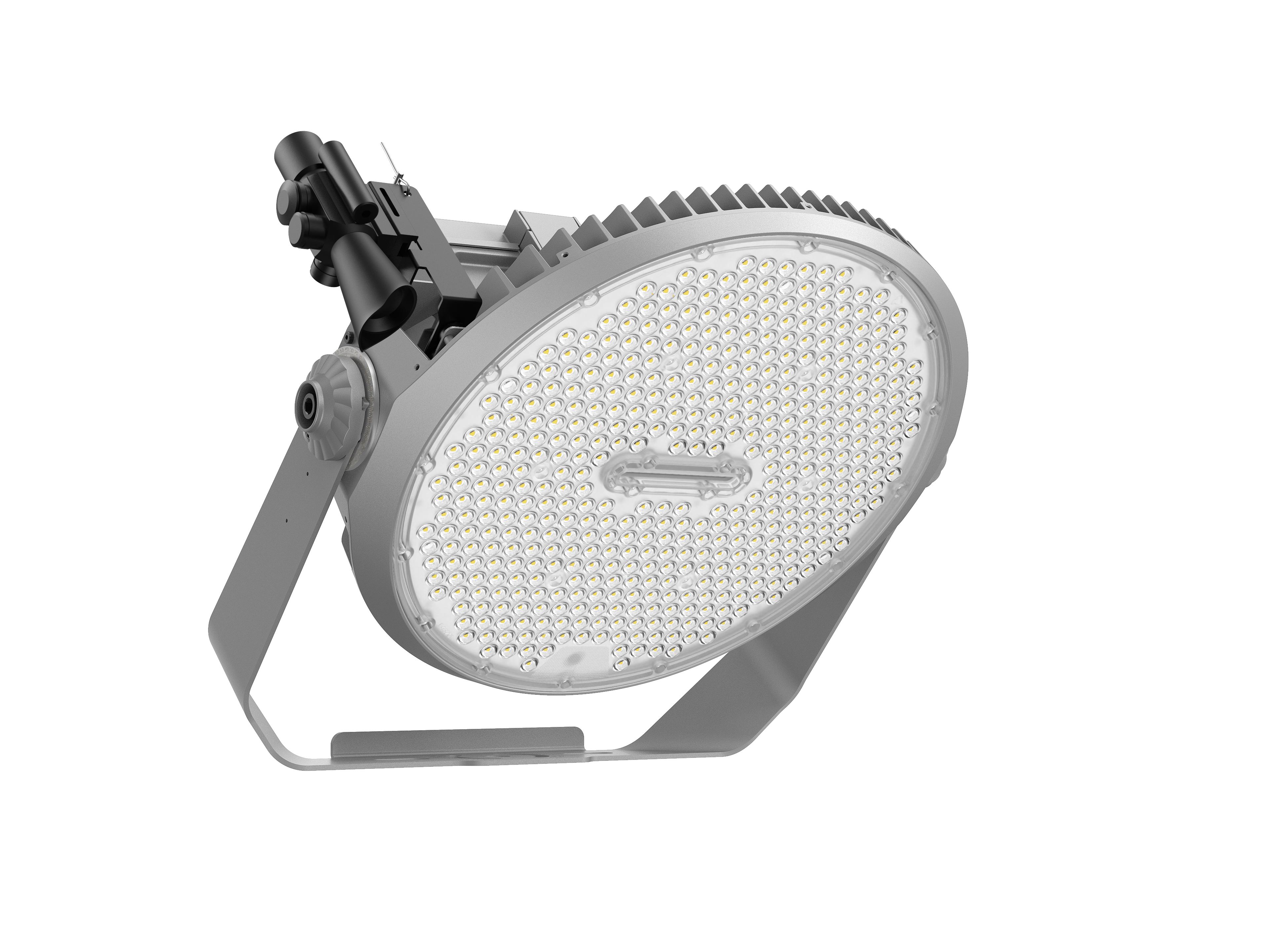

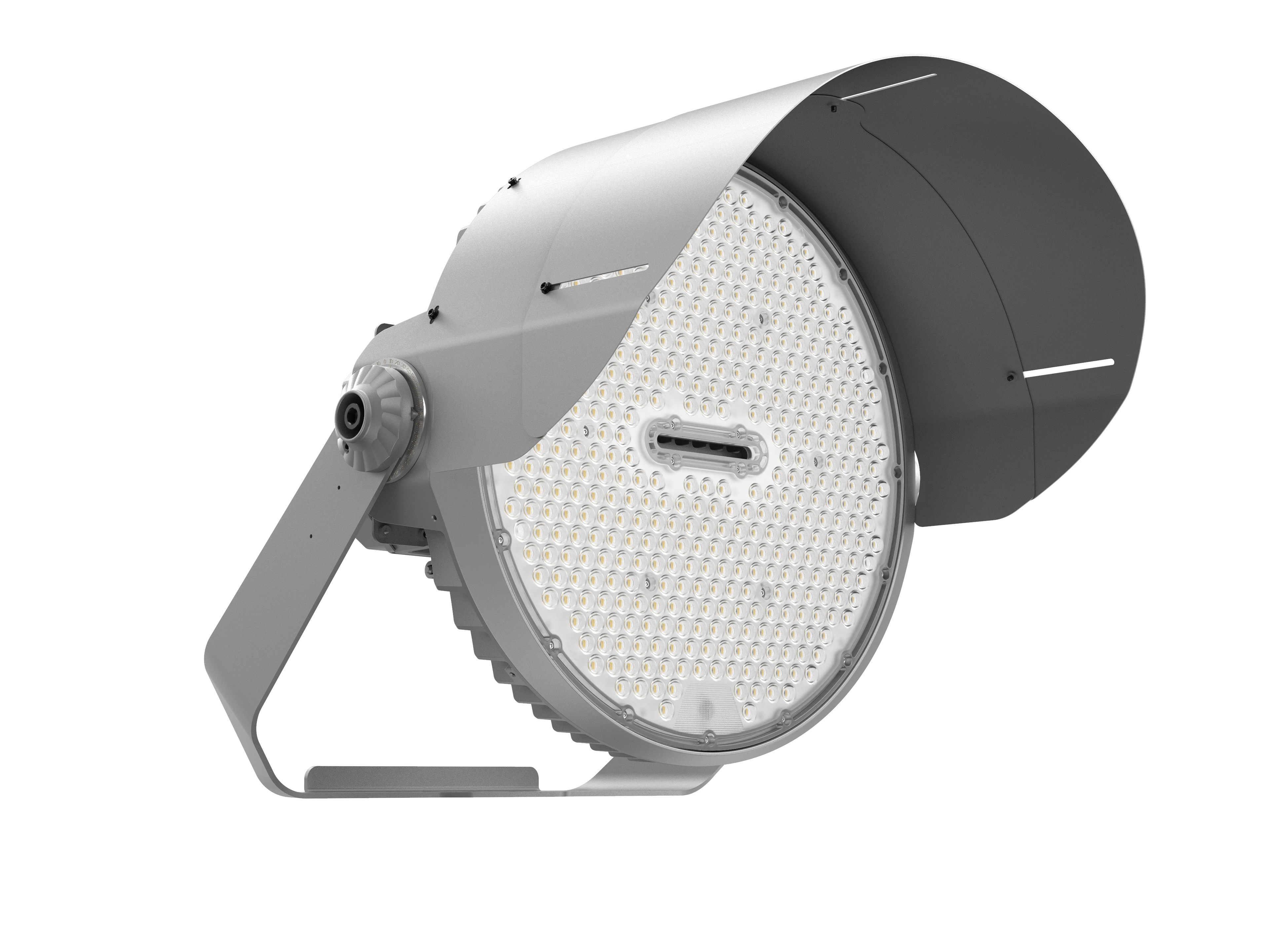

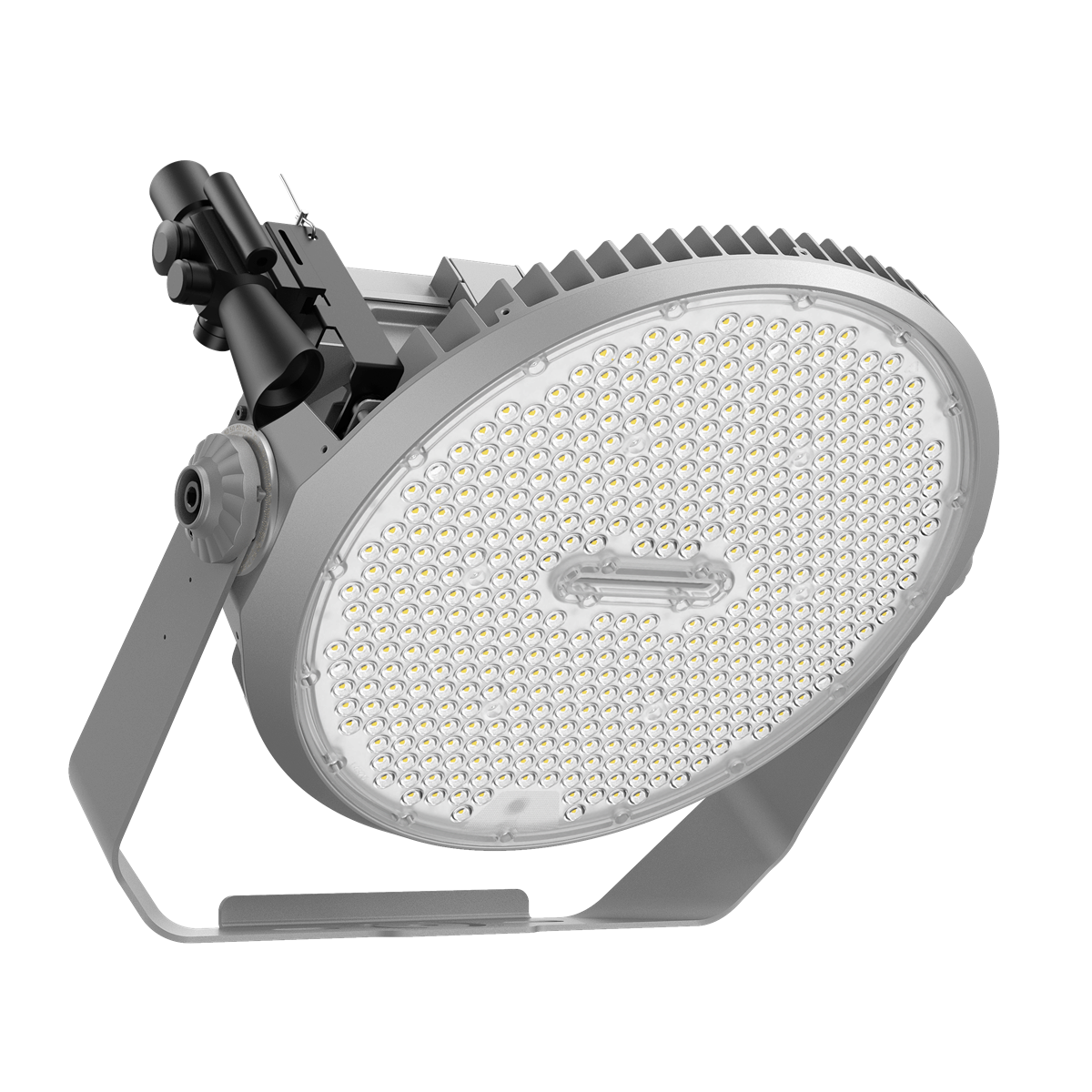

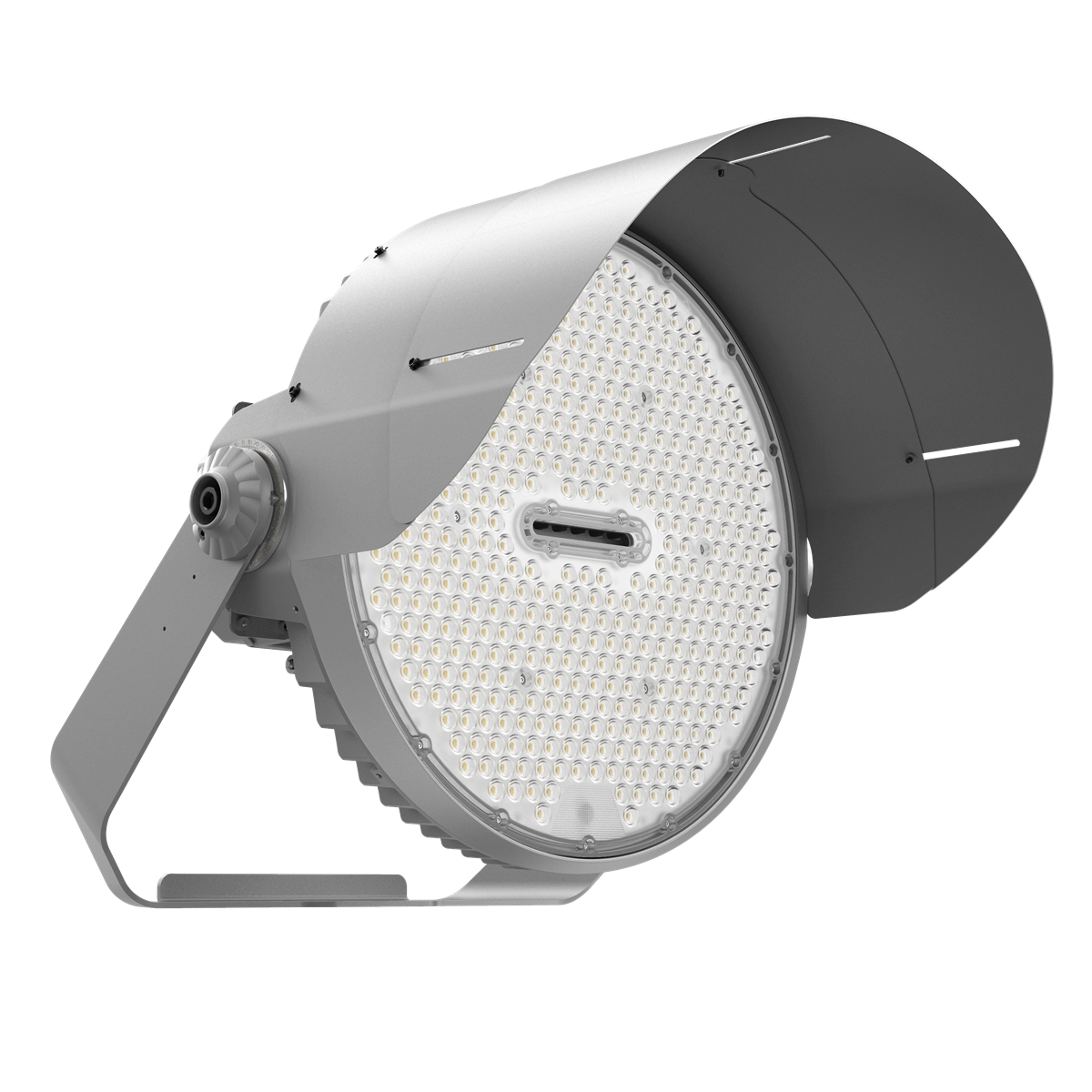

- Even better with options Prevent light spillage with the optional visor. Save time & labor costs during installation by adding an aiming device. Change the optics with accessory lenses.
Use cases
Sports fields, stadiums, municipal parks, high-mast lighting, school athletic facilities, and large outdoor recreation complexes.
Specs
| Wattage(s) | 400W/500W/600W |
| Replaces Wattage(s) | 1800W |
| Light Output |
400W: 68,800–72,700 lumens 500W: 83,800–88,700 lumens 600W: 97,800–103,600 lumens |
| Luminous Efficacy (lm/W) | 165 lm/W |
| Average Lamp Life | L90: >100,000 hrs L80: >100,000 hrs L70: >100,000 hrs |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | >70 |
| Dimming |
DALI D4I dimming with Zhaga base for Synapse. >Users with Synapse controller can mount the controller on the Zhaga base. For users without Synapse controller, the unit functions as ON/OFF. Note that the DALI function and the power-selectable function cannot be used simultaneously. |
| Beam Angle |
60˚ Standard Optional lenses for 22˚, 30˚, 45˚, and 60˚ |
| Lens Cover | High-transmittance polycarbonate lens |
| Installation | Bracket mount |
| EPA (Effective Projected Area) |
@20˚: 0.097m² (1.046ft²) @40˚: 0.131m² (1.408ft²) @60˚: 0.157m² (1.692ft²) @80˚: 0.167m² (1.795ft²) |
| Enclosure Rating | IP66, IK08, C4 ISO 9223:2012 |
| LED Type | LED 3737 |
| Input Voltage | 200-480VAC, 50/60 Hz |
| Driver Type | Constant Current |
| Power Factor | >0.97 at full load |
| THD (Total Harmonic Distortion) | <20% |
| Surge Protection | 10KV L-N, 20KV L/N-E |
| Temperature Rating | -30˚C to 50˚C (-22˚F to 122˚F) |
| Housing Material |
Low-copper die cast aluminum alloy housing ZAM-treated powder-coated SPCC steel mounting brackets |

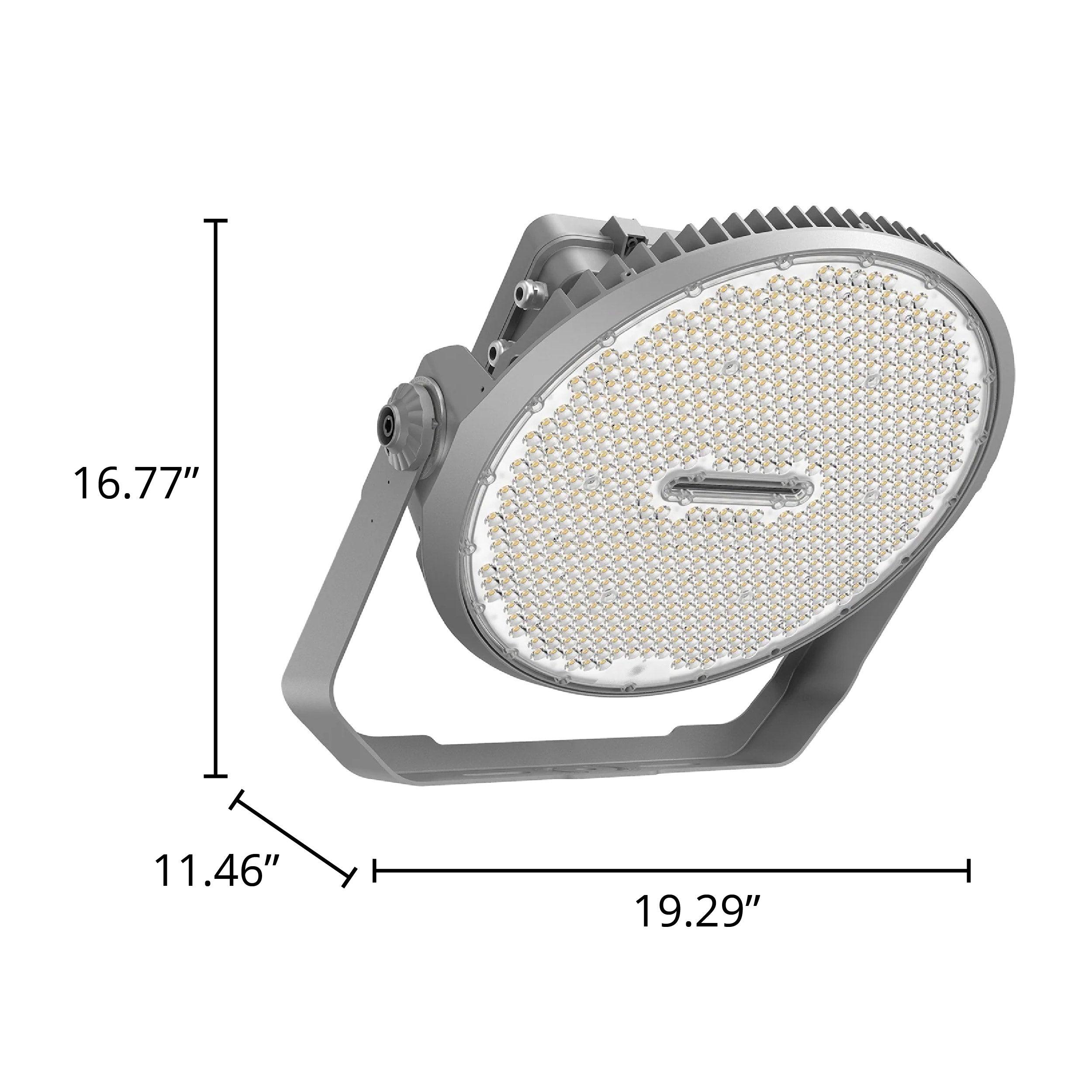

| Dimensions | 426 x 490 x 291 mm (16.77" x 19.29" x 11.46") |
| Weight | 12.96 kg (28.57 Ibs) |
| Certification | UL, DLC Premium |
| Warranty | 5 Years |
Data SheetCompare Key Features
Compare
600W Selectable High-Output LED Sports Light
|
800W Selectable High-Output LED Sports Light
|
600W Selectable LED High Mast Flood Light, Heights 50 to 80 ft
|
|
|---|---|---|---|
| Replaces Wattage(s) | 1800W | 2400W | 1000W to 2000W |
| Light Output | 400W: 68,800–72,700 lumens 500W: 83,800–88,700 lumens 600W: 97,800–103,600 lumens |
400W: 70,400–72,300 lumens 600W: 102,100–104,800 lumens 800W: 132,800–135,800 lumens |
400W: 58,180 lumens 480W: 69,816 lumens 600W: 87,270 lumens |
| Color Temperature (CCT) | 5000K | 5000K | 5700K |
| Enclosure Rating | IP66, IK08, C4 ISO 9223:2012 | IP66, IK08, C4 ISO 9223:2012 | IP66, IK08 |
| Installation | Bracket mount | Bracket mount | Bracket mount |
| Temperature Rating | -30˚C to 50˚C (-22˚F to 122˚F) | -30˚C to 50˚C (-22˚F to 122˚F) | -22°F to 122°F |
|
