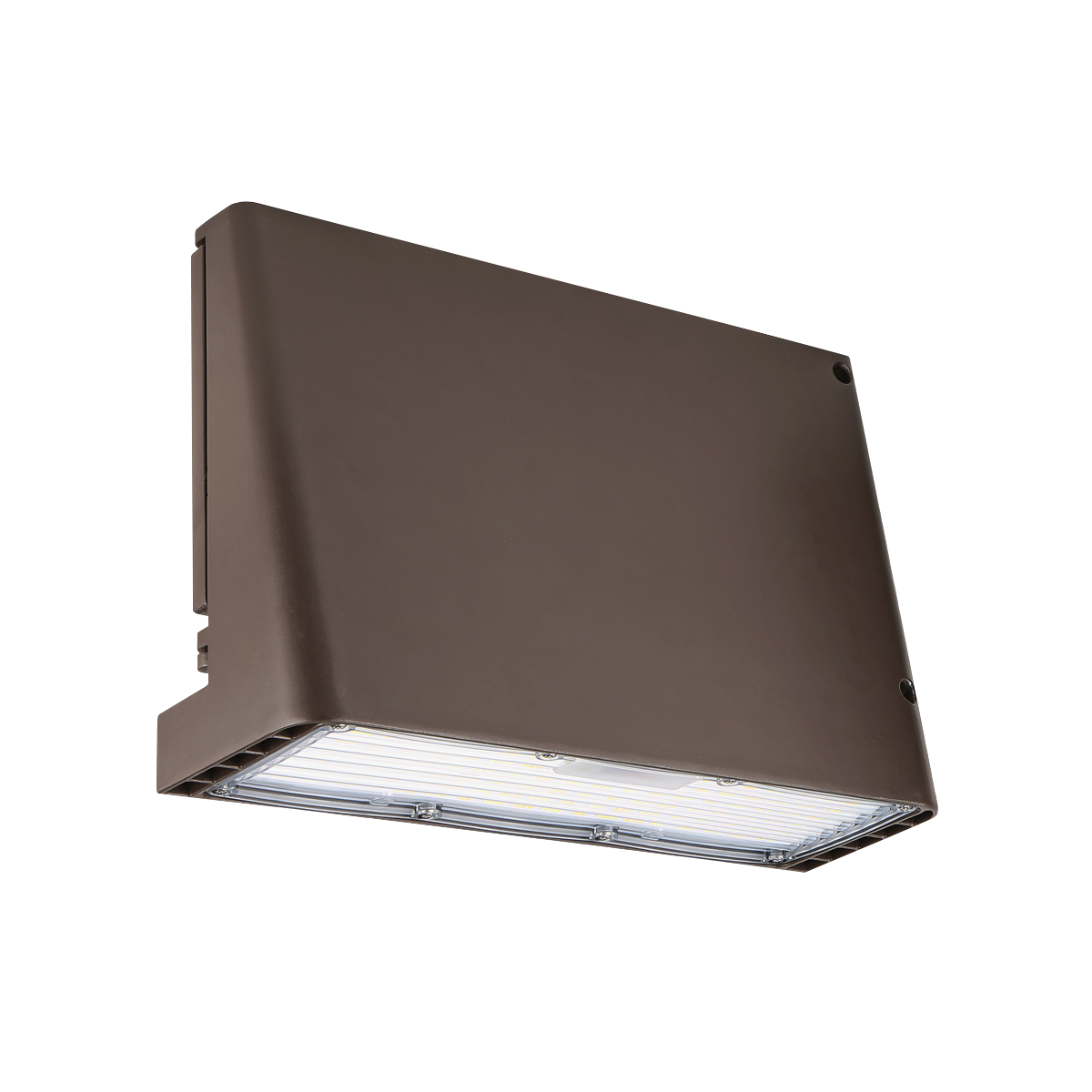

Full Cutoff LED Wall Pack - 3 CCT - 100/80/60/40W
904 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
Brighten Doorways & Walkways Outside Commercial Buildings
Control Light Spill + Adhere to Dark Sky Regulations: Produces a focused, downward light beam.

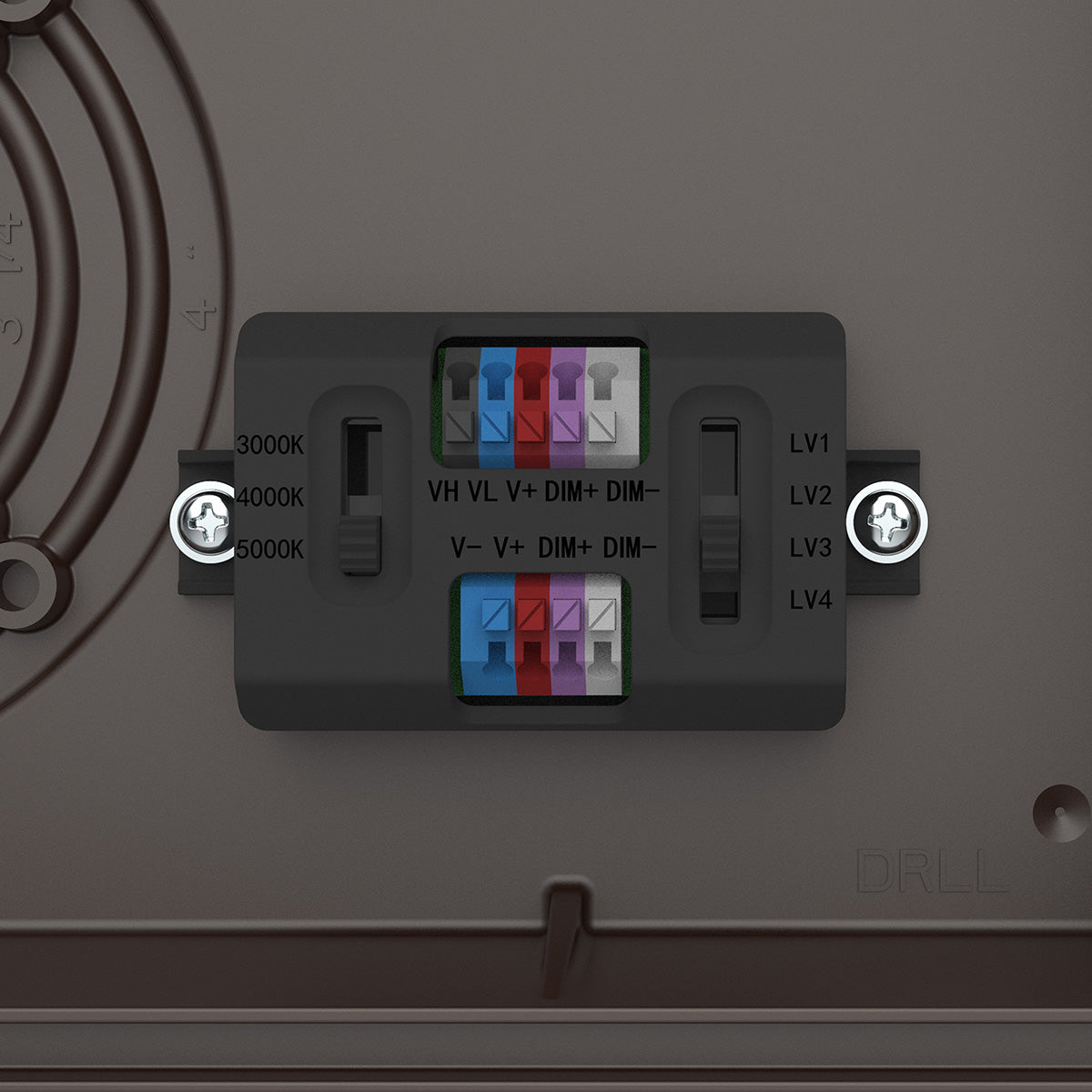

Field-Selectable for Versatility & Savings: Adjust settings to match the needs of the location.
Tough-Built Design: Anti-UV prismatic lenses and sturdy die-cast aluminum housing.
Safe for All Kinds of Weather: UL Wet Location certified and operates in temps down to -40°F.
Saves $/year in energy costs*
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
Brighten Doorways & Walkways Outside Commercial Buildings
Control Light Spill + Adhere to Dark Sky Regulations: Produces a focused, downward light beam.
Field-Selectable for Versatility & Savings: Adjust settings to match the needs of the location.
Tough-Built Design: Anti-UV prismatic lenses and sturdy die-cast aluminum housing.
Safe for All Kinds of Weather: UL Wet Location certified and operates in temps down to -40°F.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
904 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
904 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 100W power selectable (100%, 80%, 60%, or 40%) at install |
| Replaces Wattage(s) | 320W |
| Light Output | 15,500/13,050/9,595/6,335 lumens @ 4000K |
| Luminous Efficacy (lm/W) | 148 lm/W (3000K), 155 lm/W (4000K), 150 lm/W (5000K) |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K selectable at install |
| CRI (Color Accuracy) | 70 |
| Dimming | 1-10V |
| Base Type | Fixture |
| Working Environment | Outdoor |
| Input Voltage | 120-277 VAC |
| Temperature Rating | -40°F – 104°F |
| Housing Material | Die cast aluminum |
| Housing Color | Bronze |

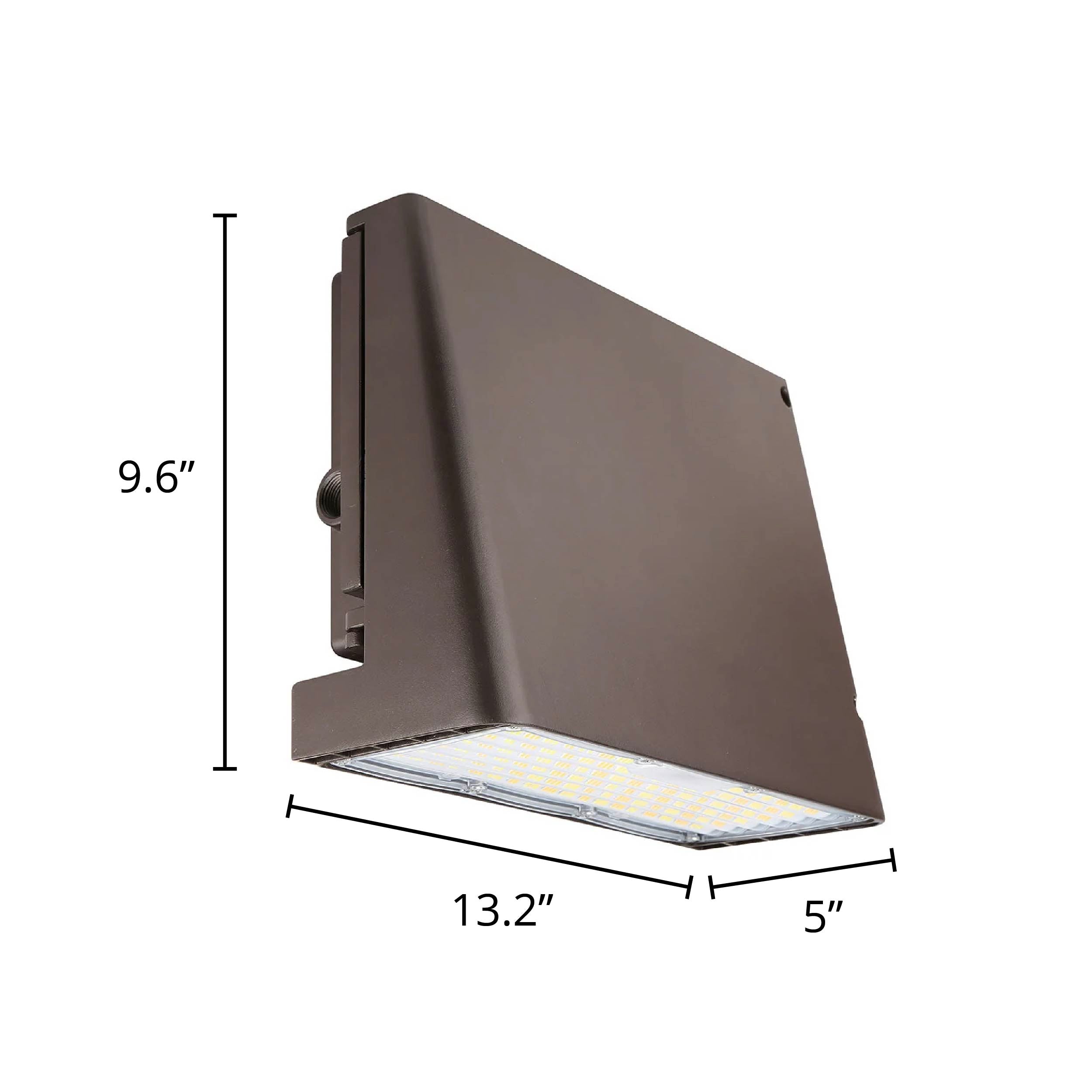

| Dimensions | 13.2"W x 5" D x 9.6" H |
| Certification | DLC 5.1, UL Wet Location |
| Warranty | 5 Years |
COMPARE KEY FEATURES
Full Cutoff LED Wall Pack - 3 CCT - 100/80/60/40W
|
Full Cutoff LED Wall Pack - 135W
|
Semi Cutoff LED Wall Pack w/Photocell - 3 CCT - 108W/90W/63W
|
|
|---|---|---|---|
| Wattage | 100W power selectable (100%, 80%, 60%, or 40%) at install | 135W | 108W/90W/63W selectable at install |
| Equivalent to | 320W | 400W | 250W to 400W |
| Light Output | 15,500/13,050/9,595/6,335 lumens @ 4000K | 20,000 lumens | 14,040/11,700/8,190 lumens |
| Color Temperature (CCT) | 3000K/4000K/5000K selectable at install | 4000K or 5000K | 3000K/4000K/5000K selectable at install |
| Warranty | 5 Years | 5 Years | 5 Years |
|
$94.95
|
$98.95
View Details
|
$110.95
View Details
|
Key Features
Selectable Wattage & CCT
Dark Sky Compliant
Dimming Capability
Brighten Doorways & Walkways Outside Commercial Buildings
Control Light Spill + Adhere to Dark Sky Regulations: Produces a focused, downward light beam.
Field-Selectable for Versatility & Savings: Adjust settings to match the needs of the location.
Tough-Built Design: Anti-UV prismatic lenses and sturdy die-cast aluminum housing.
Safe for All Kinds of Weather: UL Wet Location certified and operates in temps down to -40°F.
Light Output
This light is wattage and color selectable. Click a wattage to see the light output for that setting. Please check the specifications for the full list of light outputs based on power & CCT settings.
