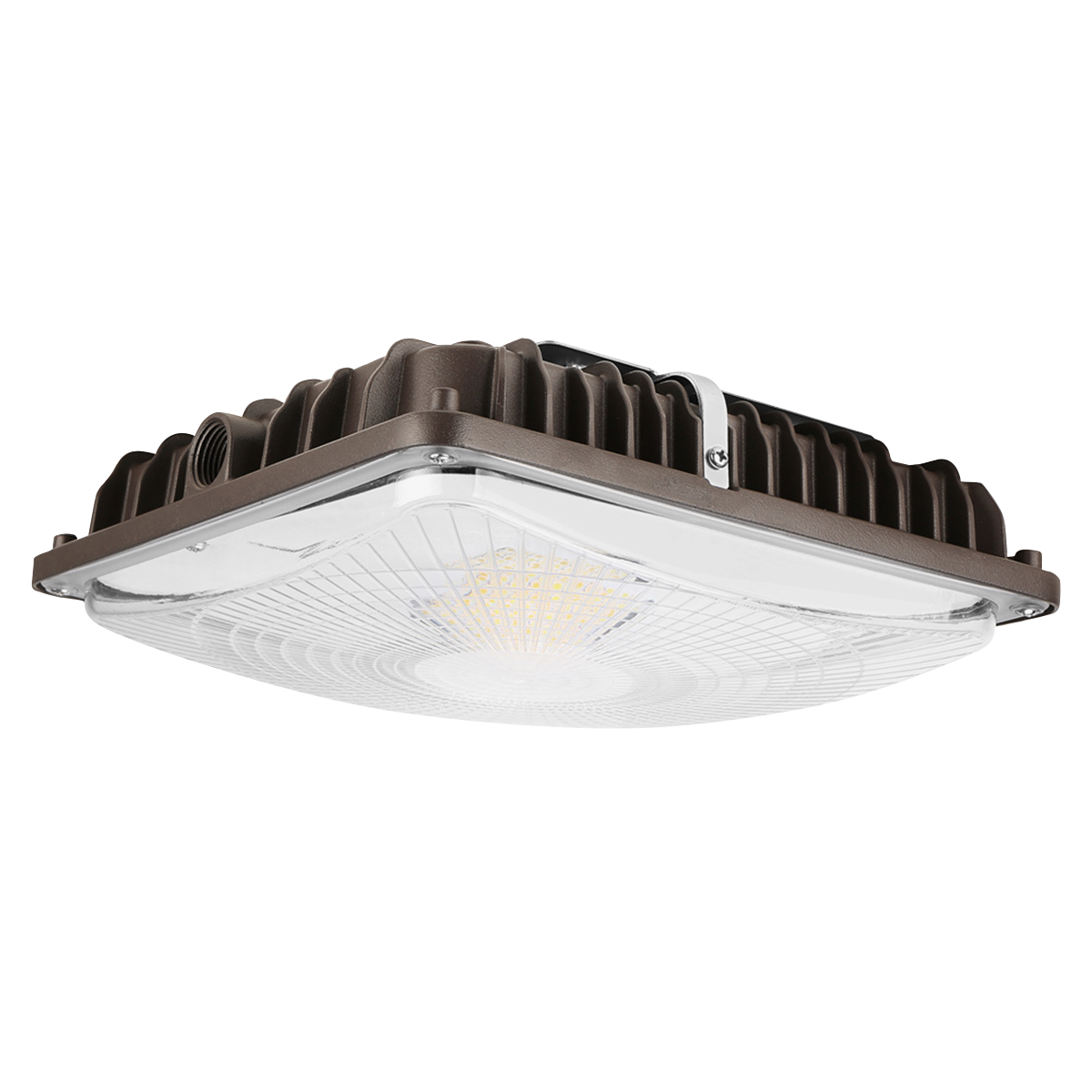

Essentials Bright LED Canopy Light - Color, Wattage Selectable
Lumens:
Watts:
Color Temp:
1 Year Warranty
1092 in stockDependable, Cost-Effective Lighting for Parking Garages
- Visual Comfort: Optics are designed for reduced glare and improved optical performance, important factors in locations where pedestrians and drivers are in close proximity
- Easy Install: Quick-mounting plate supports surface mounting on J-box or pendant mounting on conduit
- Durable Build: Corrosion resistant powder coating on an one-piece die-cast aluminum housing and cold-start capability down to -40˚F ensures long life even in salty or frigid environments
Great for commercial, retail, education, and multi-unit residential parking facilities.
Saves $/year in energy costs*
Buying 12 or more?
Get a better price:
Dependable, Cost-Effective Lighting for Parking Garages
- Visual Comfort: Optics are designed for reduced glare and improved optical performance, important factors in locations where pedestrians and drivers are in close proximity
- Easy Install: Quick-mounting plate supports surface mounting on J-box or pendant mounting on conduit
- Durable Build: Corrosion resistant powder coating on an one-piece die-cast aluminum housing and cold-start capability down to -40˚F ensures long life even in salty or frigid environments
Great for commercial, retail, education, and multi-unit residential parking facilities.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
1 Year Warranty
1092 in stock
Buying 12 or more?
Get a better price:
Lumens:
Watts:
Color Temp:
1 Year Warranty
1092 in stock
Buying 12 or more?
Get a better price:
SPECIFICATIONS
| Wattage(s) | 24W/36W/47W/60W selectable at install |
| Replaces Wattage(s) | 100W to 250W |
| Light Output | 4,000/5,600/7,000/8,400 lumens @ 4000K |
| Luminous Efficacy (lm/W) | Up to 167 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K selectable at install |
| Dimming | 0-10V |
| Beam Angle | Parking garage photometry |
| Enclosure Rating | cUL Wet Location |
| Input Voltage | 120-277VAC |
| Housing Color | Dark Bronze |

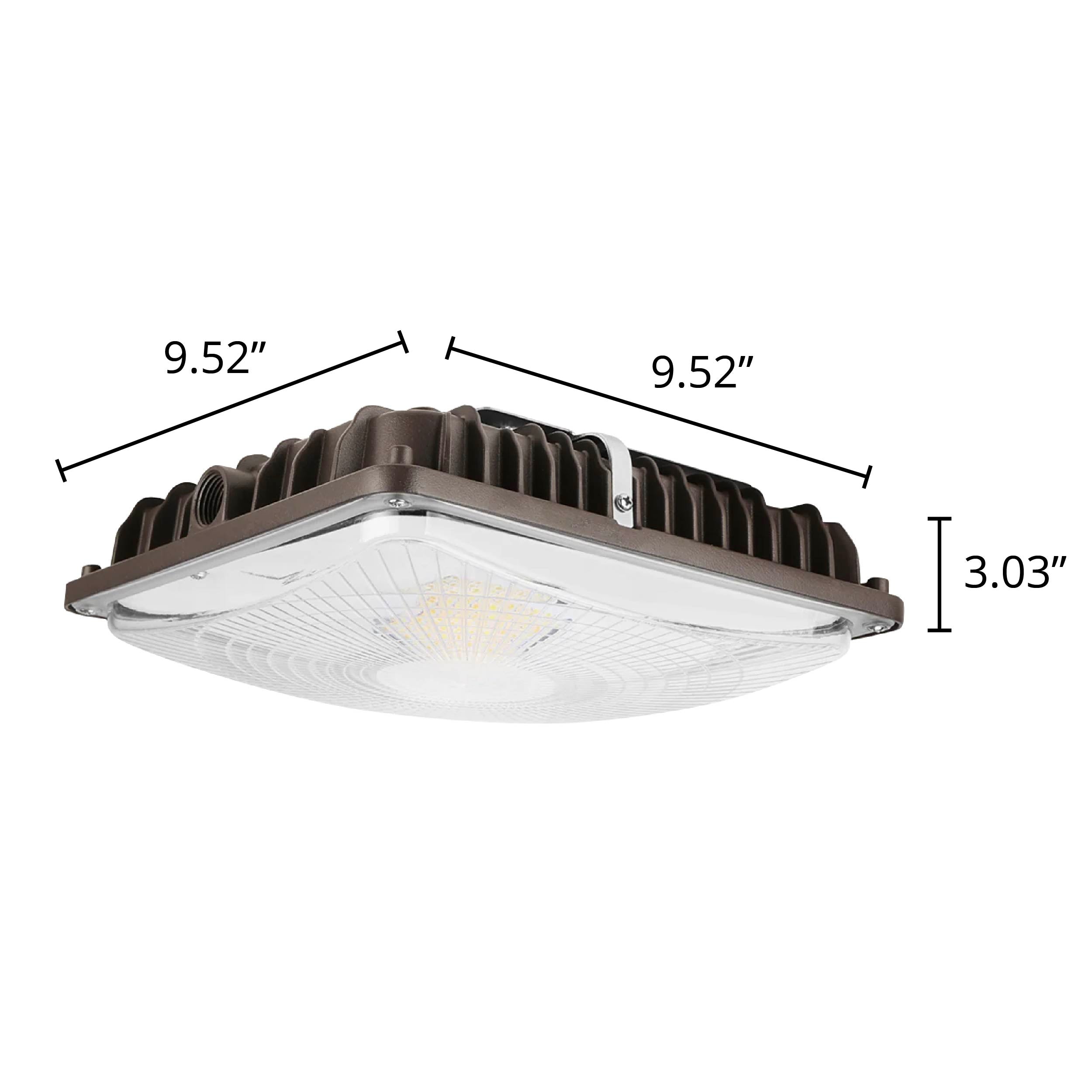

| Dimensions | 9.52” x 9.52” x 3.03” |
| Certification | UL Listed |
| Warranty | 1 Year |
FIXTURE CALCULATOR
Our easy tool tells you how many lights you need & how far apart they should be installed.
Click the cube icon
& enter the room's dimensions. "Workplane Height" is where the light levels will be measured from. For example, 2.5 ft is about desk height. "Suspension Length" is how far your fixture will hang below the ceiling. If the fixture will be flush with the ceiling or recessed, enter 0.
As you make changes, the layout updates instantly to show recommended fixture (luminaire) quantities and spacing. Click the printer icon
in the top bar to get a report you can print or share.
COMPARE KEY FEATURES
Essentials LED Canopy Light - 3 CCT - 24/36/47/60W
|
LED Canopy Light - 2 CCT - 63/45/30W
|
LED Canopy Light - 2 CCT - 60/46/36/22W
|
|
|---|---|---|---|
| Wattage | 24W/36W/47W/60W selectable at install | 63W/45W/30W selectable at install | 60W/46W/36W/22W selectable at install |
| Equivalent to | 100W to 250W | 250W, 175W, 100W | Up to 200W |
| Light Output | 4,000/5,600/7,000/8,400 lumens @ 4000K | 7700/6500/5000/3600 lumens | 7700/6500/5000/3600 lumens |
| Color Temperature (CCT) | 3000K/4000K/5000K selectable at install | 4000K/5000K selectable at install | 4000K/5000K selectable at install |
| Warranty | 1 Year | 5 Years | 5 Years |
|
$59.95
|
$79.88
View Details
|
$89.95
View Details
|
