ELEDLights

100W Selectable Architectural LED Linear Up/Down Light

ELEDLights

100W Selectable Architectural LED Linear Up/Down Light

0 Reviews

SKU: ALINS2-40WCS-W

$57.55

$59.95

Save $2.40 (4%)

A sleek architectural pendant with precise control over output, color temp, and up/down balance.

Independently adjust uplight and downlight with five CCT options from 3000K to 6500K on-site.
Links up to 8 units with I, L, T, and X connectors for custom layouts in any commercial space.
DLC Premium certified at 130 lm/W — available in 2ft, 4ft, and 8ft lengths, 5-year warranty.

Length

Variant

Need More? Text/call (858) 650-9400

A sleek architectural pendant with precise control over output, color temp, and up/down balance.

Independently adjust uplight and downlight with five CCT options from 3000K to 6500K on-site.
Links up to 8 units with I, L, T, and X connectors for custom layouts in any commercial space.
DLC Premium certified at 130 lm/W — available in 2ft, 4ft, and 8ft lengths, 5-year warranty.

Details

Architectural Linear Up/Down Light for Modern Commercial Spaces

Customizable wattage, color temperature, and uplight ratio for precise on-site tuning
Sleek suspended design with continuous-run capability up to 8 linked fixtures
High-efficiency, DLC Premium performance with long-life 0–10V dimming

These architectural direct/indirect fixtures deliver tailored lighting for offices, retail, schools, and contemporary open spaces. Each unit offers selectable wattage, tunable CCT (3500K–6500K), and adjustable uplight output (100/75/50% or off), giving you full control over visual comfort and atmosphere. Suspension mounting with 47" cables provides a clean, modern aesthetic, while optional I-, L-, X-, and T-shape connectors support unique, continuous lighting layouts. With up to 130 lm/W efficacy, 54,000-hour life, and a 5-year warranty, this fixture provides long-term reliability and premium performance.

Use cases

Ideal for offices, conference rooms, corridors, retail stores, schools, hospitality interiors, collaborative workspaces, and architectural design projects requiring clean lines and customizable illumination.

Specs

Wattage(s)	2ft: 15/20/25/30/40W 4ft: 25/30/35/40/50W 8ft: 50/60/70/80/100W
Replaces Wattage(s)	2ft: 120W 4ft: 150W 8ft: 300W
Light Output	2ft: 1,950/2,600/3,250/3,900/5,200 lumens 4ft: 3,250/3,900/4,550/5,200/6,500 lumens 8ft: 6,500/7,800/9,100/10,400/13,000 lumens
Luminous Efficacy (lm/W)	130 lm/W
Average Lamp Life	50,000 hours
Color Temperature(s)	3000K/4000K/5000K/5700K/6500K
CRI (Color Accuracy)	>80
Dimming	0-10V
Light Distribution Pattern	General distribution pattern Learn More × Light Distribution Options Type III Beam Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles. Type IV Beam Provides forward directed light with minimal backlighting - great for perimeter installations. Type V Beam Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations.
Installation	Suspension - 47" cable Linkable up to 8 units L, X, and T-shape accessories available
Enclosure Rating	IP44
Input Voltage	120-277VAC
Power Factor	0.90
Temperature Rating	-40˚F to 113˚F
Housing Color	White

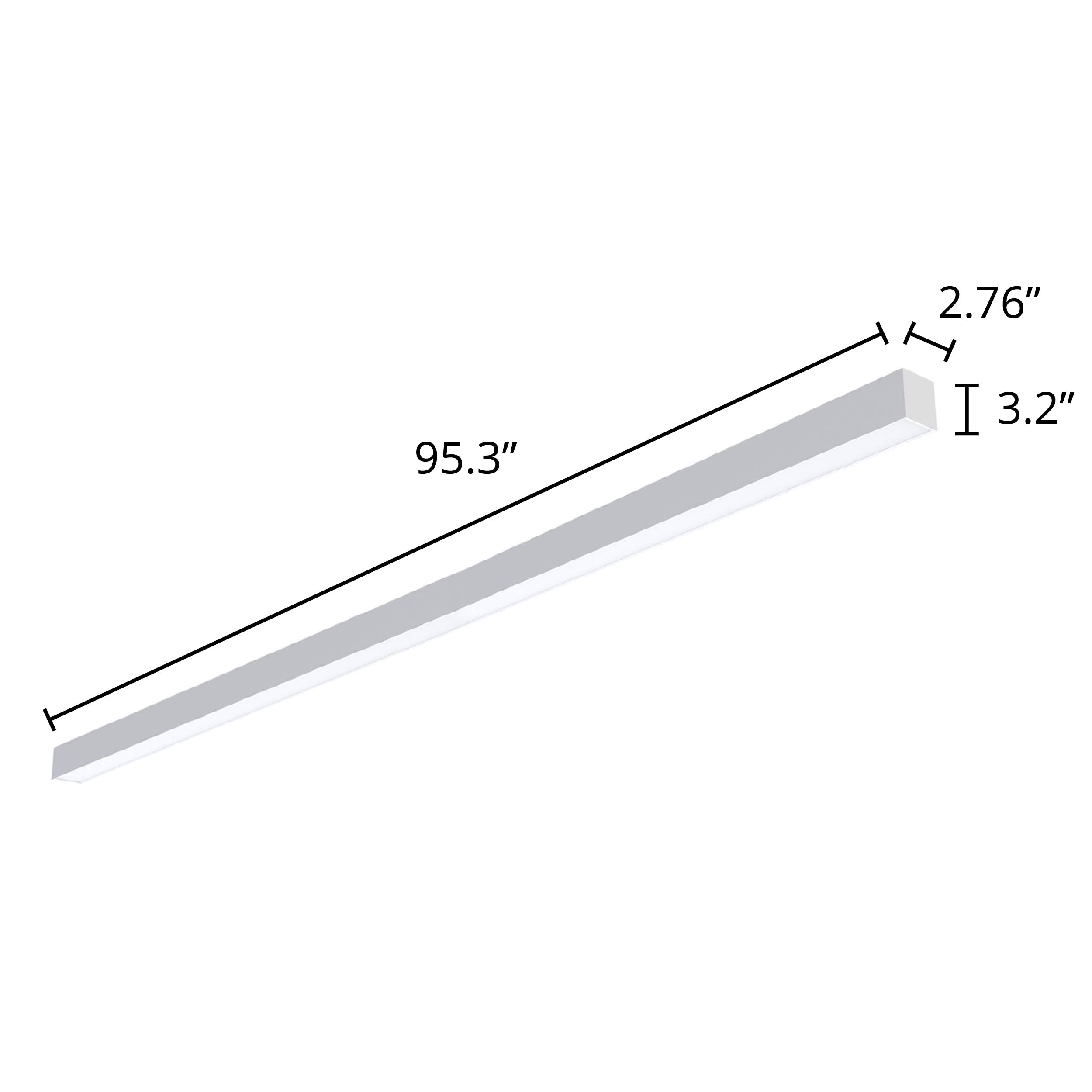

Dimensions	2ft: 24.1" x 2.76" x 3.2" (612 x 70 x 82 mm) 4ft: 47.7" x 2.76" x 3.2" (1212 x 70 x 82 mm) 8ft: 95.3" x 2.76" x 3.2" (2419 x 70 x 82 mm)
Certification	DLC Premium
Warranty	5 Years
Additional Specifications	Topside Power Tunable: 100%-75%-50%-OFF
