A 180W architectural LED shoebox light for parking lots, roadways, campuses, and gas stations, with a choice of T3 or T5 beam angle at install, IP66-rated dark bronze housing, and 21,600 lumens at 120 lm/W replacing 400W metal halide.
- Choose T3 (forward throw) or T5 (360° spread) beam optics to match your site layout
- IP66-rated dark bronze aluminum housing handles extreme weather with a polished architectural look
- Replaces 400W metal halide (180W) with 21,600 lumens at 120 lm/W for long-term energy savings
Need More? Text/call (858) 650-9400
A 180W architectural LED shoebox light for parking lots, roadways, campuses, and gas stations, with a choice of T3 or T5 beam angle at install, IP66-rated dark bronze housing, and 21,600 lumens at 120 lm/W replacing 400W metal halide.
- Choose T3 (forward throw) or T5 (360° spread) beam optics to match your site layout
- IP66-rated dark bronze aluminum housing handles extreme weather with a polished architectural look
- Replaces 400W metal halide (180W) with 21,600 lumens at 120 lm/W for long-term energy savings
Choose options
Only 7 Remaining
Need More? Text/call (858) 650-9400
Only 7 Remaining
Need More? Text/call (858) 650-9400
Details

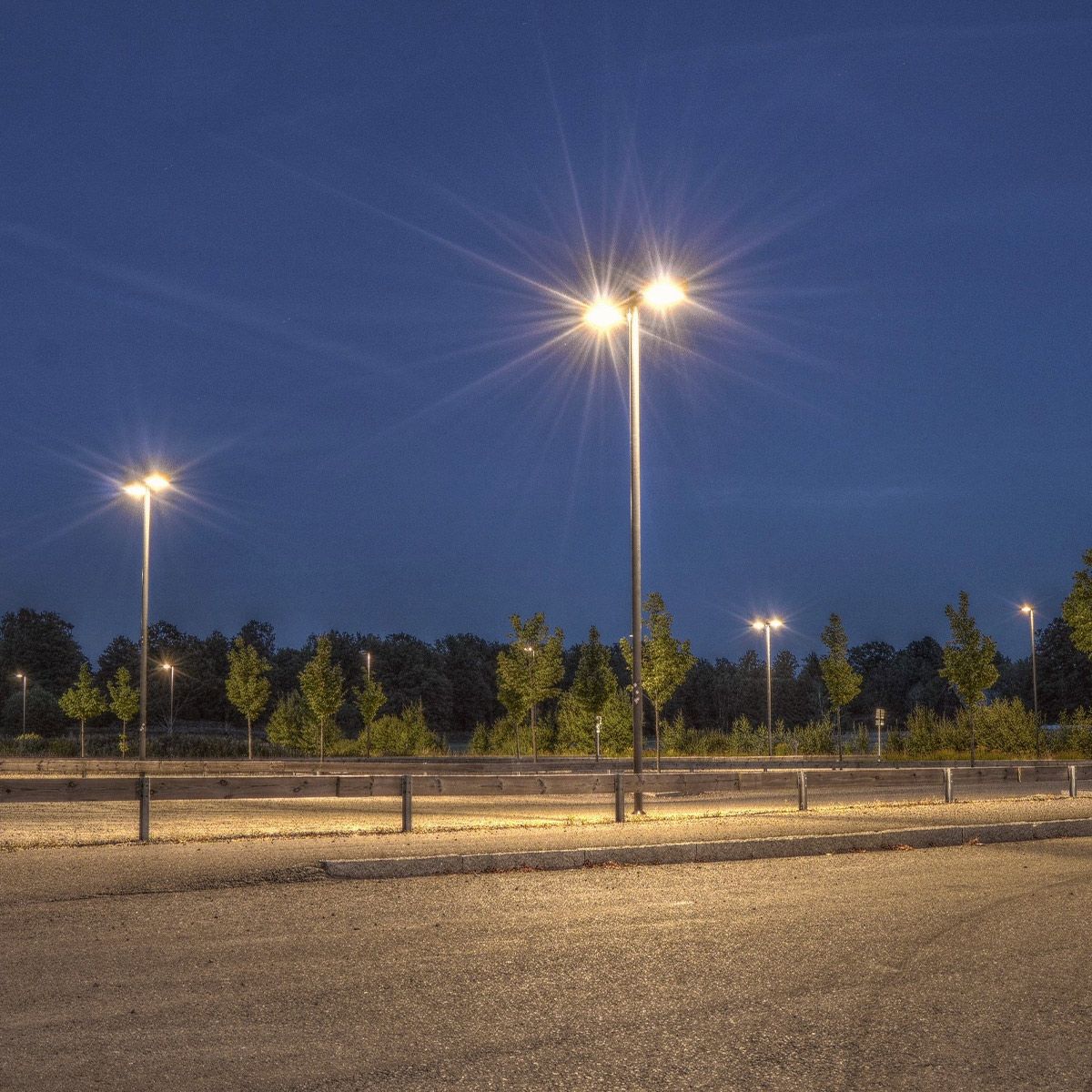

The architectural 180W LED shoebox light is UL listed and offers 21,600 lumens (120 lumens per watt). Its glare-free cold white light (5000K) will light up your parking lot, garage, roadway, pathways, gas station, campus or other outdoor area. It shines bright when reliability is critical.

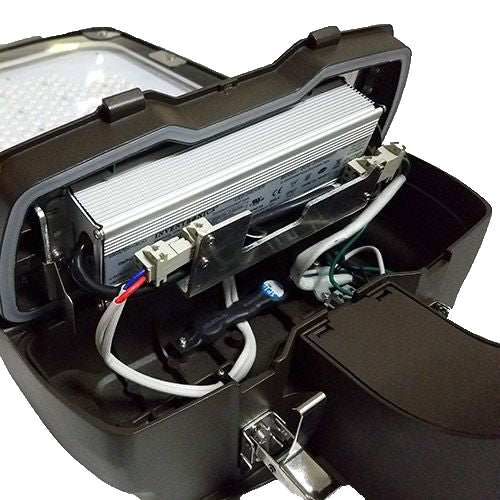

This light is great for designers and architects due to its sleek finish and elegant design. Other features include easy installation and maintenance capabilities, a high efficiency LED driver and high grade LED chips. Its IP66 rating also means this module can withstand extreme weather conditions.
Choose between two different beam angles – T3 and T5. T3 beam angle, the most common, pushes light forward. The T5 beam angle, which covers the widest area, spreads light all around evenly.

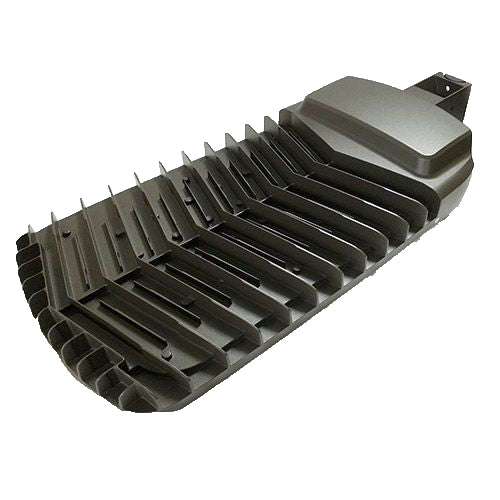

A dark bronze aluminum design offers better cooling for low maintenance lighting. This light will last longer than 400W metal halides and it will prove more efficient as it’s built to last more than 50,000 working hours.
Specs
| Wattage(s) | 180W |
| Replaces Wattage(s) | 400W |
| Light Output | 21,600 lumens |
| Luminous Efficacy (lm/W) | 120 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | 70 |
| Beam Angle | T3 (pushes light forward)|T5 (spreads light all around) |
| Recommended Installation Height | 42 – 52 ft. |
| Working Environment | Outdoor |
| Enclosure Rating | IP66 (Protected against dust and high-pressure jets of water) |
| Light Type | Wired Fixture |
| Input Voltage | 100-277 VAC |
| Temperature Rating | -30 to 50 C° / -22 to 122 F° |
| Housing Material | Aluminum Alloy |
| Housing Color | Dark Bronze |
| Dimensions | 499 x 320 x 106 mm/ 19.6" x 12.6" x 4.2" (excluding mounting hardware) |
| Certification | DLC 5.0, UL |
| Warranty | Warehouse clearance 1 year warranty with USA warranty support direct from ELEDLights |
