Built to Perform, Built to Last

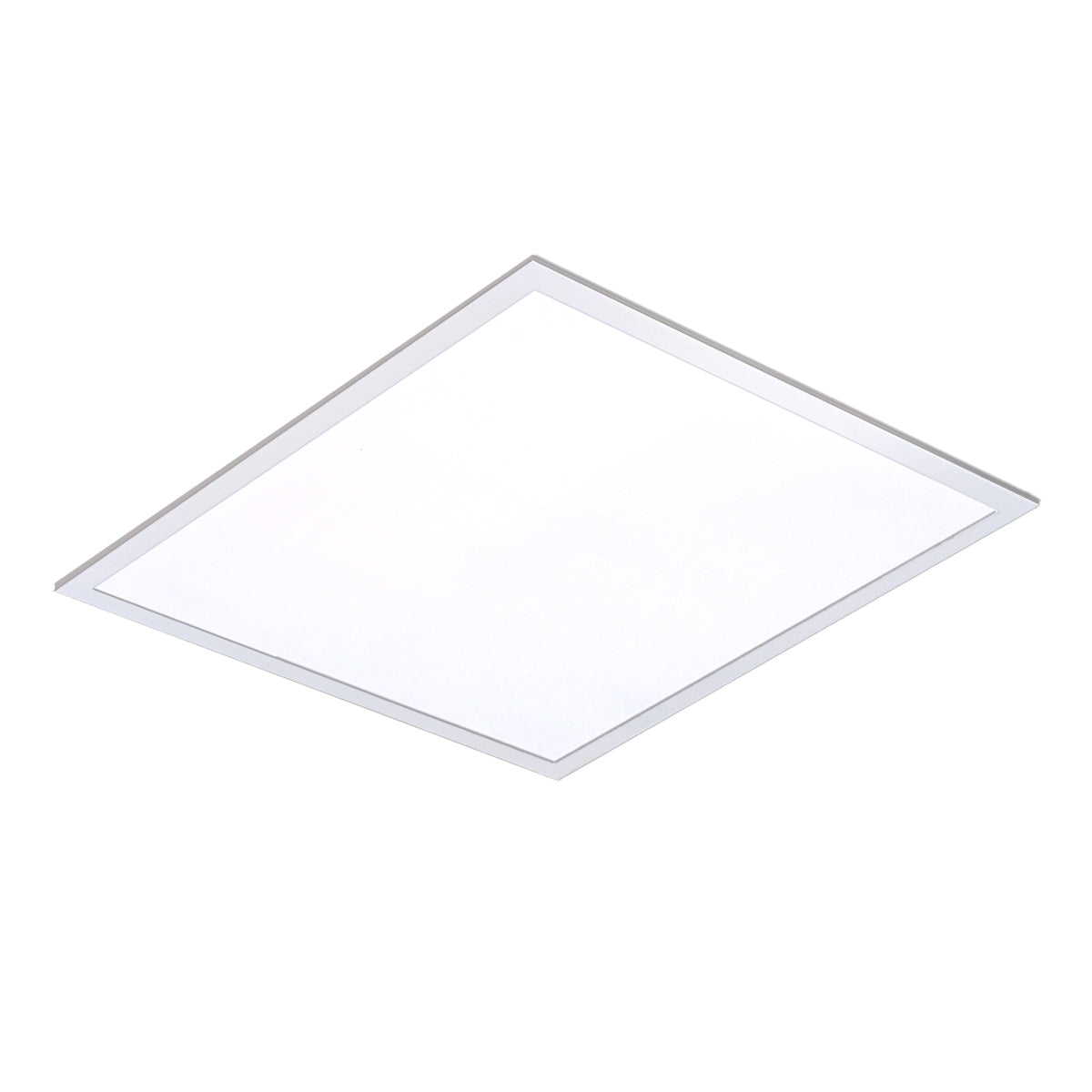

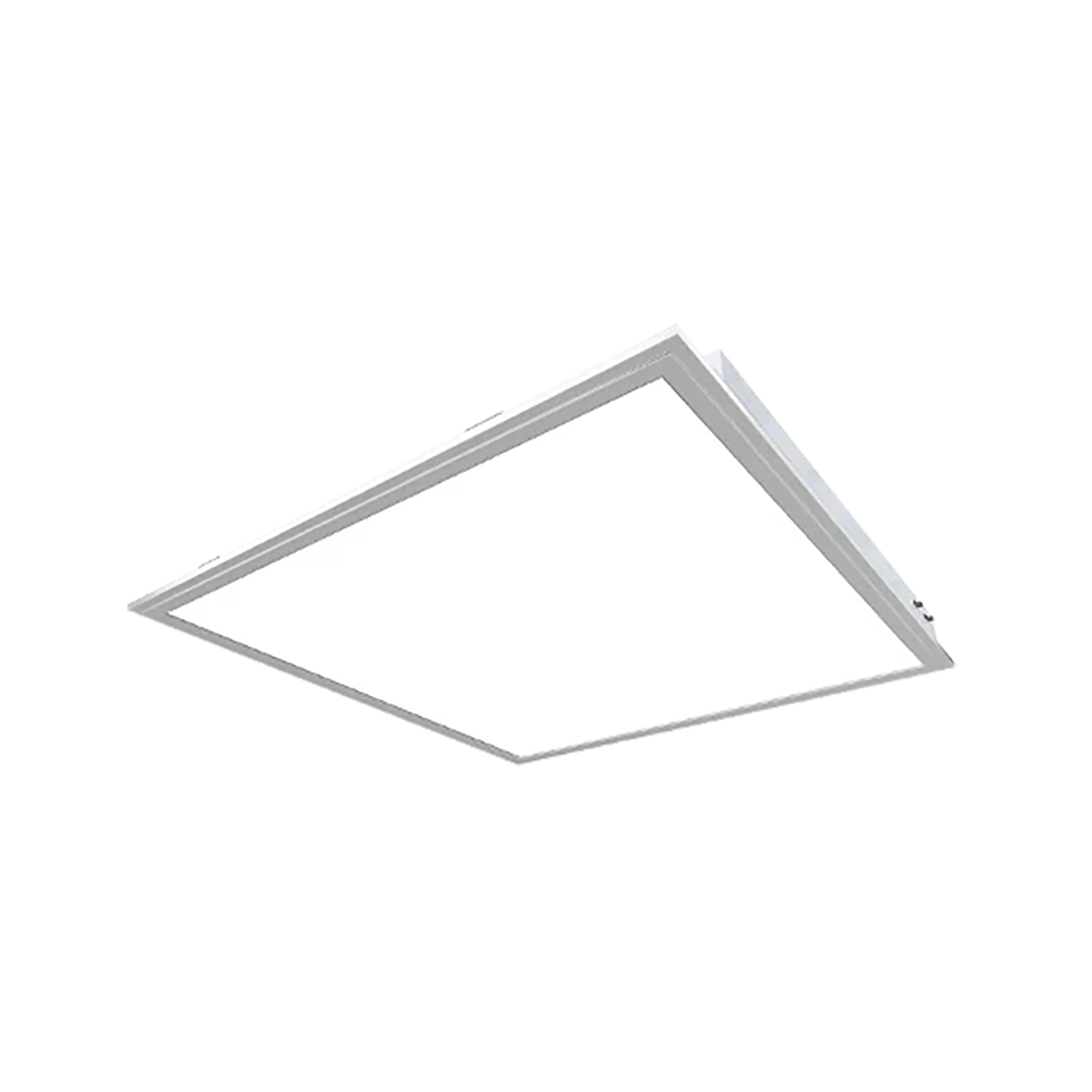

The Archipelago ARCH-II is a backlit 2x2 LED panel suited to private offices, corridors, exam rooms, and smaller commercial spaces. It is built around components that maintain their performance over time: Samsung 2835 LED chips, a microchip-programmed driver, and a frosted PMMA lens that distributes light evenly from day one and keeps doing so for years.

• Backlit Design for Seamless Light Quality: The frosted PMMA backlit lens distributes light evenly across the full panel face without the bright-spot hot zones common in edge-lit designs. Unlike polycarbonate lenses, PMMA doesn't yellow with age — the fixture looks the same in year five as it does at installation.
• Samsung 2835 LED Chips, Microchip-Programmed Driver: High-density Samsung 2835 LEDs are driven by a microchip-programmed light engine that maintains consistent output and color temperature over the fixture's life. CCT is warranted to shift no more than 180K over the warranty period — no drift in color as the panel ages.
• Non-Stroboscopic Output: The intelligent driver delivers continuous, stable light without perceptible brightness fluctuations — an important consideration in schools and healthcare settings where flicker causes eye strain, headaches, and discomfort over extended periods.
• High-Quality Driver with Low THD: THD below 15% and power factor above 0.9 reflect a driver engineered for commercial electrical environments — relevant in healthcare and education facilities where power quality and harmonic distortion on the circuit matter.
• Selectable Wattage and CCT: Field-select 25W, 30W, or 36W and choose 3500K, 4000K, or 5000K at installation — one SKU covers multiple room types without separate orders.

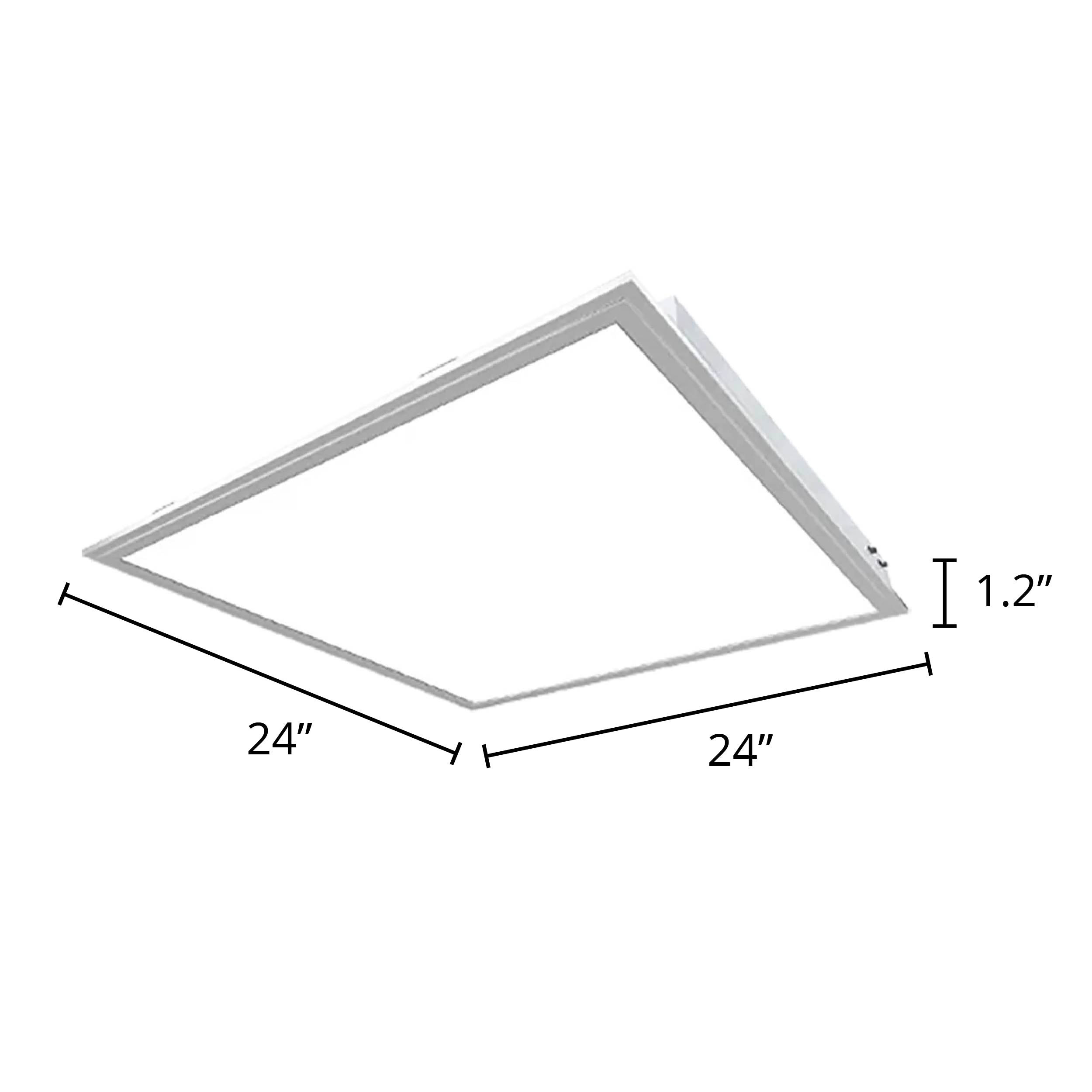

• Slim 1.2" Profile, Lightweight at 2.3 lbs: At only 1.2" deep and 2.3 lbs, this panel is among the lightest 2x2 options available — easy to handle during installation, minimal stress on the T-bar grid, and fast to hang across large multi-fixture installs.
• Damp Location Listed to -10°F: UL damp location rating suits restrooms, locker rooms, and utility areas — operating down to -10°F extends the application range to cold storage vestibules and unheated spaces.
• DLC Premium Listed: Qualifies for the highest tier of utility rebates to reduce project costs.

Ideal Applications

1. Private Offices & Conference Rooms: The 2x2 format suits modular ceiling layouts in private offices and smaller meeting rooms where a full 2x4 panel would be oversized — 30W or 36W at 4000K delivers crisp, comfortable task lighting.
2. Corridors & Reception Areas: Even backlit distribution and a slim profile suit narrow corridors and reception areas where ceiling grid spacing calls for a 2x2 format — 3500K at lower wattage creates a welcoming tone.
3. Healthcare Exam Rooms: Consistent CCT over time, non-stroboscopic output, and low THD suit exam rooms and clinical spaces where light quality and electrical performance both matter — 5000K at 36W supports visual clarity for clinical tasks.
4. Schools & Classrooms: Non-stroboscopic output and even light distribution reduce eye strain for students over extended periods — 3500K or 4000K at 30W suits smaller classrooms and breakout spaces.

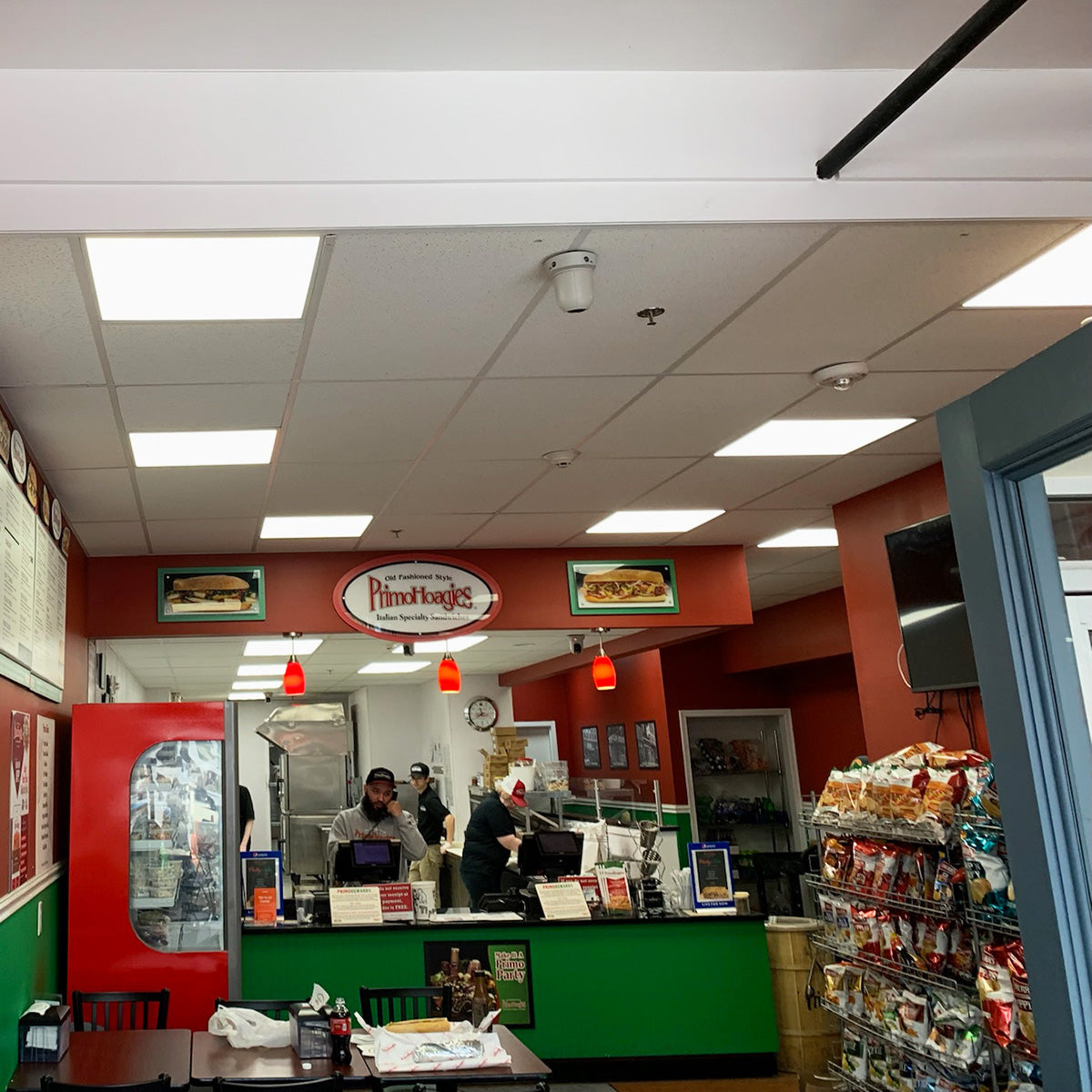

5. Retail & Deli Counters: Even backlit distribution renders product accurately without hot spots — damp location rating covers food service areas and refrigerated display sections where standard panels are not rated.
6. Restrooms & Utility Rooms: UL damp location rating handles moisture and humidity — lower wattage settings suit utility areas where full output isn't required.
