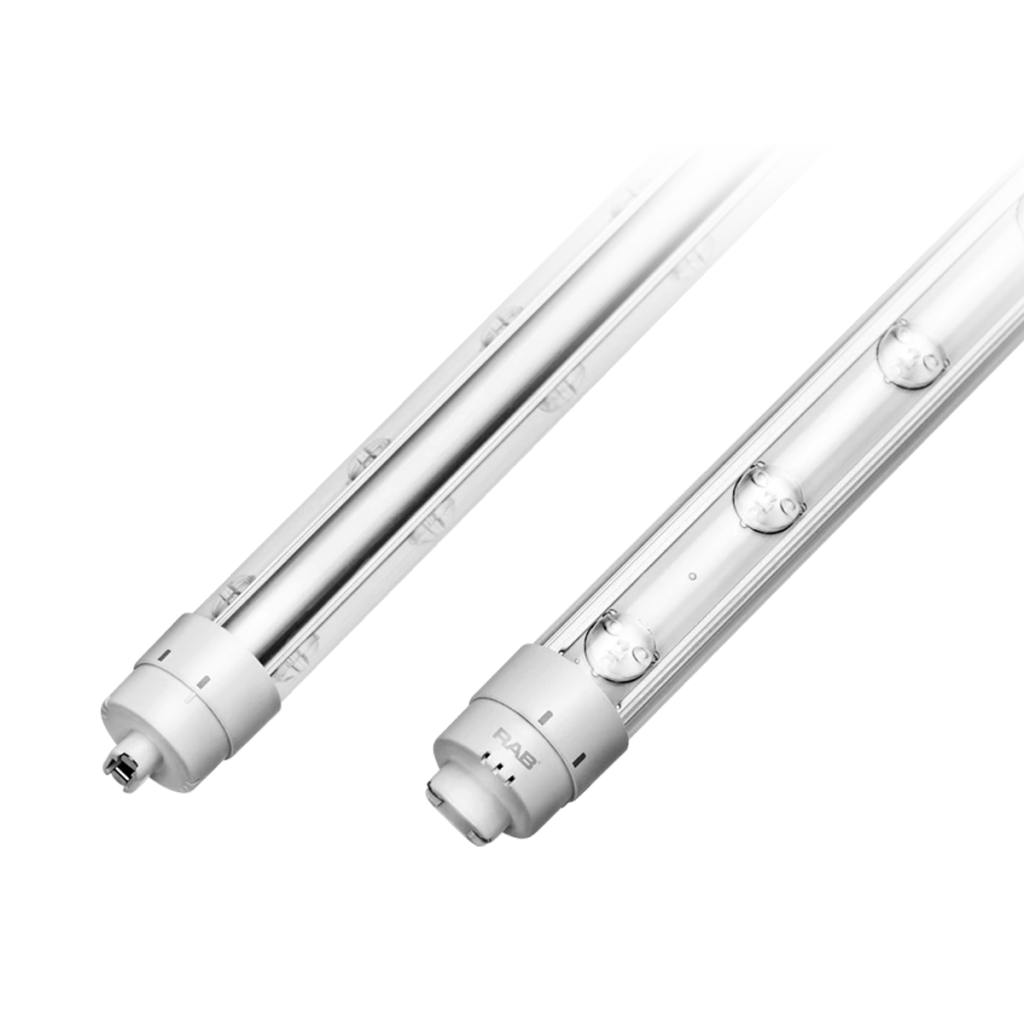

RAB 8ft 360˚ LED Sign Tube - 39.5W - Type B
Lumens:
Watts:
Color Temp:
5 Year Warranty
Maximum Brightness for Extra-Large Signs
- Quick, no-ballast installation. The double-ended ballast bypass design makes retrofits fast and reliable—simply bypass the ballast for direct power connection and long-term dependability.
- Brilliant, even 360° illumination. With LEDs on both sides, the 8ft tube delivers 5,200 lumens of powerful 6500K daylight light, providing smooth, uniform coverage without harsh hot spots.
- Built for commercial performance. Featuring durable plastic and aluminum construction, rotatable R17d endcaps, and a 50,000-hour lifespan, this tube is designed to withstand demanding outdoor and enclosed environments.
Use cases

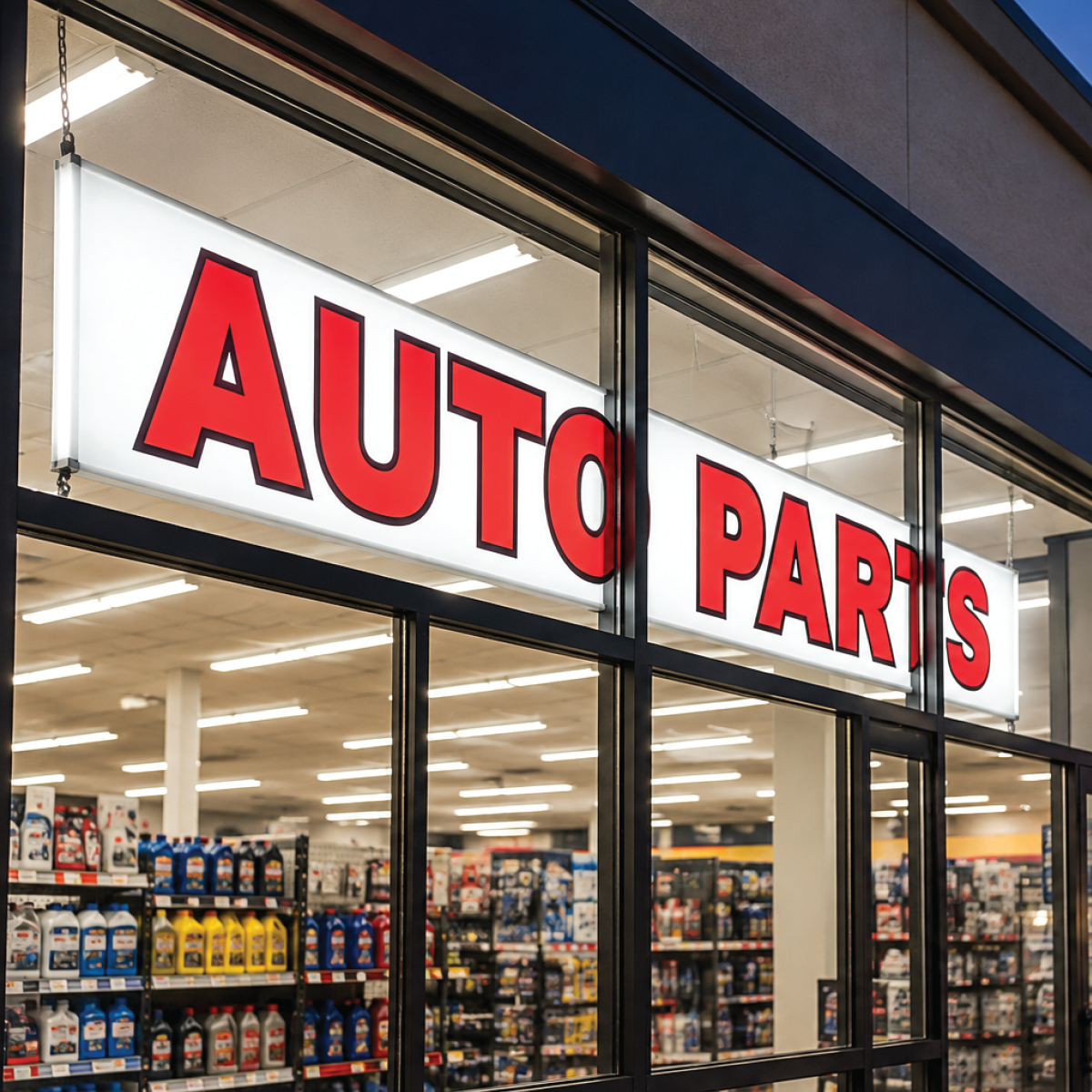

Perfect for large-format sign cabinets, pylon signage, monument displays, and other oversized commercial sign applications. A trusted solution for contractors, property managers, and business owners upgrading to energy-efficient LED sign lighting.
Saves $/year in energy costs*
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
Maximum Brightness for Extra-Large Signs
- Quick, no-ballast installation. The double-ended ballast bypass design makes retrofits fast and reliable—simply bypass the ballast for direct power connection and long-term dependability.
- Brilliant, even 360° illumination. With LEDs on both sides, the 8ft tube delivers 5,200 lumens of powerful 6500K daylight light, providing smooth, uniform coverage without harsh hot spots.
- Built for commercial performance. Featuring durable plastic and aluminum construction, rotatable R17d endcaps, and a 50,000-hour lifespan, this tube is designed to withstand demanding outdoor and enclosed environments.
Use cases
Perfect for large-format sign cabinets, pylon signage, monument displays, and other oversized commercial sign applications. A trusted solution for contractors, property managers, and business owners upgrading to energy-efficient LED sign lighting.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
Lumens:
Watts:
Color Temp:
5 Year Warranty
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 39.5W |
| Replaces Wattage(s) | 110W |
| Light Output | 5,200 lumens |
| Luminous Efficacy (lm/W) | 131 lm/W |
| Average Lamp Life | L70: 50,000 hours |
| Color Temperature(s) | 6500K |
| CRI (Color Accuracy) | 80 |
| Dimming | No |
| Bulb Shape | T8 |
| Base Type | R17d |
| Lens Cover | Clear |
| Ballast Compatibility | Compatible with all fluorescent fixtures—Bypass the ballast before installing tube |
| Installation | Type B ballast bypass with double-ended power |
| Input Voltage | 120-277VAC, 50/60Hz |
| Power Factor | >0.9 |
| THD (Total Harmonic Distortion) | <20% |
| Temperature Rating | -4°F to 131°F (-20°C to 55°C) |
| Housing Material | Plastic and aluminum |

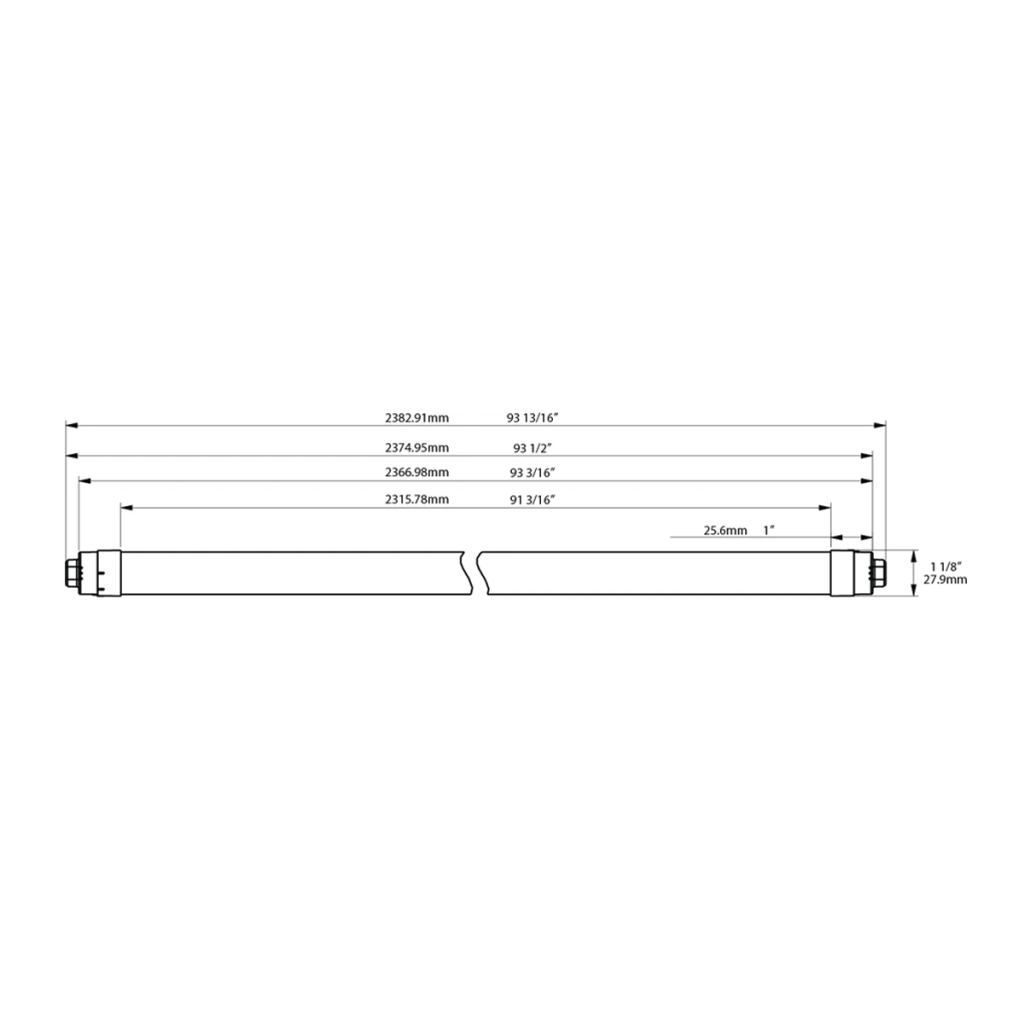

| Dimensions | 93.81" x 1.13" |
| Weight | 1.8 lbs |
| Certification | UL Listed, Damp Location |
| Warranty | 5 years |
