RAB Lighting

7ft 35W RAB 360° LED Double-Sided Sign Tube - Type B

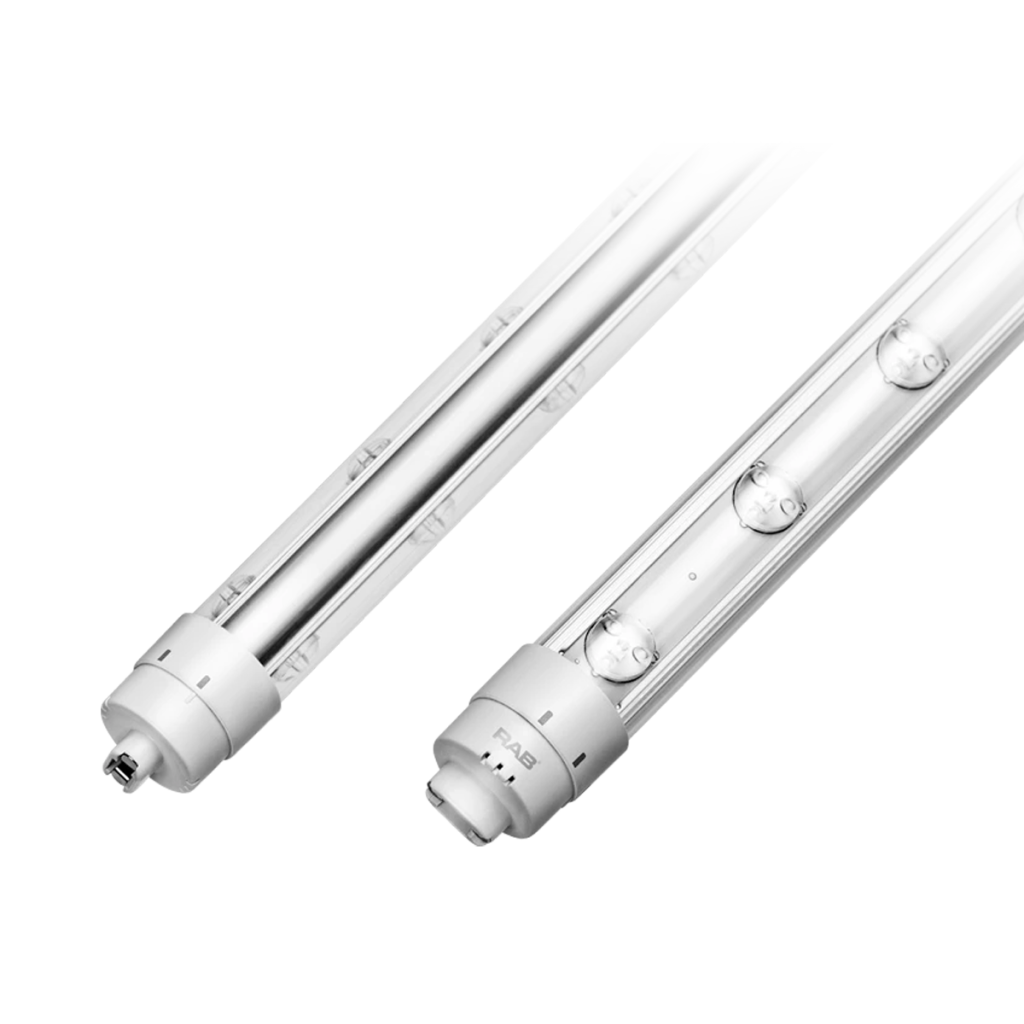

Close-up of the RAB 360° LED sign tube end cap and pin base, with LEDs visible through the clear lens
Double-sided shopping center directory sign lit by RAB sign tubes in a landscaped plaza at dusk
Two RAB 7ft 360° double-sided LED sign tubes, shown from both sides with LEDs visible through the clear lens

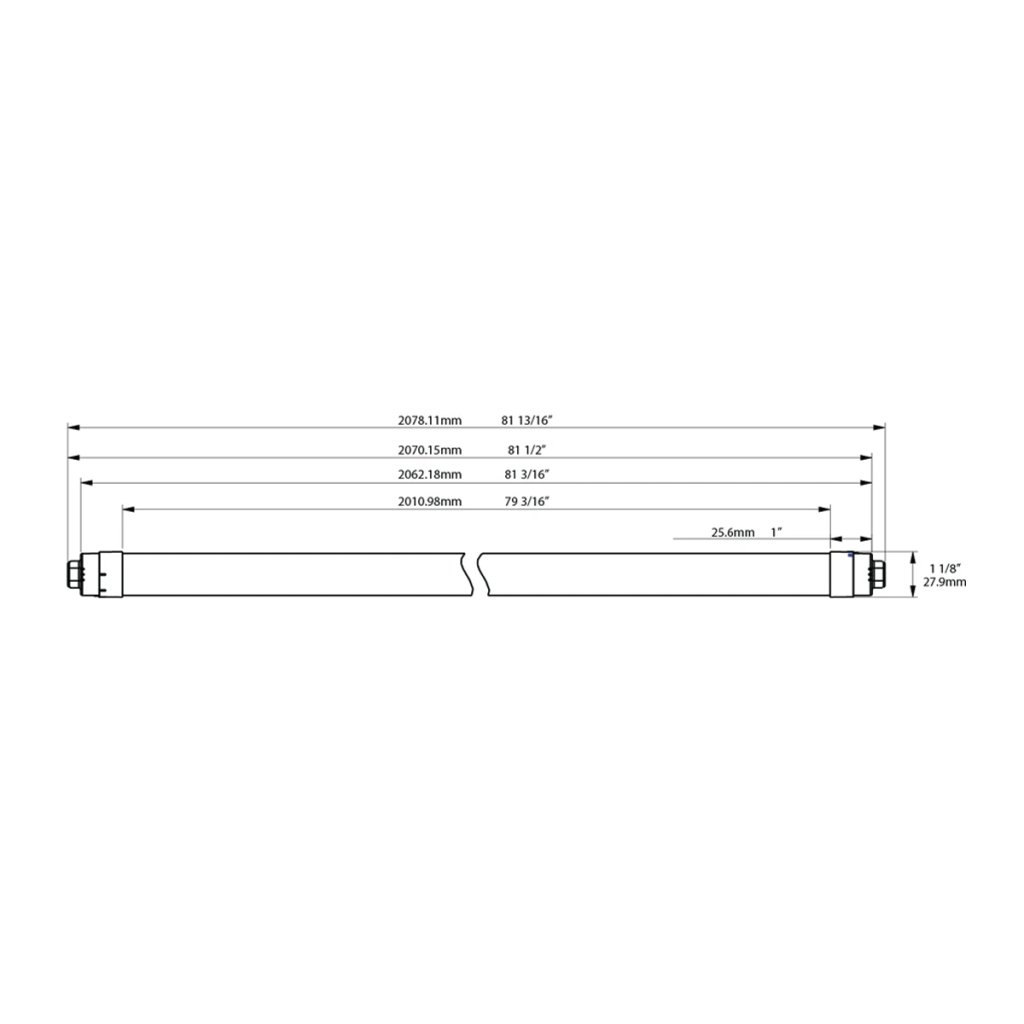

RAB 7ft 360° sign tube dimensions: 81 13/16 in overall length, 1 1/8 in diameter
RAB Lighting

7ft 35W RAB 360° LED Double-Sided Sign Tube - Type B
SKU: T8-35-84P2S-865-DE-BYP
$69.00 ea
$690.00 per box of 10

RAB's 7ft LED sign tube fills the gap between 6ft and 8ft — 4,550 lumens of crisp 6500K.

  • 35W produces 4,550 lumens of 6500K with 360° double-sided LEDs for vivid, even illumination.
  • Rotatable R17D endcaps for precise aim — operates from -20°C to 55°C in damp locations.
  • Double-ended ballast-bypass — 50,000-hour lifespan, 5-year warranty for tall pylon signs.
Contractor or Large Project? Request Project Pricing
Sold in quantities of 10 only
Sold in boxes of 10
Ships in 2-3 business days
Free Shipping Over $500

RAB's 7ft LED sign tube fills the gap between 6ft and 8ft — 4,550 lumens of crisp 6500K.

  • 35W produces 4,550 lumens of 6500K with 360° double-sided LEDs for vivid, even illumination.
  • Rotatable R17D endcaps for precise aim — operates from -20°C to 55°C in damp locations.
  • Double-ended ballast-bypass — 50,000-hour lifespan, 5-year warranty for tall pylon signs.

Specs

Wattage(s) 35W
Replaces Wattage(s) 100W
Light Output 4,550 lumens
Luminous Efficacy (lm/W) 130 lm/W
Average Lamp Life L70: 50,000 hours
Color Temperature(s) 6500K
CRI (Color Accuracy) 80
Dimming No
Bulb Shape T8
Base Type R17d
Lens Cover Clear
Ballast Compatibility Compatible with all fluorescent fixtures—Bypass the ballast before installing tube
Installation Type B ballast bypass with double-ended power
Input Voltage 120-277VAC, 50/60Hz
Power Factor >0.9
THD (Total Harmonic Distortion) <20%
Operating Temperature -4°F to 131°F (-20°C to 55°C)
Housing Material Plastic and aluminum
Dimensions 81.81" x 1.13"
Weight 1.6 lbs
Certification UL Listed, Damp Location
Warranty 5 years

Details

Bright, Full-Length LED Illumination for Oversized Signs

  1. Quick retrofit nstall. The double-ended ballast bypass design allows quick replacement of outdated fluorescent tubes—just bypass the ballast for faster installation and fewer maintenance issues.
  2. Exceptional brightness and coverage. With LEDs on both sides providing 360° illumination, this 7ft tube delivers 4,550 lumens of crisp 6500K daylight light for large signage that demands even, vivid visibility.
  3. Engineered for longevity. Durable plastic and aluminum construction resists damage, while rotatable R17d endcaps make it easy to direct light precisely. Rated for 50,000 hours of performance and suitable for damp or enclosed locations.

Use cases

Perfect for tall or wide outdoor sign cabinets, pylon signs, and large commercial displays. A reliable upgrade for contractors, property managers, and businesses looking for consistent, energy-efficient sign lighting.

Layout & Planning

Request a Custom Layout

Complex or unique space? Get a custom layout plan from our lighting experts.

×
×

Instant Rebates

Check if your utility offers rebates for new LED lights installed in commercial & industrial buildings:

×
