RAB 6ft 360˚ LED Sign Tube - 29.5W - Type B
Lumens:
Watts:
Color Temp:
5 Year Warranty
High-Performance LED Lighting for Large Sign Cabinets
- Simple ballast-bypass installation. The double-ended Type B design makes it easy to replace traditional fluorescent tubes—just bypass the ballast for faster setup and fewer maintenance issues.
- Powerful, even illumination. The 6ft LED sign tube produces 3,900 lumens of bright, 6500K daylight light with 360° output, ensuring smooth and uniform coverage across large signage with no hot spots.
- Durable and dependable. Built from sturdy plastic and aluminum, this tube resists breakage and performs in temperatures from -20°C to 55°C. Rotatable R17d endcaps make it easy to direct light where it’s needed most.
Use cases
Perfect for large outdoor signs, pylon and monument signage, and wide-format commercial displays. A trusted solution for contractors, facilities managers, and property owners seeking a long-life, energy-efficient upgrade.
Saves $/year in energy costs*
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
High-Performance LED Lighting for Large Sign Cabinets
- Simple ballast-bypass installation. The double-ended Type B design makes it easy to replace traditional fluorescent tubes—just bypass the ballast for faster setup and fewer maintenance issues.
- Powerful, even illumination. The 6ft LED sign tube produces 3,900 lumens of bright, 6500K daylight light with 360° output, ensuring smooth and uniform coverage across large signage with no hot spots.
- Durable and dependable. Built from sturdy plastic and aluminum, this tube resists breakage and performs in temperatures from -20°C to 55°C. Rotatable R17d endcaps make it easy to direct light where it’s needed most.
Use cases
Perfect for large outdoor signs, pylon and monument signage, and wide-format commercial displays. A trusted solution for contractors, facilities managers, and property owners seeking a long-life, energy-efficient upgrade.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
Lumens:
Watts:
Color Temp:
5 Year Warranty
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 29.5W |
| Replaces Wattage(s) | 85W |
| Light Output | 3,900 lumens |
| Luminous Efficacy (lm/W) | 132 lm/W |
| Average Lamp Life | L70: 50,000 hours |
| Color Temperature(s) | 6500K |
| CRI (Color Accuracy) | 80 |
| Dimming | No |
| Bulb Shape | T8 |
| Base Type | R17d |
| Lens Cover | Clear |
| Ballast Compatibility | Compatible with all fluorescent fixtures—Bypass the ballast before installing tube |
| Installation | Type B ballast bypass with double-ended power |
| Input Voltage | 120-277VAC, 50/60Hz |
| Power Factor | >0.9 |
| THD (Total Harmonic Distortion) | <20% |
| Temperature Rating | -4°F to 131°F (-20°C to 55°C) |
| Housing Material | Plastic and aluminum |

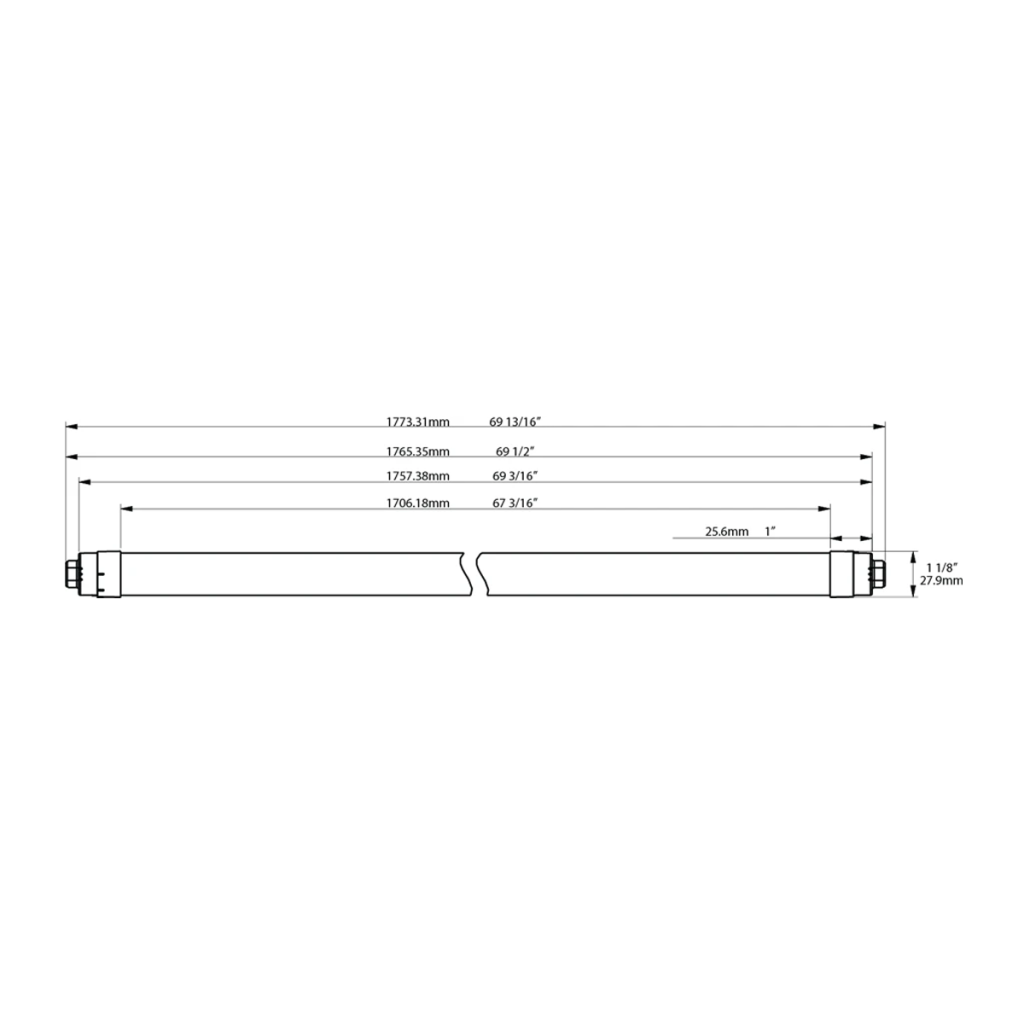

| Dimensions | 69.81" x 1.13" |
| Weight | 1.4 lbs |
| Certification | UL Listed, Damp Location |
| Warranty | 5 years |
