60W Remote-Controlled Solar LED Area Light with Lens Tilt
60W Remote-Controlled Solar LED Area Light with Lens Tilt
60W Remote-Controlled Solar LED Area Light with Lens Tilt
ELEDLights
0 Reviews
60W Remote-Controlled Solar LED Area Light with Lens Tilt
Regular price
This 60W all-in-one solar LED area light delivers up to 11,700 lumens at a Type II distribution, best suited for pathways and streets.
- 195 lm/W LED efficacy
- Three preprogrammed operating modes selectable by remote control
- Premium LiFePo4 battery and MPPT controller
This 60W all-in-one solar LED area light delivers up to 11,700 lumens at a Type II distribution, best suited for pathways and streets.
- 195 lm/W LED efficacy
- Three preprogrammed operating modes selectable by remote control
- Premium LiFePo4 battery and MPPT controller
Choose options
Regular price
Regular price
Specs
| Wattage(s) | 60W |
| Replaces Wattage(s) | 200W |
| Light Output | 11,700 lm |
| Luminous Efficacy (lm/W) | 195 lm/W |
| Battery | LiFePO4, 460.8Wh |
| Solar Panel Type | Mono-crystalline |
| Solar Panel Wattage | 66W (18V) |
| Solar Charge Controller | MPPT |
| Solar Panel Tilt Range | 90° |
| Run Time |
Normal (100% brightness): 7 hours Intelligent mode: 3-6 days* |
| Operation Method |
Three pre-programmed operating modes with custom programming options. See data sheet for full details. |
| Average Lamp Life |
L90: 62,100 hours L80: 126,500 hours L70: 167,500 hours |
| Color Temperature(s) | 4000K |
| CRI (Color Accuracy) | 70 |
| Dimming | Yes (Timed Dimming) |
| Occupancy Sensor | Yes (Motion-Sensing Mode) |
| Motion Sensor Coverage |
Horizontal angle: 100° Mounting height: 20–33ft (6–10m) Detection distance: 45–72ft (14–22m) Activates for 30 seconds on detection |
| Charge Time | >7.5 hours (Standard)* |
| Beam Angle | Type II |
| Lens Cover | Polycarbonate Optical Lens |
| Installation | Post Top Mount (Pole Not Included) |
| Working Environment | Outdoor |
| Enclosure Rating | IP66, IK08 (excludes solar panel and motion sensor) |
| Light Type | LED |
| LED Type | LED 2835 |
| Temperature Rating | 32°F to 122°F (0°C to +50°C) |
| Housing Material | Powder-Coated Aluminum Housing |
| Housing Color | Silver Gray |

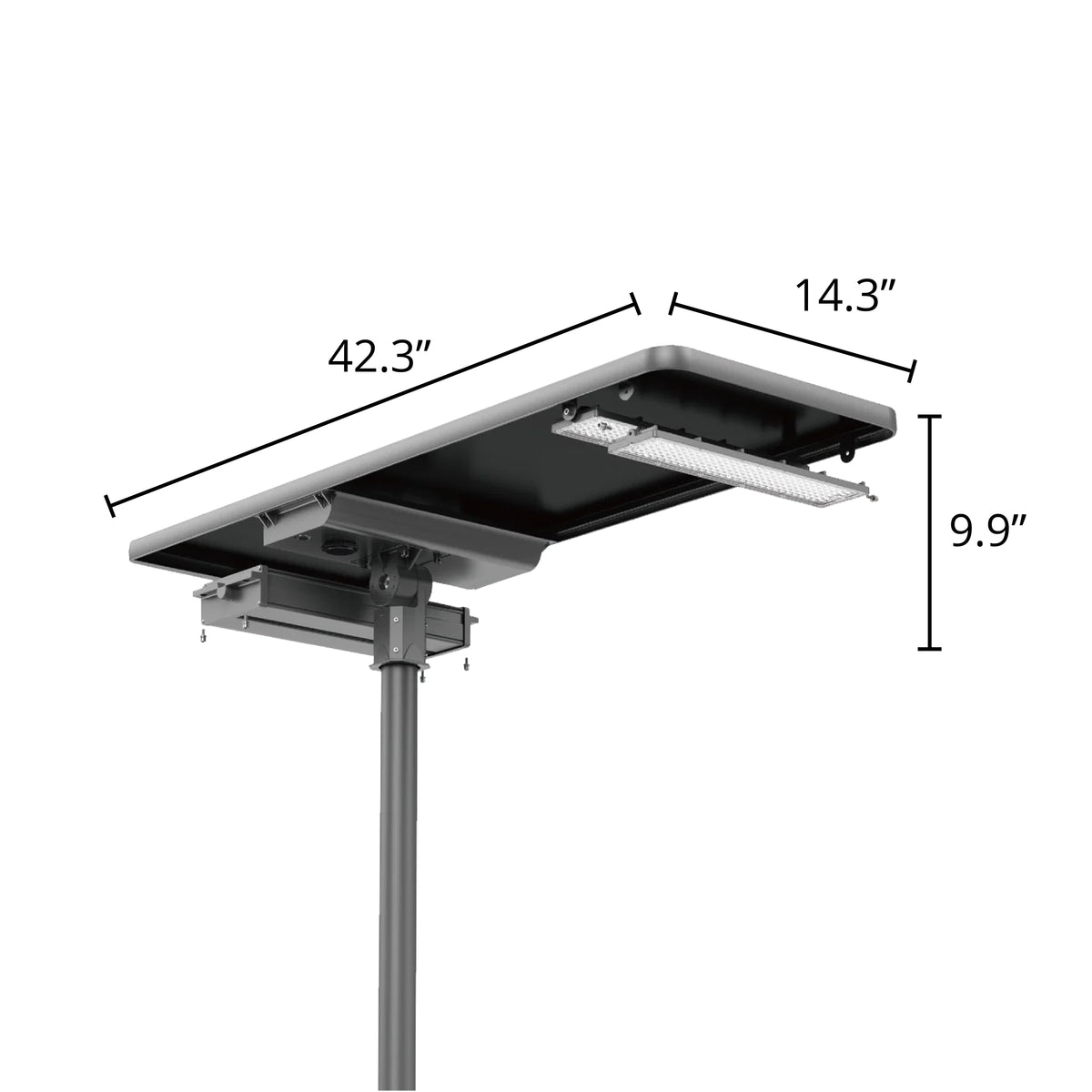

| Dimensions | 42.3” x 14.3” x 9.9” (1075 x 363 x 252mm) |
| Weight | 33.1 lbs (15.0kg) |
| Shipping Weight | 41.0 lbs |
| Package Dimensions | 35.2” x 15.7” x 5.3” (895 x 400 x 135mm) |
| Certification | CE, RoHS |
| Warranty | 5 years |
| Additional Specifications | *Performance based on ideal conditions. Solar lights are heavily affected by sunlight levels, temperatures, snow, dirt, and other conditions |
Data SheetDetails

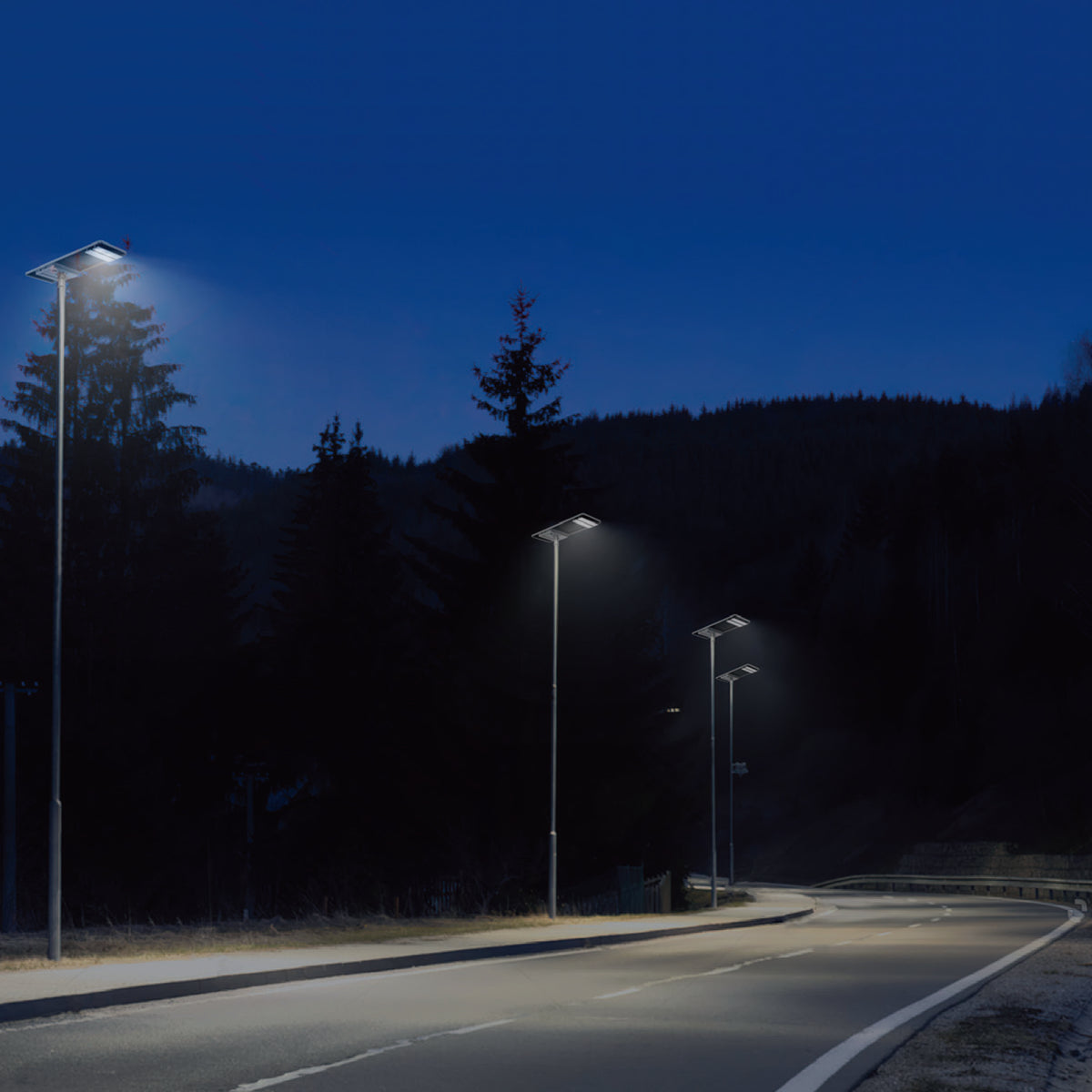

This 60W all-in-one solar area light delivers reliable off-grid illumination for parking lots, pathways, campuses, and roadway corridors — no trenching, no utility connection, low long-term maintenance.
- High System Efficiency: Delivers 11,700 lm at 195 lm/W at 4000K to maximize every watt of stored solar energy.

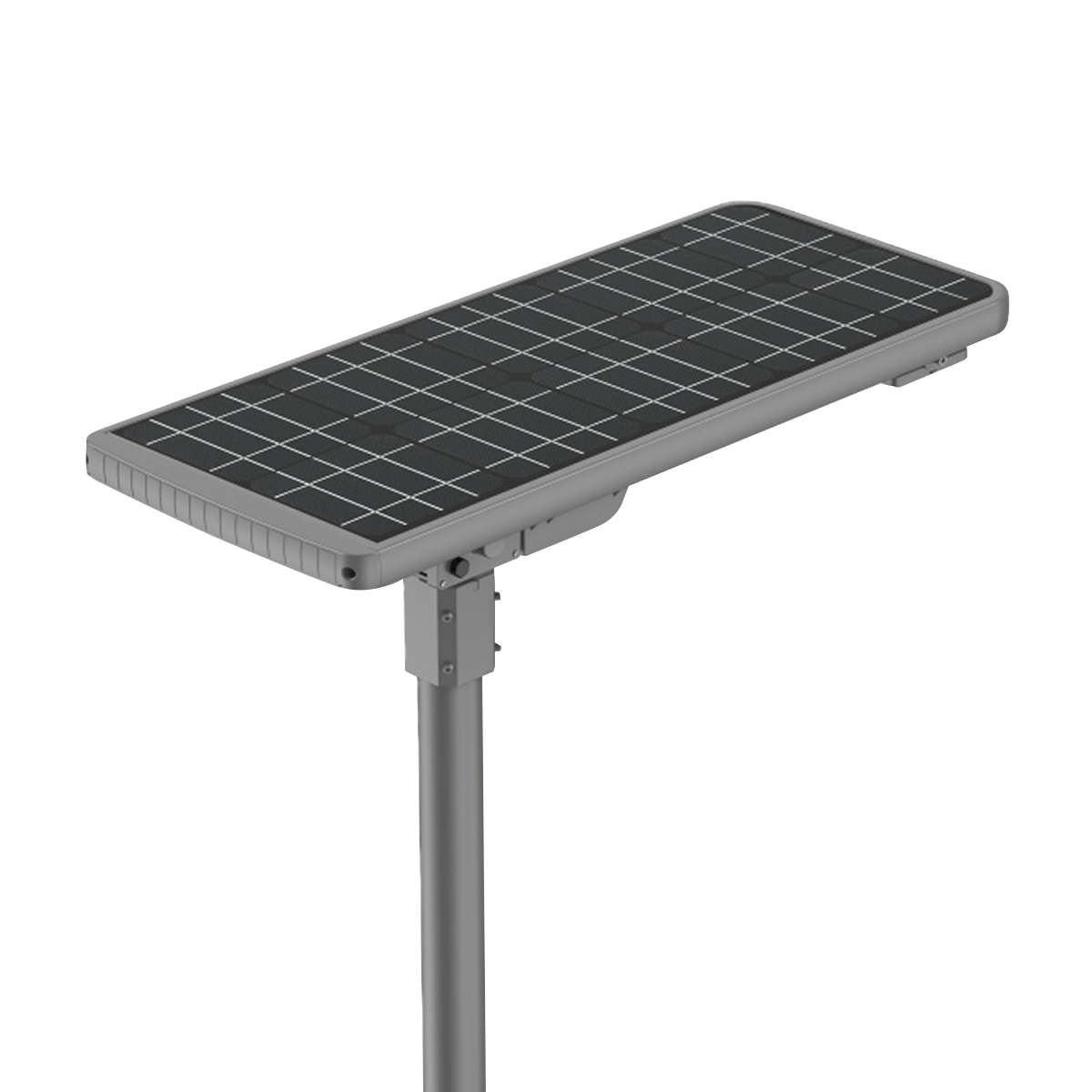

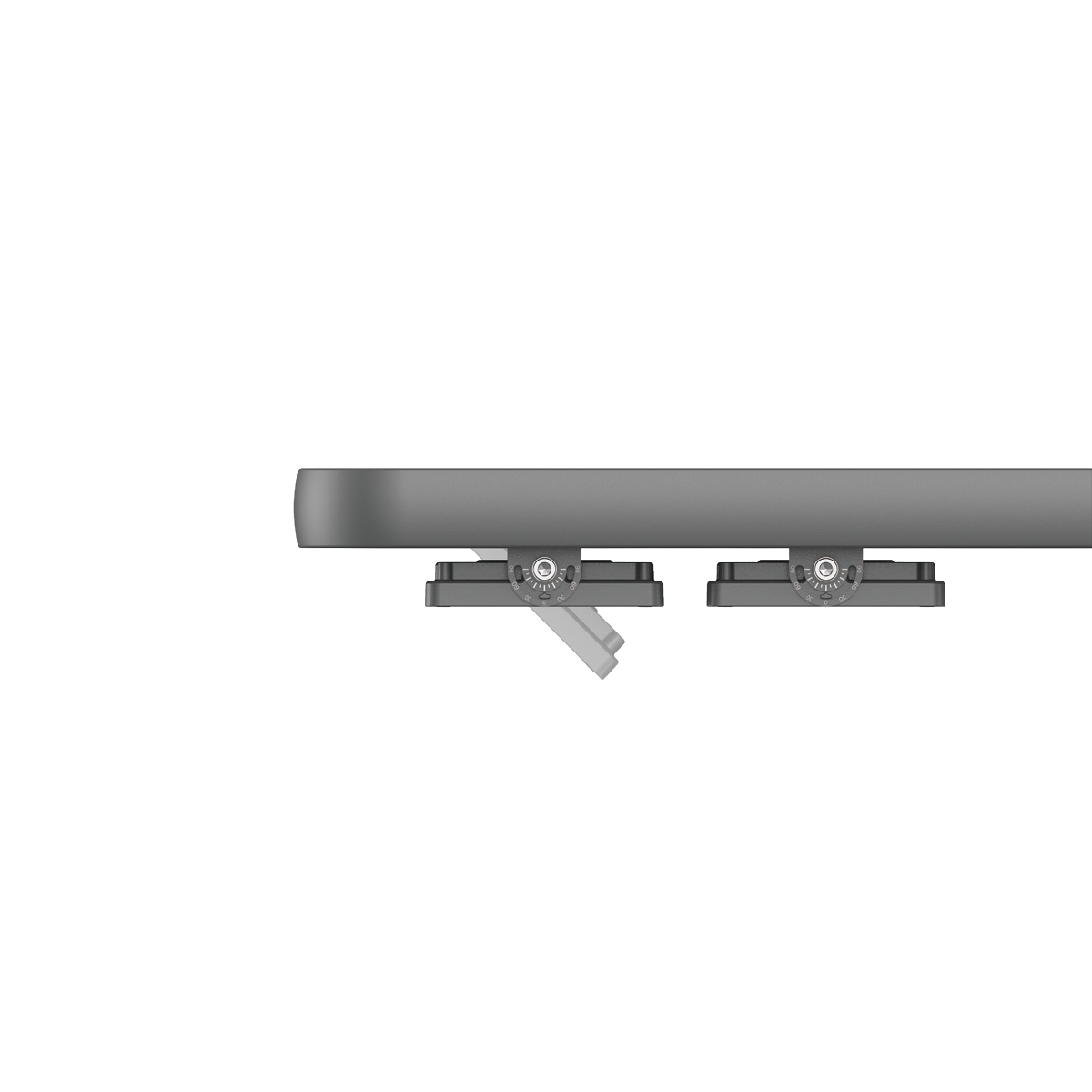

- Tiltable Panel and Lens: Both the solar panel and LED module tilt independently to optimize sun exposure & light direction — critical for real-world pole placements that aren’t due south.
- Premium Battery and Controller: High-capacity LiFePO4 battery (460.8Wh) with MPPT charge controller provides up to 3–6 days of runtime and 2000+ battery charge cycles.
- Three Selectable Working Modes: Integrated microwave motion sensor with three preprogrammed modes via included remote — ready for a wide range of applications and one-touch seasonal adjustments.
- Fully Reprogrammable: Full custom programming to fit your application — let us reprogram your remote presets before shipment or purchase the optional advanced remote to do it yourself.

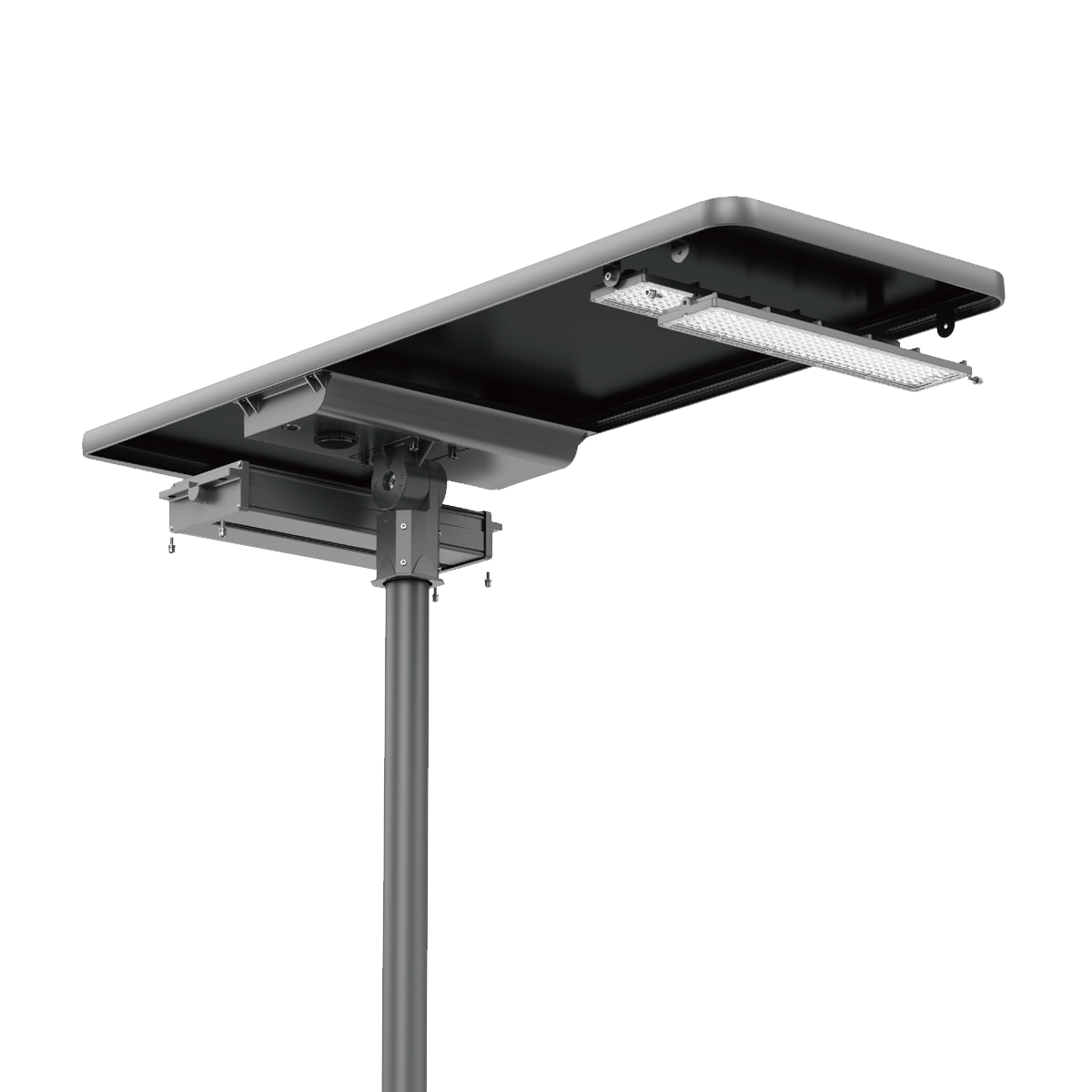

- Replaceable Battery and LED Module: Field-serviceable design keeps the fixture and panel in place while the battery or LED modules are replaced — better long-term ROI than competing products.
