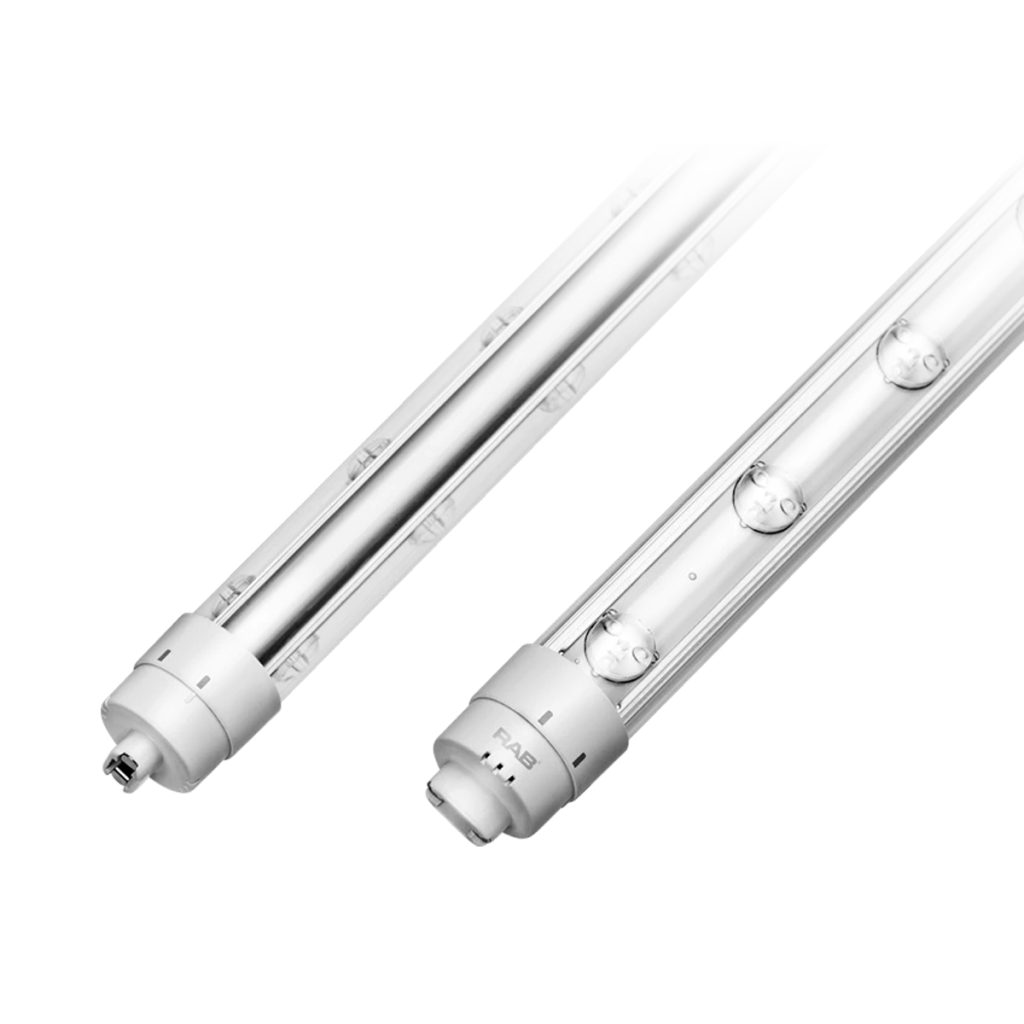

5ft 24W RAB 360° LED Double-Sided Sign Tube - Type B
Regular price
Step up from standard 4ft sign tubes with RAB's 5ft 360° LED — more coverage, no hot spots.
- 24W delivers 3,250 lumens of 6500K with LEDs on both sides for uniform 360° coverage.
- Rotatable R17D endcaps for precise aiming — operates from -20°C to 55°C.
- Double-ended ballast-bypass — 50,000-hour lifespan, 5-year warranty for pylon signs and more.
Need More? Text/call (858) 650-9400
Step up from standard 4ft sign tubes with RAB's 5ft 360° LED — more coverage, no hot spots.
- 24W delivers 3,250 lumens of 6500K with LEDs on both sides for uniform 360° coverage.
- Rotatable R17D endcaps for precise aiming — operates from -20°C to 55°C.
- Double-ended ballast-bypass — 50,000-hour lifespan, 5-year warranty for pylon signs and more.
Choose options
Details
High-Output LED Lighting for Larger Signs
- Easy retrofit installation. The double-ended ballast bypass design makes upgrades fast and straightforward—simply bypass the ballast and connect power directly for a long-lasting LED solution.
- Powerful, uniform illumination. With LEDs on both sides, this 5ft sign tube produces 3,250 lumens of bright, 6500K daylight light—perfect for large-format signage that demands smooth, even coverage without hot spots.
- Engineered for durability. Made from robust plastic and aluminum, the tube resists breakage and operates reliably in temperatures from -20°C to 55°C. Rotatable R17d endcaps make it easy to direct light exactly where it’s needed.
Use cases
Ideal for large sign cabinets, pylon signs, outdoor retail displays, and property signage. A dependable upgrade for contractors, facilities managers, and commercial property owners seeking energy-efficient LED sign lighting.
Specs
| Wattage(s) | 24W |
| Replaces Wattage(s) | 75W |
| Light Output | 3,250 lumens |
| Luminous Efficacy (lm/W) | 135 lm/W |
| Average Lamp Life | L70: 50,000 hours |
| Color Temperature(s) | 6500K |
| CRI (Color Accuracy) | 80 |
| Dimming | No |
| Bulb Shape | T8 |
| Base Type | R17d |
| Lens Cover | Clear |
| Ballast Compatibility | Compatible with all fluorescent fixtures—Bypass the ballast before installing tube |
| Installation | Type B ballast bypass with double-ended power |
| Input Voltage | 120-277VAC, 50/60Hz |
| Power Factor | >0.9 |
| THD (Total Harmonic Distortion) | <20% |
| Temperature Rating | -4°F to 131°F (-20°C to 55°C) |
| Housing Material | Plastic and aluminum |

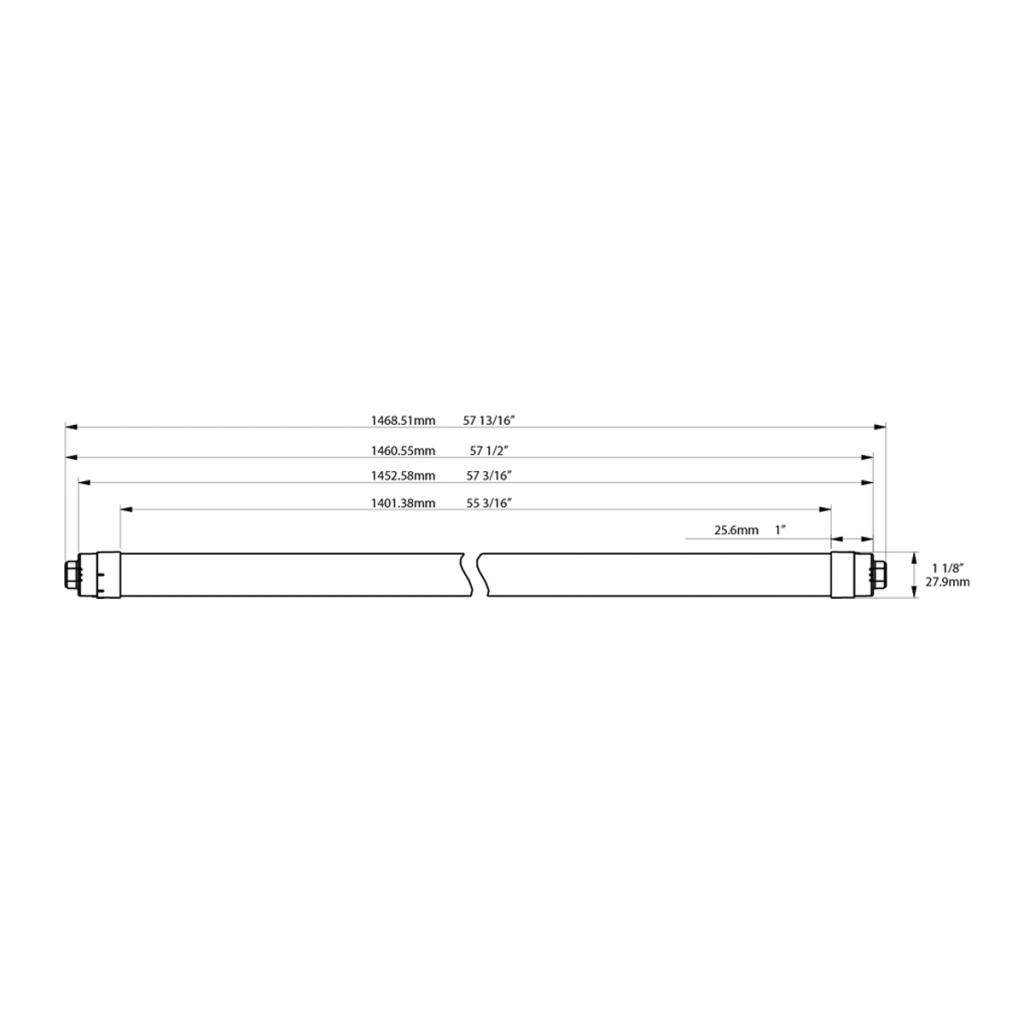

| Dimensions | 57.81" x 1.13" |
| Weight | 1.1 lbs |
| Certification | UL Listed, Damp Location |
| Warranty | 5 years |
