2x4 50W Selectable LED Living Panel Light
2x4 50W Selectable LED Living Panel Light
2x4 50W Selectable LED Living Panel Light
2x4 50W Selectable LED Living Panel Light
A DLC Premium light built for for quick installations and retrofits in tight spaces.
- Adaptable to different applications and ceiling heights across a facility
- Deformation-resistant steel housing
- Made in North America
Bulk Pricing: Text (858) 650-9400 or Request Quote
A DLC Premium light built for for quick installations and retrofits in tight spaces.
- Adaptable to different applications and ceiling heights across a facility
- Deformation-resistant steel housing
- Made in North America
Choose options
Details
LED Living's PB02 2x4 LED panel light delivers reliable, uniform illumination in a slim, T-grid-ready form factor. Great for quick installs and retrofits in offices, classrooms, retail spaces, and commercial facilities.

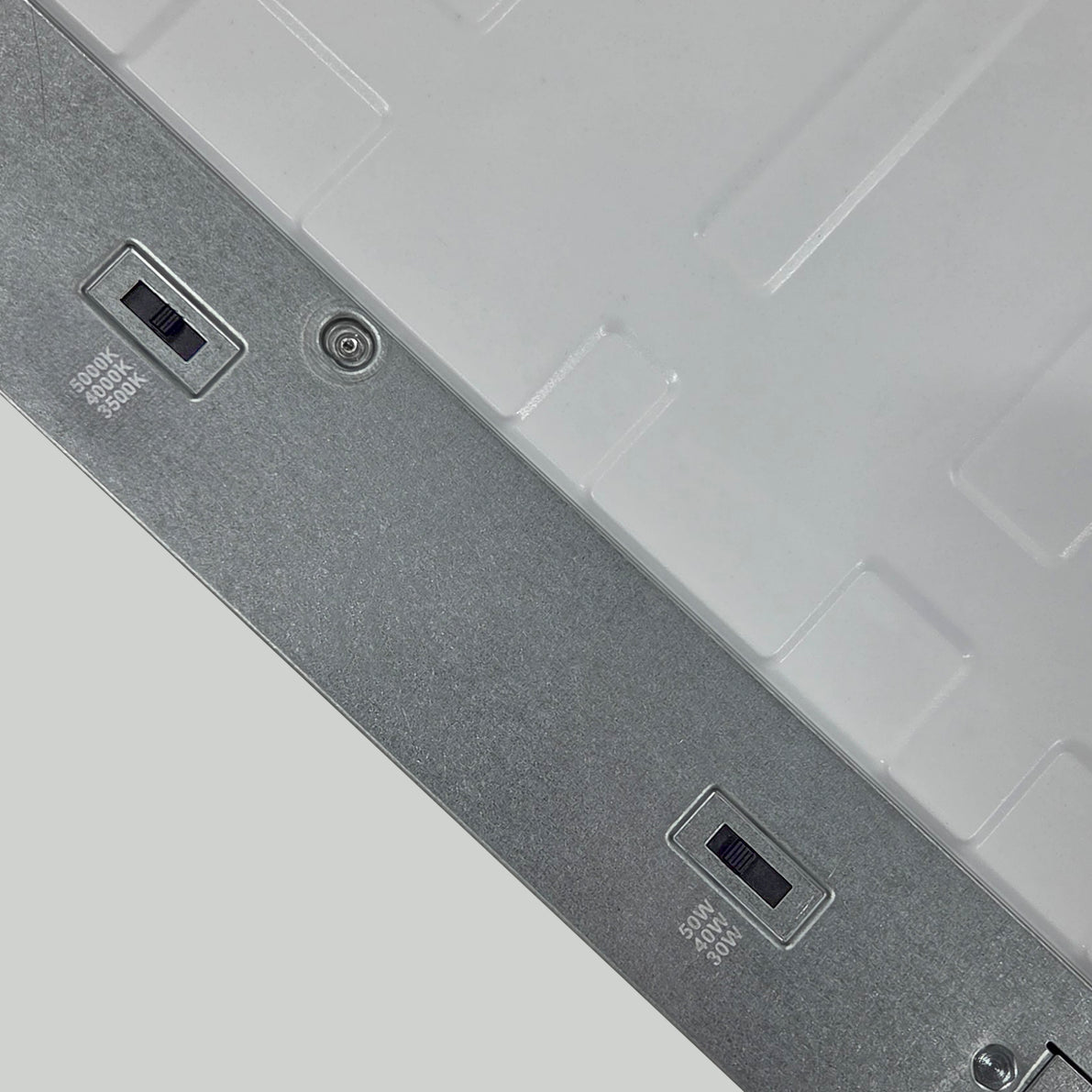

- Wattage (30/40/50W) and CCT (3500K/4000K/5000K) are both selectable via DIP switch — one product adapts to different applications and ceiling heights across a facility.
- Provides up to 6,250 lumens of comfortable, diffused light at a consistent 125 lm/W efficacy.
- 0-10V dimming for fine-tuning by room.
- Lightweight (7.1lbs) and slim (1.42") for quick installations and retrofits in tight spaces.
- DLC Premium listed for rebate eligibility.
- Made in North America — TAA compliant
- Built with a deformation-resistant steel housing and aluminum frame built for long-term commercial performance.
Backed by a 5-year warranty and available through ELEDLights with competitive pricing on every order.
Specs
| Wattage(s) | 30/40/50W Selectable |
| Replaces Wattage(s) | 120W |
| Light Output | 3,750 to 6,250 lm |
| Luminous Efficacy (lm/W) | 125 lm/W |
| Average Lamp Life | L70: 50,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K Selectable |
| CRI (Color Accuracy) | 80 |
| Dimming | Yes |
| Dimming Range | 0-10V |
| Beam Angle | 120° |
| Lens Cover | PMMA diffuser |
| Installation | Recessed; fits standard 2' x 4' T-grid ceiling |
| Light Type | LED 2835 |
| LED Type | LED 2835 |
| Input Voltage | 120-277VAC, 50/60Hz |
| Power Factor | 0.9 |
| Surge Protection | 1kV line-line, 2kV line-earth |
| Temperature Rating | -20°C to +40°C (-4°F to +104°F) |
| Housing Material | Steel housing; aluminum frame; powder coat finish |
| Housing Color | White |

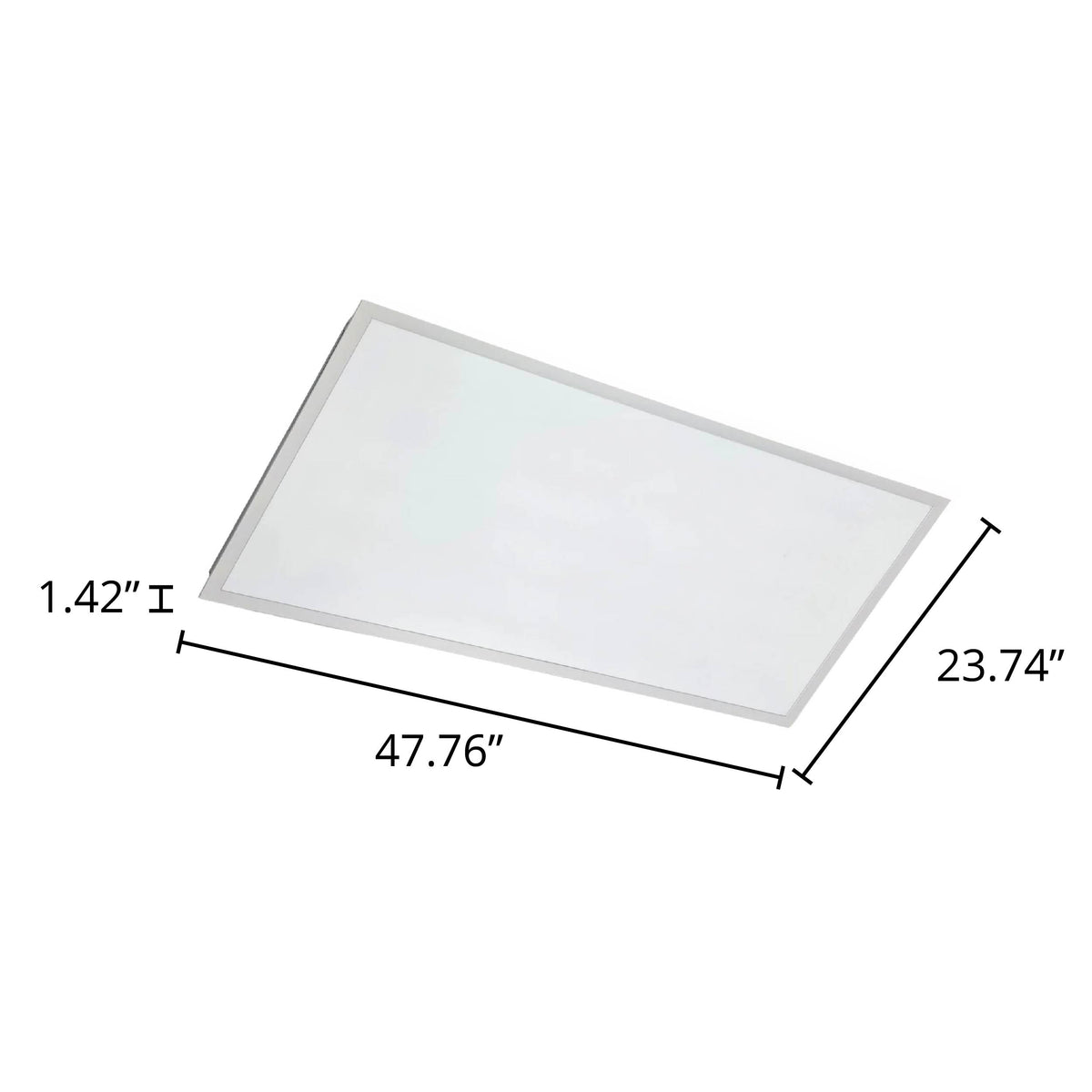

| Dimensions | 47.76" x 23.74" x 1.42" |
| Weight | 7.1 lbs |
| Shipping Weight | 8.1 lbs |
| Package Dimensions | 48.31" x 24.29" x 3.03" |
| Certification | DLC Premium, UL Listed |
| DLC ID(s) | S-SB8TTB |
| Warranty | 5 Years |
Data SheetCompare Key Features
Compare
2x4 50W Selectable LED Living Panel Light
|
2x4 45W Selectable MaxLite FlatMax LED Panel Light
|
2x4 40W RAB T34 LED Panel Light
|
|
|---|---|---|---|
| Light Output | 3,750 to 6,250 lm | 3,425/4,690/5,895 lumens | 4,472 lumens |
| Color Temperature (CCT) | 3500K/4000K/5000K Selectable | 3500K/4000K/5000K | 4000K |
| Dimming | |||
| Lamp Life | L70: 50,000 hours | L70: ≥ 50,000 hours | L70: 50,000 hours |
| Certification | DLC Premium, UL Listed | DLC Premium, UL | DLC, UL, CCEA compliant |
| Warranty | 5 Years | 5 Years | 5 Years |
|
