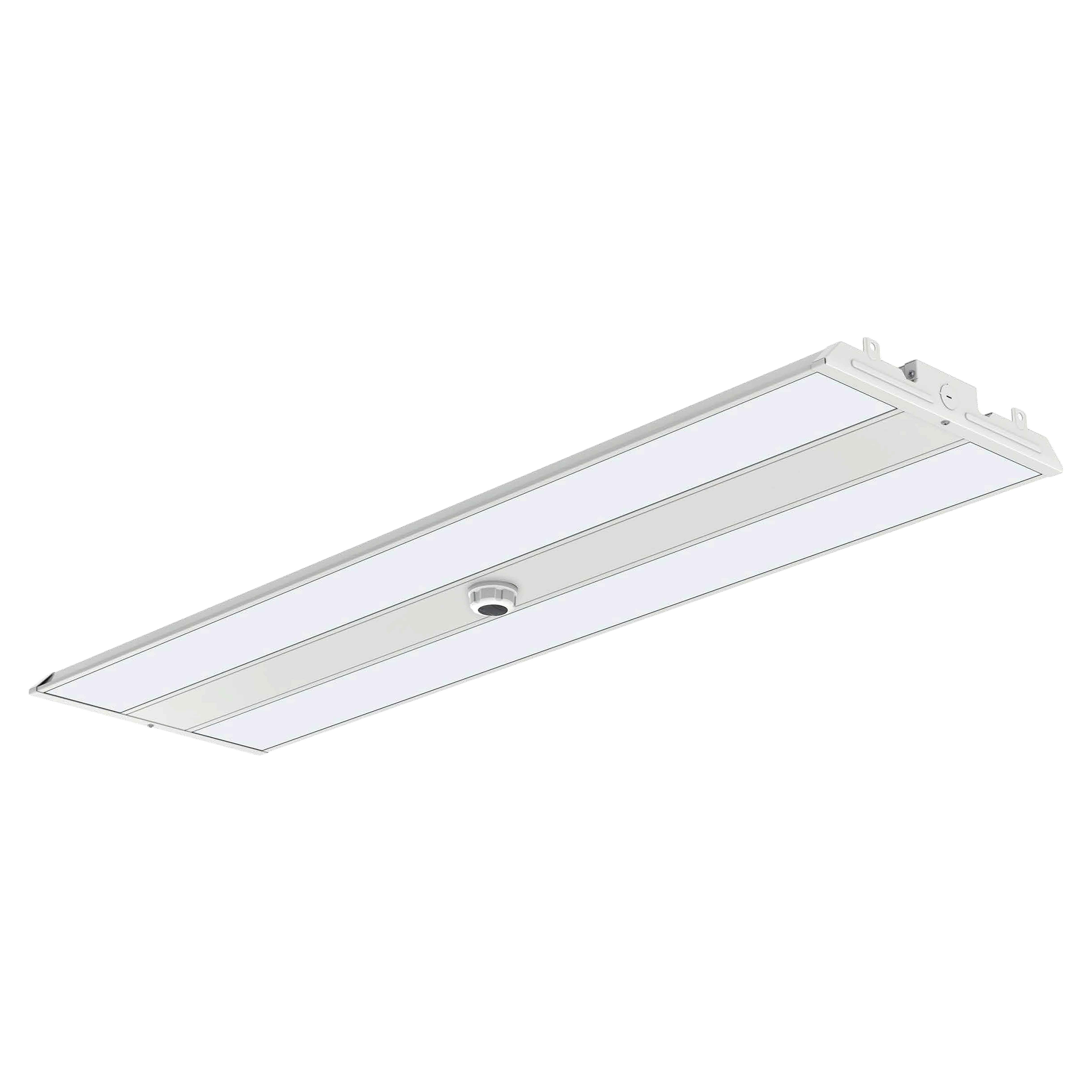

4ft 300W Selectable LED Linear High Bay
4ft 300W Selectable LED Linear High Bay

Versatile 300W Max Linear High Bay with 4 Wattage Settings & 6 CCTs with 4ft Length for Quicker Installations

$181.82
ELEDLights

Lumens:

26,400-50,100

Watts:

165W-300W

Color Temp:

30K/35K/40K/50K/57K/65K
High-output, versatile 4ft linear high bay that allows fewer fixtures & quicker installations. 165W-300W output up to 50,100 lumens with 0-10V dimming for fine-tuning. Six CCT options provide warmer (3000K) and cooler (5700K, 6500K) CCT options than included in most high bays, ideal for cozier retail display lighting or high-contrast lighting for warehouse safety.

5 Year Warranty

SKU: 4LHBA300WSCS

Field-Tunable High Bay Lighting in a Four-Foot Package

  • Six CCTs: Choose anything from warm 3000K to cool 6500K depending on application.
  • Four Output Settings: Works with most ceiling heights with four stages of selectable output, 26,400-50,100 lumens.
  • Fewer Fixtures in the Same Space: Four-foot length means few fixtures and quicker installations.
  • Sensor-Ready: Plug-and-Play motion sensor to eliminate energy waste and slash utility bills.

Light up your warehouse, industrial facility, car service bay, retail display, and more.

Saves $/year in energy costs*

$181.82
$12 flat rate shipping / FREE over $500
PIR Motion Sensor for 4LHBA High Bays
PIR Motion Sensor for 4LHBA High Bays
$18.00

Buying 12 or more?
Get a better price & free shipping:

or Request Bulk Quote

Field-Tunable High Bay Lighting in a Four-Foot Package

  • Six CCTs: Choose anything from warm 3000K to cool 6500K depending on application.
  • Four Output Settings: Works with most ceiling heights with four stages of selectable output, 26,400-50,100 lumens.
  • Fewer Fixtures in the Same Space: Four-foot length means few fixtures and quicker installations.
  • Sensor-Ready: Plug-and-Play motion sensor to eliminate energy waste and slash utility bills.

Light up your warehouse, industrial facility, car service bay, retail display, and more.

Saves $/year in energy costs*

See how much you would save in energy
costs by allowing access to your location.

SPECIFICATIONS

Custom Savings Calculator
Wattage(s) 165W/200W/225W/255W/300W
Replaces Wattage(s) 800W
Light Output 26,400/32,000/36,000/40,800/50,100 lumens
Luminous Efficacy (lm/W) 160-167 lm/W
Average Lamp Life L70: ≥50,000 hours
Color Temperature(s) 3000K/3500K/4000K/5000K/5700K/6500K
CRI (Color Accuracy) 80
Dimming 0-10V Dimming
Beam Angle 120°
Installation Suspension Mount (Standard), Pendant Mount, Surface Mount
Input Voltage 120-277VAC, 50-60Hz
Temperature Rating -40°F to +122°F (-40°C to +50°C)
Housing Material 22 Gauge Powder-Coated Steel Housing
Housing Color White
Dimensions 46.4” x 15.7” x 1.61”
Certification DLC Premium, UL
Warranty 5 Years

COMPARE KEY FEATURES

4ft 300W Selectable LED Linear High Bay
320W Selectable LED Linear High Bay, Ceilings Up to 40 ft
300W Linear LED High Bay, Swappable Optics, Ceilings Up to 40 ft
Wattage 165W/200W/225W/255W/300W 95/160/215/320W Selectable 300W
Efficacy 160-167 lm/W Standard Efficiency Model:
@4000K: 162 lm/W
@5000K: 160 lm/W
High Efficiency Model:
@4000K: 172 lm/W
@5000K: 170 lm/W
 149 lm/W
Color Temperature (CCT) 3000K/3500K/4000K/5000K/5700K/6500K 4000/5000K Selectable (Call for 4000K or 5000K fixed) 5000K
Color Accuracy (CRI) 80 80 80
Temperature Rating -40°F to +122°F (-40°C to +50°C) -25°C to +50°C (-13°F to +122°F) -22°F to 122°F
Warranty 5 Years 5 Years 5 Years
$181.82

$127.95
View Details
$594.95
View Details
