ELEDLights

4ft 50W Selectable Architectural LED Linear Up/Down Light

4ft 50W Selectable Architectural LED Linear Up/Down Light
4ft 50W Selectable Architectural LED Linear Up/Down Light
4ft 50W Selectable Architectural LED Linear Up/Down Light
ELEDLights

4ft 50W Selectable Architectural LED Linear Up/Down Light

Outline Star
Outline Star
Outline Star
Outline Star
Outline Star
Filled Star
Filled Star
Filled Star
Filled Star
Filled Star
0 Reviews
SKU: ALIN7-4-50WCSD
Sale price$114.95
Regular price

This 4 ft direct/indirect pendant gives open offices, conference rooms, classrooms, and hotel lobbies a clean architectural look, with light you tune on-site instead of guessing at before you order.

  • Soft light for screen-heavy rooms: Five direct/indirect settings run from 100% downlight to 100% uplight, so you can shift toward glare-friendly indirect light where screens dominate.
  • Fully selectable output: Select 25W to 50W and 3000K to 6500K on-site, so one SKU fits different room sizes and tones without over- or under-lighting.
  • Ready for continuous runs: A suspension kit with cables and power cord is included, and an optional connector kit and 16 ft continuous diffuser lens lets you join fixtures into seamless runs over conference tables and other features.
Free Shipping Over $500

This 4 ft direct/indirect pendant gives open offices, conference rooms, classrooms, and hotel lobbies a clean architectural look, with light you tune on-site instead of guessing at before you order.

  • Soft light for screen-heavy rooms: Five direct/indirect settings run from 100% downlight to 100% uplight, so you can shift toward glare-friendly indirect light where screens dominate.
  • Fully selectable output: Select 25W to 50W and 3000K to 6500K on-site, so one SKU fits different room sizes and tones without over- or under-lighting.
  • Ready for continuous runs: A suspension kit with cables and power cord is included, and an optional connector kit and 16 ft continuous diffuser lens lets you join fixtures into seamless runs over conference tables and other features.

Specs

Wattage(s) 25/30/35/40/50W Selectable
Light Output @3000K: 3,000/3,600/4,200/4,800/6,000 lumens
@3500K: 3,125/3,750/4,375/5,000/6,250 lumens
@4000K: 3,250/3,900/4,550/5,200/6,500 lumens
@5000K: 3,200/3,840/4,480/5,120/6,400 lumens
@6500K: 3,175/3,810/4,445/5,080/6,350 lumens
Luminous Efficacy (lm/W) 120 to 130 lm/W
Average Lamp Life L70: 50,000 hours
Color Temperature(s) 3000K/3500K/4000K/5000K/6500K Selectable
CRI (Color Accuracy) 80
Dimming 0-10V dimming
Light Distribution Pattern Direct / Indirect Adjustable
100% / 0%
70% / 30%
50% / 50%
30% / 70%
0% / 100% Learn More
×

Light Distribution Options

Type III Beam

Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles.

Type IV Beam

Provides forward directed light with minimal backlighting - great for perimeter installations.

Type V Beam

Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations.

Lens Cover Polycarbonate Frosted Lens
Installation Suspension Mount (Comes with a 5’ Mounting Kit Including a Power Cord with 5” Diameter Junction Box Cover, Aircraft Cables, and Mounting Hardware)
Recommended Installation Height Up to 14ft. Recommended height varies based on up/down setting.
LED Type LED 2835
Input Voltage 120-277VAC, 50/60Hz
Driver Type Constant Current (CC)
Power Supply Becky
Power Factor ≥0.9
Operating Temperature -20°C to +45°C (-4°F to +113°F)
Housing Material Extruded Aluminum
Housing Color White
Dimensions 48” x 2.63” x 2.99”
Certification DLC Premium, UL
Warranty 5 Years

Details

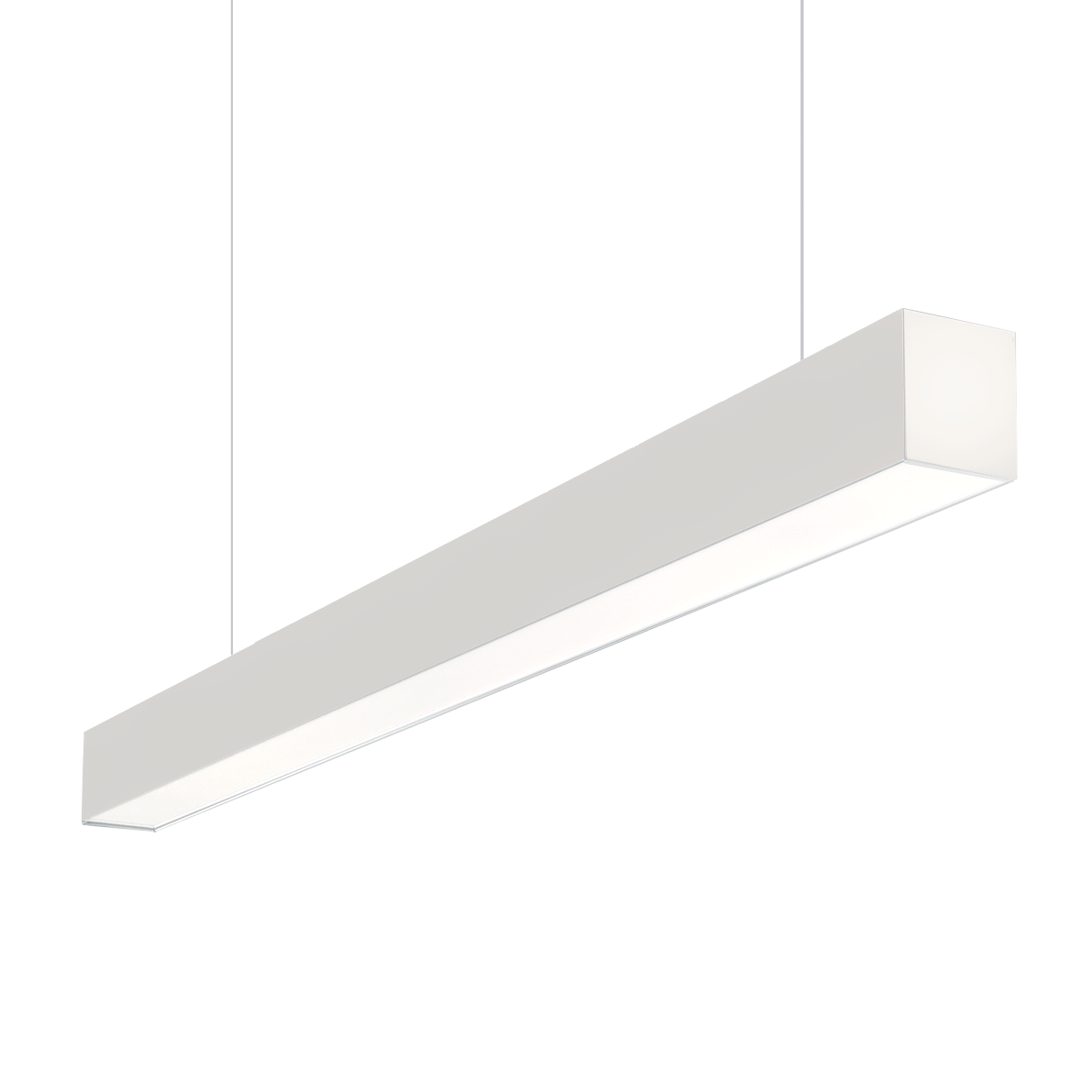

Architectural Up/Down Pendant Lighting that Adjusts to Any Room

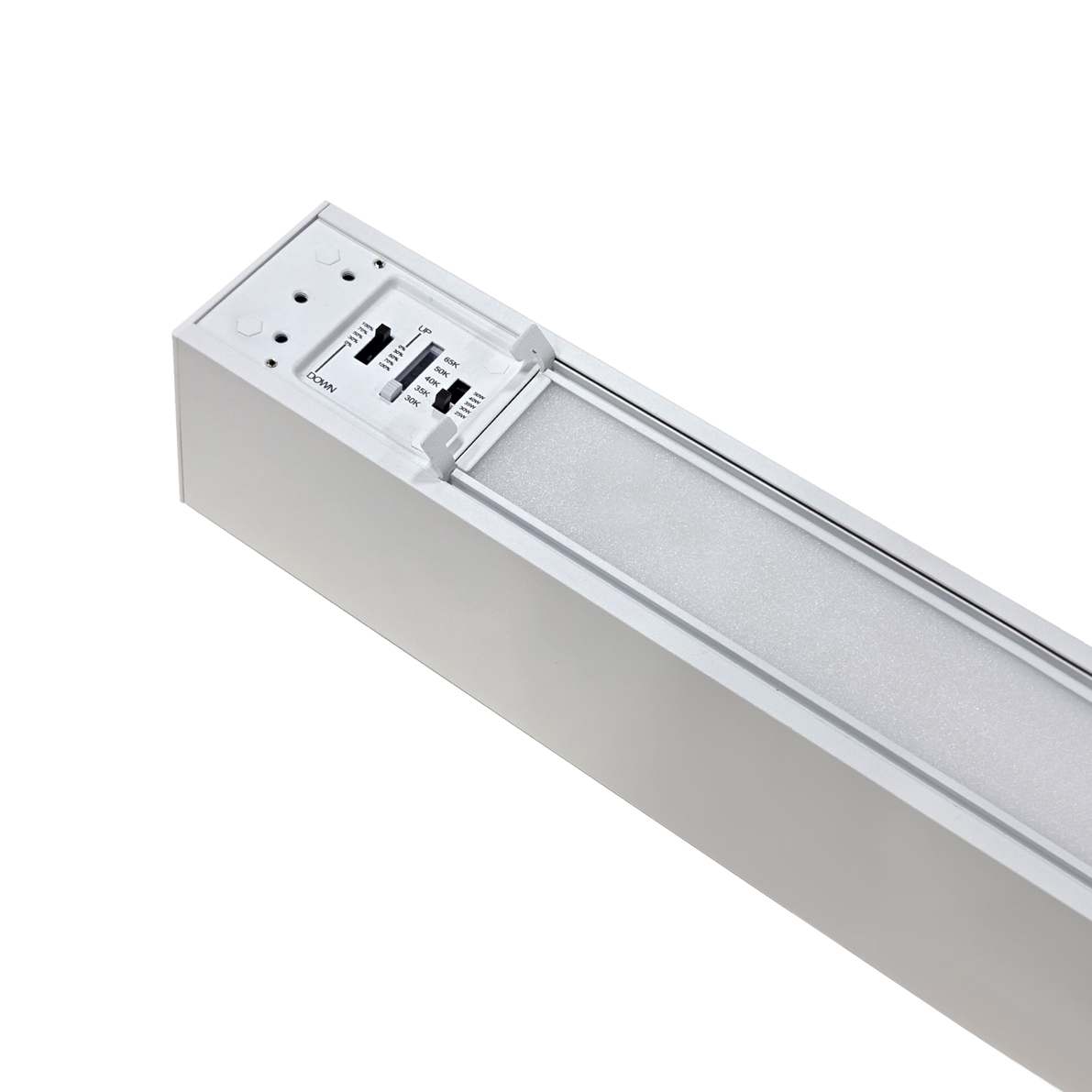

This 4 ft architectural pendant lets you set how much light goes up, how much goes down, how bright it runs, and what color it is, all on-site with DIP switches. One fixture suits open offices, conference rooms, classrooms, and lobbies, and it can be re-set later if a room's use changes.

  • Sleek, Modern Look with Low-Glare Output: A slim, clean-lined architectural profile looks the part in finished interiors, while soft indirect light helps cut glare and reduce eye strain from monitors and screens in schools, offices, and other screen-heavy spaces.
  • Balance Up and Down Light for Each Space: Five settings, from 100% uplight to 100% downlight, let you shift between softer ambient light for screen-heavy rooms and brighter, more focused light for work areas. One fixture adapts to each room or area and can be re-set later if the space or usage changes.
  • Tune Brightness and Color to Every Room: Select 25W to 50W and 3000K to 6500K on-site, then fine-tune further with 0-10V dimming capability, so one fixture fits each space instead of buying separately for each combination.
  • Strong Output, Efficient Operation: Delivers up to 6,500 lumens at 130 lm/W (50W, 4000K), and is DLC Premium listed for the highest tier of available utility rebates.

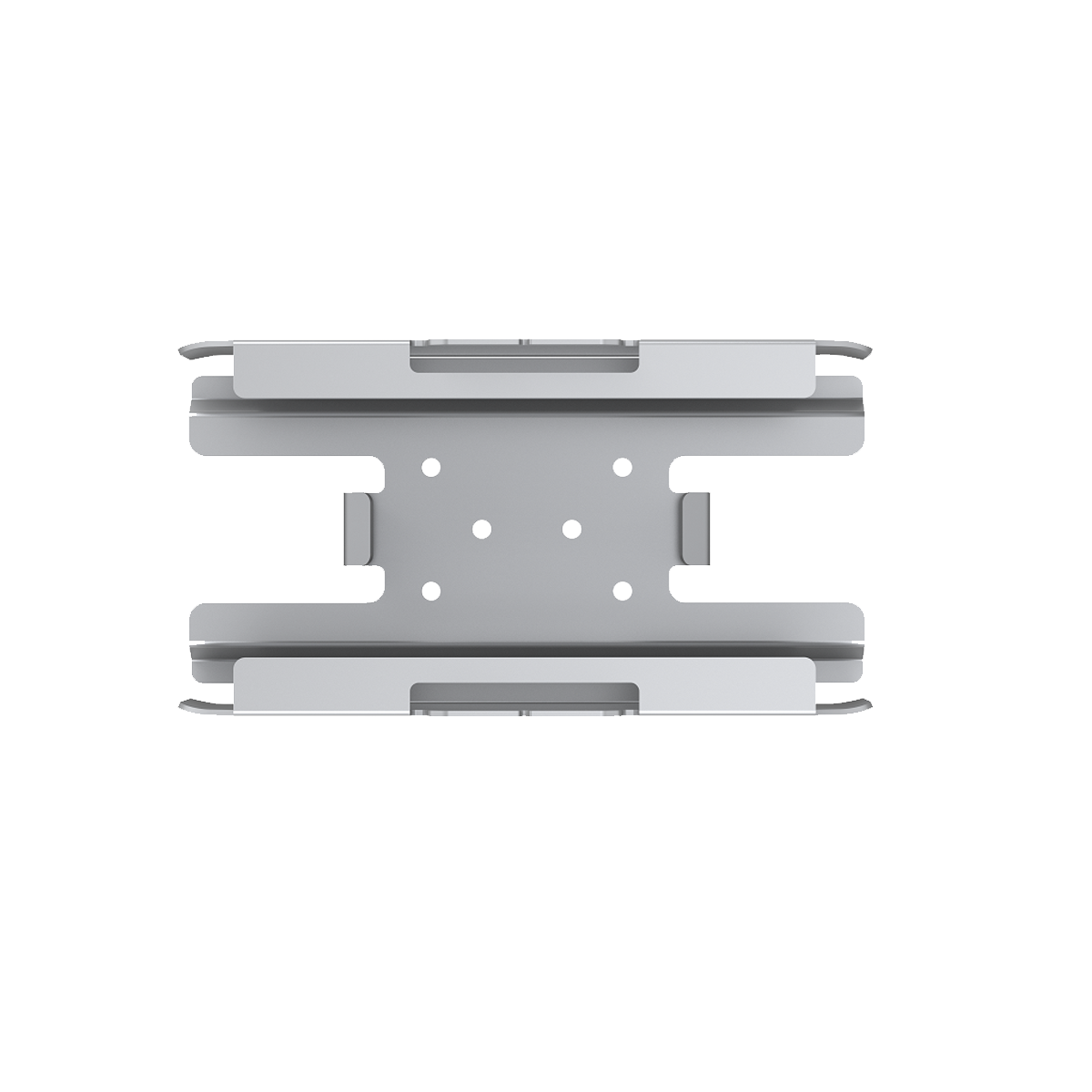

  • Seamless Continuous Runs: An optional straight connector kit and 16 ft continuous diffuser lens join fixtures into one unbroken line, and the extruded aluminum holds the run straight over long distances where lower-quality fixtures would bow or sag.
  • Suspension Kit Included: Ships with a 5 ft mounting kit, a power cord with a 5" diameter junction box cover, aircraft cables, and hardware, so the slim 2.63" x 2.99" fixture goes up without a separate parts order.

Ideal Applications

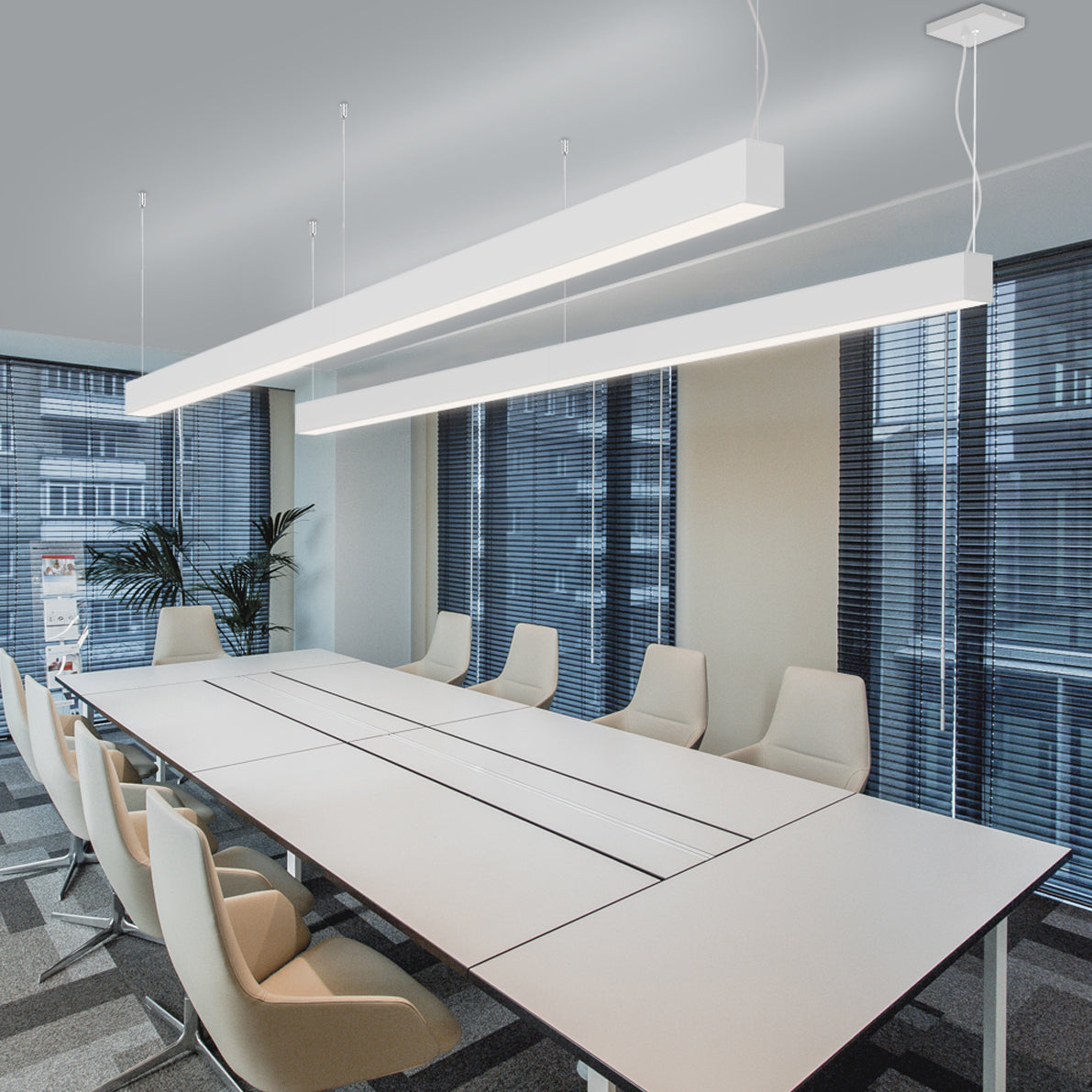

  1. Open Offices & Conference Rooms: Set higher uplight for soft, even ambient light where screens and video calls dominate.
  2. Schools & Classrooms: Even, low-glare overhead light, with a color temperature that can be matched to each room.
  3. Hotel Lobbies & Multi-Residential Common Areas: A clean, linear architectural look in public spaces, with warm 3000K or neutral 4000K selectable on-site.
  4. Retail Stores & Showrooms: General ambient lighting with selectable wattage and color temperature to suit each floor.
  5. Healthcare Waiting Areas, Corridors & Convention Spaces: Long continuous runs and adjustable output suit large, varied spaces.

ELEDLights Stands Behind It

  • 5-Year Warranty: Full manufacturer coverage backed directly by ELEDLights
  • DLC Premium listed — qualifies for the highest tier of utility rebates
  • US-based support Monday–Friday, 8am–8pm EST — call, text, or email a real person
  • In stock, ships fast straight from our U.S. warehouses

Layout & Planning

Request a Custom Layout

Complex or unique space? Get a custom layout plan from our lighting experts.

Save More with Rebates

Check available incentives in your area to reduce your upfront cost.

×
×

Instant Rebates

Check if your utility offers rebates for new LED lights installed in commercial & industrial buildings:

×
