2x4 Wattage- and CCT-Selectable LED Troffer Light by LED Living with DLC Premium Listing, IC-Rating
Lumens:
Watts:
Color Temp:
5 Year Warranty

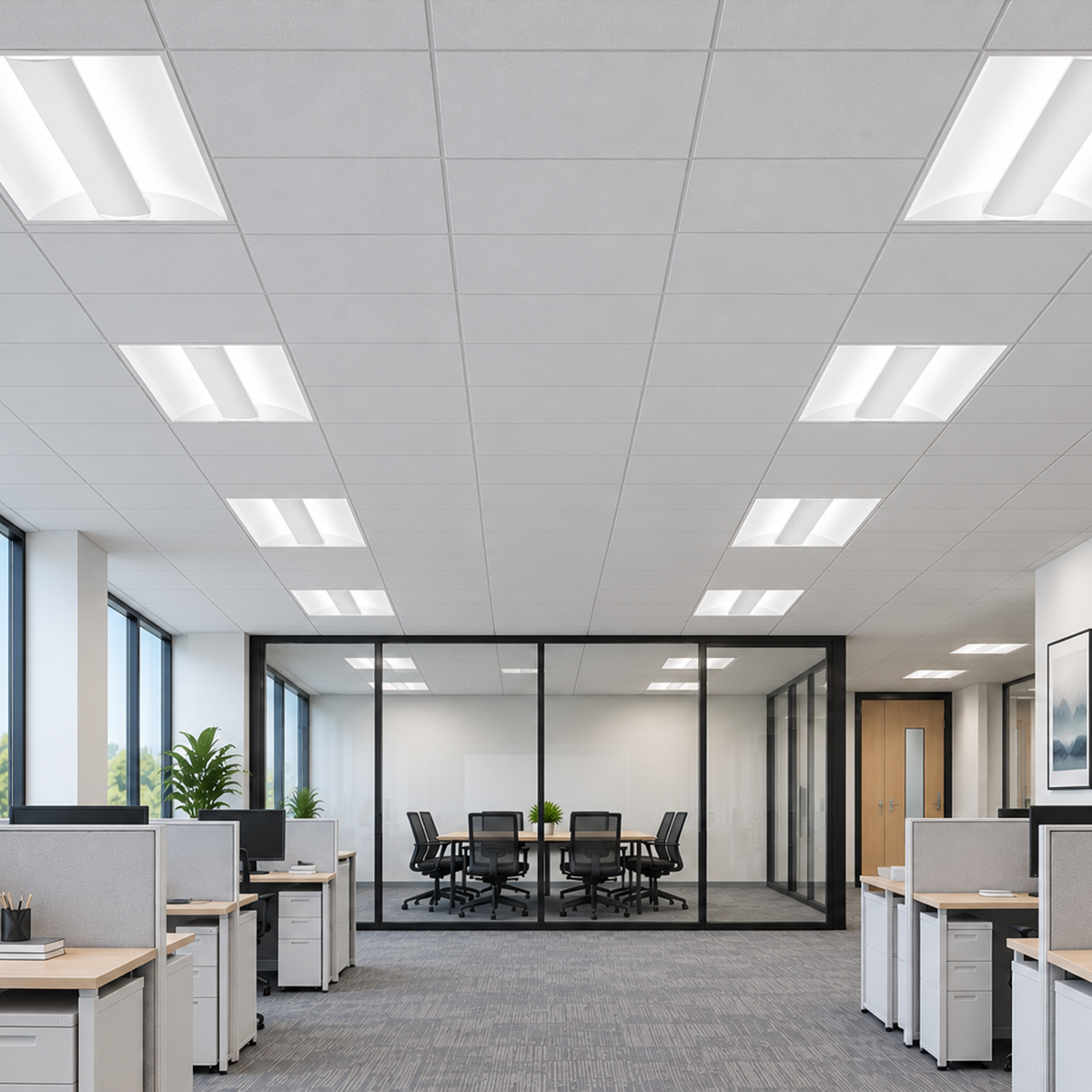

This TR04 2x4 troffer by LED Living Technology delivers comfortable, field-tunable lighting for offices, classrooms, retail spaces, and commercial facilities.

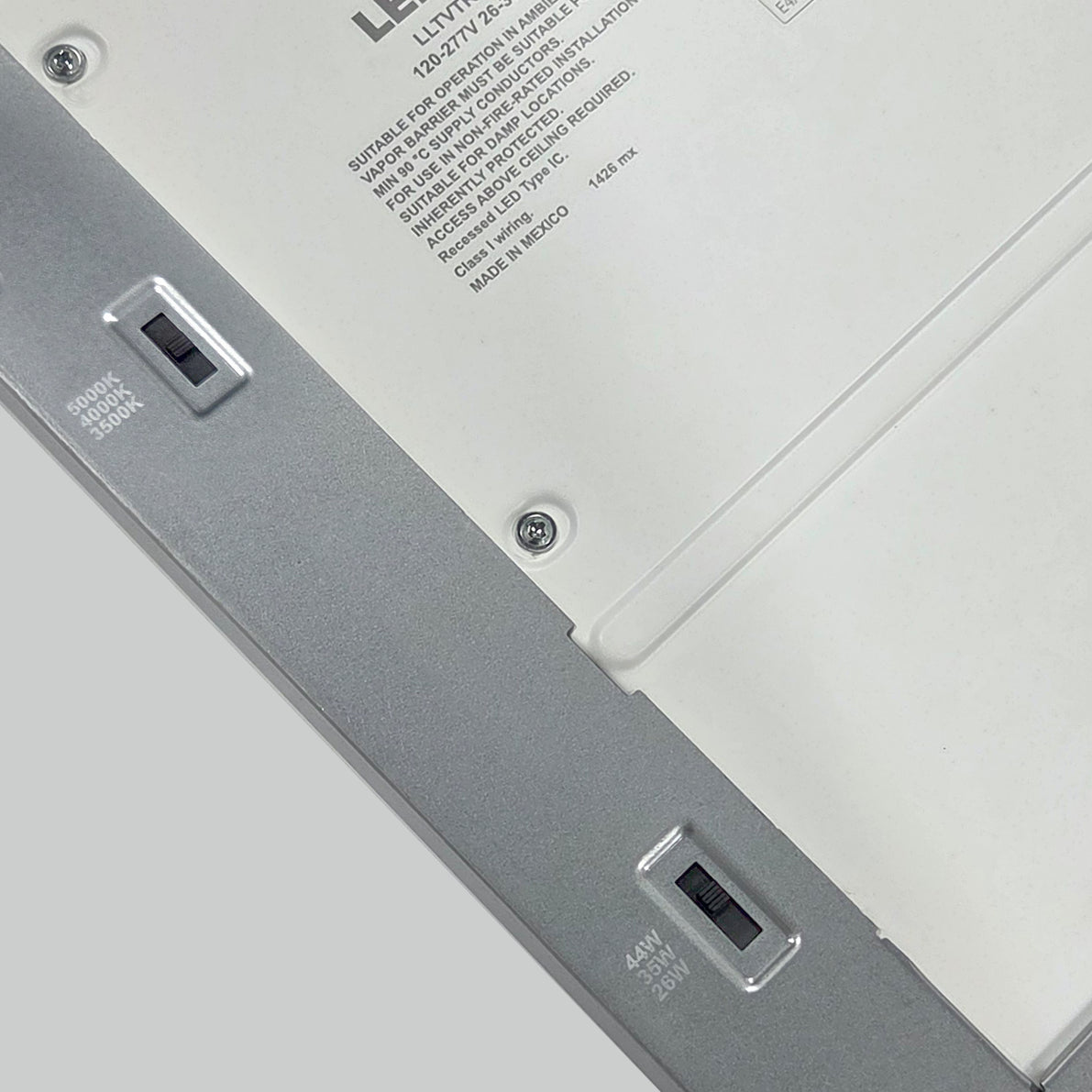

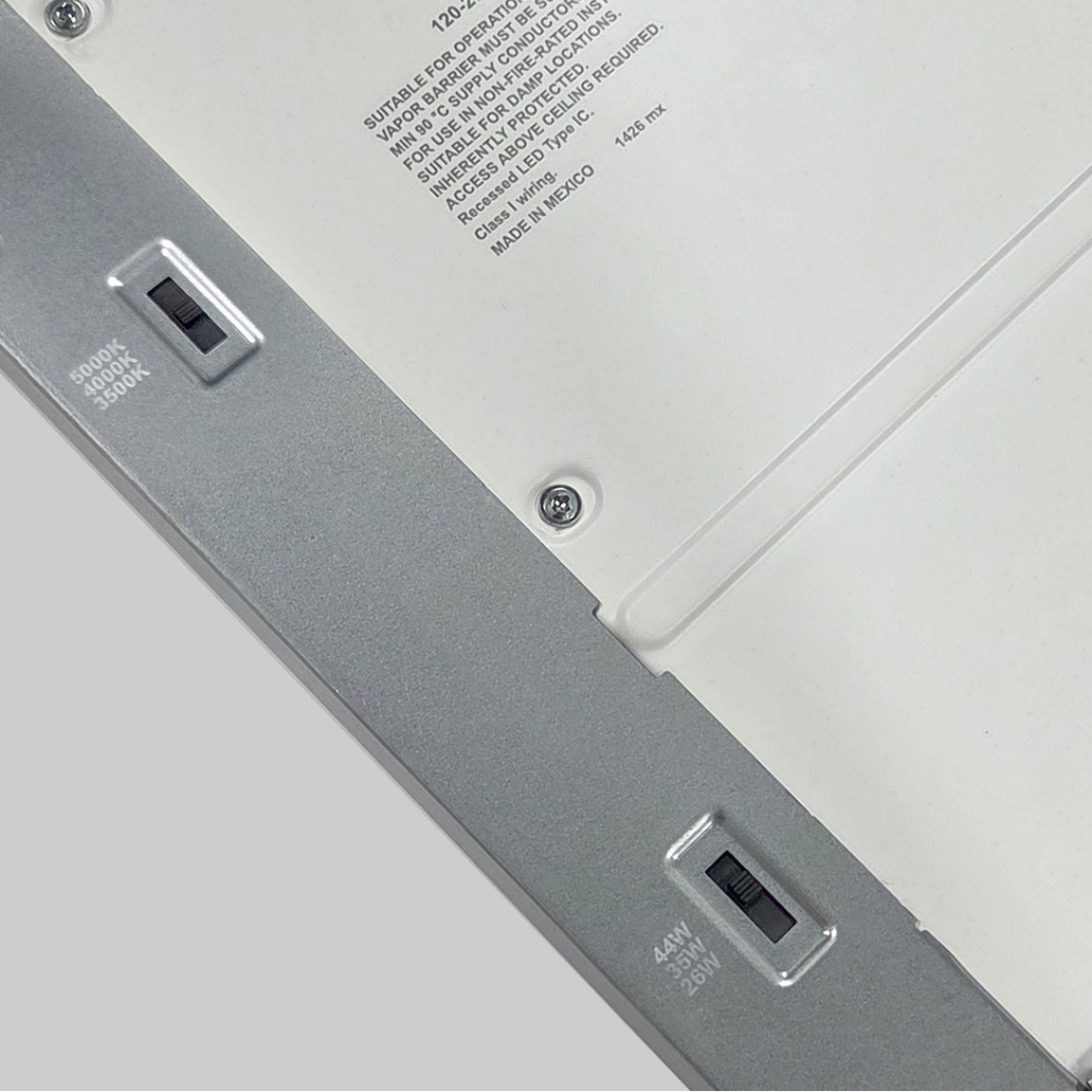

- Wattage (26/35/44W) and CCT (3500K/4000K/5000K) are both selectable via DIP switch — one product adapts to many applications and room sizes.
- Delivers up to 5,500 lumens at a consistent 125 lm/W efficacy.
- Smooth 0-10V dimming.
- DLC Premium listed for rebate eligibility.
- IC-rated, durable steel housing meets strict commercial code requirements.
Backed by a 5-year warranty and available through ELEDLights with competitive pricing on every order.
Saves $/year in energy costs*
Buying 6 or more boxes?
Get a better price & free shipping:
This TR04 2x4 troffer by LED Living Technology delivers comfortable, field-tunable lighting for offices, classrooms, retail spaces, and commercial facilities.
- Wattage (26/35/44W) and CCT (3500K/4000K/5000K) are both selectable via DIP switch — one product adapts to many applications and room sizes.
- Delivers up to 5,500 lumens at a consistent 125 lm/W efficacy.
- Smooth 0-10V dimming.
- DLC Premium listed for rebate eligibility.
- IC-rated, durable steel housing meets strict commercial code requirements.
Backed by a 5-year warranty and available through ELEDLights with competitive pricing on every order.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 6 or more boxes?
Get a better price & free shipping:
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 6 or more boxes?
Get a better price & free shipping:
SPECIFICATIONS
| Wattage(s) | 26/35/44W Selectable |
| Replaces Wattage(s) | 120W |
| Light Output | 3,250 to 5,500 lm |
| Luminous Efficacy (lm/W) | 125 lm/W |
| Average Lamp Life | L70: 50,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K |
| CRI (Color Accuracy) | 80 |
| Dimming | Yes |
| Dimming Range | 0-10V |
| Beam Angle | 120° |
| Lens Cover | PMMA diffuser |
| Installation | Recessed; fits standard 2' x 4' T-grid ceiling |
| Light Type | LED 2835 |
| LED Type | LED 2835 |
| Input Voltage | 120-277VAC, 50/60Hz |
| Power Factor | 0.9 |
| Surge Protection | 1kV line-line, 2kV line-earth |
| Temperature Rating | -20°C to +45°C (-4°F to +113°F) |
| Housing Material | Steel housing; aluminum frame; powder coat finish |
| Housing Color | White |
| Dimensions | 47.76" x 23.74" x 1.42" |
| Weight | 6.9 lbs |
| Shipping Weight | 7.8 lbs |
| Package Dimensions | 48.74" x 24.45" x 3.03" |
| Certification | DLC Premium, UL Listed |
| Warranty | 5 Years |
COMPARE KEY FEATURES
2x4 44W Selectable LED Living Troffer
|
2x4 45W Selectable MaxLite ArcMax LED Troffer (2-Pack)
|
2x4 40W Selectable RAB SWISH34 LED Troffer
|
|
|---|---|---|---|
| Light Output | 3,250 to 5,500 lm | 4,500/5,000/5,625 lumens | @3500K: 4,140/4,650/5,208 lumens @4000K: 4,310/4,875/5,509 lumens @5000K: 4,269/4,808/5,397 lumens |
| Color Temperature (CCT) | 3500K/4000K/5000K | 3500K/4000K/5000K | 3500K/4000K/5000K |
| Color Accuracy (CRI) | 80 | 80 | >84 CRI |
| Lamp Life | L70: 50,000 hours | L70: 50,000 hours | 100,000 hours |
| Enclosure Rating | Damp location | Wet location | |
| Certification | DLC Premium, UL Listed | DLC Premium, ETL | DLC Premium, UL |
|
