Ideal for offices, classrooms, and retail spaces, this field-adjustable 20–40W 2×2 LED panel adapts wattage and color temperature to the application on-site — one fixture for an entire facility without ordering multiple SKUs.
- Field-selectable with up to 4,328 lumens at 134 lm/W
- Frosted lens delivers uniform, glare-free illumination
- Complies with Chicago Plenum and other strict codes
Need More? Text/call (858) 650-9400
Ideal for offices, classrooms, and retail spaces, this field-adjustable 20–40W 2×2 LED panel adapts wattage and color temperature to the application on-site — one fixture for an entire facility without ordering multiple SKUs.
- Field-selectable with up to 4,328 lumens at 134 lm/W
- Frosted lens delivers uniform, glare-free illumination
- Complies with Chicago Plenum and other strict codes
Choose options
Details
The RAB T34FA is a go-to field-adjustable 2×2 LED panel for contractors and installers who need a single fixture that adapts to different room sizes, ceiling heights, and lighting requirements across an entire facility. Built to RAB’s exacting standards and priced for large-scale projects, it brings proven reliability to T-grid and drywall installations without breaking the budget.
- Adjusts to Your Space: Selectable 20W/30W/40W and 3500K/4000K/5000K settings adapt output to the application without ordering multiple SKUs — factory default 30W and 4000K.
- Uniform, Glare-Free Light: A lightweight frosted polystyrene lens diffuses light evenly for consistent, comfortable illumination in offices, classrooms, and retail spaces.
- DLC Standard Listed: Qualifies for utility rebates — delivering up to 4,328 lumens with efficacy up to 134 lm/W.
- 0-10V Dimmable: Dims to 10% via standard 0-10V dimming circuit for precise, energy-saving light level control.
- IC, Damp & CCEA Rated: UL Listed for insulated ceiling contact and damp locations — Chicago Plenum compliant with integral earthquake clips that secure the panel to T-bars during installation.
- 5-Year Limited Warranty: RAB warranty covers light output, driver performance, and paint finish — backed by a 50,000-hour LED lifespan.
Sold in packs of 2 — in stock and ready to ship from ELEDLights.
Specs
| Wattage(s) | 20W/30W/40W (30W default) |
| Light Output |
At 3500K: 2,282 lm / 3,259 lm / 4,089 lm At 4000K: 2,341 lm / 3,411 lm / 4,100 lm At 5000K: 2,279 lm / 3,271 lm / 4,328 lm (Values in ascending wattage order: 20W/30W/40W) |
| Luminous Efficacy (lm/W) |
At 3500K: 126.9 lm/W / 120.3 lm/W / 118.8 lm/W At 4000K: 134.1 lm/W / 133.1 lm/W / 119.2 lm/W At 5000K: 127.2 lm/W / 123.4 lm/W / 131.1 lm/W (Values in ascending wattage order: 20W/30W/40W) |
| Average Lamp Life | L70: 50,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K (4000K default) |
| CRI (Color Accuracy) | 81–84 |
| Dimming | Yes |
| Dimming Range | 10–100% (0-10V) |
| Lens Cover | Frosted Polystyrene (PS) lens |
| Installation | Recessed into T-grid ceiling; surface and recessed mounting kits available separately for drywall ceilings |
| Working Environment | Dry and damp locations |
| Light Type | LED |
| Input Voltage | 120–277V, 50/60 Hz |
| Driver Type | Constant Current, Class 2, Class P, 0-10V dimming |
| Temperature Rating | -20°C to 40°C (-4°F to 104°F) |
| Housing Material | Aluminum frame & iron back housing |
| Housing Color | White |

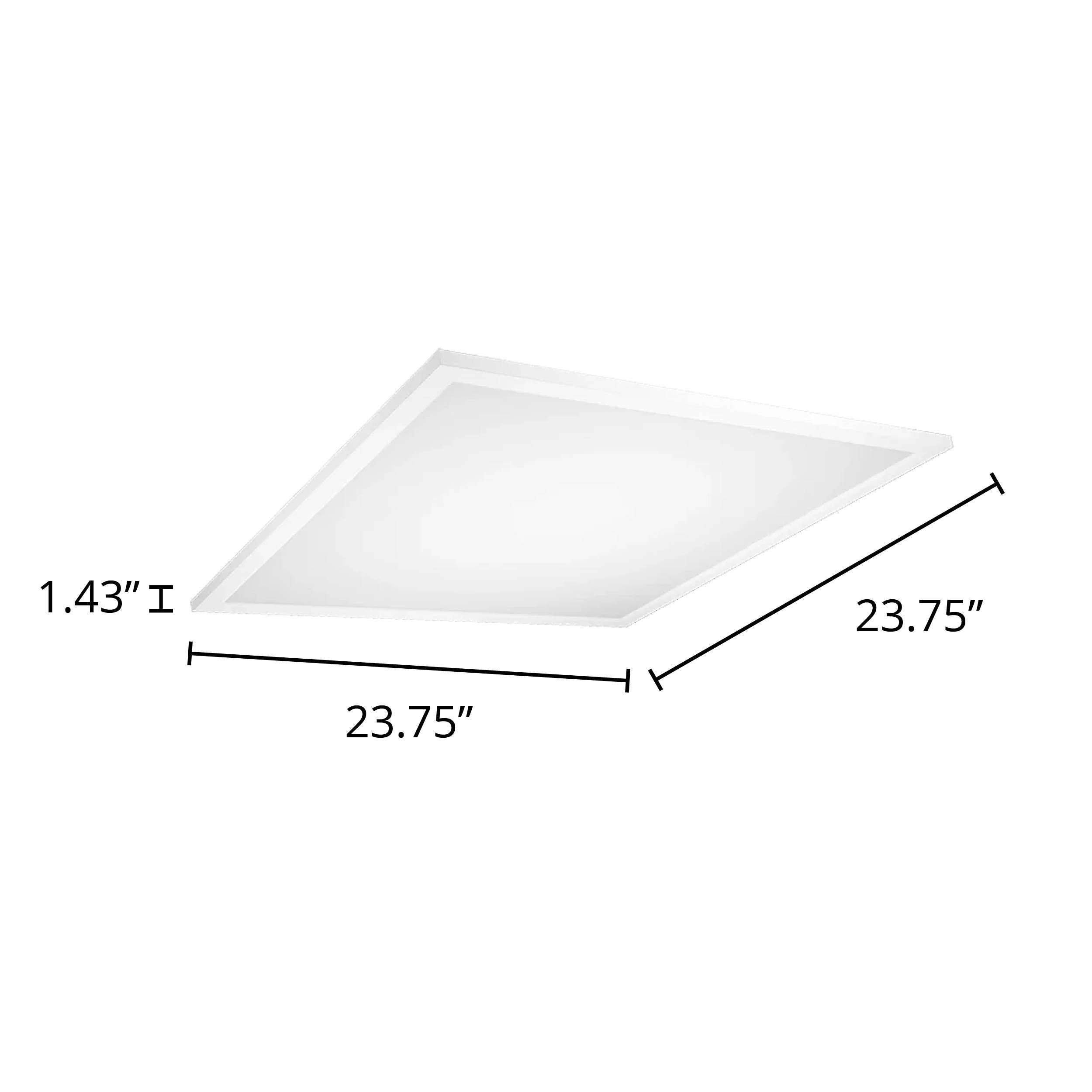

| Dimensions | 23 3/4" L × 23 3/4" W × 1 7/16" D |
| Weight | 5.4 lbs |
| Shipping Weight | 12.0 lbs |
| Certification | DLC, UL Listed |
| DLC ID(s) | Direct insulation contact OK |
| Warranty | 5 years |
