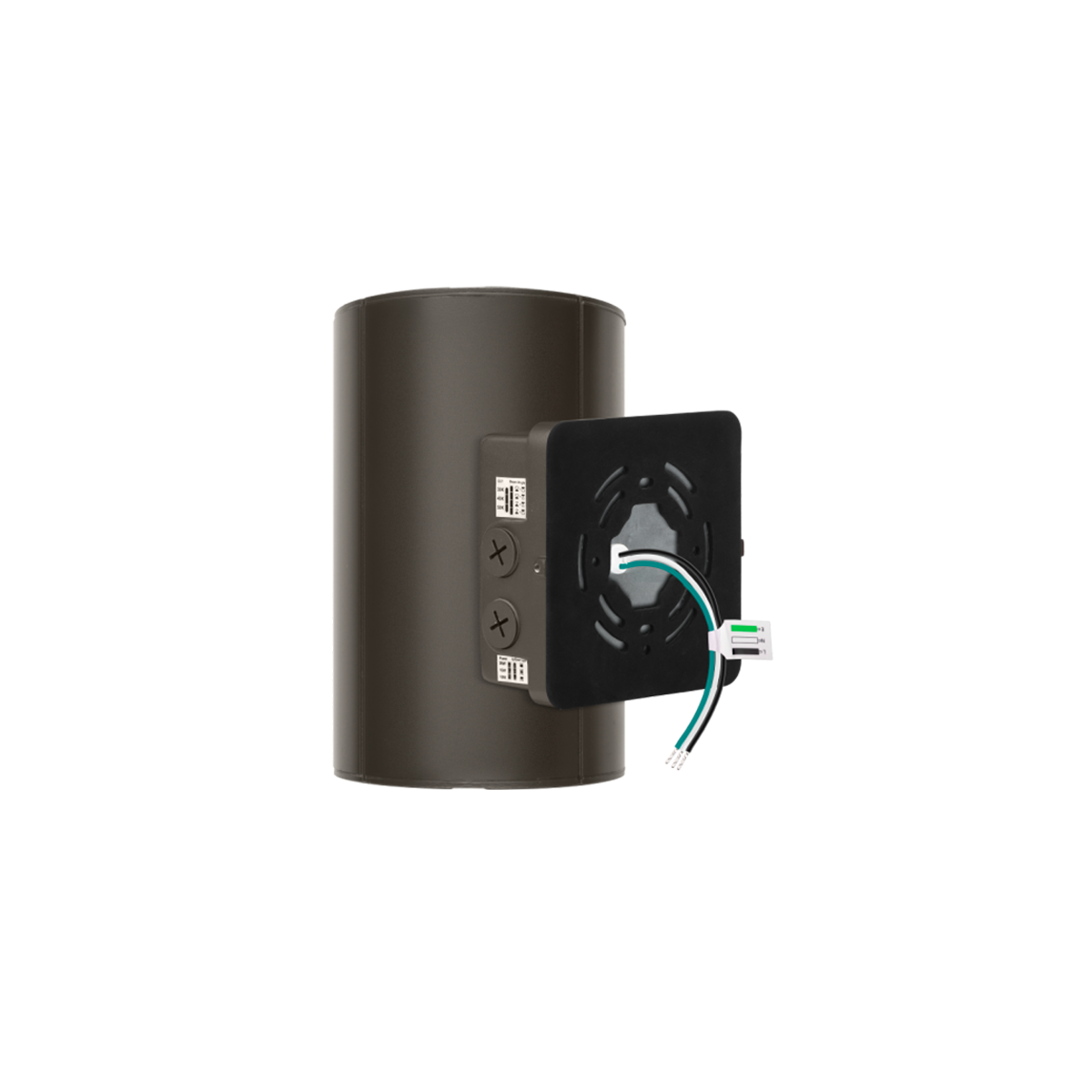

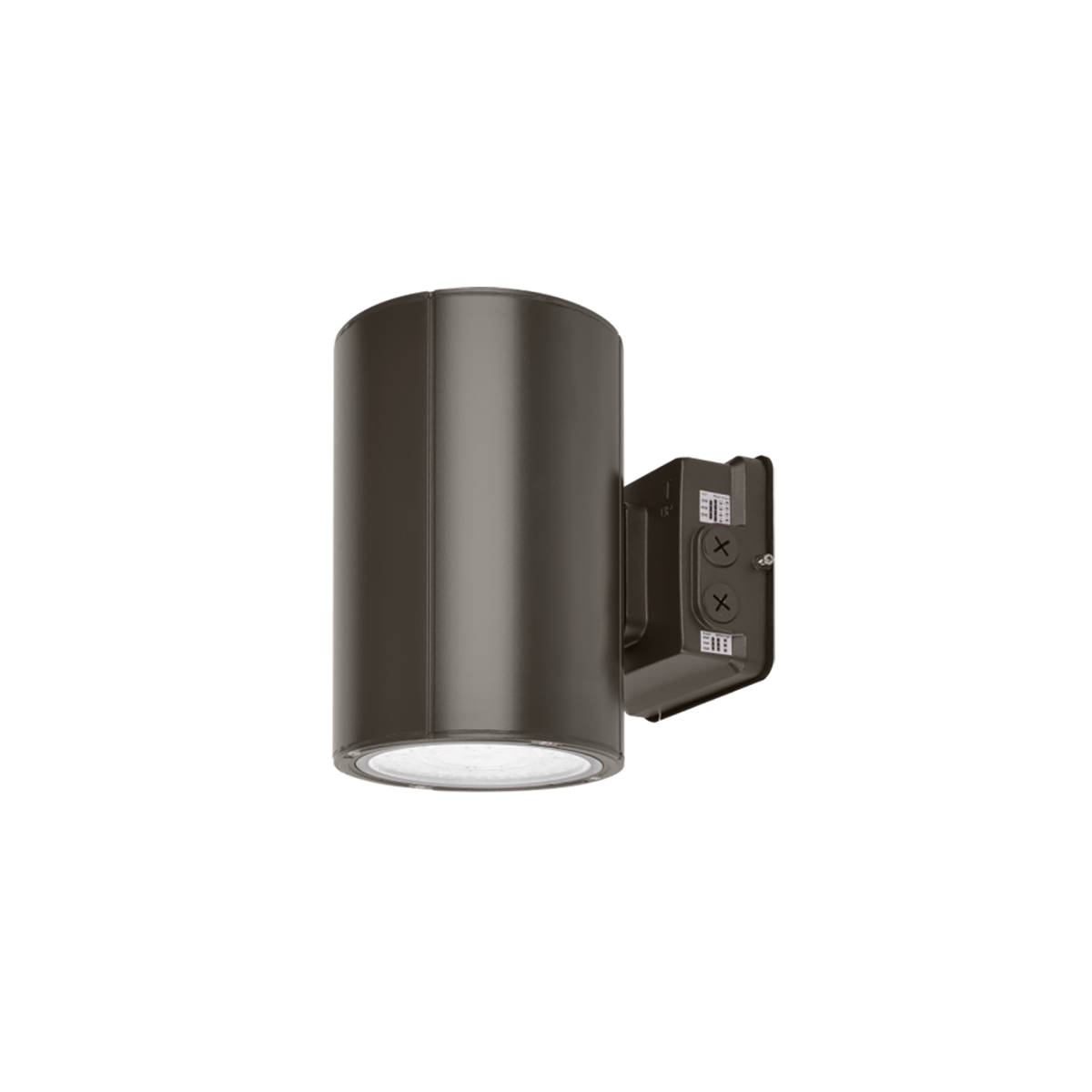

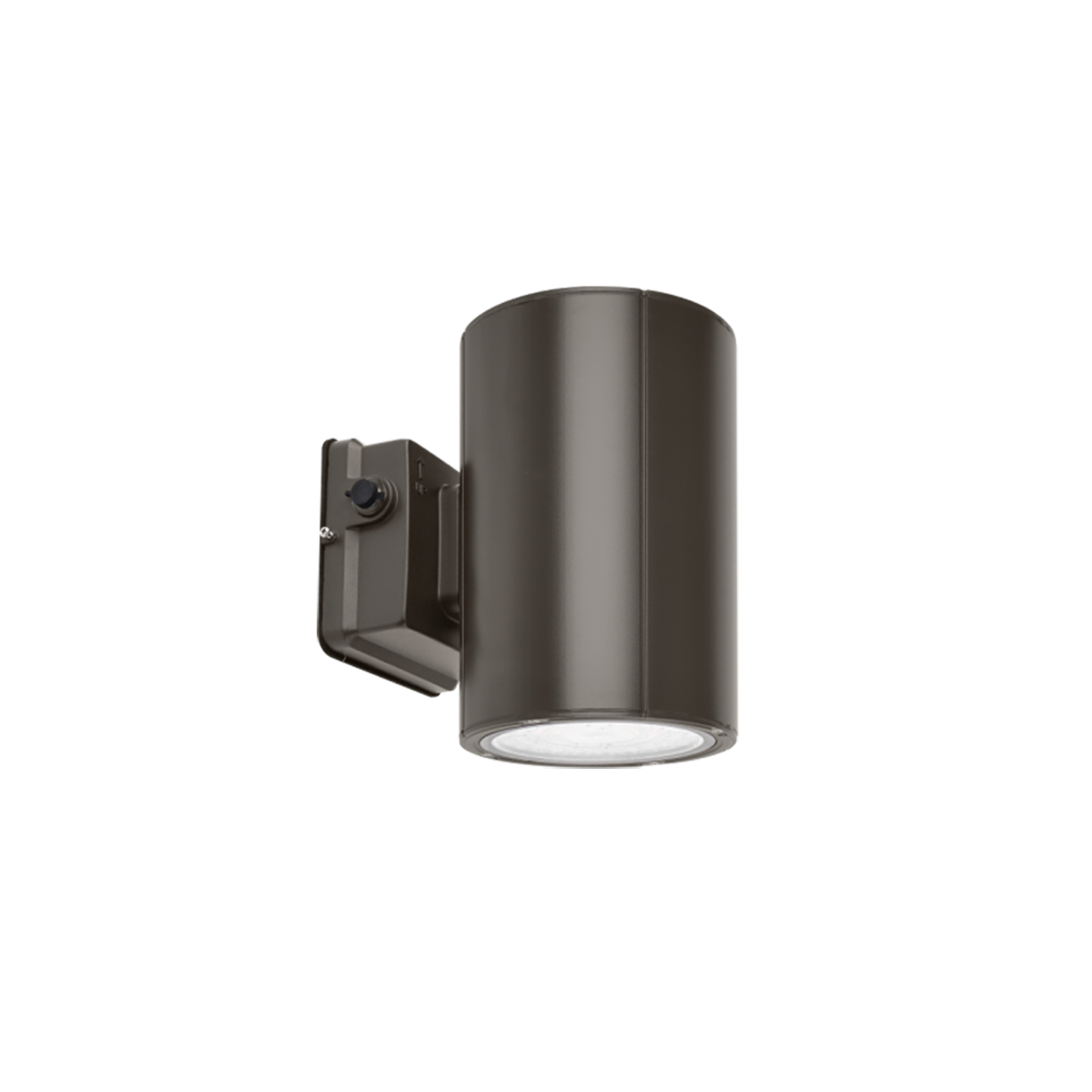

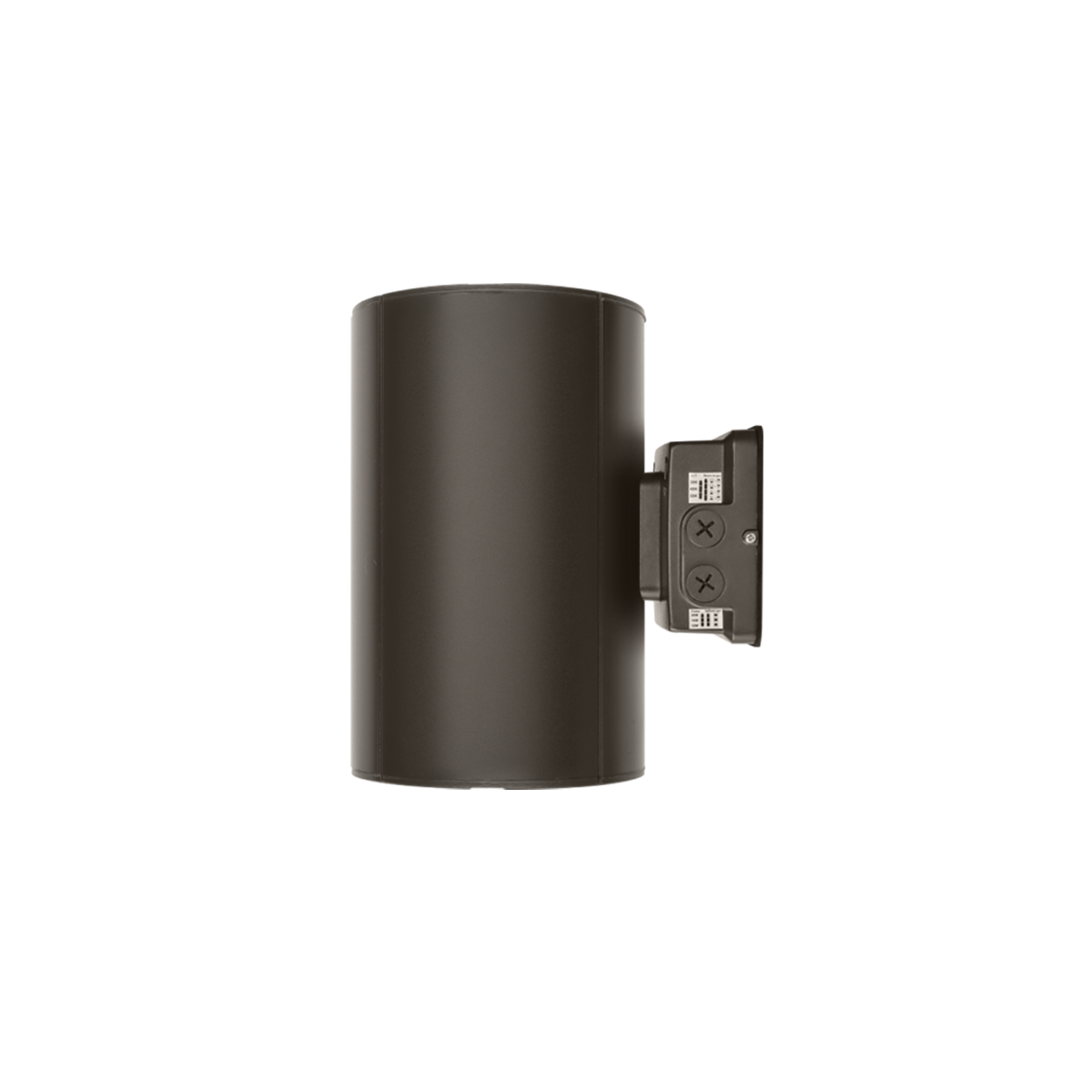

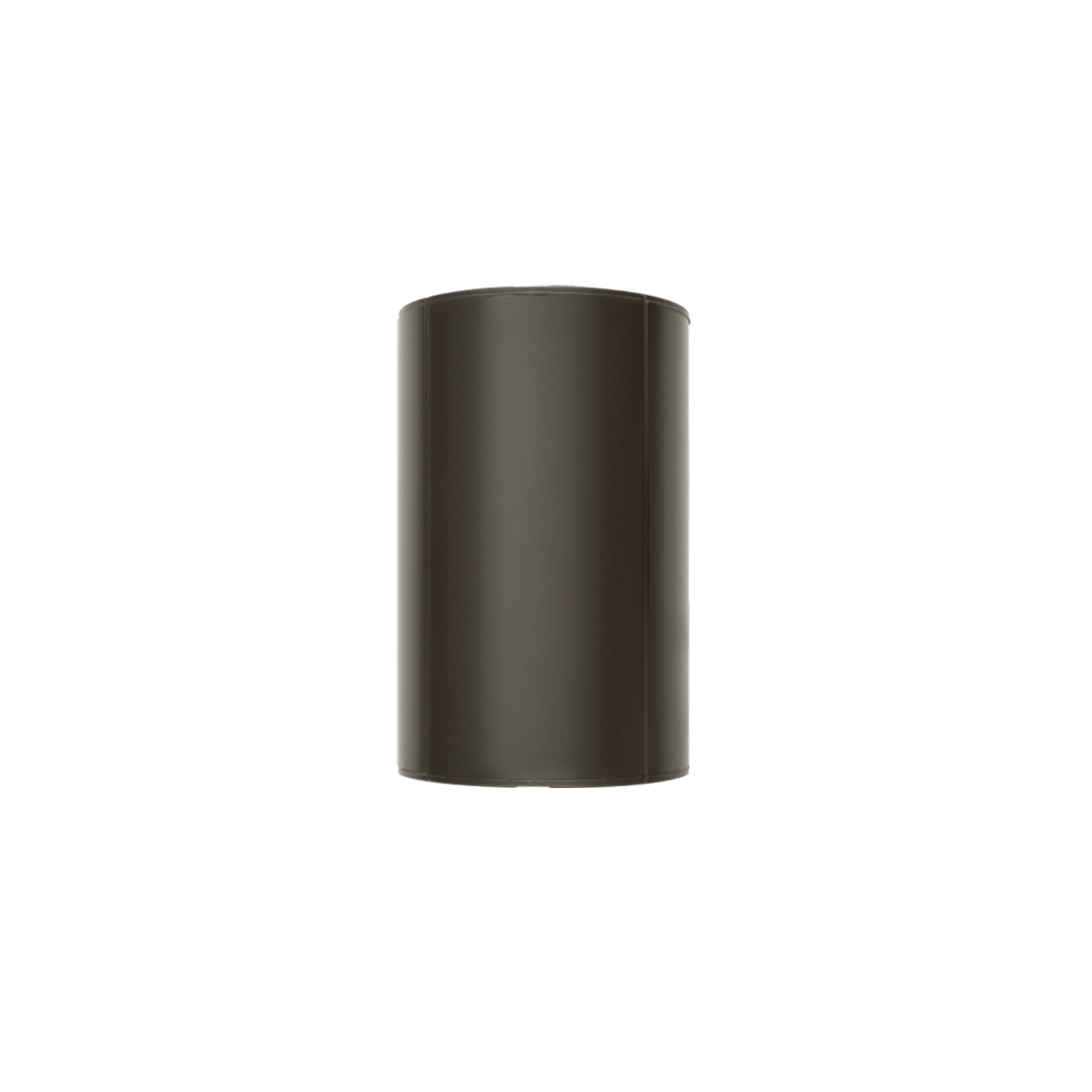

38W Selectable Up/Down Cylinder Wall Sconce








38W Selectable Up/Down Cylinder Wall Sconce








38W Selectable Up/Down Cylinder Wall Sconce
38W Selectable Up/Down Cylinder Wall Sconce
A fully configurable cylinder wall sconce for building facades, pathways, garages, auditoriums, and balconies with independently selectable up/down distribution and beam angle to match almost any lighting application.
- Full directional control with no rewiring — switch between up-only, down-only, or full up/down via DIP switch
- Adapts to most sites and applications — selectable wattage, CCT, and up/down beam angles eliminate guesswork and allow fine-tuning on-site
- Saves energy automatically — built-in dusk-to-dawn photocell turns the fixture on at dusk and off at dawn, no timer needed
A fully configurable cylinder wall sconce for building facades, pathways, garages, auditoriums, and balconies with independently selectable up/down distribution and beam angle to match almost any lighting application.
- Full directional control with no rewiring — switch between up-only, down-only, or full up/down via DIP switch
- Adapts to most sites and applications — selectable wattage, CCT, and up/down beam angles eliminate guesswork and allow fine-tuning on-site
- Saves energy automatically — built-in dusk-to-dawn photocell turns the fixture on at dusk and off at dawn, no timer needed
Choose options
Specs
| Wattage(s) | 19/31/38W Selectable |
| Replaces Wattage(s) | 120W |
| Light Output | 1,220 to 5,475 lm |
| Luminous Efficacy (lm/W) | 128 to 144 lm/W |
| Average Lamp Life | L70: >54,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K Selectable |
| CRI (Color Accuracy) | 80 |
| Dimming | Yes |
| Dimming Range | 0-10V |
| Beam Angle | 25°/75° Selectable |
| Light Distribution Pattern |
Up/Down Selectable (Up Only, Down Only, Full Up/Down)
Learn More
×
Light Distribution OptionsType III Beam ![]() Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles. Type IV Beam ![]() Provides forward directed light with minimal backlighting - great for perimeter installations. Type V Beam ![]() Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations. |
| Lens Cover | Polycarbonate optical lens |
| Installation | Wall Mount |
| Enclosure Rating | IP65, IK10 |
| Light Type | LED 2835 |
| Input Voltage | 120-277VAC, 50/60Hz |
| Driver Type | Constant Current (CC) |
| Power Factor | 0.9 |
| Temperature Rating | -40°C to +50°C (-40°F to +122°F) |
| Housing Material | Aluminum housing; powder coat finish |

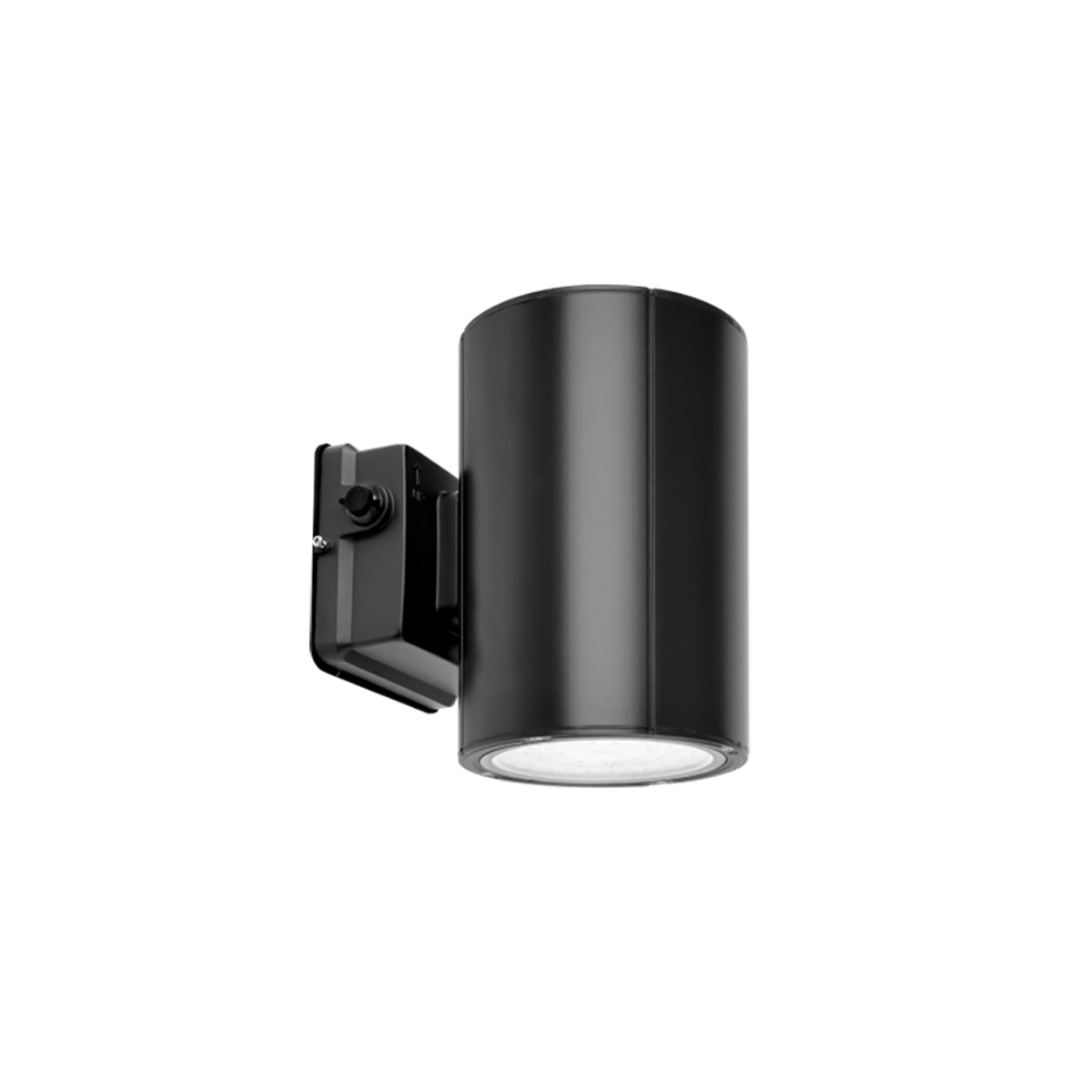

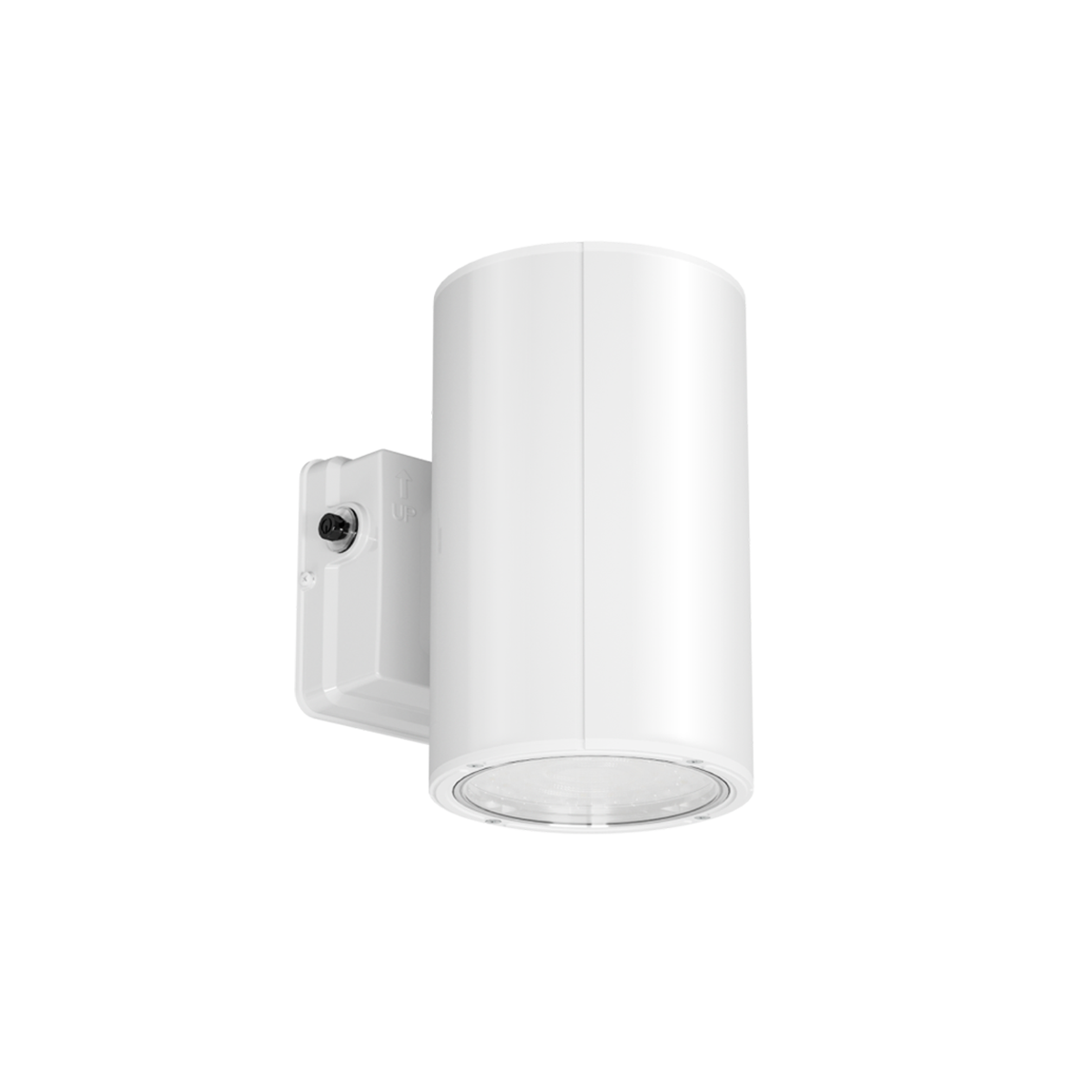

| Housing Color | Dark Bronze, Black, White |

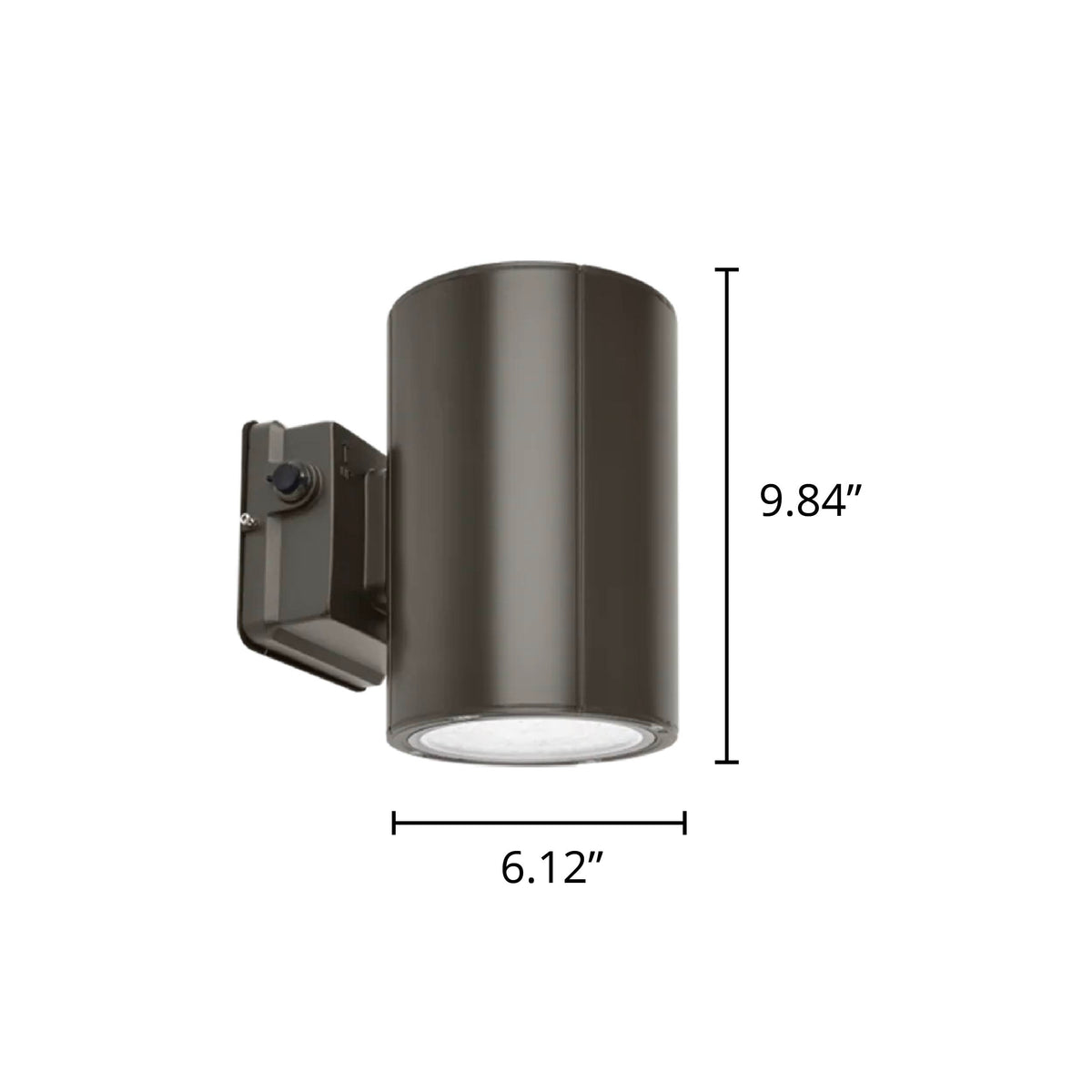

| Dimensions | ø6.12" dia.; 9.84" H x 8.66" W x 5.63" D |
| Weight | 5.6lbs |
| Shipping Weight | 6.0 lbs |
| Package Dimensions | 11.8" x 8.3" x 10.7" |
| Certification | UL Listed |
| Warranty | 5 Years |
Details
The LED Living cylinder wall sconce replaces the need for separate accent, wall-wash, and pathway fixtures — independently controllable up/down apertures, field-selectable beam angles, and on-site CCT and wattage adjustment make it one of the most adaptable wall sconces available at this price point.
Why Choose This Fixture
Most wall sconces are fixed — one beam angle, one distribution pattern, one color temperature. This fixture lets you set the up and down apertures independently, dial in a narrow spot or wide flood per direction, and adjust wattage and CCT on-site. Combined with a built-in photocell and outdoor-rated housing, it covers accent, wall wash, pathway, and direct/indirect architectural applications — all from one SKU, with no rewiring and no reordering if site conditions change.
- Independent Up/Down Distribution Control: Set each aperture independently to up-only, down-only, or full up/down — adapts the same fixture to wall wash, accent, or direct/indirect applications without additional hardware or rewiring.
- Selectable Beam Angle Per Direction: Choose 25° (narrow spot) or 75° (wide flood) independently for the up and down apertures — dial in the right spread for the surface or area being lit without swapping fixtures.
- Field-Selectable Wattage and Color Temperature: Adjust wattage (19/31/38W) and CCT (3000/4000/5000K) on-site via DIP switch — no rewiring, no returns, no reorders if site conditions change.
- Built-In Dusk-to-Dawn Photocell: Integrated photocell automates outdoor operation — turns on at dusk and off at dawn without a separate sensor, timer, or controller.
- Indoor/Outdoor Rated: IP65 weatherproofing and IK10 impact resistance handle demanding outdoor environments — suited for facades, covered walkways, garages, and exposed installations.
- 5-Year Warranty: Backed by a 5-year manufacturer warranty — sold through ELEDLights with full warranty support.
Ideal Applications

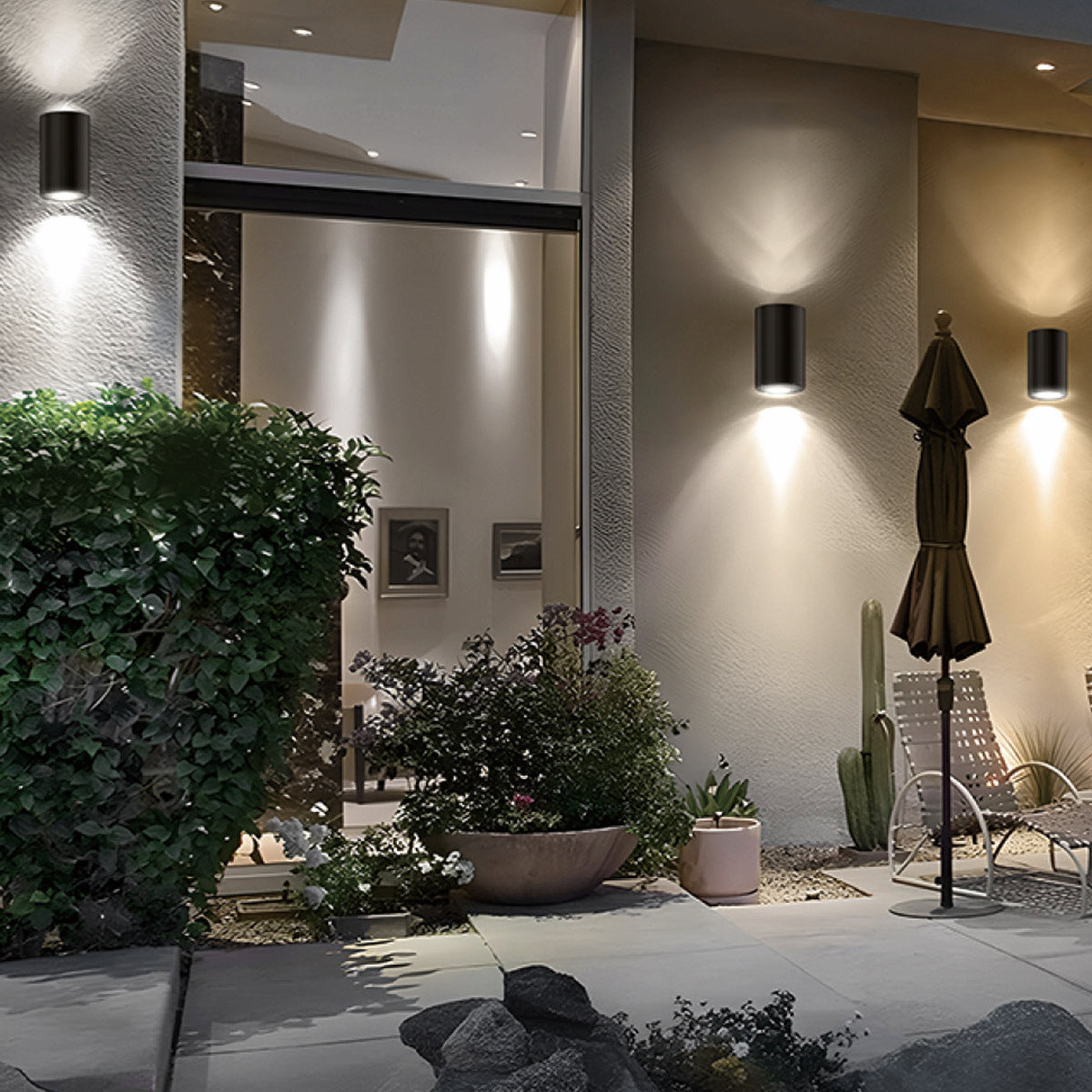

- Building Facades & Exteriors: Full up/down distribution with 75° wide flood, delivering even wall wash coverage suited for commercial buildings, hotels, and institutional exteriors.
- Auditoriums & Theaters: Up-only with 25° narrow spot, creating dramatic indirect uplighting along walls without visible glare from seating areas.
- Pathways & Garages: Down-only with 75° wide flood, illuminating walking surfaces and entry areas efficiently without wasted upward light.
- Balconies & Building Entries: Full up/down with mixed beam angles creates a decorative direct/indirect effect. Warm ambient uplighting combined with functional downlighting gives entries and balconies a welcoming appearance.
- Campus & Institutional Grounds: Down-only or full up/down with selectable CCT adapts to pathway, signage, or accent roles across a single campus. One SKU covers multiple applications without separate fixture orders.
How It Compares
| This Fixture | Standard Wall Sconce | |
|---|---|---|
| Up/Down Distribution Control | Up-only, down-only, or full up/down | Varies — fixed or selectable |
| Beam Angle Selectability | 25° or 75° per direction — adjustable by DIP switch | Fixed, or requires purchase & installation of new optics |
| CCT Selectability | 3000/4000/5000K on-site | Varies — fixed or selectable |
| Efficacy | 128–144 lm/W | 95–100 lm/W |
| Built-In Photocell | Dusk-to-dawn, no extra hardware | Separate sensor required |
| Indoor/Outdoor Rated |
IP65 protection against dust & water + IK10 impact protection for high-traffic areas |
Varies — often IP65 only |
| Risk of Reorder if Site Changes | None — readjust on-site with easy-access DIP switches | New order & swap may be needed |
ELEDLights Stands Behind It
- 5-year warranty. One of the longest in the category.
- DLC 5.1 listed. Qualifies for most utility rebate programs, allowing us to keep your project costs as low as possible.
- US-based support Monday through Friday, 8am to 8pm EST. Call, text, or email a real person.
