2x2 35W Selectable LED Living Troffer
2x2 35W Selectable LED Living Troffer
2x2 35W Selectable LED Living Troffer
2x2 35W Selectable LED Living Troffer
North America and IC-rated for insulated ceilings, this is a dependable, code-ready troffer for standard commercial spaces and TAA-restricted government projects.
- Field-selectable wattage and CCT in one fixture
- 125 lm/W for lower energy bills
- 5-year warranty on every fixture
North America and IC-rated for insulated ceilings, this is a dependable, code-ready troffer for standard commercial spaces and TAA-restricted government projects.
- Field-selectable wattage and CCT in one fixture
- 125 lm/W for lower energy bills
- 5-year warranty on every fixture
Choose options
Specs
| Wattage(s) | 18/26/35W Selectable |
| Replaces Wattage(s) | 80W |
| Light Output | 2,250 to 4,375 lm |
| Luminous Efficacy (lm/W) | 125 lm/W |
| Average Lamp Life | L70: 50,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K |
| CRI (Color Accuracy) | 80 |
| Dimming | Yes |
| Dimming Range | 0-10V |
| Beam Angle | 120° |
| Lens Cover | PMMA diffuser |
| Installation | Recessed; fits standard 2' x 2' T-grid ceiling |
| Light Type | LED 2835 |
| LED Type | LED 2835 |
| Input Voltage | 120-277VAC, 50/60Hz |
| Power Factor | 0.9 |
| Surge Protection | 1kV line-line, 2kV line-earth |
| Temperature Rating | -20°C to +45°C (-4°F to +113°F) |
| Housing Material | Steel housing; aluminum frame; powder coat finish |
| Housing Color | White |

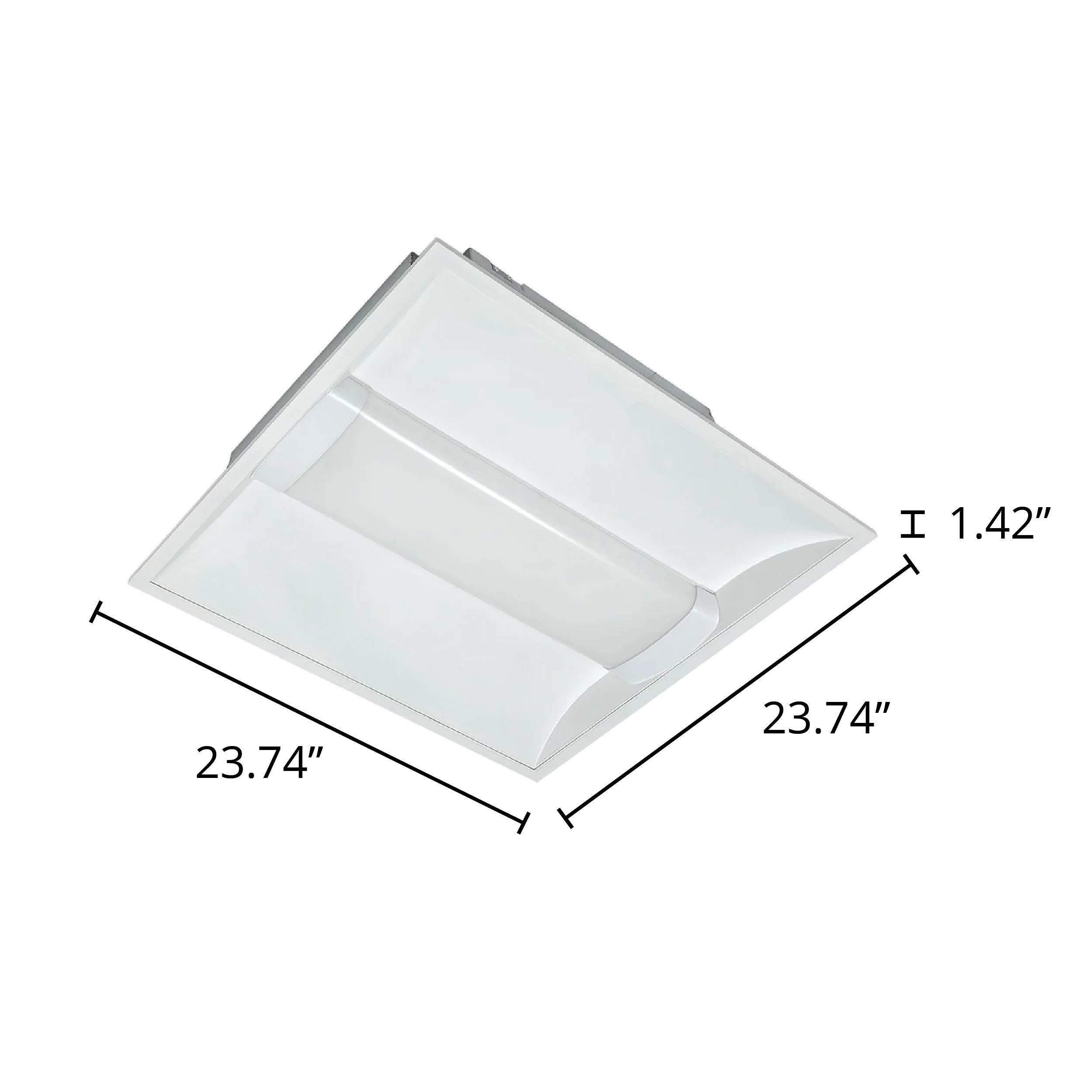

| Dimensions | 23.74" x 23.74" x 1.42" |
| Weight | 4.2 lbs |
| Shipping Weight | 4.7 lbs |
| Package Dimensions | 24.72" x 24.45" x 3.03" |
| Certification | DLC Premium, UL Listed |
| Warranty | 5 Years |
Data SheetDetails
A Reliable Standard for Commercial Spaces — IC-Rated and TAA Compliant
One Fixture, Every Wattage — selectable from 18W to 35W without switching to a different fixture.
Made in North America — TAA compliant and eligible for government, GSA, and other federally funded projects.
What You Get
| Spec | Value | Why It Matters |
|---|---|---|
| Light Output | 2,250–4,375 lm | Scales to match the room without swapping fixtures |
| Efficacy | 125 lm/W | More light per watt, lower energy bills |
| Wattage & CCT | 3 selectable wattages (18/26/35W), 3 CCTs (3500K/4000K/5000K) via DIP switch | No need to special-order three different fixtures |
| Lamp Life | L70: 50,000 hours | Fewer replacements and lower long-term maintenance cost |
| CRI | 80 | Accurate color rendering for offices, classrooms, and hotels |
| Dimming | 0-10V | Compatible with standard commercial dimming controls |
| Enclosure Rating | IC-rated, damp location | Safe for direct contact with ceiling insulation |
| Certifications | DLC Premium, UL | Qualifies for utility rebates; meets safety code |
Dial-In the Exact Lighting Performance You Need:

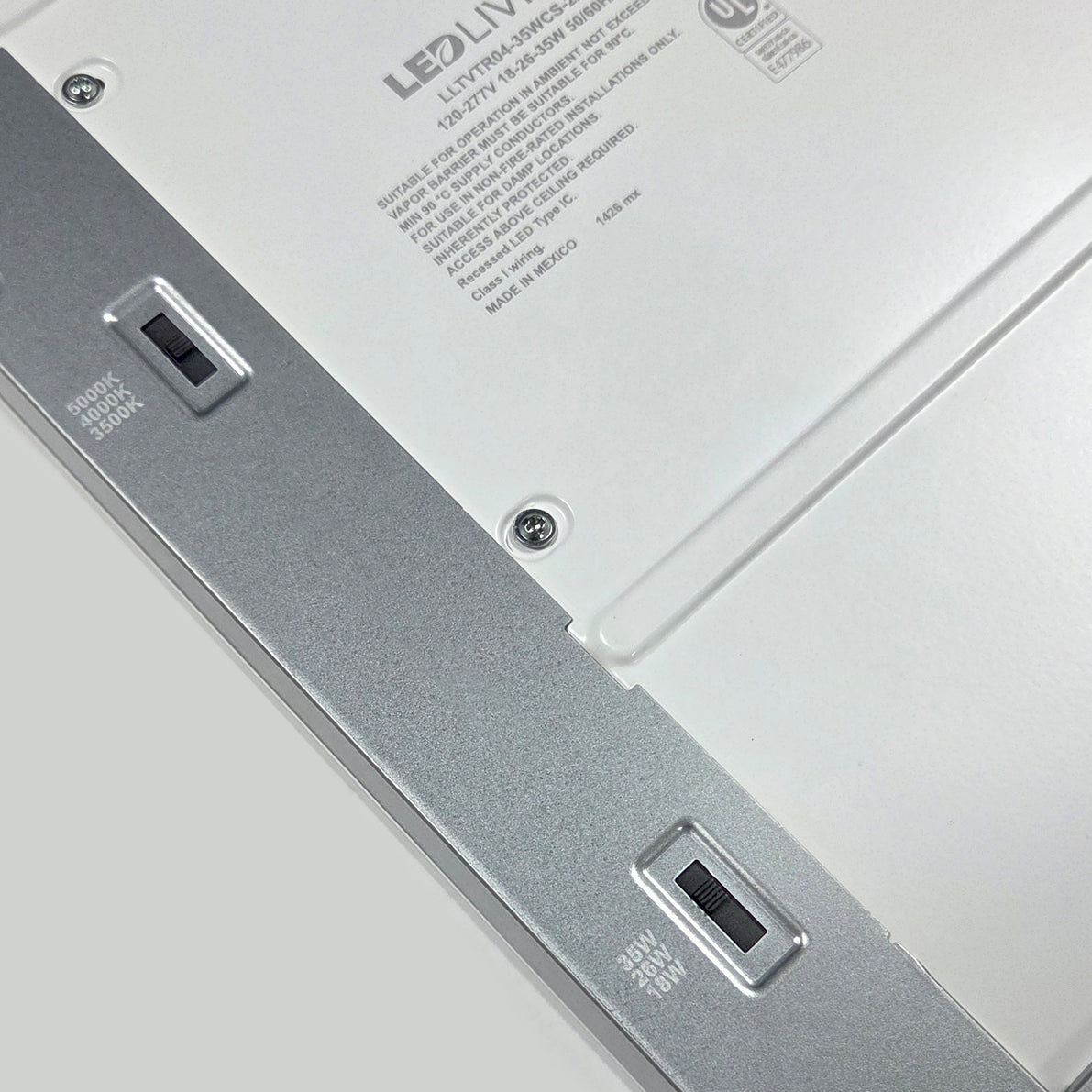

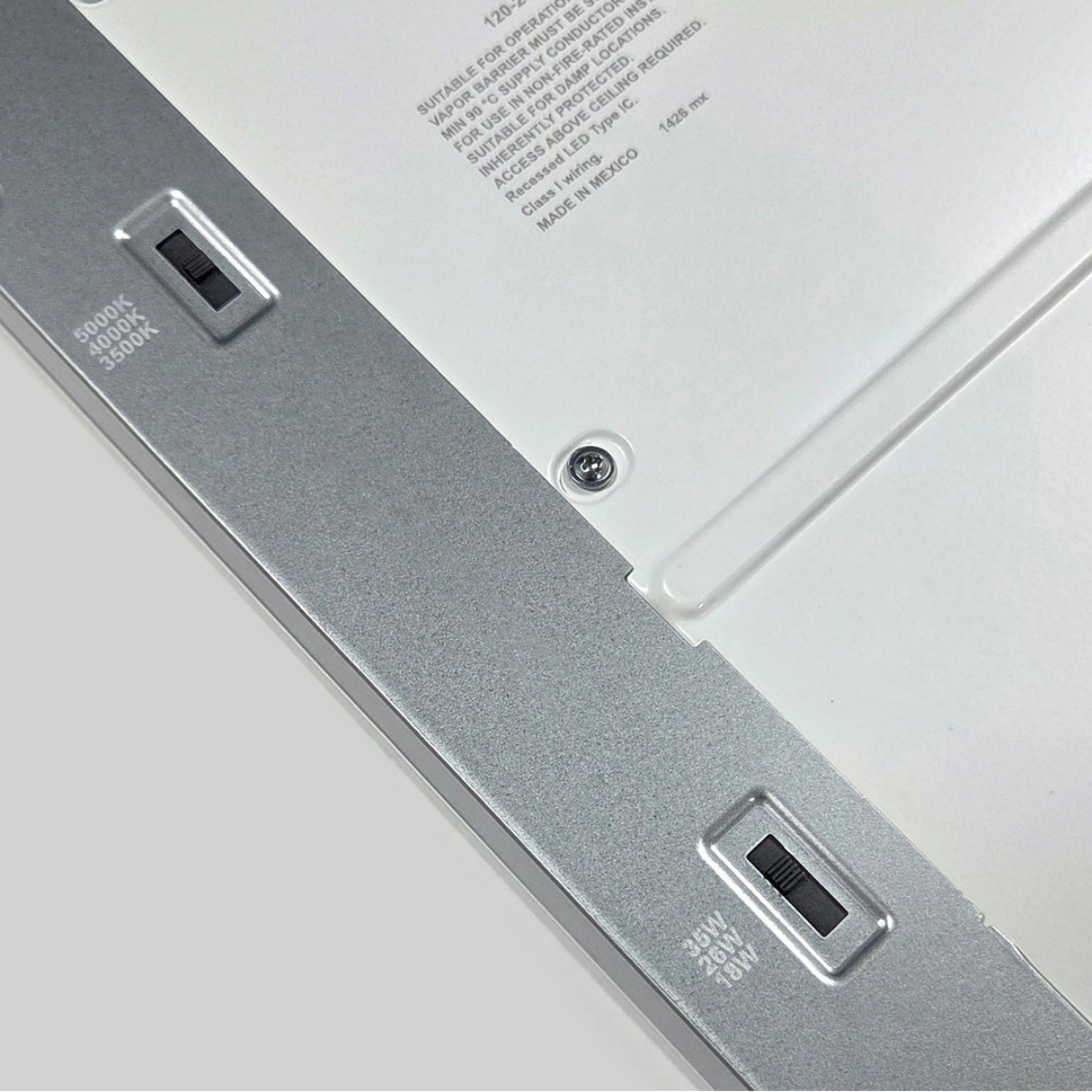

- Selectable Wattage: Choose 18W, 26W, or 35W via DIP switch to match room size and light-level needs.
- Selectable CCT: Choose 3500K, 4000K, or 5000K to fit the space.
- 0-10V Dimming: Compatible with standard dimming controls for added energy savings.
- Standard T-Grid Fit: Recessed installation drops into any standard 2' x 2' grid ceiling.
Built for Long-Term Commercial Performance
- IC-Rated Steel Housing: Meets strict commercial code requirements, including direct contact with insulation.
- 50,000-Hour Rated Life: Fewer replacements and lower maintenance costs over time.
- Built-In Surge Protection: 1kV line-line / 2kV line-earth protects against power spikes.
- Made in North America: TAA compliant, with more reliable supply than overseas imports.

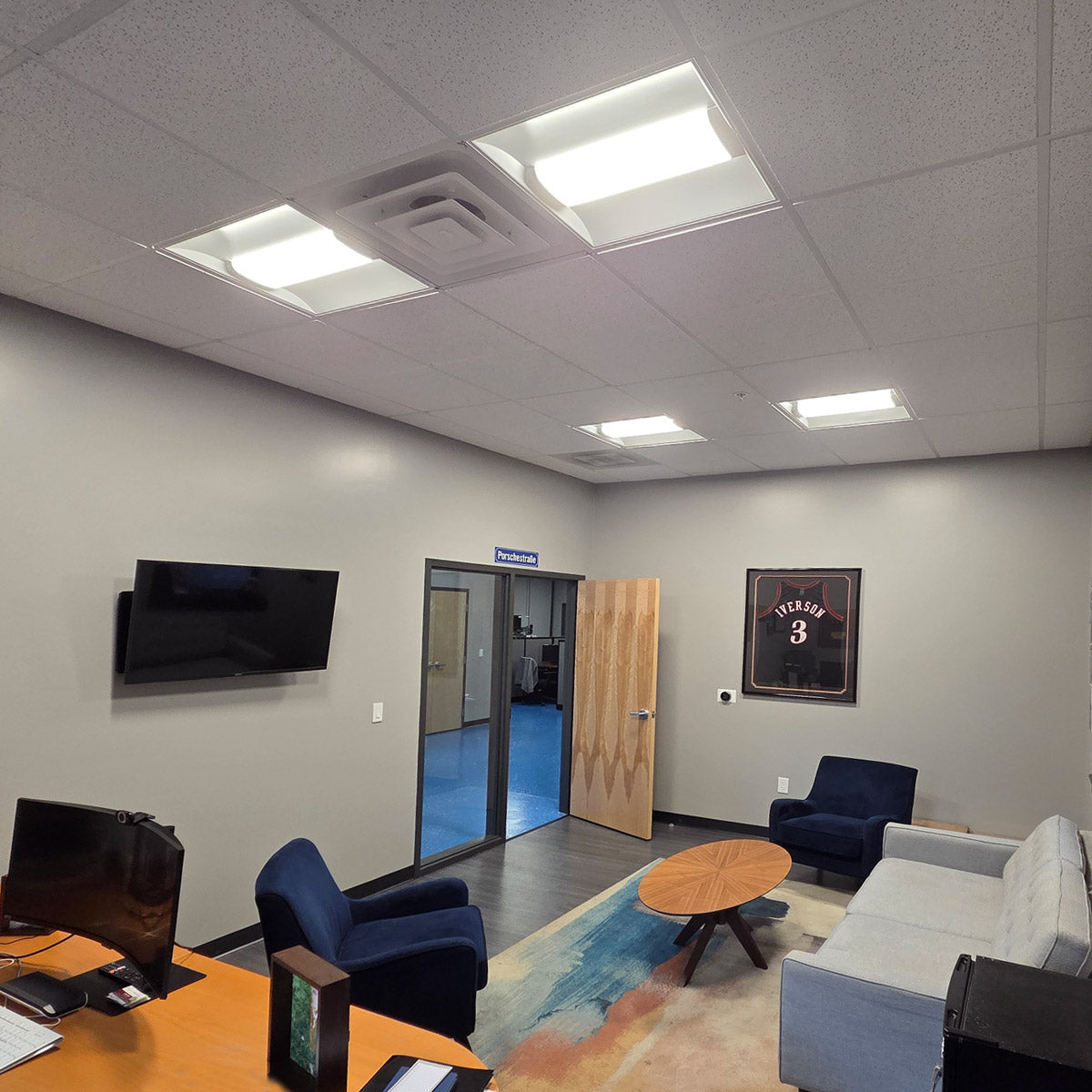

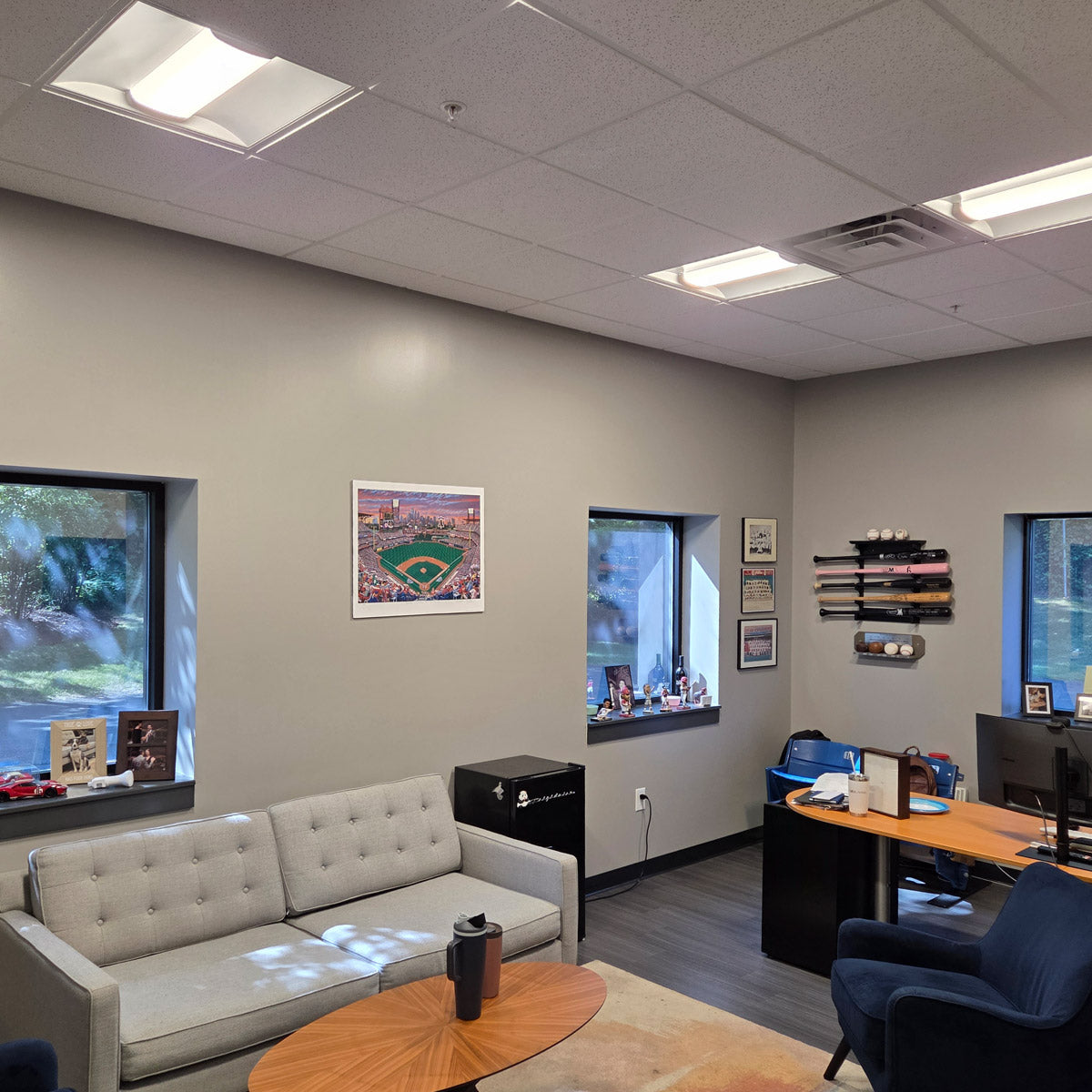

Ideal for offices, classrooms, hotels, retail stores, and other commercial spaces with a standard T-grid ceiling.
